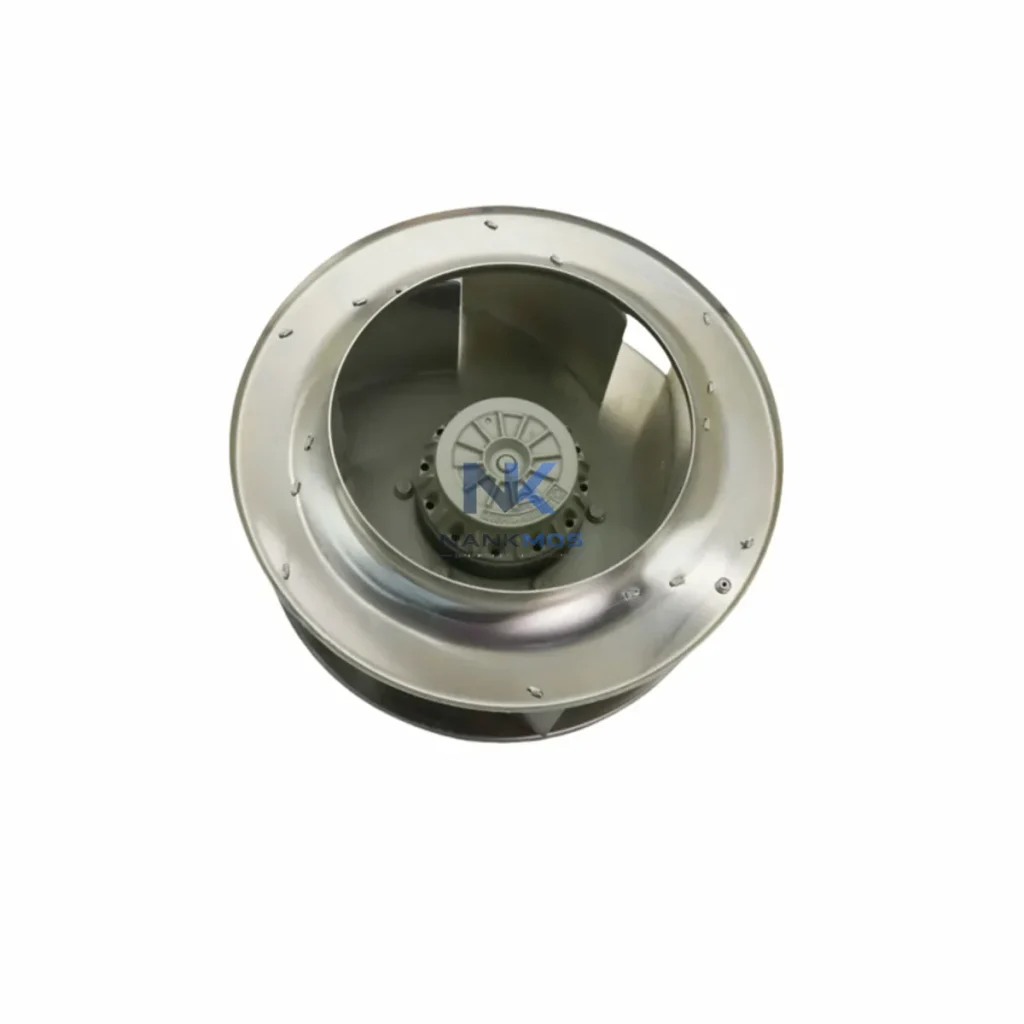

Ziehl-Abegg RH31C-ZID.DC.1R EC Fan Motor

Product Details

RH31C-ZID.DC.1R Product Description

The Ziehl-Abegg RH31C-ZID.DC.1R is a high-efficiency electronically commutated (EC) fan motor from the renowned RH Series, engineered for precision energy control in demanding industrial environments. Combining brushless DC motor technology with integrated speed regulation, this unit delivers measurable reductions in energy consumption, thermal load, and operational downtime — making it a cornerstone component for smart production lines, HVAC-integrated manufacturing cells, and energy-managed factory infrastructure.

Designed and manufactured in Germany to Ziehl-Abegg's exacting quality standards, the RH31C-ZID.DC.1R ships fully tested and is backed by a 12-Month Warranty. In-stock units are available for immediate dispatch, supporting rapid deployment in both greenfield automation projects and retrofit energy-optimization programs.

In a modern smart factory, energy efficiency is not a single-component achievement — it is a system-level discipline. The RH31C-ZID.DC.1R is designed to integrate seamlessly into layered automation architectures where every watt is accounted for and every load is managed intelligently.

At the control layer, the motor responds directly to DC speed-reference signals issued by a Siemens S7-1200 PLC or equivalent programmable logic controller, enabling real-time fan speed modulation based on process demand. This eliminates the energy waste inherent in fixed-speed fan operation — a common source of excess consumption in traditional HVAC and cooling systems. When paired with a Siemens SINAMICS G120 variable frequency drive or a Danfoss FC 102 HVAC drive, the RH31C-ZID.DC.1R can participate in coordinated load-shedding routines, ramping down during low-demand production windows and ramping up precisely when thermal conditions require it.

For power monitoring and energy accounting, the motor's operating data — current draw, speed, and runtime — can be fed into a Schneider Electric PowerLogic PM5000 series power meter or a Siemens SENTRON PAC3200 power monitoring module via the site's energy management system (EMS). This enables granular sub-metering of HVAC energy consumption at the machine or zone level, a prerequisite for ISO 50001 energy management compliance and factory-wide carbon reporting.

At the I/O layer, digital and analog signals from the RH31C-ZID.DC.1R — including fault relay outputs and speed feedback — can be wired into a Siemens ET 200SP distributed I/O station or a Phoenix Contact Axioline F I/O module, allowing the PLC to monitor motor health continuously without dedicated fieldbus hardware. For installations requiring fieldbus integration, the motor's control interface is compatible with gateway modules supporting PROFIBUS DP or PROFINET IO protocols, enabling full integration into a Siemens SIMATIC WinCC SCADA environment for centralized visualization and alarm management.

Operator-level interaction is supported through an HMI panel such as the Siemens SIMATIC HMI KTP700 Basic, where maintenance personnel can view real-time fan speed, energy consumption trends, and fault history without accessing the engineering workstation. This transparency supports proactive maintenance scheduling and reduces unplanned downtime — a direct contributor to improved overall equipment effectiveness (OEE).

Temperature and pressure sensors installed in the ventilation duct or cooling plenum provide the closed-loop feedback that makes demand-controlled ventilation possible. A Endress+Hauser differential pressure transmitter or a Vaisala humidity and temperature sensor can supply the process variable that the PLC uses to calculate the required fan speed setpoint, ensuring the RH31C-ZID.DC.1R operates at exactly the energy level the process demands — no more, no less.

Industrial production lines generate substantial thermal loads through machining, welding, curing, and component testing processes. Unmanaged heat accumulation degrades equipment reliability, shortens insulation life, and forces cooling systems to operate at maximum capacity continuously — a significant and avoidable energy cost. The Ziehl-Abegg RH31C-ZID.DC.1R addresses this challenge directly through its ability to modulate airflow in precise proportion to actual thermal demand.

By replacing fixed-speed fan motors with the RH31C-ZID.DC.1R, facilities typically achieve 30–50% reductions in fan energy consumption, since fan power scales with the cube of speed — halving the speed reduces power consumption to approximately one-eighth. Over a full production year, this translates to measurable reductions in electricity cost, reduced peak demand charges, and lower carbon intensity per unit of output.

Beyond energy savings, the variable-speed operation of the RH31C-ZID.DC.1R directly supports production line rhythm stability. In temperature-sensitive processes such as electronics assembly, pharmaceutical packaging, or precision machining, maintaining consistent ambient conditions prevents thermal drift that can cause dimensional variation, adhesive cure failures, or component stress. The motor's stepless speed control allows the ventilation system to respond within seconds to thermal events, maintaining process stability without operator intervention.

Predictive maintenance integration is another key advantage. Because the RH31C-ZID.DC.1R operates at lower average speeds than a fixed-speed equivalent, bearing wear is reduced proportionally, extending mean time between failures (MTBF). When integrated with a condition monitoring system — such as a vibration sensor connected to a Siemens SIMATIC ET 200SP CM 4xIO-Link master module — early-stage bearing degradation can be detected and scheduled for replacement during planned maintenance windows, eliminating unplanned downtime and its associated production losses.

All units supplied by NANKMOS are sourced from authorized channels, subjected to pre-shipment functional testing, and dispatched with full documentation. The 12-Month Warranty covers manufacturing defects and ensures that your production line investment is protected from the moment of installation.

Q1: What energy savings can I realistically expect from replacing a fixed-speed fan motor with the RH31C-ZID.DC.1R? In most industrial HVAC and process cooling applications, facilities report 30–50% reductions in fan energy consumption after switching to EC motor technology. The actual saving depends on your duty cycle and the proportion of time the system operates below full load. Applications with variable thermal loads — such as batch manufacturing or multi-shift production — typically achieve the highest savings.

Q2: Is the RH31C-ZID.DC.1R compatible with my existing PLC and SCADA infrastructure? Yes. The motor accepts a standard DC control signal for speed reference, which can be generated by any PLC analog output module — including Siemens S7 series, Allen-Bradley CompactLogix, or Mitsubishi MELSEC platforms. For SCADA integration, motor status and speed feedback can be routed through your existing I/O infrastructure or via a PROFIBUS/PROFINET gateway, making it compatible with Siemens WinCC, Ignition SCADA, and similar platforms without requiring dedicated fieldbus hardware on the motor itself.

Q3: Can this motor replace an existing Ziehl-Abegg or third-party fan motor in a retrofit application? The RH31C-ZID.DC.1R is designed for direct replacement in applications requiring a 310mm impeller diameter EC motor with DC control. Before ordering, verify the mounting flange dimensions, impeller diameter, airflow direction, and control signal type against your existing installation. NANKMOS technical support can assist with cross-referencing against legacy Ziehl-Abegg AC motor models or equivalent units from other manufacturers.

Q4: What does the 12-Month Warranty cover, and what is the stock availability? The warranty covers all manufacturing defects in materials and workmanship for 12 months from the date of shipment. Units are in stock and have been functionally tested prior to dispatch. Replacement or repair is provided at no charge for confirmed warranty claims. For lead-time-sensitive projects, contact NANKMOS to confirm current stock levels and arrange priority dispatch.
