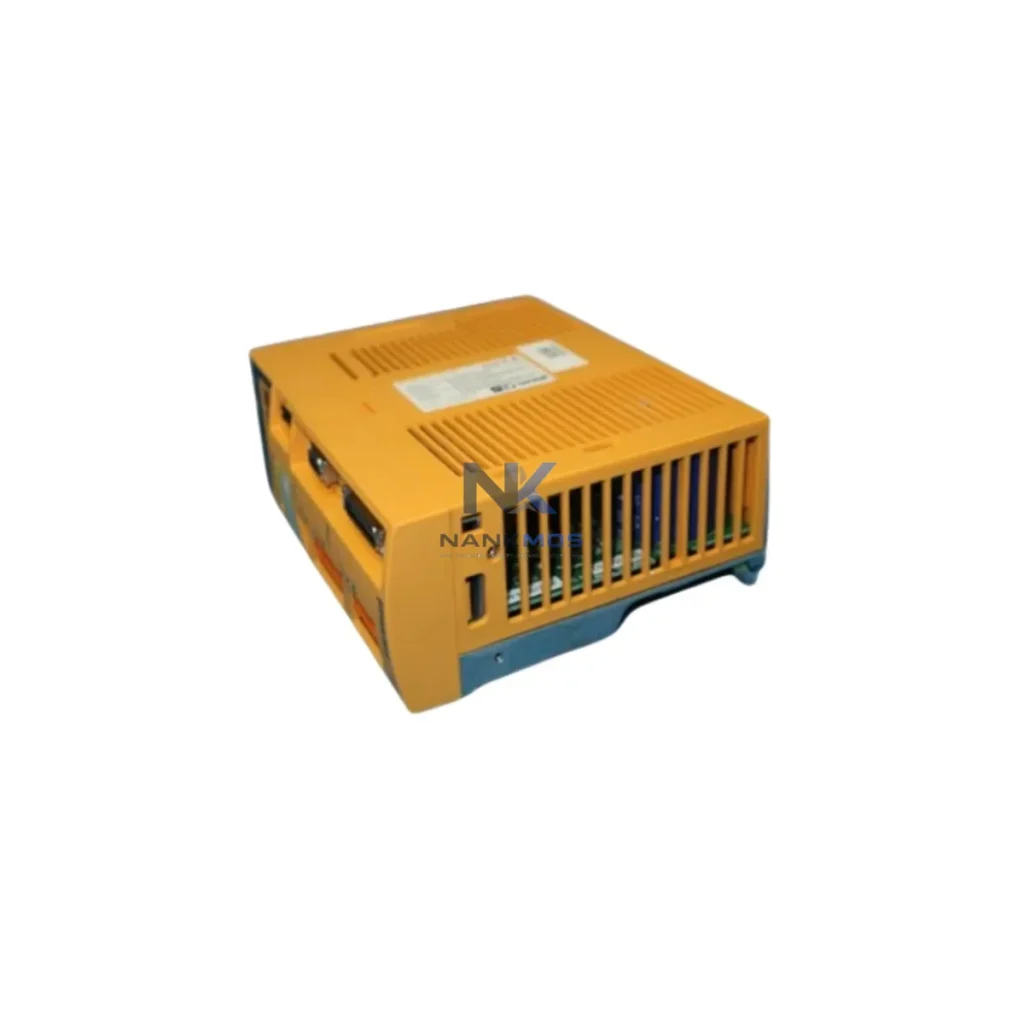

SANMEI RT-001AXE Industrial Network Gateway

Product Details

RT-001AXE Product Description

The SANMEI RT-001AXE is a high-performance industrial network interface gateway engineered for the RT Series automation platform. Designed to bridge the gap between field-level devices and upper-level control systems, the RT-001AXE delivers reliable, real-time data transmission across multi-protocol industrial environments. Whether connecting servo drives, PLCs, remote I/O modules, HMI panels, or SCADA systems, this gateway ensures seamless data flow throughout the entire smart factory architecture — from signal acquisition at the sensor layer to visualization and analytics at the enterprise level.

In modern industrial facilities, the ability to unify disparate communication protocols is no longer optional — it is a prerequisite for operational transparency. The RT-001AXE addresses this need by supporting multiple fieldbus and industrial Ethernet protocols, enabling it to serve as the central communication node in complex, multi-vendor automation networks. Its compact form factor and DIN-rail mounting make it suitable for integration into existing control cabinets without requiring significant infrastructure changes.

The RT-001AXE occupies a critical position in the smart factory data chain. At the field level, sensors and actuators — including pressure transmitters, temperature sensors, and flow meters — generate continuous process data. This data is collected by distributed remote I/O modules and forwarded to the RT-001AXE via RS-485 Modbus RTU, a protocol widely used across SANMEI's RT Series I/O expansion modules. The gateway then performs protocol conversion, translating Modbus RTU frames into EtherNet/IP or Modbus TCP packets suitable for transmission over the plant's industrial Ethernet backbone.

At the controller layer, SANMEI RT Series PLCs and third-party Siemens S7-series controllers receive structured data from the RT-001AXE via PROFIBUS DP or EtherNet/IP. This enables the PLC to execute closed-loop control logic based on real-time field data without communication latency. Simultaneously, SANMEI RT Series servo drives and variable frequency drives (VFDs) connected to the same network segment report operational parameters — speed, torque, fault codes — back through the gateway to the supervisory layer.

HMI panels, such as those in the SANMEI RT-HMI series, subscribe to live data streams from the RT-001AXE, displaying real-time process variables, alarm states, and equipment status on operator workstations. SCADA platforms — including Wonderware, Ignition, and WinCC — connect to the gateway via Modbus TCP or EtherNet/IP, enabling centralized monitoring, historical trending, and alarm management across multiple production lines.

Edge computing gateways deployed alongside the RT-001AXE aggregate data from multiple network segments and push structured datasets to MES or cloud analytics platforms. This architecture supports OEE (Overall Equipment Effectiveness) calculation, predictive maintenance scheduling, and energy consumption monitoring — all critical KPIs in smart factory operations. Industrial Ethernet switches with managed VLAN support ensure network segmentation and traffic prioritization, preventing control traffic from being disrupted by high-volume data uploads.

For energy monitoring applications, the RT-001AXE integrates with SANMEI RT Series power meters and energy monitoring modules, collecting kWh, power factor, and harmonic data from production equipment. This data is forwarded to the SCADA layer for real-time energy dashboards and compliance reporting. The complete data chain — from field sensor to enterprise dashboard — is enabled by the RT-001AXE's multi-protocol bridging capability, making it an indispensable component in any IIoT-ready automation architecture.

Many industrial facilities operate with a mix of legacy fieldbus devices and modern Ethernet-based systems, creating protocol fragmentation that prevents unified monitoring and control. The RT-001AXE resolves this by acting as a transparent protocol converter, allowing Modbus RTU devices — such as older SANMEI RT Series drives and third-party sensors — to communicate seamlessly with EtherNet/IP or PROFIBUS DP networks without requiring hardware replacement.

Data silos are a persistent challenge in multi-vendor automation environments. When PLCs, drives, and I/O modules from different manufacturers use incompatible protocols, production data remains trapped within individual subsystems. The RT-001AXE eliminates these silos by providing a unified data aggregation point, ensuring that all field devices contribute to a single, coherent data stream accessible to SCADA, MES, and analytics platforms.

Remote monitoring and diagnostics are increasingly essential as facilities expand across multiple sites. The RT-001AXE supports remote configuration and diagnostic access via its Ethernet interface, allowing engineers to query device status, review communication logs, and update gateway parameters without on-site visits. Alarm events — including communication timeouts, protocol errors, and device disconnections — are logged and forwarded to the SCADA alarm management system in real time, enabling rapid fault response and minimizing unplanned downtime.

Production line transparency is achieved through continuous data visibility. By connecting previously isolated equipment to the plant network, the RT-001AXE enables operators to monitor cycle times, throughput rates, and equipment utilization from a central HMI or SCADA dashboard. System scalability is supported through the gateway's modular architecture, allowing additional network segments or protocol adapters to be added as production requirements evolve.

Q1: What communication protocols does the SANMEI RT-001AXE support, and is it compatible with third-party PLCs?The RT-001AXE supports Modbus RTU, Modbus TCP, PROFIBUS DP, EtherNet/IP, and CANopen. It is compatible with SANMEI RT Series PLCs as well as third-party controllers from Siemens, Mitsubishi, and Omron that support these standard industrial protocols. No proprietary drivers are required for integration.

Q2: How does the RT-001AXE handle communication latency in real-time control applications?The RT-001AXE is designed for deterministic, low-latency data exchange. Cyclic data updates are processed within milliseconds, making it suitable for real-time closed-loop control applications. Network latency is further minimized by deploying managed industrial Ethernet switches with QoS (Quality of Service) traffic prioritization on the same network segment.

Q3: Can the RT-001AXE be integrated into an existing SCADA or MES system without replacing current infrastructure?Yes. The RT-001AXE is designed for non-disruptive integration. It connects to existing fieldbus networks via RS-485 or PROFIBUS DP and presents data to SCADA and MES platforms via standard Modbus TCP or EtherNet/IP interfaces. Configuration is performed through a USB port or web-based interface, requiring no changes to existing PLC programs or field wiring.

Q4: What quality assurance and warranty coverage does the RT-001AXE include?Every RT-001AXE unit undergoes pre-shipment functional testing, including protocol communication verification, interface integrity checks, and environmental stress screening. The product is backed by a 12-Month Warranty covering manufacturing defects and communication failures. In-stock units are available for immediate dispatch, supporting rapid deployment and minimizing project lead times.
