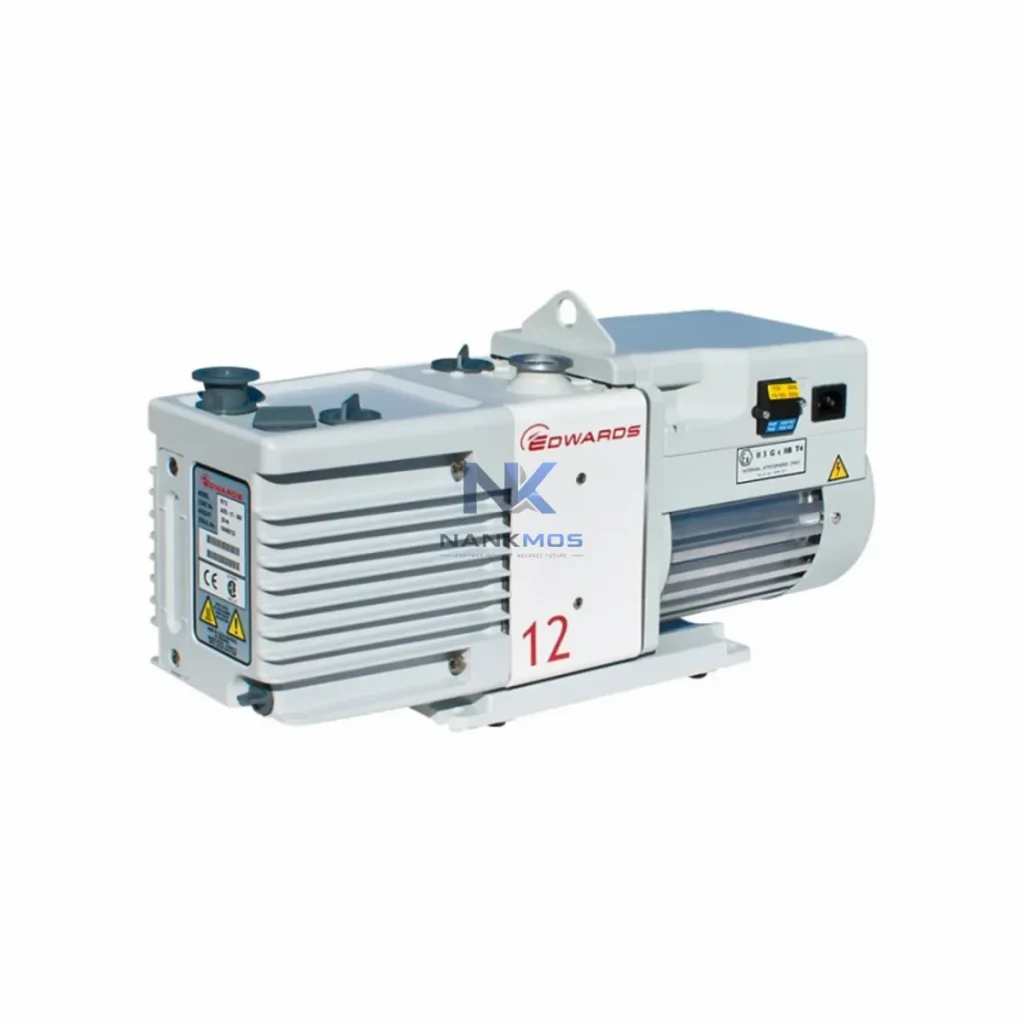

RV12 A655-01-905 3M 0620-02187 79027 QT50RAF-UK Product Description

The Edwards A655-01-905 RV12 rotary vane vacuum pump is engineered to function as a precision vacuum generation node within a layered industrial automation architecture. Rather than operating as a standalone unit, the RV12 is designed for contextual integration across the control layer, process layer, and utility layer of a complete vacuum system.

At the control layer, the RV12 interfaces with programmable logic controllers such as the Siemens S7-1200 or S7-300 series via discrete I/O signals — run/stop commands, fault feedback, and thermal overload status — routed through terminal blocks and marshalling panels. Pressure transducers such as the Edwards WRG-S-NW25 Pirani/Penning combination gauge provide real-time vacuum level feedback to the PLC, enabling closed-loop pressure regulation and automated pump sequencing.

At the power and protection layer, the RV12 motor circuit is protected by motor circuit breakers and thermal overload relays sized to the pump's rated current draw. In cabinet-integrated deployments, the pump is typically paired with a soft-starter or direct-on-line contactor module, with 24 VDC control signals managed through a WAGO 750-series or Phoenix Contact Axioline I/O module connected to the main PLC rack. Signal isolation modules ensure clean separation between the high-voltage motor circuit and the low-voltage control bus.

At the communication layer, vacuum process data — including pump run hours, inlet pressure, and fault codes — can be aggregated via Modbus RTU or PROFIBUS DP gateways into the plant SCADA or DCS platform. In semiconductor, pharmaceutical, and analytical instrument applications, the RV12 is frequently deployed alongside Edwards nXDS scroll pumps or nEXT turbomolecular pumps as a backing pump, forming a two-stage vacuum train that achieves deep vacuum levels required for process chambers and mass spectrometry systems.

At the HMI layer, operators monitor vacuum system status through Siemens TP700 or TP1200 Comfort panels, with pump state, pressure trend, and maintenance interval counters displayed on dedicated vacuum system faceplates. Alarm management is handled through the PLC program, with fault escalation routed to the plant DCS or MES layer for maintenance dispatch.

For redundant vacuum architectures — common in critical process industries such as petrochemical distillation, pharmaceutical lyophilization, and semiconductor epitaxy — a duty/standby RV12 pair is configured with automatic changeover logic. The standby pump is brought online within seconds of a duty pump fault, ensuring uninterrupted vacuum supply to the process. This redundancy scheme is supported by the pump's compact footprint and standardized NW25 inlet connection, which simplifies manifold design and valve integration using Edwards or Leybold vacuum isolation valves.

At the maintenance layer, the RV12's modular vane cartridge design supports in-field oil changes and vane inspection without full pump disassembly. Maintenance intervals are tracked via PLC run-hour counters, with alerts generated at configurable thresholds. Oil mist eliminators — such as the Edwards EMF10 — are installed on the exhaust port to comply with workshop air quality standards and to recover pump oil in high-throughput applications.

Semiconductor & Electronics Manufacturing: The RV12 A655-01-905 serves as a backing pump for turbomolecular pumps in PVD, CVD, and ion implant systems. Its low ultimate pressure and stable pumping speed support the high base-vacuum requirements of process chambers, while its quiet operation is compatible with cleanroom environments.

Pharmaceutical & Lyophilization: In freeze-drying systems, the RV12 provides the primary vacuum stage for condenser chambers. Its oil-sealed design delivers consistent vacuum performance across extended batch cycles, and its compatibility with Edwards Ultragrade oils ensures compliance with pharmaceutical-grade contamination control requirements.

Analytical Instrumentation: Mass spectrometers, electron microscopes, and surface analysis instruments rely on the RV12 as a roughing pump. Its low vibration signature and stable inlet pressure support the sensitive detection systems in these instruments.

Industrial Process Control: In vacuum conveying, degassing, and impregnation systems across food processing, automotive, and general manufacturing, the RV12 is integrated into PLC-controlled vacuum circuits with pressure switches, solenoid valves, and vacuum reservoirs to deliver repeatable process vacuum on demand.

Power Generation & Transformer Maintenance: The RV12 is used in transformer oil degassing and vacuum filling rigs, where it evacuates transformer tanks prior to oil filling. Its robust construction and high gas ballast capacity handle moisture-laden gas loads common in transformer maintenance operations.

Q1: Is the Edwards A655-01-905 compatible with existing RV-series vacuum system manifolds and backing line configurations? Yes. The A655-01-905 uses the standard NW25 (ISO-KF) inlet connection common across the Edwards RV series, including the RV3, RV5, RV8, and RV12 variants. This ensures direct compatibility with existing KF-flanged manifolds, isolation valves, and flexible vacuum hoses without requiring adapters or manifold modifications. The pump's footprint and mounting pattern are consistent with the RV12 platform, supporting drop-in replacement in existing installations.

Q2: How is the RV12 integrated into a PLC-controlled vacuum system for automated process sequencing? The RV12 is controlled via a motor contactor or soft-starter wired to a discrete output from the PLC. Run confirmation is provided by an auxiliary contact on the contactor, and thermal overload fault signals are wired to a discrete input. Inlet pressure is monitored by a Pirani gauge with analog or RS-232 output connected to the PLC's analog input module. The PLC program manages pump start/stop sequencing, gas ballast valve control, and maintenance interval tracking. Full integration with SCADA or DCS platforms is achieved via the PLC's Ethernet or PROFIBUS communication interface.

Q3: What does the 12-Month Warranty cover, and what is the stock and lead time status for the A655-01-905? The 12-Month Warranty covers all manufacturing defects in parts and workmanship from the date of shipment. It includes coverage for vane wear beyond normal service intervals attributable to manufacturing defects, motor winding failures, and shaft seal defects. The warranty does not cover consumable items such as oil, inlet filters, or exhaust filters replaced during routine maintenance. Stock availability for the A655-01-905 is maintained to support rapid dispatch for critical process applications. Lead time and current inventory status are confirmed at the time of order. Contact our technical sales team for real-time stock confirmation and expedited shipping options for urgent project requirements.
