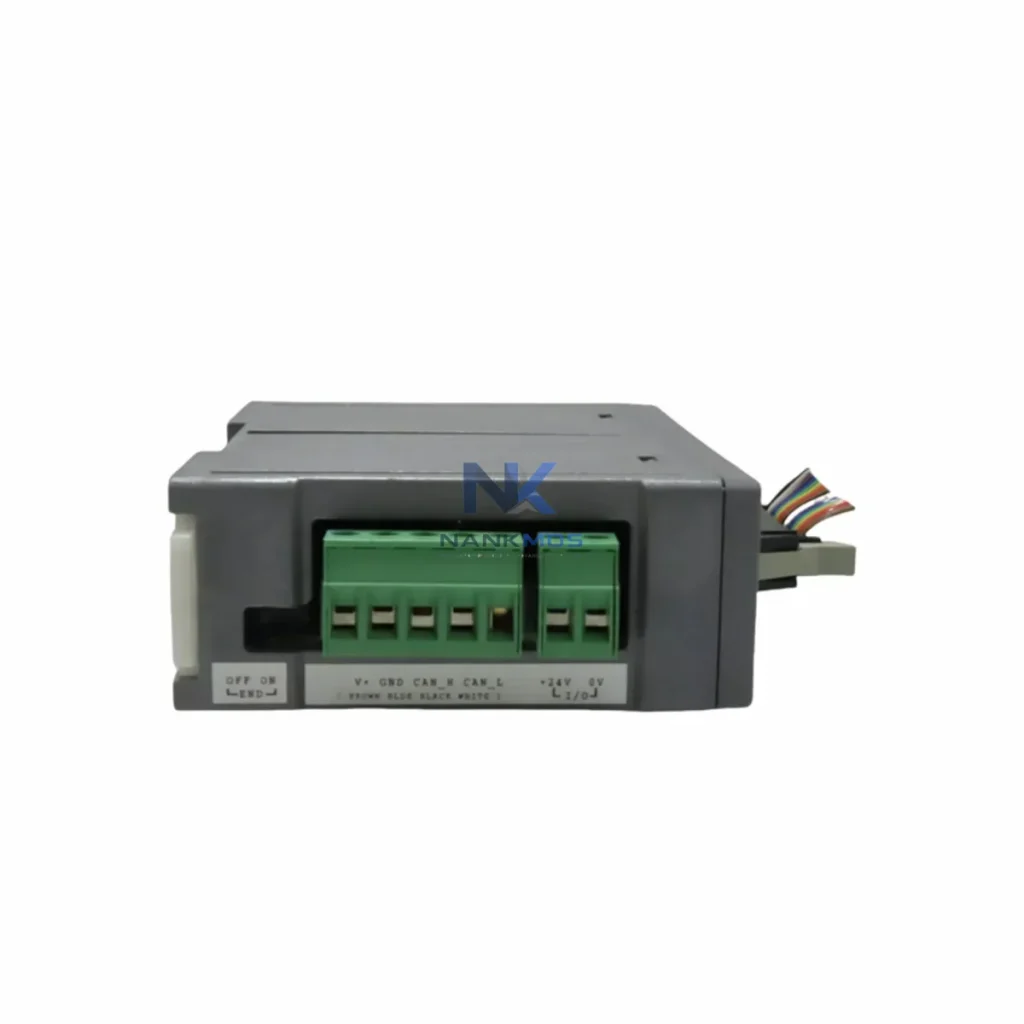

Yamatake SAB10-TS16J3 DCS Communication Gateway

Product Details

SAB10-TS16J3 Product Description

The Yamatake SAB10-TS16J3 is a high-performance DCS communication gateway engineered for the SAB10 series distributed control architecture. Designed to serve as the critical data bridge between field instrumentation, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and upper-level MES systems, the SAB10-TS16J3 delivers seamless protocol conversion, deterministic network transmission, and real-time process visibility across the full automation data chain. In smart factory environments where data continuity and network reliability are non-negotiable, this gateway provides the connectivity backbone that keeps every layer of the control hierarchy synchronized and responsive.

From signal acquisition at the field device level through to data visualization on SCADA dashboards, the SAB10-TS16J3 manages the complete industrial data flow. It interfaces directly with Yamatake SAB10 series field transmitters and control modules, aggregating process variables and device status signals before forwarding structured data packets upstream to supervisory systems. Its multi-protocol support ensures compatibility with both legacy DCS infrastructure and modern Ethernet-based industrial networks, eliminating the data silos that commonly fragment automation sites operating across mixed communication environments.

In a fully connected smart factory, the SAB10-TS16J3 operates at the intersection of field-level sensing and supervisory control. At the lowest layer, Yamatake SAB10 series field transmitters and process sensors deliver analog and digital signals representing temperature, pressure, flow, and valve position. The SAB10-TS16J3 collects these signals through its SAB10 DCS bus interface, digitizes and structures the data, and forwards it upstream via RS-485 Modbus RTU or Industrial Ethernet to the plant's control and monitoring infrastructure.

Within the control layer, Yamatake DCS controllers and third-party PLC platforms — including systems from Siemens, Mitsubishi, and Omron — receive the structured data stream from the SAB10-TS16J3 for closed-loop control execution. Remote I/O expansion modules connected to the same DCS segment benefit from the gateway's aggregation capability, reducing wiring complexity while maintaining deterministic scan cycles. Yamatake SAB10 series analog output modules and digital I/O cards integrate naturally within this architecture, sharing the same communication backbone managed by the SAB10-TS16J3.

At the supervisory layer, SCADA platforms and HMI terminals — whether running on Wonderware, iFIX, WinCC, or Yamatake's own supervisory software — receive live process data from the SAB10-TS16J3 via Modbus TCP or OPC-compatible interfaces. This enables operators to monitor real-time process variables, acknowledge alarms, and execute setpoint adjustments from centralized control rooms or remote workstations. Industrial Ethernet switches deployed in the plant network backbone ensure low-latency, high-availability data transport between the gateway and the SCADA server, with managed switch features supporting VLAN segmentation and redundant ring topologies for fault-tolerant operation.

For edge computing and IIoT applications, the SAB10-TS16J3 can feed data to edge gateway platforms that perform local analytics, anomaly detection, and predictive maintenance calculations before forwarding summarized insights to cloud-based MES or ERP systems. Variable frequency drives (VFDs) controlling pump and motor loads on the same process line can be monitored through the DCS network, with the SAB10-TS16J3 relaying drive status, speed reference, and fault codes to the SCADA historian for trend analysis and energy management reporting. Industrial power supplies and UPS units supporting the control cabinet infrastructure also benefit from network-connected monitoring, with status data aggregated through the same gateway architecture.

Protocol Fragmentation: Many automation sites operate a mix of legacy serial DCS networks alongside modern Ethernet-based control systems. The SAB10-TS16J3 resolves this fragmentation by acting as a transparent protocol bridge, converting SAB10 proprietary DCS bus communications to Modbus RTU/TCP without requiring changes to existing field wiring or controller configurations. This preserves capital investment in installed instrumentation while enabling integration with contemporary SCADA and MES platforms.

Data Silos and Production Transparency: When field devices cannot communicate directly with supervisory systems, process data remains trapped at the device level — invisible to operators and management. The SAB10-TS16J3 eliminates these data silos by providing a structured, network-accessible data path from every connected field instrument to the plant historian and visualization layer. Production managers gain real-time KPI dashboards, shift reports, and OEE metrics derived from live process data rather than manual readings.

Remote Monitoring and Alarm Tracking: Unplanned downtime caused by undetected field device faults is a persistent challenge in process industries. The SAB10-TS16J3 supports remote diagnostic access, allowing maintenance engineers to query device health, communication status, and alarm histories from SCADA workstations or remote terminals without physical site visits. Alarm events are timestamped and forwarded to the SCADA alarm management system, enabling root cause analysis and compliance reporting.

System Scalability: As production capacity expands, the SAB10-TS16J3's modular DCS architecture supports the addition of new field devices and I/O segments without disrupting existing network operation. New SAB10 series modules can be commissioned and integrated into the live network, with the gateway automatically recognizing and routing data from newly added nodes to the supervisory layer.

Every SAB10-TS16J3 unit shipped by NANKMOS undergoes pre-shipment functional testing covering communication link establishment, protocol conversion accuracy, and data integrity verification. Units are supplied with a 12-Month Warranty and are available from stock for immediate dispatch.

Q1: What communication protocols does the Yamatake SAB10-TS16J3 support, and is it compatible with third-party SCADA systems? The SAB10-TS16J3 supports the SAB10 proprietary DCS bus protocol on the field side and provides RS-485 Modbus RTU and Industrial Ethernet connectivity on the supervisory side. This makes it compatible with all major SCADA platforms that support Modbus TCP/RTU or OPC communication drivers, including Wonderware InTouch, Siemens WinCC, GE iFIX, and Inductive Automation Ignition. No custom driver development is required for standard Modbus-based integration.

Q2: How does the SAB10-TS16J3 handle communication latency in time-critical process control applications? The SAB10-TS16J3 is designed for deterministic data exchange within the SAB10 DCS architecture, with scan cycle times optimized for process control applications. Communication latency between field devices and the supervisory layer is minimized through efficient protocol conversion and buffered data handling. For applications requiring sub-100ms response times, the gateway's direct DCS bus interface ensures that process variable updates are transmitted to the control layer without queuing delays.

Q3: Can the SAB10-TS16J3 support network expansion as additional field devices are added to the DCS segment? Yes. The SAB10-TS16J3 is designed to accommodate incremental network expansion within the SAB10 DCS architecture. Additional SAB10 series field modules, analog I/O cards, and communication nodes can be added to the DCS segment and will be automatically recognized by the gateway. The supervisory-side Ethernet or RS-485 connection does not require reconfiguration when new field nodes are commissioned, making the SAB10-TS16J3 a scalable foundation for growing automation networks.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SAB10-TS16J3? All SAB10-TS16J3 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and communication failures under normal operating conditions. Prior to dispatch, each unit undergoes functional testing including DCS bus communication verification, protocol conversion accuracy checks, and Ethernet link establishment tests. Units are shipped from in-stock inventory with full documentation. For replacement or warranty claims, contact [email protected] or call +86 18359268345.
