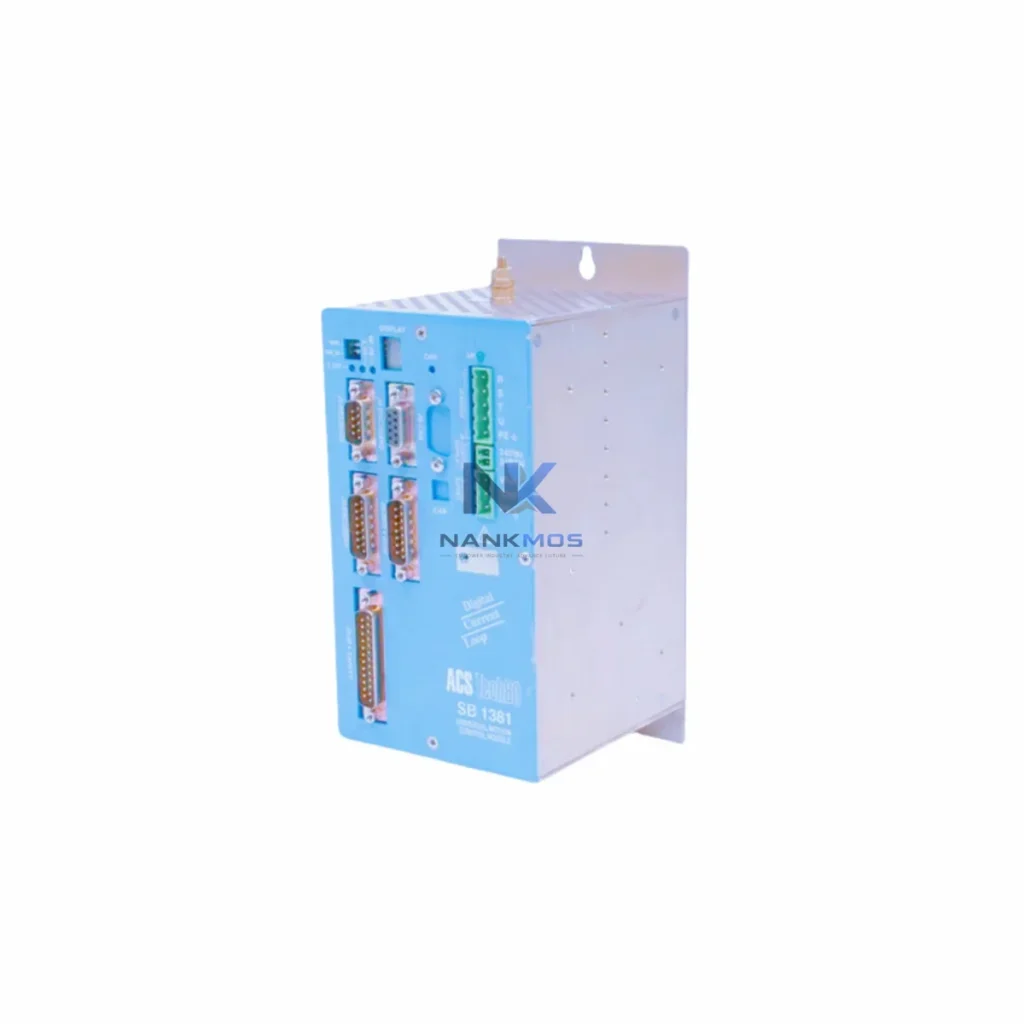

ACS Motion Control SB1381-C-E-R-A Motion Controller

Product Details

SB1381-C-E-R-A Product Description

The ACS SB1381-C-E-R-A is a high-performance, multi-axis EtherCAT motion controller belonging to the ACS Motion Control SPiiPlus SB Series. Engineered for demanding industrial automation environments, this controller functions as the central coordination node within a layered control architecture — managing real-time trajectory generation, closed-loop servo regulation, synchronised multi-axis interpolation, and deterministic EtherCAT fieldbus communication across the full automation stack. Its compact, DIN-rail-mountable form factor and modular I/O expansion capability make it equally suited to standalone machine control and deeply integrated multi-controller system architectures.

In modern smart factory deployments, motion control is never an isolated function. The SB1381-C-E-R-A is designed from the ground up to operate as a coherent element within a broader control hierarchy — interfacing upward to SCADA and MES layers, laterally to safety PLCs and vision systems, and downward to EtherCAT servo drives, distributed I/O nodes, and field-level sensors. This document describes the controller's system role, electrical and communication specifications, integration pathways, and long-term maintenance posture within a complete industrial control architecture.

The SB1381-C-E-R-A achieves its full operational value when deployed as part of a coherent, layered automation platform rather than as a standalone motion node. Within the SPiiPlus SB Series ecosystem, the controller communicates natively with ACS UDMsd and UDMlc EtherCAT servo drives, enabling tight current-loop and velocity-loop closure across all coordinated axes without introducing inter-device latency. The EtherCAT master stack embedded in the SB1381-C-E-R-A supports distributed clock synchronisation, ensuring sub-microsecond jitter across all connected slaves — a prerequisite for high-speed multi-axis contouring and electronic gearing applications.

At the I/O layer, the controller integrates seamlessly with EtherCAT distributed I/O terminals such as Beckhoff EK1100 coupler modules and EL-series I/O slices, or equivalent CoE-compliant I/O slaves, allowing engineers to extend digital and analogue signal capacity without adding controller hardware. For applications requiring analogue process feedback — pressure transducers, load cells, or temperature sensors — signal conditioning modules and analogue input expansion cards can be appended to the EtherCAT ring, maintaining a single deterministic communication backbone from controller to field device.

At the power layer, the SB1381-C-E-R-A's 24 VDC logic supply is typically sourced from a DIN-rail-mounted SITOP or Phoenix Contact QUINT series power supply unit, with a downstream 24 VDC UPS buffer module providing ride-through capability during mains transients. Proper power sequencing — logic supply before drive bus — is enforced through the controller's enable chain, preventing spurious axis enable events during power-up or emergency stop recovery.

For host-level supervision, the SB1381-C-E-R-A connects via Ethernet to a SCADA or MES server running SPiiPlus API calls or OPC-UA gateway middleware, enabling real-time position feedback, alarm aggregation, and recipe management from the plant control room. In applications where a local operator interface is required, an ACS SPiiPlus HMI panel or third-party Weintek/Siemens TP series HMI can be connected via Ethernet, providing axis status visualisation, jog control, and diagnostic readout without requiring a full engineering workstation on the machine.

Safety architecture integration is achieved through the controller's compatibility with Pilz PNOZ or Sick Flexi Soft safety relay modules, which monitor E-stop circuits, light curtain inputs, and door interlock signals. The STO (Safe Torque Off) chain is wired from the safety relay output directly to each connected servo drive's STO input, ensuring that a safety event results in immediate, certified torque removal without relying on the motion controller's software response time. This architecture satisfies PLd/Cat.3 requirements under EN ISO 13849-1 for most machine tool and handling applications.

For multi-controller or large-axis-count systems, the SB1381-C-E-R-A supports master-slave EtherCAT topologies where a primary SB-series controller manages trajectory coordination while secondary controllers handle local axis groups — a common architecture in gantry systems, multi-spindle machining centres, and large-format printing machines. Inter-controller synchronisation is maintained via the EtherCAT distributed clock, with the primary controller acting as the reference clock master.

Cabinet-level integration is completed with Phoenix Contact or Weidmüller terminal blocks and marshalling rails, Wago 750-series fieldbus couplers for legacy sensor integration, and industrial Ethernet managed switches (e.g., Hirschmann RS20 or Moxa EDS-308 series) providing network segmentation between the EtherCAT motion network and the plant Ethernet backbone. Proper network segmentation prevents SCADA polling traffic from interfering with the deterministic EtherCAT cycle.

Semiconductor and Electronics Manufacturing: The SB1381-C-E-R-A is widely deployed in wafer handling, die bonding, and PCB drilling machines where sub-micron positioning repeatability and deterministic multi-axis synchronisation are non-negotiable. The controller's high-bandwidth servo loop closure — combined with EnDat 2.2 or BiSS-C absolute encoder feedback — delivers the position accuracy required for fine-pitch component placement and laser processing applications.

Packaging and Converting Lines: In high-speed packaging machinery, the SB1381-C-E-R-A manages electronic cam profiles for registration control, flying shear synchronisation, and servo-driven format changeover. Its ACSPL+ motion language supports complex cam table definitions and on-the-fly profile switching, enabling rapid product changeover without mechanical adjustment.

Medical Device and Laboratory Automation: Cleanroom-compatible (IP20, low-outgassing materials) and capable of sub-micron incremental moves, the SB1381-C-E-R-A is used in liquid handling robots, imaging stage controllers, and surgical instrument assembly lines. The controller's deterministic EtherCAT cycle ensures that pipetting sequences and imaging triggers are synchronised to within microseconds of the commanded position.

Renewable Energy and Power Generation: In solar panel manufacturing (cell stringing, module lamination) and wind turbine blade production, the SB1381-C-E-R-A coordinates multi-axis handling systems that require both high throughput and gentle, vibration-free motion profiles. The controller's jerk-limited trajectory generator and real-time torque monitoring prevent mechanical stress on delicate workpieces.

Machine Tool and Metal Forming: CNC grinding, EDM, and precision turning applications leverage the SB1381-C-E-R-A's high-speed position capture (hardware latch inputs) and synchronised spindle-to-axis coordination. The controller's support for electronic gearing and cross-coupling compensation makes it suitable for multi-axis contouring on complex 3D surfaces.

Q1: Is the SB1381-C-E-R-A compatible with third-party EtherCAT servo drives, or is it limited to ACS drives? The SB1381-C-E-R-A implements a standard EtherCAT master stack with CoE (CANopen over EtherCAT) support, making it compatible with any CiA 402-compliant EtherCAT servo drive. This includes drives from Kollmorgen, Elmo, Panasonic, and other vendors that implement the CiA 402 drive profile. However, advanced features such as ACS-specific current-loop tuning, distributed clock fine-tuning, and integrated safety diagnostics are fully available only when paired with ACS UDMsd or UDMlc drives. For mixed-vendor architectures, compatibility testing during commissioning is strongly recommended.

Q2: What is the recommended approach for integrating the SB1381-C-E-R-A into an existing SCADA or MES environment? The controller exposes its data model via the SPiiPlus Ethernet API, which can be bridged to OPC-UA using ACS's OPC-UA server software or a third-party gateway. For Siemens TIA Portal or Rockwell FactoryTalk environments, a dedicated OPC-UA client connection is the preferred integration path. Alternatively, the controller supports direct Modbus TCP communication for legacy SCADA systems. All integration configurations should be validated in a staging environment before deployment to production, and network segmentation between the EtherCAT motion network and the plant Ethernet backbone must be maintained to preserve deterministic motion performance.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty service? The 12-Month Warranty covers all hardware defects in materials and workmanship, firmware integrity as shipped, and factory functional test certification. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorised firmware modification. To initiate a warranty claim, contact NANKMOS at [email protected] with the unit's serial number, purchase date, and a description of the observed fault. NANKMOS will coordinate with ACS Motion Control's authorised service network to arrange inspection, repair, or replacement. Typical warranty response time is 5–10 business days for initial assessment. Replacement units are shipped with a renewed 12-Month Warranty from the date of dispatch.
