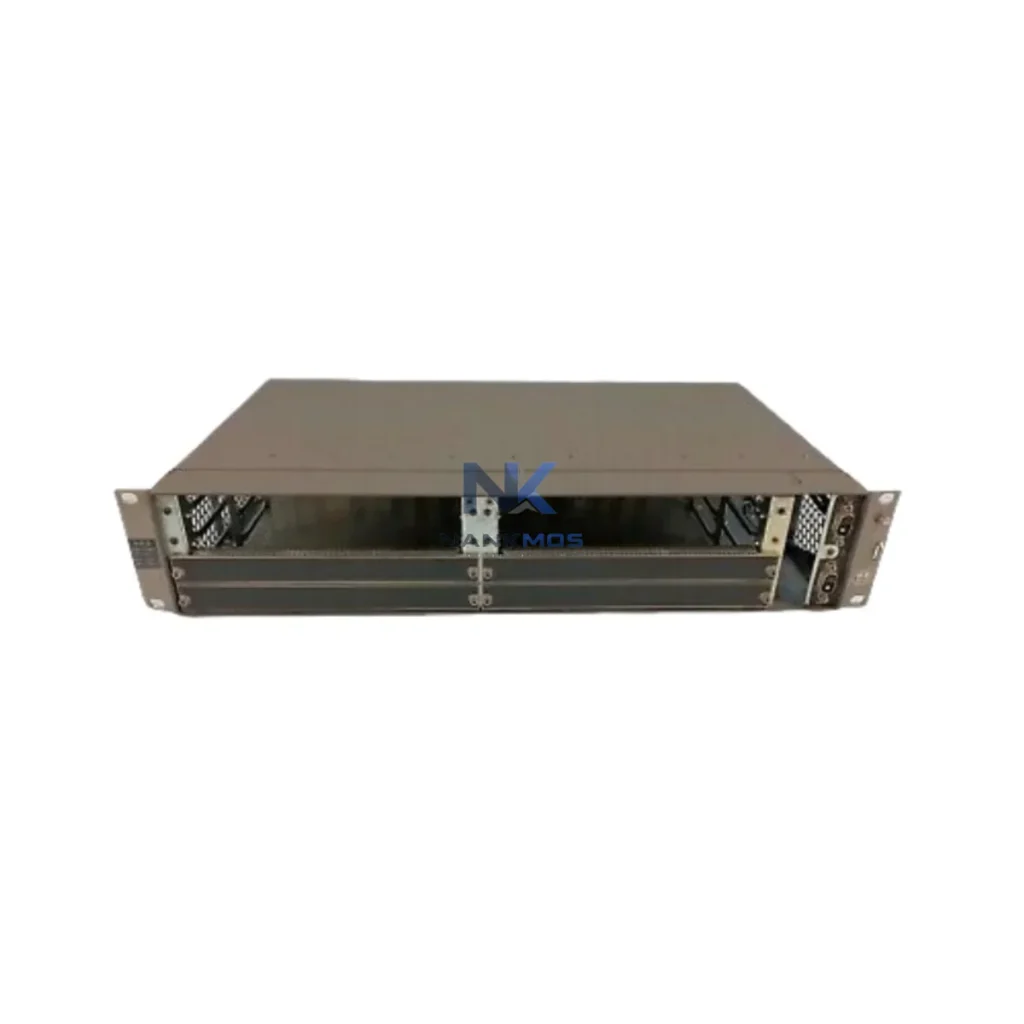

SP+SAR-8-E-M0 SP+SAR-8-E-MO Product Description

The ACS Motion SP+SAR-8-E-M0 is a high-performance, energy-control motion controller from ACS Motion Control's SPiiPlus platform, engineered for demanding multi-axis industrial automation environments. Designed to minimize unnecessary energy consumption across servo drive systems, this controller delivers precise trajectory planning, real-time axis synchronization, and intelligent power management — making it a cornerstone component for factories pursuing measurable energy efficiency and production line optimization.

Built on ACS Motion Control's proven SPiiPlus architecture, the SP+SAR-8-E-M0 supports up to 8 coordinated axes, enabling complex motion profiles with minimal computational overhead. Its energy-aware control algorithms actively reduce reactive power losses and unnecessary holding torques during idle phases, directly lowering the thermal load on servo amplifiers and drive cabinets. This translates to reduced cooling requirements, extended component lifespan, and lower total energy cost per production cycle.

The SP+SAR-8-E-M0 is designed to operate as the intelligent core of a power-aware automation cell. In a typical smart production line, it connects via EtherCAT to ACS Motion Control's own servo drive modules — such as the ACS UDMlc or ACS UDMsd multi-axis drive units — enabling synchronized, low-latency axis control with minimal bus overhead. This tight integration eliminates redundant command cycles that waste both processing time and electrical energy.

For broader plant-level energy visibility, the SP+SAR-8-E-M0 pairs naturally with power monitoring modules such as Schneider Electric's PowerLogic PM5000 series or Siemens SENTRON PAC3200, which capture real-time kWh consumption per axis group and feed data upstream to a SCADA system — for example, Wonderware InTouch or Siemens WinCC — where energy KPIs are tracked against production throughput targets.

On the PLC side, the controller integrates seamlessly with Beckhoff CX series or Siemens S7-1500 PLCs via standard Ethernet or EtherCAT bridging, allowing the motion controller to receive production schedule signals and dynamically adjust axis velocity profiles to match line takt time — reducing peak power demand during acceleration phases. An HMI panel such as the Siemens TP1200 Comfort or Beckhoff CP2916 provides operators with real-time axis status, energy consumption trends, and alarm management without requiring separate SCADA access.

For I/O integration, the SP+SAR-8-E-M0 supports connection to distributed EtherCAT I/O terminals — such as Beckhoff EL series modules — enabling direct feedback from proximity sensors, encoder inputs, and safety relays. This allows the controller to implement position-based power gating: servo drives are de-energized or placed in low-power standby when no motion command is active, a strategy that can reduce standby energy consumption by 15–30% in high-dwell-time applications.

Temperature and vibration sensors connected through the I/O bus provide continuous health signals to the motion controller's onboard diagnostics engine, supporting predictive maintenance workflows. When integrated with a CMMS or MES platform, these signals trigger maintenance work orders before thermal runaway or mechanical wear causes unplanned downtime — preserving both energy efficiency and production continuity.

In high-throughput manufacturing environments — semiconductor wafer handling, PCB assembly, medical device production, or precision optics — the SP+SAR-8-E-M0 delivers energy optimization at the motion layer, where the largest share of electrical consumption occurs. By executing smooth, jerk-limited motion profiles, the controller reduces the peak current draw that drives up demand charges on industrial electricity tariffs. Coordinated multi-axis moves are planned to distribute acceleration loads across axes sequentially rather than simultaneously, flattening the power demand curve.

During production pauses — shift changes, material replenishment, or recipe changeovers — the SP+SAR-8-E-M0 automatically transitions connected servo drives into a configurable low-power hold state, maintaining encoder position feedback while cutting motor excitation current. This approach eliminates the energy waste common in older motion systems that maintain full servo torque during idle periods.

The controller's real-time cycle time monitoring capability allows production engineers to identify axes operating below optimal velocity — a common source of hidden energy inefficiency — and retune motion parameters without halting the line. Over a full production shift, these micro-optimizations compound into measurable reductions in kWh per unit produced, directly improving the factory's energy intensity metric.

Pre-shipment functional testing is performed on every SP+SAR-8-E-M0 unit before dispatch, covering axis communication integrity, drive bus enumeration, and motion profile execution under load simulation. Combined with a 12-month warranty, this ensures that the controller arrives ready for immediate integration into your production environment — minimizing commissioning time and protecting your capital investment.

NANKMOS maintains verified inventory of the SP+SAR-8-E-M0 and can support urgent procurement requirements with fast dispatch. Whether you are replacing a failed unit in a running line or building out a new automation cell, our stock availability and pre-shipment testing process reduce your exposure to unplanned downtime.

Q1: What measurable energy savings can the SP+SAR-8-E-M0 deliver in a production environment? The SP+SAR-8-E-M0 reduces energy consumption primarily through idle-phase power gating and jerk-limited motion profiling. In applications with significant dwell time between motion cycles — common in pick-and-place, inspection, and assembly lines — standby servo energy draw can be reduced by 15–30%. Actual savings depend on duty cycle, number of axes, and drive configuration.

Q2: Is the SP+SAR-8-E-M0 compatible with third-party PLCs and SCADA systems? Yes. The controller communicates via EtherCAT and standard Ethernet, making it compatible with major PLC platforms including Siemens S7-1500, Beckhoff CX series, and others that support EtherCAT master or standard TCP/IP communication. SCADA integration is achieved through OPC-UA or direct Ethernet data exchange, compatible with Wonderware, WinCC, and FactoryTalk platforms.

Q3: Can the SP+SAR-8-E-M0 replace an existing ACS SPiiPlus controller in a running system? In most cases, yes. The SP+SAR-8-E-M0 is part of the ACS SPiiPlus family and shares the same programming environment (ACSPL+) and drive bus architecture. Replacement typically requires re-loading the existing motion program and verifying axis configuration parameters. NANKMOS recommends a pre-replacement functional test of the new unit, which is included in our standard pre-shipment testing process.

Q4: What does the 12-month warranty cover, and what is the supply lead time? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, starting from the date of shipment. Every unit undergoes pre-shipment functional testing covering communication, axis enumeration, and motion execution. NANKMOS maintains stock of the SP+SAR-8-E-M0 for fast dispatch; contact us at [email protected] or +86 18359268345 to confirm current availability and lead time for your order.
