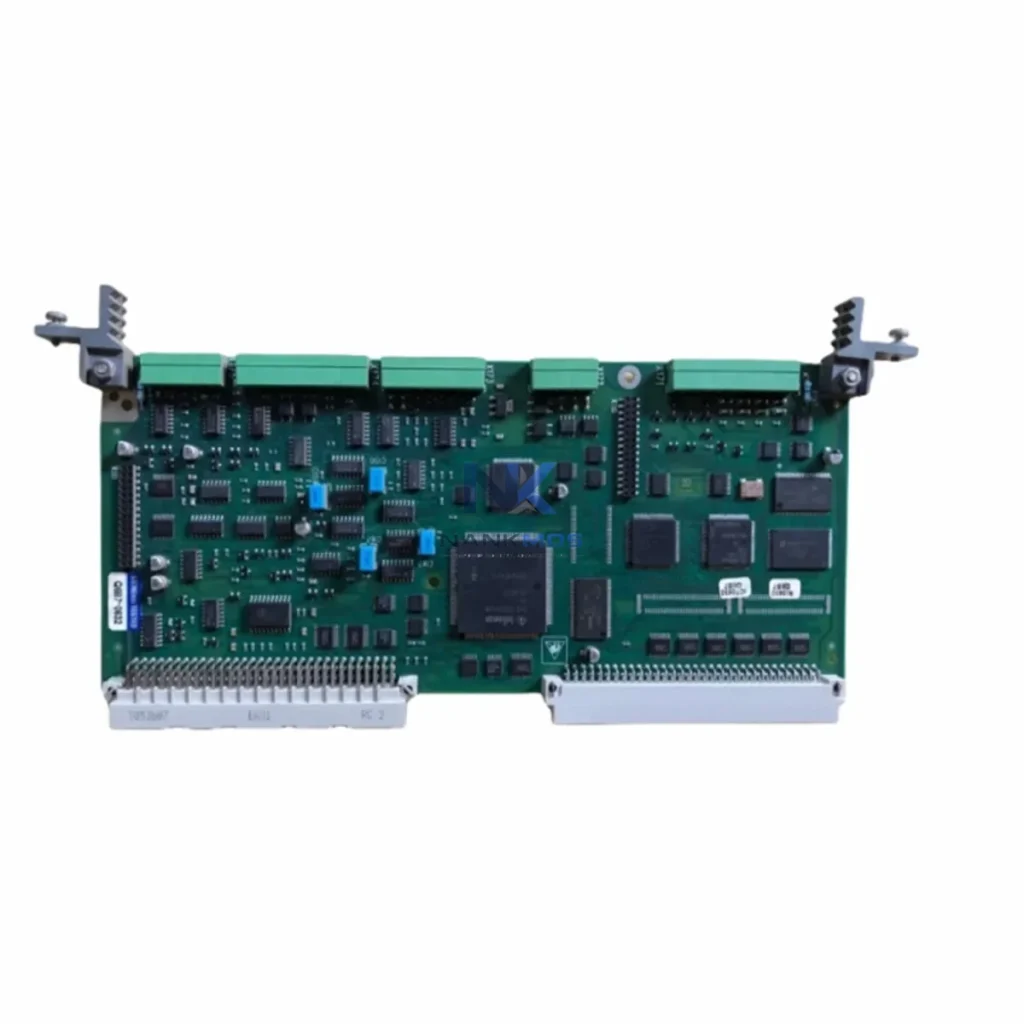

KRAUSS MAFFEI SE502 Fieldbus Communication Control Board

Product Details

SE502 Product Description

The KRAUSS MAFFEI SE502 is a high-performance fieldbus communication control board engineered for injection molding systems and broader industrial automation environments. Designed to bridge the gap between machine-level field devices and upper-level control architectures, the SE502 delivers reliable, real-time data exchange across PROFIBUS, DeviceNet, and compatible fieldbus protocols. In smart factory deployments where production transparency, remote diagnostics, and system interoperability are non-negotiable, the SE502 serves as the critical network node that keeps every layer of the automation stack connected and synchronized.

From signal acquisition at the sensor level through to data visualization on SCADA dashboards, the SE502 participates in every stage of the industrial data chain. Field sensors — including temperature probes, pressure transducers, and position encoders mounted on injection molding machines — feed raw process data into the SE502's fieldbus interface. The board normalizes and encapsulates this data into structured protocol frames, forwarding it upstream to PLC controllers such as the SIEMENS S7-300 or S7-400 series, which execute closed-loop control logic based on real-time process values. This tight integration between field instrumentation and programmable logic ensures that mold clamping pressure, barrel temperature, and screw rotation speed are continuously monitored and adjusted within defined tolerances.

Within the network architecture, the SE502 operates alongside remote I/O modules — such as the SIEMENS ET 200S or ET 200M distributed I/O stations — to extend the control reach of the central PLC across large machine footprints or multi-zone production cells. By aggregating I/O signals from distributed field points and transmitting them over a single fieldbus segment, the SE502 reduces wiring complexity, lowers installation costs, and improves signal integrity across the production floor. This distributed I/O topology is particularly valuable in injection molding facilities where hydraulic, pneumatic, and thermal subsystems are physically separated but must operate in coordinated sequence.

Protocol conversion is one of the SE502's most strategically important functions. In mixed-protocol environments — where legacy PROFIBUS DP devices coexist with newer PROFINET or DeviceNet nodes — the SE502 acts as a transparent gateway, translating data frames between incompatible communication standards without introducing latency or data loss. This capability allows plant engineers to integrate older KRAUSS MAFFEI injection molding machines into modernized automation networks without replacing existing field instrumentation. Edge gateways such as the Moxa MGate series or HMS Anybus gateways can be deployed in parallel with the SE502 to further extend protocol bridging to Ethernet-based industrial networks, enabling seamless connectivity to MES and ERP platforms.

At the HMI and SCADA layer, the SE502 enables operators to monitor injection cycle parameters, track alarm histories, and visualize production KPIs in real time. HMI panels — including SIEMENS SIMATIC TP700 or TP1200 Comfort series — connected to the PLC network receive live process data sourced through the SE502's fieldbus link, displaying mold temperature profiles, injection pressure curves, and cycle time trends on intuitive operator screens. SCADA platforms such as WinCC or iFIX subscribe to the same data streams, enabling supervisory-level monitoring across multiple production lines from a centralized control room. This end-to-end data visibility is the foundation of production transparency in smart factory operations.

Remote diagnostics and predictive maintenance are further enhanced by the SE502's network-connected architecture. Maintenance engineers can query device status registers, read diagnostic counters, and retrieve fault logs from the SE502 over the fieldbus network without physically accessing the machine. When integrated with industrial switches — such as the SIEMENS SCALANCE X series or Hirschmann RS20 managed switches — the SE502's network traffic can be monitored for anomalies, enabling early detection of communication faults, cable degradation, or node failures before they escalate into unplanned downtime. This remote diagnostic capability is especially valuable in multi-shift injection molding operations where machine availability directly impacts production output.

Variable frequency drives (VFDs) controlling hydraulic pump motors and cooling fan systems on injection molding machines also benefit from the SE502's fieldbus connectivity. Drives such as the ABB ACS880 or SIEMENS SINAMICS G120 can be integrated into the PROFIBUS network via the SE502, allowing the PLC to dynamically adjust motor speed setpoints based on real-time process demand. This closed-loop drive control reduces energy consumption during low-load injection phases and extends motor service life by eliminating unnecessary full-speed operation. The SE502 thus contributes not only to data connectivity but also to energy efficiency and operational sustainability in smart manufacturing environments.

Industrial power supplies — such as the PHOENIX CONTACT QUINT series or SIEMENS SITOP PSU100S — provide the stable 24 VDC supply required by the SE502 and associated fieldbus nodes. Proper power architecture ensures that communication integrity is maintained even during voltage transients caused by large motor starts or welding operations on the production floor. The SE502's robust hardware design, combined with a stable power supply infrastructure, supports continuous 24/7 operation in demanding injection molding environments.

Every KRAUSS MAFFEI SE502 unit shipped by NANKMOS undergoes pre-shipment functional verification, including fieldbus communication testing, protocol handshake validation, and interface integrity checks. This ensures that each unit arrives ready for immediate integration into your automation network. In-stock availability supports rapid deployment for both new installations and replacement scenarios, minimizing production downtime. All SE502 units are covered by a 12-Month Warranty, providing assurance of product quality and long-term operational reliability.

In a fully connected injection molding cell, the SE502 anchors the fieldbus segment that links field instrumentation to the control and supervisory layers. At the lowest level, sensors and actuators — pressure transducers, thermocouple modules, hydraulic valve positioners — connect to SIEMENS ET 200S remote I/O stations distributed across the machine frame. These I/O stations communicate upstream to the central SIEMENS S7-400 PLC via PROFIBUS DP, with the SE502 serving as the network interface board that manages bus arbitration and data framing. The PLC executes injection cycle logic — controlling screw advance speed, hold pressure, cooling time, and mold open/close sequences — based on real-time field data delivered through the SE502's communication link.

Simultaneously, the SIEMENS SIMATIC TP1200 HMI panel connected to the PLC network displays live process data sourced through the SE502, giving machine operators immediate visibility into injection parameters and alarm states. At the supervisory level, WinCC SCADA subscribes to the same data streams via the PLC's OPC-UA server, enabling production managers to monitor cycle efficiency, track reject rates, and generate shift reports from a centralized workstation. Edge gateways — such as the Moxa MGate MB3480 — bridge the PROFIBUS network to Ethernet, forwarding aggregated production data to MES platforms for order tracking and quality management. ABB ACS880 drives controlling hydraulic pump motors receive speed setpoints from the PLC via the SE502's fieldbus link, enabling dynamic energy management across the injection cycle. PHOENIX CONTACT QUINT power supplies ensure stable 24 VDC delivery to all fieldbus nodes, maintaining communication integrity across the entire data chain.

Injection molding facilities operating with mixed-generation equipment frequently encounter protocol fragmentation — older machines running PROFIBUS DP alongside newer cells using PROFINET or DeviceNet, with no native path for data exchange between them. The SE502 addresses this directly by providing a fieldbus interface that supports protocol bridging, allowing legacy KRAUSS MAFFEI machines to participate in modernized network architectures without requiring full machine replacement. Data silos — where machine-level process data remains trapped in isolated PLCs with no path to SCADA or MES — are eliminated by the SE502's network connectivity, which exposes field data to upper-level systems in real time.

Remote monitoring challenges are resolved through the SE502's diagnostic register architecture, which allows maintenance engineers to query device health, read error counters, and retrieve fault histories over the fieldbus network from any connected workstation. Production line transparency is achieved by feeding SE502-sourced data into SCADA dashboards that display cycle-by-cycle performance metrics, enabling rapid identification of process drift or equipment degradation. Alarm tracking is enhanced by the SE502's ability to transmit fault signals upstream to the PLC and SCADA layer within milliseconds of detection, ensuring that operators receive timely notifications and can initiate corrective action before defective parts are produced. System expansion is supported by the SE502's standard fieldbus architecture, which allows additional nodes — remote I/O stations, drives, sensors, or gateways — to be added to the network without redesigning the existing communication infrastructure.

Q1: What communication protocols does the KRAUSS MAFFEI SE502 support, and is it compatible with mixed-protocol automation networks? The SE502 supports PROFIBUS DP and DeviceNet as primary fieldbus protocols, making it compatible with a wide range of industrial automation networks. In mixed-protocol environments, the SE502 can be deployed alongside edge gateways or protocol converters to bridge PROFIBUS segments with PROFINET or Ethernet-based networks, ensuring seamless data flow across heterogeneous automation architectures.

Q2: How does the SE502 support remote diagnostics and predictive maintenance in injection molding operations? The SE502 exposes diagnostic registers and status counters accessible over the fieldbus network, allowing maintenance engineers to remotely query device health, read fault logs, and monitor communication quality without physical machine access. When integrated with managed industrial switches and SCADA platforms, network traffic anomalies can be detected early, enabling predictive maintenance actions that prevent unplanned downtime.

Q3: What is the network transmission latency of the SE502, and is it suitable for real-time closed-loop control applications? The SE502 is designed for real-time cyclic data exchange over PROFIBUS DP, which operates at bus speeds up to 12 Mbps with deterministic cycle times suitable for closed-loop control applications. Injection molding processes — including pressure control, temperature regulation, and position feedback — require deterministic communication, and the SE502's fieldbus architecture meets these timing requirements in standard industrial deployments.

Q4: Does the SE502 come with a warranty, and what pre-shipment testing is performed before delivery? Every KRAUSS MAFFEI SE502 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional verification, including fieldbus communication testing, protocol handshake validation, and interface integrity checks. In-stock units are available for immediate dispatch, supporting rapid deployment for both new installations and urgent replacement requirements.
