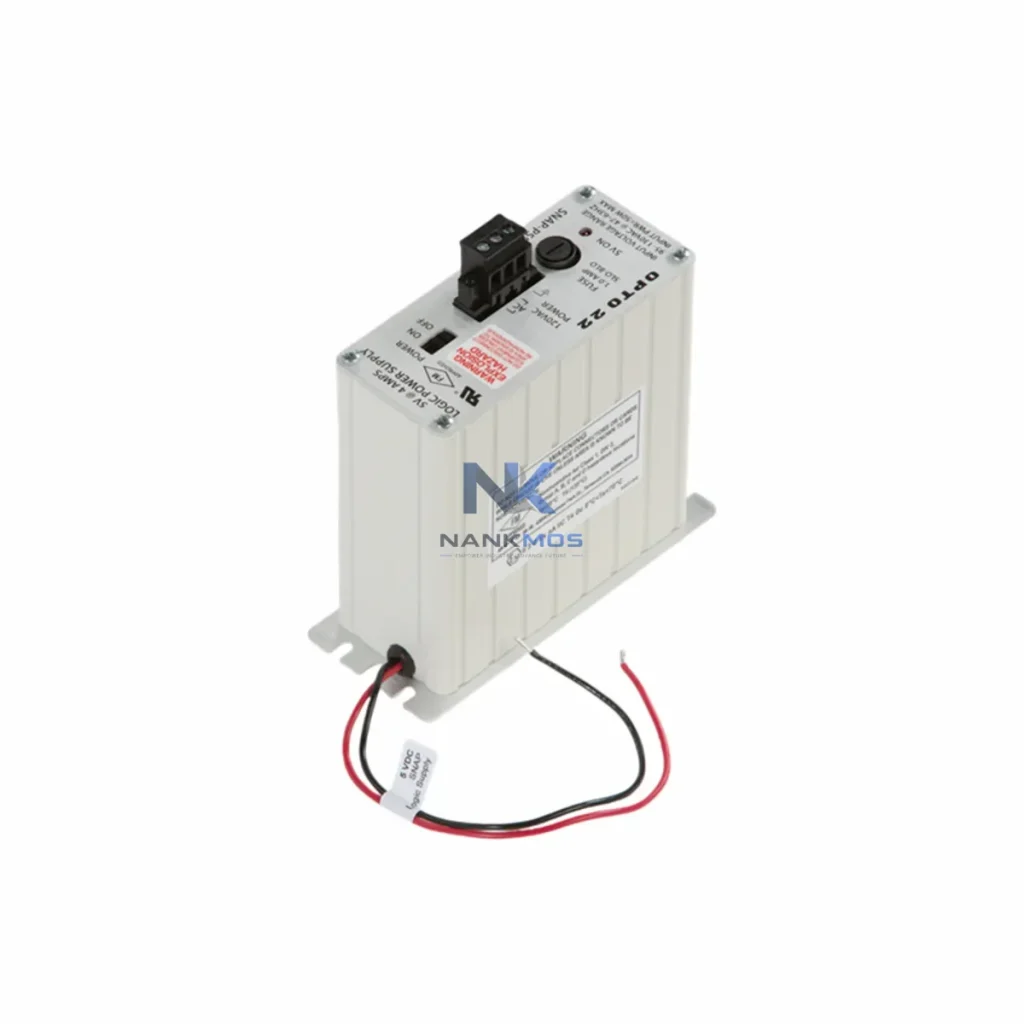

OPTO 22 SNAP-PS5 Power Supply Module

Product Details

SNAP-PS5 Product Description

The Opto 22 SNAP-PS5 is a dedicated 5VDC power supply module engineered for seamless integration within the SNAP PAC distributed control architecture. Designed to deliver stable, regulated power to SNAP PAC brain modules, I/O racks, and communication interfaces, the SNAP-PS5 serves as the foundational energy layer that sustains signal integrity, module synchronisation, and system-wide operational continuity across multi-rack deployments. In demanding industrial environments — from discrete manufacturing lines to continuous process control systems — reliable power distribution is not a peripheral concern but a core architectural requirement. The SNAP-PS5 addresses this requirement with precision-engineered output regulation, thermal resilience, and a form factor optimised for DIN-rail and rack-mount installation within standard SNAP PAC control cabinets.

Within a complete SNAP PAC automation platform, the SNAP-PS5 operates in close coordination with the SNAP-PAC-R1 and SNAP-PAC-R2 rack-mount controllers, which serve as the primary CPU and logic execution engines. These controllers depend on stable 5VDC bus power to maintain deterministic scan cycles, manage I/O polling intervals, and sustain Ethernet-based communications with SCADA and HMI layers. Any power instability at the rack level propagates directly into control loop performance, making the SNAP-PS5 a critical enabler of system determinism rather than a passive infrastructure component.

The SNAP-PS5 is not a standalone component — it is an architectural enabler within the broader Opto 22 SNAP PAC ecosystem. When deployed alongside the SNAP-PAC-R1 rack-mount controller and SNAP-AIPM-3 analog input modules, the SNAP-PS5 ensures that signal acquisition from 4–20mA process transmitters remains stable and free from power-induced noise. In multi-rack configurations, the SNAP-PS5 can be paired with additional power supply units to support redundant power distribution, reducing single-point-of-failure risk across the control layer.

At the I/O layer, the SNAP-PS5 powers SNAP PAC I/O racks populated with modules such as the SNAP-IDC5 digital input module and SNAP-ODC5SRC digital output module, both of which rely on stable 5VDC bus power for consistent switching performance and accurate status reporting to the controller. In high-density I/O configurations — common in packaging lines, water treatment facilities, and petrochemical process units — the SNAP-PS5 supports the full rack load without voltage droop, preserving the signal fidelity that deterministic control demands.

At the communication layer, the SNAP-PS5 sustains the operational integrity of SNAP PAC brain modules including the SNAP-PAC-EB1 and SNAP-PAC-EB2 Ethernet brain modules, which handle real-time data exchange between field I/O and the supervisory SCADA platform. These brain modules require uninterrupted 5VDC supply to maintain Ethernet link stability, manage OPC-UA data publishing, and execute peer-to-peer communications between distributed SNAP PAC nodes. Power interruptions at this layer result in communication timeouts, watchdog resets, and potential loss of process data — consequences that the SNAP-PS5 is specifically designed to prevent.

For HMI integration, the SNAP-PS5 supports control cabinet configurations where Opto 22 groov EPIC or third-party HMI panels are co-located with SNAP PAC racks. The stable 5VDC bus maintained by the SNAP-PS5 ensures that HMI data refresh rates remain consistent and that operator interface screens accurately reflect real-time process states without latency introduced by power instability. In conjunction with SNAP-SCM-485-422 serial communication modules, the SNAP-PS5 also supports legacy RS-485 and RS-422 device integration, extending the SNAP PAC platform's reach into older field device networks without requiring additional power conditioning hardware.

In redundant architecture designs, the SNAP-PS5 can be deployed in parallel with a secondary power supply unit to create an N+1 power redundancy configuration. This approach is particularly relevant in critical infrastructure applications — power generation, oil and gas processing, and municipal water systems — where unplanned control system downtime carries significant operational and safety consequences. The SNAP-PS5's galvanic input-to-output isolation further protects sensitive SNAP PAC modules from mains-borne transients, surge events, and common-mode noise that are prevalent in heavy industrial environments.

Discrete Manufacturing: In automotive assembly and electronics manufacturing lines, the SNAP-PS5 powers SNAP PAC racks managing conveyor sequencing, robotic cell I/O, and vision system triggers. Its stable 5VDC output ensures that high-speed digital I/O modules maintain sub-millisecond switching accuracy, supporting the cycle time requirements of modern production equipment.

Power Generation and Utilities: In power plant auxiliary systems and substation automation, the SNAP-PS5 supports SNAP PAC controllers managing transformer monitoring, breaker status acquisition, and load shedding logic. The module's universal AC input range accommodates the variable supply quality common in utility environments, while its galvanic isolation protects control electronics from high-voltage transients.

Petrochemical and Refinery Process Control: In continuous process environments, the SNAP-PS5 sustains SNAP PAC I/O racks interfacing with pressure transmitters, flow meters, and temperature sensors across hazardous area boundaries. Its thermal operating range and robust power regulation support the extended duty cycles characteristic of refinery and chemical plant operations.

Water and Wastewater Treatment: Municipal water treatment facilities deploy SNAP PAC systems for pump station control, chemical dosing automation, and SCADA-integrated monitoring. The SNAP-PS5 provides the reliable power foundation that keeps remote SNAP PAC nodes operational across geographically distributed pump stations, where power quality may vary significantly from the central control room supply.

Mining and Metals Processing: In ore processing and smelting operations, SNAP PAC systems manage conveyor drives, crusher sequencing, and environmental monitoring. The SNAP-PS5's robust power output supports the high I/O density configurations typical of mining control panels, where multiple SNAP PAC racks may be co-located within a single control enclosure.

Q1: Is the SNAP-PS5 compatible with all SNAP PAC rack configurations, including multi-rack and redundant controller setups? Yes. The SNAP-PS5 is designed to power any standard SNAP PAC I/O rack, including configurations using SNAP-PAC-R1, SNAP-PAC-R2, SNAP-PAC-S1, and SNAP-PAC-S2 controllers. In multi-rack deployments, each rack requires its own dedicated SNAP-PS5 unit. For redundant power architectures, two SNAP-PS5 units can be configured in parallel with appropriate diode-OR circuitry to achieve N+1 power redundancy, ensuring continuous rack operation in the event of a single power supply failure.

Q2: What installation and commissioning considerations apply when integrating the SNAP-PS5 into an existing SNAP PAC control cabinet? The SNAP-PS5 mounts directly onto the SNAP PAC I/O rack using the standard rack-mount interface, requiring no additional mounting hardware. During commissioning, verify that the AC input wiring is correctly rated for the supply voltage and that the output load does not exceed the 5A continuous rating. Opto 22's PAC Control software can be used to monitor rack power status and configure watchdog parameters that respond to power anomalies. Ensure adequate cabinet ventilation to maintain the SNAP-PS5 within its 0°C to 70°C operating temperature range, particularly in high-density rack configurations.

Q3: What warranty and supply chain support does NANKMOS provide for the SNAP-PS5? NANKMOS provides a 12-Month Warranty on all SNAP-PS5 units, covering manufacturing defects and operational failures under normal industrial service conditions. Each unit undergoes pre-shipment functional testing to verify output voltage regulation, isolation integrity, and thermal performance before dispatch. NANKMOS maintains stock of SNAP-PS5 units to support urgent project requirements and MRO replenishment, with expedited shipping available for critical system maintenance scenarios. For procurement enquiries, contact [email protected] or call +86 18359268345.
