Basler SPL4096-140KM Industrial Line Scan Camera

Product Details

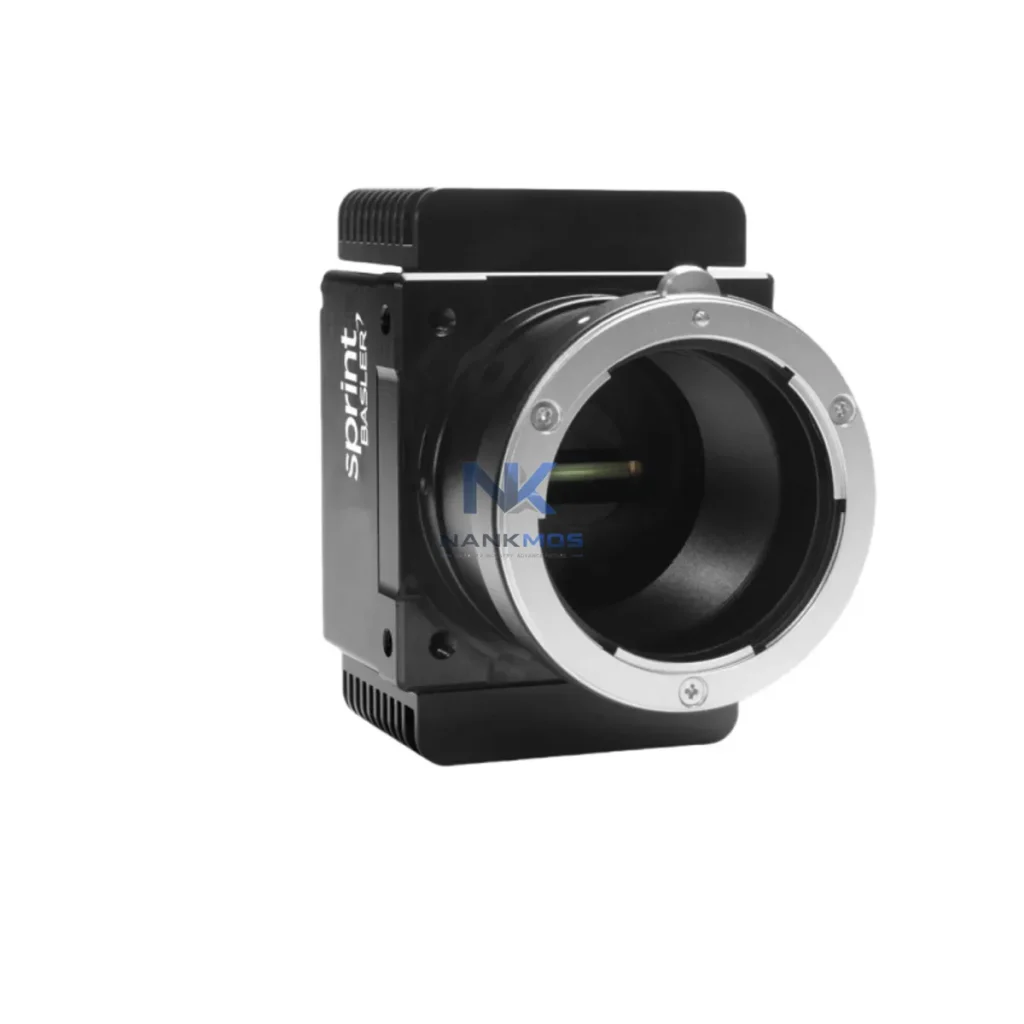

SPL4096-140KM Product Description

The Basler SPL4096-140KM is a high-performance Sprint series line scan camera engineered for demanding industrial imaging and smart factory data acquisition environments. With a 4096-pixel resolution and a line rate of up to 140 kHz, this GigE Vision-compliant camera delivers continuous, high-speed image data across standard Ethernet infrastructure — making it a critical node in the industrial data chain between field-level sensors, PLC controllers, and upper-level SCADA and MES systems.

Designed for integration into automated inspection lines, web inspection systems, and high-throughput quality control platforms, the SPL4096-140KM supports seamless connectivity from the image sensor layer through to data visualization dashboards and remote diagnostic platforms. Its GigE Vision protocol compliance ensures interoperability with leading machine vision software environments, including HALCON, VisionPro, and NI Vision, enabling engineers to build scalable, network-transparent inspection architectures without proprietary lock-in.

In a fully connected smart factory, the SPL4096-140KM operates as the primary image acquisition node, feeding high-resolution line scan data into the plant's industrial Ethernet backbone. The camera connects directly to a managed industrial Ethernet switch — such as units from the Hirschmann RS20 or Phoenix Contact FL SWITCH series — which routes image streams to the vision processing server while simultaneously forwarding trigger signals from upstream PLCs, such as the Siemens S7-1500 or Allen-Bradley ControlLogix, via PROFINET or EtherNet/IP side-channels.

Trigger synchronization is handled through the camera's GPIO interface, receiving encoder pulses from rotary encoders or proximity sensors mounted on the conveyor line. This ensures pixel-perfect line acquisition aligned with web or object movement speed. The resulting image data is processed by a vision controller running Basler pylon SDK or third-party GenTL-compatible software, which performs real-time defect classification and outputs pass/fail signals back to the PLC for reject actuation.

Inspection results and statistical quality data are simultaneously forwarded via OPC UA or MQTT to the plant's SCADA platform — such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC — where production engineers monitor yield rates, defect trends, and line throughput in real time. Integration with Kepware KEPServerEX or similar OPC DA/UA gateways allows the vision system's output data to be aggregated alongside data from remote I/O modules, Yokogawa STARDOM field controllers, and ABB AC500 PLCs operating across the same plant network.

For multi-camera inspection lines, the SPL4096-140KM can be deployed alongside other Basler Sprint models — including the SPL2048-70KM and SPL8192-70KM — to cover wider web widths or provide redundant inspection zones. Camera configuration, exposure control, and gain adjustment are managed remotely via the Basler pylon Viewer or integrated into the SCADA HMI layer, eliminating the need for on-site camera access during production runs.

Edge computing nodes, such as Advantech MIC-770 or Moxa UC-8100 series industrial computers, can be deployed adjacent to the camera to perform local pre-processing — reducing network load and enabling sub-100ms defect response times before data is forwarded to the central MES or ERP system. This architecture supports full traceability: every inspected unit's image data, timestamp, and quality verdict is logged and retrievable for audit, remote diagnostics, and continuous improvement analysis.

Industrial imaging deployments frequently encounter data fragmentation challenges: vision systems operating in isolation from the plant's control network, inspection results stored locally without integration into SCADA or MES, and protocol mismatches between GigE Vision cameras and legacy PROFIBUS or Modbus-based control infrastructure.

The SPL4096-140KM addresses these gaps through its standard GigE Vision and GenICam compliance, which allows it to be integrated into any modern industrial Ethernet architecture without custom drivers or proprietary middleware. For sites with mixed protocol environments, OPC UA gateways or protocol converters — such as the HMS Anybus X-gateway or Moxa MGate series — bridge the camera's Ethernet output to PROFIBUS DP, Modbus TCP, or EtherNet/IP networks, ensuring inspection data reaches every level of the automation pyramid.

Remote monitoring and diagnostics are enabled through the camera's network-accessible parameter set: engineers can adjust line rate, exposure, and trigger mode from the control room or remotely via VPN, without interrupting production. Alarm thresholds for defect rates or camera fault conditions can be configured to trigger automated notifications through the SCADA alarm management system, enabling rapid response without on-site intervention.

For production line transparency, inspection data from the SPL4096-140KM feeds directly into OEE dashboards and SPC (Statistical Process Control) modules within the MES, providing real-time visibility into defect rates, first-pass yield, and line efficiency. This closes the data loop between the physical inspection process and the plant's digital management layer — eliminating data silos and enabling data-driven process optimization.

Q1: What communication protocols does the Basler SPL4096-140KM support, and is it compatible with existing plant networks?The SPL4096-140KM uses the GigE Vision standard over standard Gigabit Ethernet (IEEE 802.3), making it compatible with any managed or unmanaged industrial Ethernet switch and standard Cat5e/Cat6 cabling. It is GenICam compliant, ensuring software interoperability across all major machine vision platforms. For integration with PROFINET, EtherNet/IP, or Modbus TCP control networks, standard OPC UA gateways or protocol bridges can be used without hardware modification to the camera.

Q2: How is network stability and latency managed in high-speed line scan applications?The camera's GigE Vision implementation includes packet resend and flow control mechanisms that maintain image integrity even on moderately loaded networks. For critical applications, it is recommended to deploy the camera on a dedicated VLAN or a separate industrial Ethernet switch port with QoS prioritization. Cable runs up to 100 meters are supported without repeaters, and fiber media converters can extend reach across larger plant floors without signal degradation.

Q3: Can the SPL4096-140KM be integrated with SCADA and HMI systems for remote diagnostics?Yes. Camera status, operating parameters, and inspection statistics can be exposed to SCADA and HMI systems via OPC UA servers or MQTT brokers running on the vision processing host. This enables real-time monitoring of camera health, line rate, trigger status, and defect counts directly within Wonderware, WinCC, or Ignition dashboards. Remote parameter adjustment and fault diagnostics are fully supported over the plant network without requiring physical access to the camera.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SPL4096-140KM?Every SPL4096-140KM unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication interface integrity, line rate performance, and trigger response. Units are shipped with full documentation and are available from in-stock inventory for rapid global deployment. For volume orders or project-specific lead time requirements, contact our technical sales team directly.
