SCHMERSAL SRB402EM Safety Relay

Product Details

SRB402EM Product Description

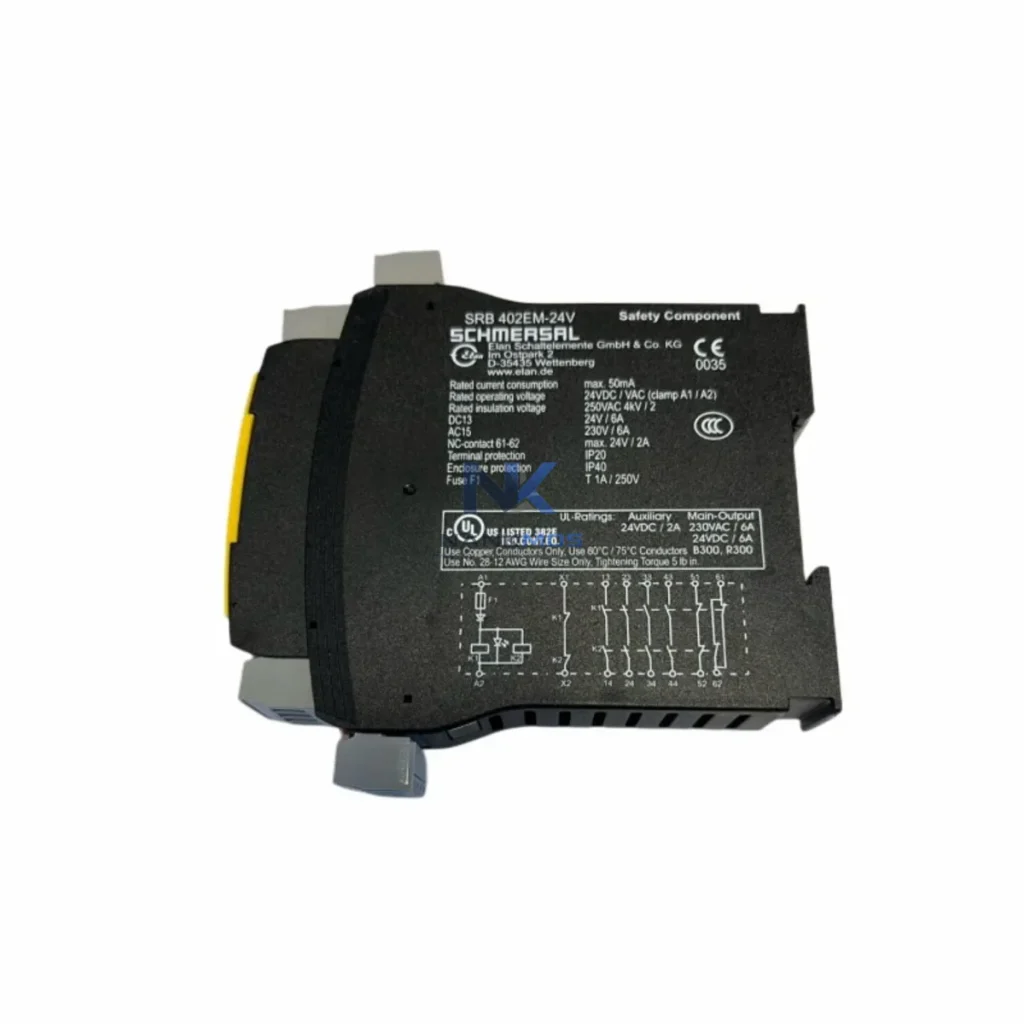

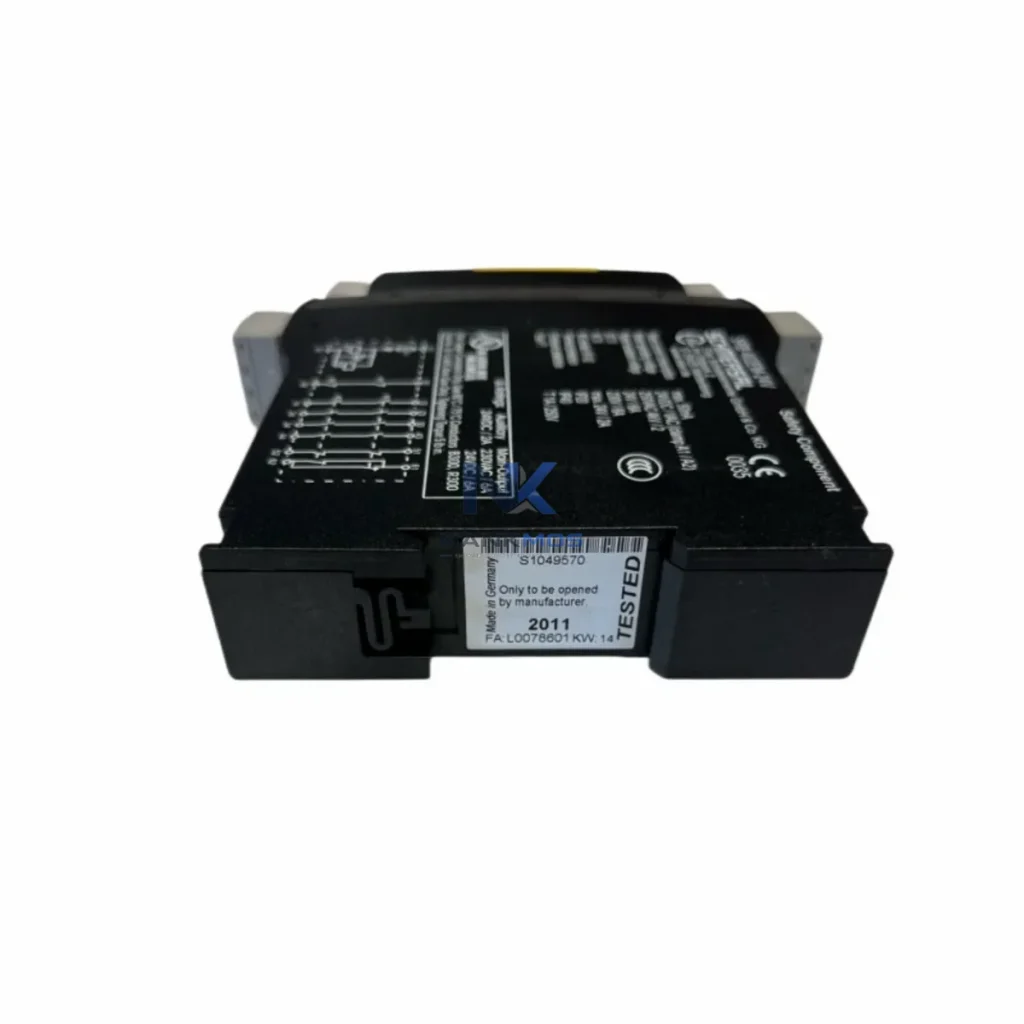

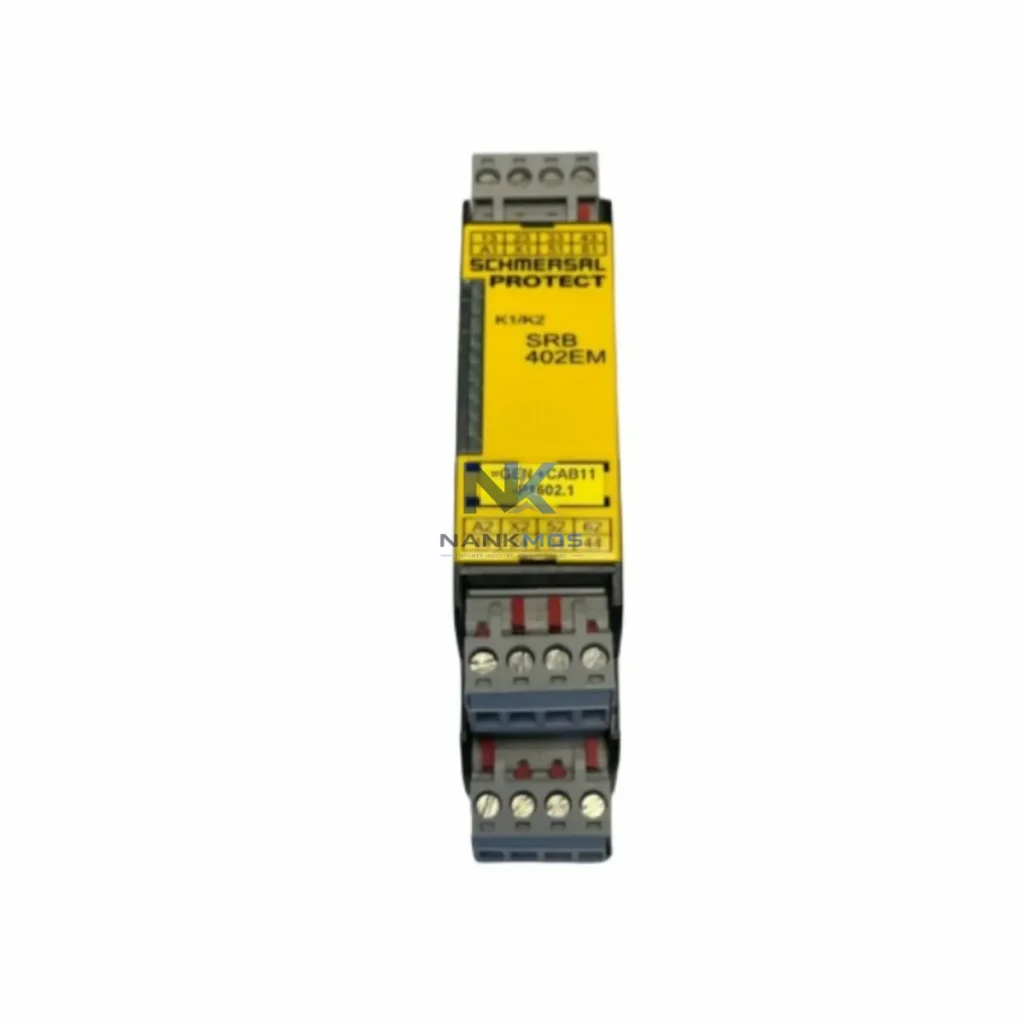

The SCHMERSAL SRB402EM is a dual-channel safety relay from the SRB Series, engineered for mission-critical safety monitoring in smart factory environments. As industrial automation networks evolve toward fully connected architectures, the SRB402EM serves as a reliable safety node within the broader data chain — bridging field-level safety devices, PLC controllers, remote I/O modules, HMI panels, and SCADA supervisory systems. Its robust design supports seamless integration into modern industrial communication frameworks, enabling real-time safety status monitoring, remote diagnostics, and transparent alarm feedback across the entire production network.

In a connected factory, the SRB402EM is typically positioned between safety-rated field sensors — such as emergency stop buttons, light curtains, and door interlock switches — and the main safety PLC or safety controller. The relay's output contacts feed directly into the PLC's digital input modules, where safety state data is captured, processed, and forwarded upstream to SCADA or DCS platforms via industrial Ethernet or fieldbus protocols. This architecture ensures that every safety event — from a guarding breach to a manual reset — is logged, timestamped, and made available for real-time visualization on HMI dashboards and historian databases.

The SRB402EM operates at the intersection of physical safety and digital data transparency. In a typical smart factory deployment, field-level safety sensors — including SCHMERSAL BNS series position switches, RSS series coded magnetic safety switches, and SLC series safety light curtains — feed their status signals into the SRB402EM's dual-channel monitored inputs. The relay evaluates the input state, applies cross-channel monitoring logic, and drives its safety output contacts to control downstream actuators or machine power circuits.

The relay's output state is simultaneously read by a safety PLC — such as a Siemens S7-1500F or Allen-Bradley GuardLogix — via hardwired digital input modules. The PLC aggregates safety status data alongside process variables from standard I/O modules, remote I/O nodes (e.g., Siemens ET 200SP or Phoenix Contact Axioline F), and fieldbus-connected devices. This consolidated data is then transmitted over Profinet or EtherNet/IP to the plant's SCADA platform, where operators can monitor safety relay states, view alarm histories, and track reset events in real time.

For facilities requiring remote diagnostics, an industrial edge gateway — such as a Moxa MGate or HMS Anybus gateway — can bridge the hardwired safety I/O data into Modbus TCP or OPC-UA streams, making SRB402EM status visible to cloud-based MES or ERP systems. HMI panels connected to the same Profinet segment display live safety zone status, enabling operators on the shop floor to identify fault conditions without accessing the control cabinet. Variable frequency drives (VFDs) and servo drives connected to the same safety zone receive enable/disable commands derived from the SRB402EM's output, ensuring coordinated safe-state responses across the entire machine cell.

Industrial managed switches — such as those in the HIRSCHMANN RS series or MOXA EDS series — provide the network backbone that carries all this data reliably, with VLAN segmentation isolating safety-critical traffic from standard process data. Power for the SRB402EM and associated field devices is typically supplied by DIN-rail industrial power supplies, ensuring stable 24 V DC operation even under fluctuating plant power conditions. The complete data chain — from sensor signal to SCADA visualization — is designed for deterministic, low-latency communication, supporting both real-time safety enforcement and long-term data archiving for compliance and audit purposes.

Many industrial sites face persistent challenges with safety data visibility: safety relay states are often isolated from the main control network, making it difficult to correlate safety events with process data, track alarm histories, or perform root-cause analysis after an incident. The SRB402EM addresses these gaps by providing clean, reliable output contacts that integrate directly into PLC digital input modules, eliminating the need for additional signal conditioning and reducing wiring complexity.

Protocol fragmentation is another common barrier. Legacy safety systems may use hardwired relay logic that cannot communicate with modern Profinet or EtherNet/IP networks. By pairing the SRB402EM with a compatible fieldbus gateway or safety PLC with integrated communication modules, engineers can bridge this gap — converting hardwired safety status into structured network data accessible to SCADA, HMI, and MES platforms. This approach supports production line transparency, enabling supervisors to monitor safety zone status across multiple machine cells from a single control room display.

Remote monitoring and diagnostics are increasingly critical for reducing unplanned downtime. With the SRB402EM integrated into a networked safety architecture, maintenance teams can receive alarm notifications via SCADA or push alerts to mobile devices, enabling faster response to safety faults without requiring physical presence at the machine. System expansion is equally straightforward: additional SRB Series relays can be added to the safety network as new machine cells are commissioned, with each relay's status mapped to the existing SCADA tag database without requiring architectural changes.

Q1: Can the SCHMERSAL SRB402EM be integrated into a Profinet or EtherNet/IP network for SCADA monitoring? A: The SRB402EM uses hardwired safety I/O outputs, which connect to PLC digital input modules. The PLC then communicates with SCADA via Profinet, EtherNet/IP, or Modbus TCP. For direct fieldbus integration, a compatible safety gateway or safety PLC with built-in communication modules is recommended. All units ship pre-tested and are covered by a 12-Month Warranty.

Q2: What is the communication latency for safety status updates from the SRB402EM to the SCADA system? A: Hardwired response time from input change to output switching is typically within the relay's specified response time (model-dependent, generally <20 ms). PLC scan cycle and network transmission add minimal additional latency, making the overall system suitable for real-time safety monitoring in high-speed automation environments.

Q3: How does the SRB402EM support remote diagnostics and fault tracing? A: By mapping the relay's output contacts to PLC tags and forwarding those tags to SCADA, maintenance teams can monitor safety relay state, reset history, and fault events remotely. Combined with an edge gateway supporting OPC-UA or Modbus TCP, this data can be pushed to cloud-based maintenance platforms for predictive diagnostics and compliance reporting.

Q4: Is the SCHMERSAL SRB402EM in stock and available for immediate shipment? A: NANKMOS maintains inventory of the SRB402EM and SRB Series safety relays to support urgent project timelines. All units undergo outgoing inspection prior to shipment and are backed by a 12-Month Warranty. Contact our team for real-time stock confirmation and lead time.
