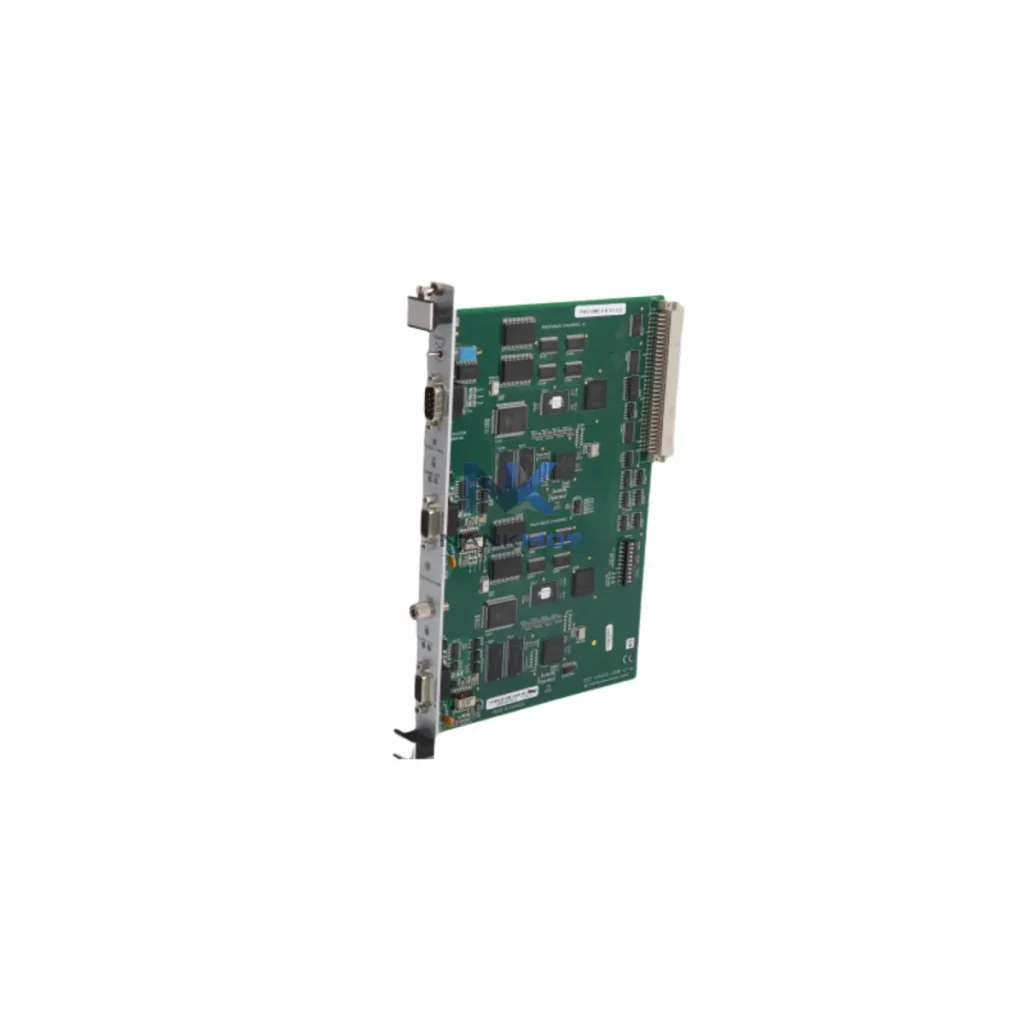

Woodhead SST SST-PB3-VME-2-E Profibus Interface Module

Product Details

SST-PB3-VME-2-E Product Description

The Woodhead SST-PB3-VME-2-E is a dual-channel PROFIBUS DP/FMS interface module engineered for VME bus architectures, delivering deterministic fieldbus communication within layered industrial control systems. Designed for demanding automation environments where signal integrity, protocol consistency, and long-term maintainability are non-negotiable, the SST-PB3-VME-2-E bridges the VME backplane to PROFIBUS networks with minimal latency and maximum configurability. Its dual-port architecture supports simultaneous DP and FMS operation, enabling engineers to consolidate fieldbus master functionality into a single VME slot without sacrificing throughput or diagnostic resolution.

In modern control architectures, the PROFIBUS interface layer is not an isolated component — it is the communication backbone that ties together the CPU module, distributed I/O, drive systems, and HMI platforms into a coherent, synchronized automation platform. The SST-PB3-VME-2-E fulfills this role with precision, supporting baud rates up to 12 Mbps, full GSD file compatibility, and hardware-level interrupt generation that reduces CPU polling overhead. Whether deployed in a redundant DCS configuration or a standalone VME-based machine controller, this module delivers the protocol stability and architectural flexibility that system integrators require.

Every SST-PB3-VME-2-E unit shipped by NANKMOS undergoes pre-shipment functional testing and is covered by a 12-Month Warranty, ensuring operational confidence from commissioning through the full production lifecycle.

The SST-PB3-VME-2-E achieves its full value when integrated within a complete VME-based automation platform. At the control layer, it operates alongside VME CPU modules such as the Motorola MVME5500 or Emerson MVME7100, sharing the VME64 backplane and leveraging hardware interrupt lines to deliver real-time PROFIBUS cycle synchronization without burdening the host processor. The dual-channel architecture allows one channel to serve as the primary DP master for distributed I/O — such as Siemens ET 200M remote I/O stations or Pepperl+Fuchs DP/PA segment couplers — while the second channel handles FMS peer-to-peer communication with upstream DCS nodes.

At the power layer, the VME backplane is typically fed by a Wiener MPOD or equivalent VME power supply module, providing regulated +5 VDC and ±12 VDC rails that the SST-PB3-VME-2-E draws from directly, eliminating the need for external fieldbus power conditioning. For signal isolation and cable protection on long PROFIBUS trunk runs, Phoenix Contact PROFIBUS repeaters or Siemens DP/RS485 bus terminators are recommended at segment boundaries to maintain signal integrity at 12 Mbps.

At the HMI and SCADA layer, the SST-PB3-VME-2-E integrates with Wonderware InTouch or Siemens WinCC SCADA platforms via OPC DA/UA servers that map PROFIBUS process data to supervisory tags, enabling real-time visualization and alarm management without additional protocol conversion hardware. For drive integration, ABB ACS880 or Siemens SINAMICS S120 drives equipped with PROFIBUS DP option boards connect directly as Class 1 slaves, with the SST-PB3-VME-2-E managing cyclic data exchange for speed reference and status feedback at sub-millisecond cycle times.

In redundant control architectures, a secondary SST-PB3-VME-2-E module in a parallel VME chassis can be configured in hot-standby mode, with switchover logic managed by the host CPU to ensure uninterrupted PROFIBUS master operation during planned maintenance or unexpected module failure. This redundancy model is particularly relevant in power generation, petrochemical, and water treatment applications where fieldbus downtime directly impacts process safety.

Manufacturing & Discrete Automation: In automotive body shop and assembly line applications, the SST-PB3-VME-2-E serves as the PROFIBUS master for robot controllers, servo drives, and vision system I/O, coordinating cyclic data exchange across 50–100 slave nodes per channel with deterministic 1 ms cycle times. Its dual-channel design allows simultaneous management of the production line PROFIBUS segment and the quality inspection subsystem from a single VME slot.

Power Generation & Energy: In turbine control and substation automation systems, the module integrates with IEC 61850-compliant protection relays via PROFIBUS DP gateways, enabling the VME-based control platform to acquire real-time protection status, breaker position, and metering data without protocol conversion delays. The hardware interrupt capability ensures that critical fault signals are processed within a single VME bus cycle.

Petrochemical & Process Industries: In refinery and chemical plant DCS architectures, the SST-PB3-VME-2-E connects to PROFIBUS PA field instruments — including pressure transmitters, flow meters, and valve positioners — via DP/PA segment couplers, providing the control system with continuous process variable updates and integrated device diagnostics (PROFIBUS DPV1) for predictive maintenance workflows.

Water Treatment & Utilities: Municipal water treatment SCADA systems leverage the module's dual-channel architecture to segregate the pump station PROFIBUS segment from the chemical dosing subsystem, reducing cross-segment interference and simplifying fault isolation during maintenance windows. The module's wide operating temperature range supports installation in outdoor control cabinets without additional thermal management.

Mining & Metallurgy: In conveyor drive control and smelting process automation, the SST-PB3-VME-2-E manages PROFIBUS communication to high-power drive systems and process instrumentation in environments with significant electrical noise. Its hardware-level bus termination and galvanic isolation at the PROFIBUS connector ensure reliable communication in the presence of variable-frequency drive interference.

Q1: Is the SST-PB3-VME-2-E compatible with both VME32 and VME64 backplanes, and can it coexist with other VME modules from different vendors? A: Yes. The SST-PB3-VME-2-E is designed to the VME64 standard with backward compatibility for VME32 backplanes, supporting A32/D32 addressing modes. It coexists with CPU, memory, and I/O modules from other VME vendors on the same backplane, as it uses standard VME bus arbitration and does not require proprietary backplane signaling. System integrators should verify slot power budgets and IRQ line assignments during chassis configuration to avoid conflicts with other interrupt-generating modules.

Q2: How does the dual-channel architecture support redundant PROFIBUS master configurations, and what switchover time can be expected? A: Each channel operates as an independent PROFIBUS master with its own token ring management and slave address space. In a redundant master configuration, the host CPU monitors channel health via VME register polling or hardware interrupt and executes software-controlled switchover to the backup channel. Switchover time is application-dependent but typically achieves sub-100 ms failover when implemented with a dedicated watchdog routine, meeting the availability requirements of most process control and power generation applications.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for this module? A: The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains dedicated stock of the SST-PB3-VME-2-E and compatible Woodhead SST modules to support long-term project requirements, including multi-year maintenance contracts and spare parts programs. For warranty claims or long-term supply agreements, contact [email protected] or call +86 18359268345. Replacement units are pre-tested and shipped with full functional verification documentation.
