SST SST-PFB-SLC Profibus Scanner Module

Product Details

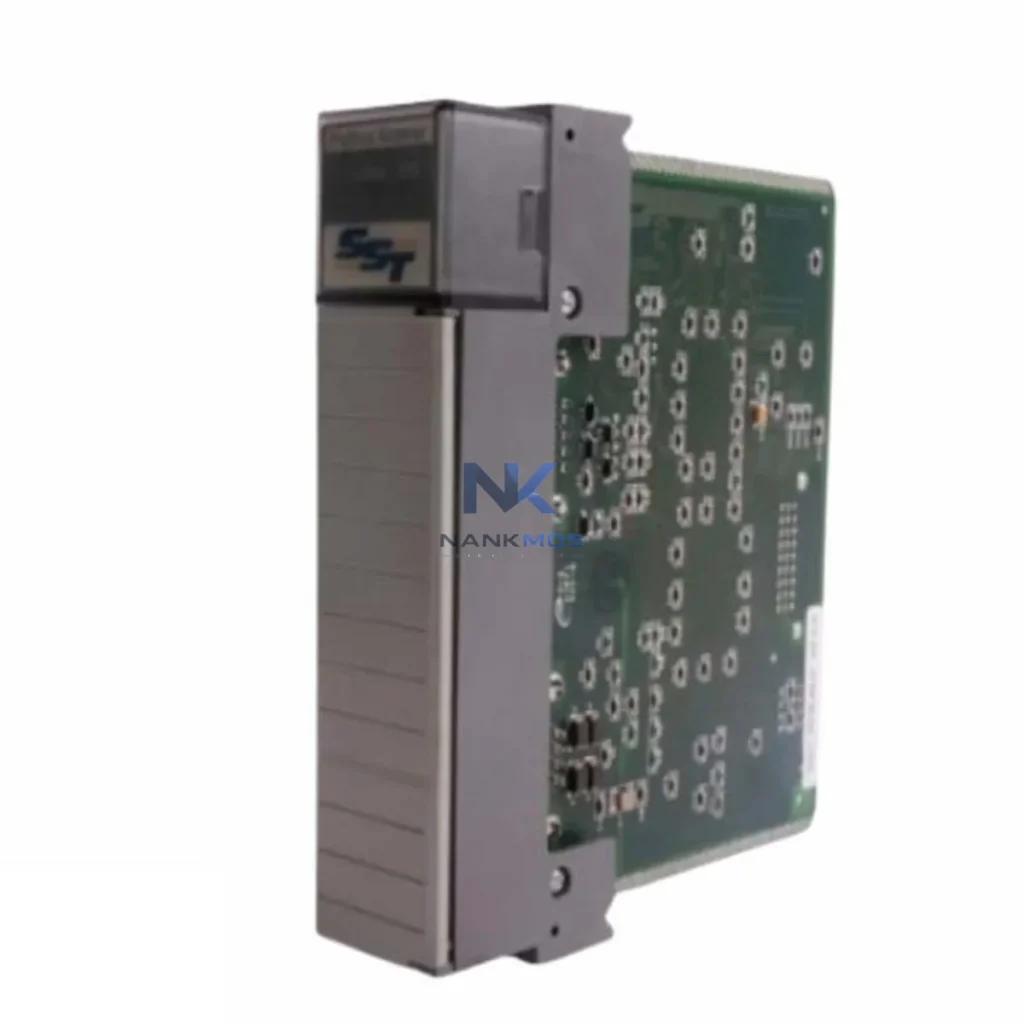

SST-PFB-SLC Product Description

The SST-PFB-SLC is a high-performance PROFIBUS DP scanner module engineered by SST for seamless integration with Allen-Bradley SLC 500 programmable logic controllers. Designed to serve as the fieldbus communication backbone in energy-conscious manufacturing environments, the SST-PFB-SLC enables precise, low-latency data exchange between the SLC 500 CPU and distributed PROFIBUS DP slave devices — including variable frequency drives, servo amplifiers, I/O expansion modules, smart sensors, and power monitoring units. By centralizing fieldbus communication through a single, deterministic interface, the module eliminates redundant polling cycles, reduces bus contention, and directly contributes to measurable reductions in idle-state energy consumption across the production line.

In modern smart factories, energy efficiency is not a feature — it is a design requirement. The SST-PFB-SLC addresses this requirement by providing a stable, high-speed PROFIBUS DP master interface that supports up to 125 slave nodes per segment, enabling plant engineers to consolidate distributed control architectures without sacrificing scan cycle performance. When paired with a Rockwell Automation SLC 5/04 or SLC 5/05 CPU, the module delivers deterministic fieldbus timing that synchronizes drive commands, sensor feedback, and actuator responses within a single control cycle — reducing the energy overhead associated with asynchronous or polling-based communication strategies.

The SST-PFB-SLC operates as the PROFIBUS DP master within the SLC 500 backplane, providing the communication layer that connects the controller to a wide range of energy-relevant field devices. In a typical motor control center deployment, the module interfaces directly with Allen-Bradley PowerFlex 40 and PowerFlex 70 variable frequency drives over PROFIBUS DP, enabling the SLC 5/04 CPU to issue speed reference commands, read actual current draw, and monitor drive fault states — all within a single deterministic scan cycle. This tight integration allows the control program to implement load-shedding logic that ramps down drive speed during low-demand production windows, directly reducing motor energy consumption without manual operator intervention.

Beyond drive control, the SST-PFB-SLC supports integration with Siemens ET 200S distributed I/O modules deployed as PROFIBUS DP slaves, enabling remote digital and analog I/O expansion across large production floor footprints without additional copper wiring runs. This architecture reduces installation energy overhead and simplifies the addition of Phoenix Contact QUINT Power 24 VDC industrial power supplies at distributed panel locations, each sized precisely to the local I/O load rather than over-provisioned for a centralized cabinet. The result is a leaner power distribution topology with lower aggregate standby consumption.

For energy monitoring and load management, the SST-PFB-SLC can communicate with Schneider Electric PowerLogic PM5000 series power monitoring modules configured as PROFIBUS DP slaves, delivering real-time kWh, kVA, and power factor data directly into the SLC 500 data table. This data feeds energy dashboards in Wonderware InTouch SCADA systems via the SLC 5/05 Ethernet port, enabling plant energy managers to correlate production throughput with energy intensity per unit — a key metric for ISO 50001 energy management compliance. Alarm thresholds configured in the SLC ladder program can trigger automatic load reduction sequences when monitored power demand exceeds contracted peak limits, avoiding demand charge penalties.

In servo-driven assembly lines, the SST-PFB-SLC bridges the SLC 500 controller with Bosch Rexroth Indramat servo drive systems that support PROFIBUS DP position and velocity interfaces, enabling coordinated multi-axis motion profiles that minimize acceleration energy spikes. Paired with Balluff BIS RFID identification systems on the PROFIBUS segment, the module supports product-specific recipe loading that adjusts drive parameters and cycle times to match the energy profile of each production variant — reducing unnecessary high-speed traversals and associated regenerative braking losses.

Factory energy waste is rarely caused by a single inefficient device — it accumulates across hundreds of small inefficiencies in communication timing, drive scheduling, and sensor polling. The SST-PFB-SLC addresses this systemic challenge by providing a deterministic, high-speed PROFIBUS DP master interface that eliminates the communication latency and retry overhead that characterize less capable fieldbus adapters. When the SLC 500 control program can rely on consistent, sub-millisecond fieldbus response times, it becomes possible to implement tight closed-loop energy control strategies — such as predictive load shedding, drive speed profiling, and thermal load balancing — that would be unreliable over slower or non-deterministic communication links.

In continuous process applications such as conveyor systems, packaging lines, and material handling, the SST-PFB-SLC enables the SLC 500 to coordinate the speed references of multiple PROFIBUS-connected drives in real time, matching line speed to actual product flow rather than running at fixed maximum speed. This dynamic speed matching alone can reduce conveyor drive energy consumption by 15–30% in applications with variable throughput demand. Combined with feedback from PROFIBUS-connected torque sensors and current transducers, the control system can detect mechanical drag increases — a leading indicator of bearing wear — and schedule predictive maintenance before a failure causes an unplanned line stoppage, which is among the most energy-intensive events in a production facility due to restart surge currents and scrap generation.

Thermal load management is another area where the SST-PFB-SLC delivers measurable value. By enabling the SLC 500 to monitor drive operating temperatures and motor winding temperatures via PROFIBUS DP diagnostic data, the control program can implement thermal derating logic that reduces drive output before thermal protection trips occur. This prevents the high-energy restart sequences associated with thermal fault recovery and extends the service life of drive output stages and motor insulation systems. Over a 12-month operating period, the reduction in thermal fault events translates directly into lower maintenance labor costs and reduced spare parts consumption — both of which contribute to the total cost of ownership calculation that justifies the SST-PFB-SLC investment.

All units supplied by NANKMOS are sourced from verified distribution channels, individually tested for PROFIBUS DP communication integrity prior to shipment, and covered by a 12-month warranty. In-stock availability ensures that replacement or expansion modules can be dispatched within standard lead times, minimizing the risk of extended production downtime due to module failure.

Q1: How does the SST-PFB-SLC contribute to measurable energy savings on a production line? The SST-PFB-SLC enables the SLC 500 PLC to issue real-time speed and load commands to PROFIBUS DP-connected variable frequency drives and servo systems, allowing the control program to implement dynamic load management strategies. By eliminating fixed-speed drive operation and enabling demand-responsive speed profiling, plants typically achieve 15–30% reductions in drive energy consumption in variable-throughput applications. Additional savings come from reduced thermal fault events and elimination of communication retry overhead that wastes CPU scan time.

Q2: Which SLC 500 CPU models are compatible with the SST-PFB-SLC, and does it support all PROFIBUS DP slave device types? The SST-PFB-SLC is compatible with Allen-Bradley SLC 5/03, SLC 5/04, and SLC 5/05 CPU modules installed in standard SLC 500 modular chassis. It supports all standard PROFIBUS DP slave device classes, including Class 1 and Class 2 slaves, covering variable frequency drives, servo amplifiers, distributed I/O modules, smart sensors, power monitoring devices, and HMI operator panels. GSD file-based configuration is used to define slave parameters within the SST configuration utility.

Q3: Can the SST-PFB-SLC replace an existing PROFIBUS scanner module without reprogramming the SLC 500 application? In most cases, yes. The SST-PFB-SLC is designed as a functional replacement for legacy PROFIBUS scanner modules in the SLC 500 platform. If the existing module uses the same backplane slot addressing and the PROFIBUS network configuration (GSD files, slave addresses, I/O mapping) is preserved, the SLC 500 ladder program typically requires no modification. NANKMOS recommends verifying the existing configuration file and performing a bench test prior to live line replacement to confirm full compatibility.

Q4: What does the 12-month warranty cover, and what is the typical lead time for in-stock units? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including PROFIBUS DP communication failures, backplane interface faults, and firmware integrity issues. Physical damage caused by incorrect installation, overvoltage, or environmental exposure outside the rated operating range is excluded. In-stock units at NANKMOS are tested prior to shipment and are typically available for same-day or next-business-day dispatch. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time.
