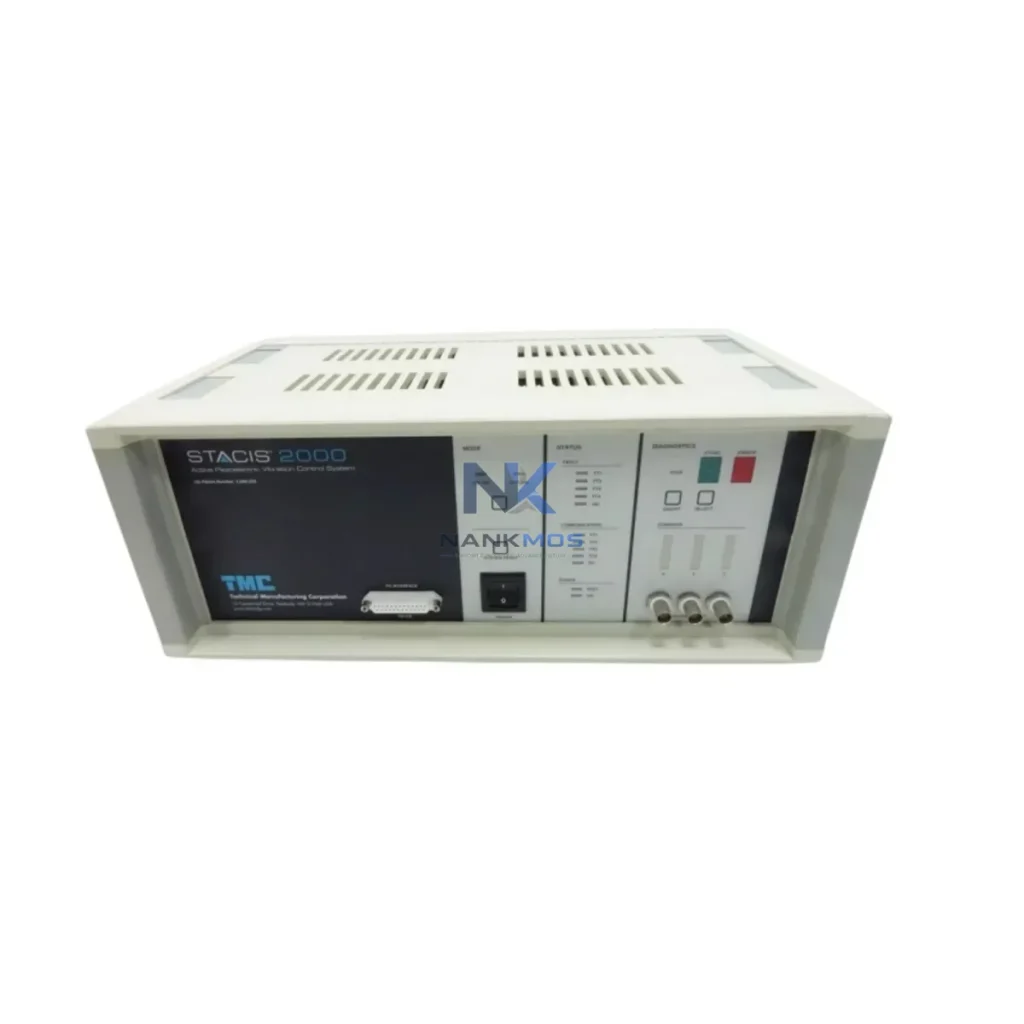

TMC STACIS2000 C-GUN M12 + DECKELSEITE VM 1500 W-CG 0050-411

Product Details

STACIS2000 C-GUN M12 + DECKELSEITE VM 1500 W-CG 0050-41144 Product Description

The TMC STACIS2000 C-GUN M12 (full SKU: STACIS2000 C-GUN M12 + DECKELSEITE VM 1500 W-CG 0050-41144) is a piezoelectric active vibration control system engineered for the most demanding precision environments in semiconductor fabrication, metrology, electron microscopy, and advanced manufacturing. Unlike passive isolation platforms, the STACIS2000 series employs inertial-reference piezoelectric actuators that actively cancel floor vibration from DC to over 100 Hz — delivering sub-nanometer stability that passive systems simply cannot achieve.

In today's smart factory architecture, vibration isolation is no longer a standalone mechanical function. It is a critical node in the industrial data chain. The STACIS2000 C-GUN M12 integrates into facility-wide monitoring networks, feeding real-time vibration amplitude, actuator status, and floor noise data upstream to SCADA platforms, HMI dashboards, and edge computing gateways. This transforms passive floor isolation into an active, data-generating asset within your connected factory ecosystem.

The STACIS2000 C-GUN M12 sits at the foundation of a precision automation data chain. At the field level, floor vibration signals are sensed by the system's internal inertial sensors and immediately processed by the DECKELSEITE VM 1500 W-CG controller, which drives the M12-connected piezoelectric actuators in real time. This closed-loop correction happens in microseconds — far faster than any PLC scan cycle.

For facility-level integration, the STACIS2000's analog and serial diagnostic outputs connect to an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-6000 series data acquisition module — which converts the RS-232/RS-485 status stream into Modbus TCP or EtherNet/IP packets. These packets are then routed through a managed industrial Ethernet switch (e.g., Hirschmann SPIDER or Phoenix Contact FL SWITCH series) to the facility SCADA backbone.

At the SCADA and HMI layer, operators running platforms such as Siemens WinCC, Wonderware InTouch, or Ignition by Inductive Automation can visualize real-time vibration floor noise levels, actuator saturation warnings, and system health KPIs on dedicated dashboards. When the STACIS2000 detects abnormal floor excitation — from nearby CNC machines, HVAC systems, or foot traffic — it generates an alarm event that propagates through the SCADA alarm management system, triggering notifications to maintenance teams via OPC-UA data servers or MES integration layers.

In semiconductor fabs running ASML lithography tools or KLA inspection systems, the STACIS2000 C-GUN M12 is often deployed alongside TMC STACIS 2100 series isolators and TMC Micro-g LaCoste vibration measurement systems to create a multi-point vibration monitoring network. Data from each isolation pod is aggregated at the edge gateway and correlated with tool uptime logs from the MES, enabling predictive maintenance scheduling and yield impact analysis.

For remote diagnostics, the serial interface of the STACIS2000 can be tunneled through a Moxa NPort serial device server or similar industrial serial-to-Ethernet converter, allowing TMC service engineers or on-site automation teams to access controller parameters, calibration data, and fault logs from any networked workstation — without physical access to the cleanroom floor. This remote diagnostic capability is essential for minimizing tool downtime in 24/7 semiconductor production environments.

Power conditioning for the STACIS2000 system is typically provided by a DIN-rail industrial power supply (e.g., MEAN WELL SDR-480 or Phoenix Contact QUINT series), ensuring stable DC bus voltage even during facility power fluctuations. The M12 connector interface ensures robust, vibration-resistant signal and power connections that meet IEC 61076-2-101 standards — critical in environments where connector reliability directly impacts tool availability.

Protocol Fragmentation: Many precision facilities run a mix of legacy RS-232 instruments alongside modern EtherNet/IP or PROFINET networks. The STACIS2000's serial diagnostic port, combined with an industrial protocol gateway, bridges this gap — allowing vibration data to flow into unified SCADA historians without requiring proprietary software or custom drivers.

Data Silos in Metrology Zones: Vibration isolation systems are often invisible to facility-level monitoring because they lack network connectivity. The STACIS2000 C-GUN M12, when integrated with an edge gateway, becomes a visible, queryable asset in your plant asset management system — eliminating the data silo that has historically made vibration performance invisible to operations teams.

Remote Monitoring Gaps: In multi-site semiconductor or research operations, local vibration performance data rarely reaches central engineering teams in real time. By routing STACIS2000 status data through the facility's industrial Ethernet backbone to a cloud-connected SCADA or IIoT platform, remote engineering teams gain live visibility into floor noise conditions at every tool location — enabling faster response to process excursions.

Alarm Traceability: When a precision tool goes into alarm or produces out-of-spec results, root cause analysis often requires correlating tool logs with environmental data. The STACIS2000's integration into the SCADA alarm management system provides timestamped vibration event records that can be cross-referenced with tool fault logs — dramatically reducing mean time to root cause (MTTRC).

System Scalability: As facilities expand — adding new lithography bays, metrology cells, or electron microscopy suites — the STACIS2000 platform scales by adding additional isolation pods, each connected to the same industrial Ethernet backbone. No new software infrastructure is required; each new node appears automatically in the SCADA asset tree.

Q1: What communication protocols does the STACIS2000 C-GUN M12 support for SCADA integration?The STACIS2000 provides RS-232/RS-485 serial diagnostic output natively. For integration with PROFINET, EtherNet/IP, or Modbus TCP-based SCADA systems, an industrial protocol gateway (e.g., Moxa MGate MB3180 or Anybus X-gateway) is used to convert the serial data stream into the required fieldbus protocol. This approach ensures compatibility with virtually any modern SCADA or DCS platform without modifying the STACIS2000 controller firmware.

Q2: How does the system maintain network stability in high-EMI semiconductor environments?The M12 industrial connector interface provides shielded, IP-rated connections that resist electromagnetic interference from RF sources, plasma equipment, and high-current power supplies common in semiconductor fabs. The DECKELSEITE VM 1500 W-CG controller is designed for continuous 24/7 operation with internal EMI filtering, ensuring stable actuator drive signals and reliable serial communication even in electrically noisy environments.

Q3: Can the STACIS2000 be remotely diagnosed without physical access to the tool?Yes. By connecting the RS-232/RS-485 diagnostic port to an industrial serial device server (e.g., Moxa NPort 5150 or similar), the STACIS2000 controller can be accessed remotely over the facility Ethernet network. Service engineers can read actuator drive levels, calibration parameters, and fault history logs from any authorized workstation on the network — or via VPN for off-site diagnostics. This capability is fully supported within NANKMOS's 12-month warranty service framework.

Q4: What is covered under the 12-month warranty, and how does NANKMOS support global customers?NANKMOS provides a 12-month warranty on the TMC STACIS2000 C-GUN M12 covering manufacturing defects, controller failures, and actuator performance degradation under normal operating conditions. All units undergo pre-shipment functional testing including vibration isolation performance verification and controller communication checks. NANKMOS maintains global inventory and supports international logistics for semiconductor, metrology, and research customers worldwide. For RFQ, lead time, and technical support, contact [email protected] or +86 18359268345.
