TANK-801-BTI-J1/2G/3B-R11 Product Description

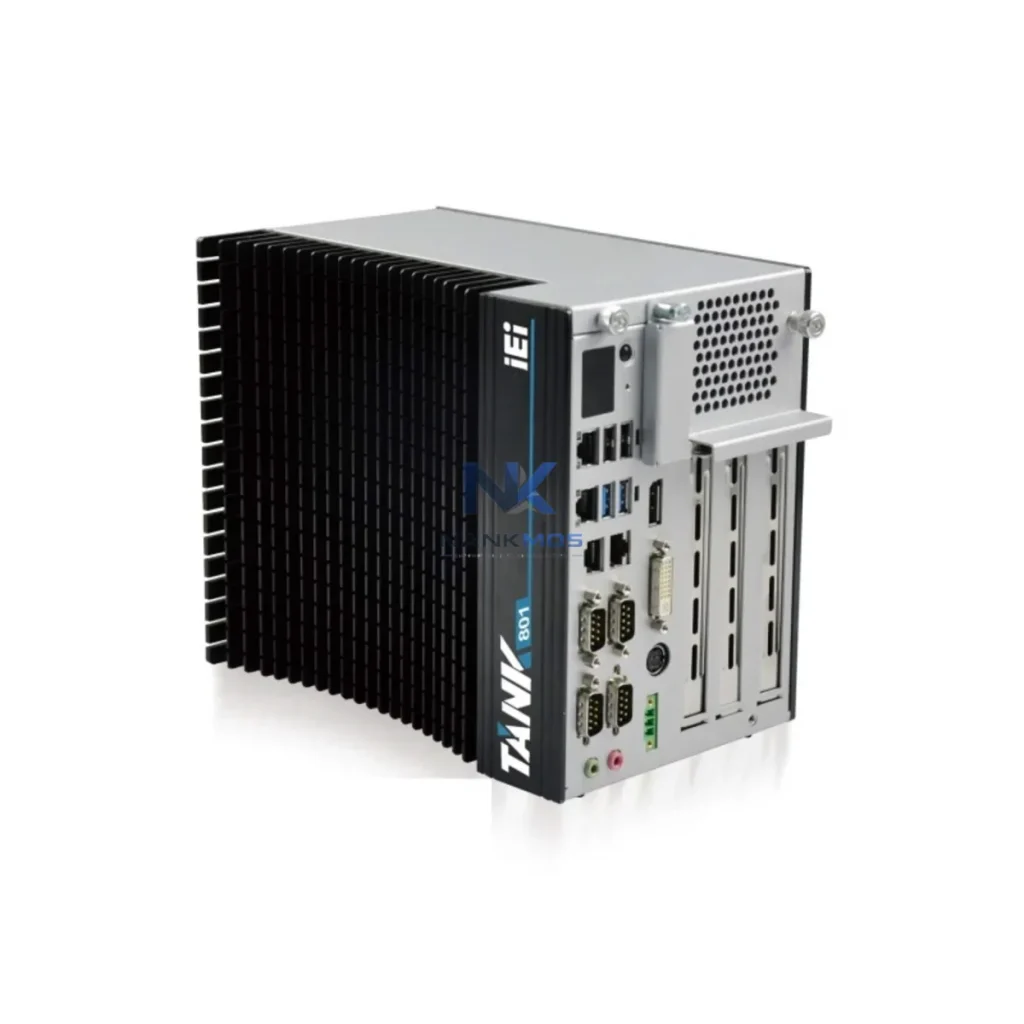

The IEI TANK-801-BTI-J1/2G/3B-R11 is a high-performance, fanless embedded controller engineered for energy-conscious industrial environments. Built on IEI's proven TANK-801 platform and powered by an Intel® Celeron® J1900 quad-core processor, this controller delivers reliable edge computing with a thermal design that eliminates active cooling — directly reducing heat load, fan-related failures, and unnecessary energy draw on the production floor. With 2 GB DDR3L onboard RAM, 3 expansion bays, and a rugged aluminum chassis rated for wide-temperature operation, the TANK-801-BTI-J1/2G/3B-R11 is purpose-built for continuous-duty smart manufacturing, process control, and energy management applications.

In modern smart factories, the TANK-801-BTI-J1/2G/3B-R11 functions as a central edge node that bridges field-level devices and upper-layer energy management systems. Its low-TDP processor and fanless architecture make it an ideal host for energy data aggregation tasks that would otherwise require a power-hungry server-class machine.

On the field side, the controller interfaces directly with Siemens S7-1200 PLCs and Mitsubishi FX5U PLCs via Ethernet/IP or PROFINET, collecting real-time load data from motor drives and I/O modules. When paired with Schneider Electric ATV320 variable frequency drives, the TANK-801 platform can host drive supervision logic that adjusts motor speed setpoints based on production demand — cutting energy waste during low-throughput periods without manual intervention.

For servo-driven axes, integration with Omron G5 series servo drives via EtherCAT allows the TANK-801-BTI-J1/2G/3B-R11 to monitor torque feedback and cycle time data, enabling production rhythm optimization that reduces unnecessary acceleration/deceleration energy. The controller's PCIe expansion slot supports fieldbus cards for PROFIBUS DP or CANopen communication, making it compatible with legacy drive systems without requiring full network upgrades.

Power monitoring is handled upstream through ABB M2M energy meters or Yokogawa WT series power analyzers, which feed consumption data to the TANK-801 over Modbus TCP. The controller aggregates this data and forwards structured energy reports to Wonderware InTouch HMI or Ignition SCADA platforms, giving operators a unified view of per-zone energy consumption, peak demand events, and efficiency KPIs — all without adding dedicated data acquisition hardware.

The onboard serial ports support RS-232/RS-485 connectivity to Phoenix Contact power supply modules and Weidmüller I/O terminal blocks, enabling the controller to monitor auxiliary power rail health and flag abnormal draw conditions before they escalate into thermal events or unplanned downtime. This closed-loop feedback architecture is central to predictive maintenance strategies that reduce both energy waste and repair costs.

The IEI TANK-801-BTI-J1/2G/3B-R11 addresses one of the most persistent challenges in industrial energy management: the gap between real-time field data and actionable energy decisions. By deploying this controller at the edge — close to the machines, drives, and sensors it monitors — factories eliminate the latency and bandwidth overhead of routing raw data to centralized servers for processing.

Its fanless design is not merely a reliability feature; it is an energy efficiency statement. Conventional embedded PCs with active cooling consume 15–30% additional power to run cooling fans, and those fans introduce vibration, particulate ingestion risk, and a predictable failure mode in dusty or humid factory environments. The TANK-801 platform removes this variable entirely, operating silently and efficiently across the full industrial temperature range.

In energy-intensive production lines — such as stamping, injection molding, CNC machining, or conveyor-driven assembly — the controller can be configured to run demand-response logic: when aggregate power draw approaches a contracted peak threshold, the system signals non-critical drives to reduce speed or enter standby, shaving demand charges without halting production. This load-shedding capability, executed locally at the edge, responds in milliseconds rather than the seconds required by cloud-based control loops.

Thermal load management is another key benefit. By reducing the number of heat-generating components in the control cabinet — replacing multiple single-function devices with one consolidated edge controller — the TANK-801-BTI-J1/2G/3B-R11 lowers the ambient temperature inside enclosures, extending the service life of adjacent components such as contactors, relays, and terminal blocks. Lower cabinet temperatures also reduce the duty cycle of cabinet air conditioners, delivering a secondary energy saving that compounds over time.

For predictive maintenance integration, the controller supports OPC-UA server functionality, publishing equipment health tags — vibration RMS, motor current deviation, cycle time drift — to MES or EMS platforms. Maintenance teams receive early warnings of degrading equipment efficiency before failures occur, allowing scheduled interventions that avoid both emergency repair costs and the energy spikes associated with equipment running in a degraded state.

Every unit shipped from NANKMOS inventory undergoes pre-shipment functional testing, verifying boot integrity, I/O port operation, and power rail stability. Combined with a 12-month warranty, this ensures that the TANK-801-BTI-J1/2G/3B-R11 arrives ready for immediate deployment in your energy optimization architecture.

Q1: What energy savings can I expect from deploying the TANK-801-BTI-J1/2G/3B-R11 in my production line? The primary savings come from three sources: (1) the fanless 10 W TDP design versus conventional embedded PCs drawing 40–80 W with active cooling; (2) consolidation of multiple single-function devices into one edge controller, reducing total panel power draw; and (3) enabling demand-response and load-shedding logic that reduces peak energy charges. Actual savings depend on line configuration and baseline consumption.

Q2: Which PLC, SCADA, and drive systems is this controller compatible with? The TANK-801-BTI-J1/2G/3B-R11 supports Ethernet-based protocols (PROFINET, EtherNet/IP, Modbus TCP, OPC-UA) natively, and can be expanded with PCIe fieldbus cards for PROFIBUS DP, CANopen, or DeviceNet. It is compatible with Siemens, Mitsubishi, Omron, and Rockwell PLC platforms, as well as Wonderware, Ignition, and iFIX SCADA systems.

Q3: Can this unit replace an aging industrial PC in an existing energy monitoring cabinet? Yes. The TANK-801 series is a direct form-factor replacement for many legacy IEI and third-party embedded controllers. The wide-range 9–36 VDC input accommodates existing panel power supplies, and the standard mounting options (DIN rail adapter available) simplify retrofit installations. We recommend verifying OS and driver compatibility with your existing HMI or SCADA software before replacement.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? All TANK-801-BTI-J1/2G/3B-R11 units supplied by NANKMOS are tested prior to shipment for power-on functionality, I/O port integrity, storage bay detection, and thermal stability under load. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are processed directly through NANKMOS — contact [email protected] for RMA initiation.
