IEI Technology NOVA-8522G2-R10 Industrial Motherboard

Product Details

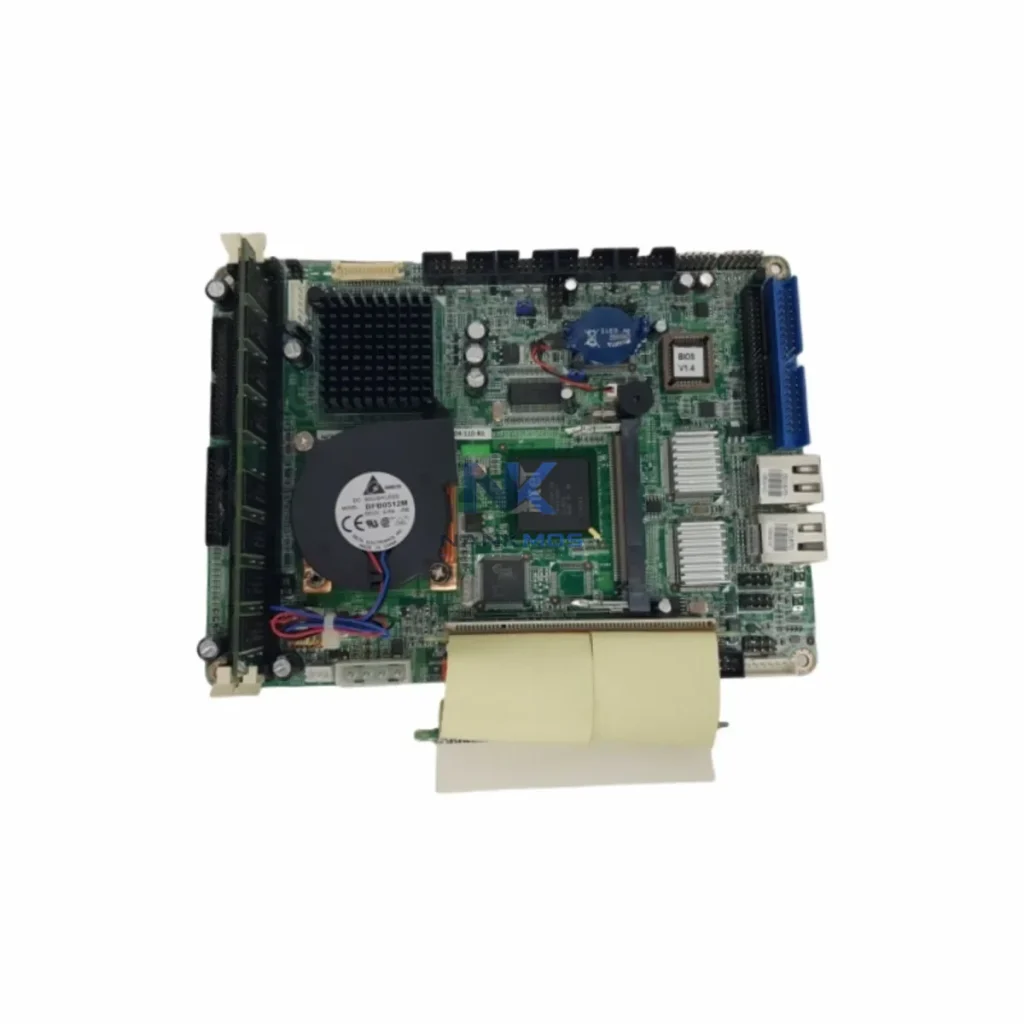

NOVA-8522G2-R10 Product Description

The IEI NOVA-8522G2-R10 is a high-performance industrial motherboard engineered for deployment within demanding control system architectures across manufacturing, energy, process industries, and critical infrastructure. Designed as a system-matched compute platform within the IEI NOVA series, this board delivers the processing headroom, I/O density, and communication versatility required to anchor a multi-layer automation architecture — from field-level signal acquisition through supervisory control and HMI integration.

Unlike general-purpose embedded boards, the NOVA-8522G2-R10 is purpose-built for contextual integration within industrial control cabinets, DIN-rail enclosures, and rack-mount automation systems. Its architecture supports deterministic real-time processing, multi-protocol communication, and long-term serviceability — three pillars that define reliable industrial compute in mission-critical environments.

The NOVA-8522G2-R10 is most effectively deployed as the central compute node within a layered automation platform. In a typical control cabinet architecture, this board operates at the control layer, interfacing upward to SCADA and HMI systems and downward to I/O modules, fieldbus gateways, and field devices.

At the control layer, the NOVA-8522G2-R10 pairs naturally with IEI NOVA-series backplanes such as the NOVA-P8 or NOVA-P4, which provide the passive backplane infrastructure for multi-board expansion. The board's dual GbE ports enable simultaneous connection to the plant network and an isolated machine network, supporting network segmentation best practices in OT environments.

For I/O layer integration, the NOVA-8522G2-R10 communicates with distributed I/O modules via EtherNet/IP or Modbus TCP over its primary LAN interface. In installations using IEI's AMAX-5000 series or compatible remote I/O racks, the board serves as the master controller, polling analog and digital signals from field transmitters, limit switches, and actuator feedback loops.

At the communication layer, the board's PCIe expansion slots accommodate fieldbus interface cards — including PROFIBUS DP master cards and EtherCAT master modules — enabling direct integration with legacy field devices without requiring external protocol converters. This is particularly valuable in brownfield retrofits where existing PROFIBUS or DeviceNet segments must be preserved alongside new Ethernet-based I/O.

The power layer is addressed through compatibility with IEI's NOVA-PS series power supply modules, which deliver regulated ATX power within the NOVA chassis. For redundant power architectures, dual PSU configurations can be implemented using IEI's redundant power backplane accessories, ensuring continuous operation in high-availability applications such as substation automation and water treatment SCADA.

At the HMI layer, the NOVA-8522G2-R10's HDMI and DisplayPort outputs connect directly to industrial panel PCs or operator terminals — including IEI's AFL3 series all-in-one panel computers — enabling local visualization of process data, alarm management, and operator interaction without requiring a separate HMI controller. For distributed HMI architectures, the board's dual LAN supports OPC UA server deployment, allowing remote HMI clients to subscribe to real-time process data.

In execution layer applications, the board interfaces with variable frequency drives (VFDs), servo amplifiers, and soft starters via Modbus RTU over RS-485 or via EtherNet/IP. This enables closed-loop speed and torque control from the NOVA-8522G2-R10's onboard PLC runtime or SCADA software, eliminating the need for a separate motion controller in many single-axis or coordinated multi-axis applications.

For protection layer integration, the board's digital I/O — expanded via PCIe-based DIO cards such as the PCI-1730 or compatible IEI modules — connects to protective relays, circuit breakers, and safety interlock systems. Hardwired safety signals can be monitored and logged by the NOVA-8522G2-R10's onboard application, providing a unified fault record for maintenance and compliance auditing.

At the maintenance layer, the board's hardware watchdog timer, remote KVM capability via IPMI (where supported), and onboard POST diagnostics reduce mean time to repair (MTTR) in field deployments. Combined with IEI's iManager embedded system management utility, engineers can monitor CPU temperature, fan speed, voltage rails, and storage health remotely — enabling predictive maintenance without physical site access.

Manufacturing & Discrete Automation: In automotive assembly lines and electronics manufacturing, the NOVA-8522G2-R10 serves as the machine controller for multi-axis pick-and-place systems, conveyor synchronization, and vision inspection integration. Its PCIe expansion supports frame grabber cards for inline quality control, while dual GbE enables MES connectivity alongside machine-level control.

Electric Power & Substation Automation: In IEC 61850-compliant substation environments, the board functions as an Intelligent Electronic Device (IED) host, running protection logic, event logging, and GOOSE message processing. Its RS-485 ports interface with legacy IEDs and meters via Modbus RTU, while the GbE ports carry IEC 61850 MMS traffic to the station bus.

Petrochemical & Process Control: In continuous process plants, the NOVA-8522G2-R10 integrates with DCS architectures as a remote engineering workstation or OPC DA/UA server node. Its wide operating temperature range and fanless-compatible thermal design (with appropriate heatsink configuration) support installation in climate-controlled control rooms adjacent to hazardous areas.

Water & Wastewater Treatment: Municipal water treatment SCADA systems benefit from the board's dual-network architecture, which separates the operational technology (OT) network from the corporate IT network. The board runs SCADA server software locally, with remote terminal units (RTUs) at pump stations communicating via Modbus TCP over the OT LAN.

Mining & Metallurgy: In ore processing and smelting operations, the NOVA-8522G2-R10 withstands the vibration, dust, and temperature extremes of industrial enclosures. Its PCIe slots accommodate analog input cards for thermocouple and RTD signal acquisition from furnace and kiln monitoring systems, while the RS-485 ports connect to motor protection relays and soft starters.

Marine & Offshore: Vessel automation and offshore platform control systems require compute platforms with extended temperature ratings and resistance to humidity and salt air. The NOVA-8522G2-R10's industrial-grade component selection and conformal coating options (available on request) make it suitable for bridge automation, engine room monitoring, and dynamic positioning system integration.

Q1: Is the NOVA-8522G2-R10 compatible with existing IEI NOVA chassis and backplanes already installed in my control cabinet? Yes. The NOVA-8522G2-R10 is designed to the IEI NOVA mechanical and electrical standard, ensuring direct compatibility with NOVA-series backplanes including the NOVA-P4 and NOVA-P8. Board replacement or upgrade within an existing NOVA chassis requires no mechanical modification, preserving your cabinet layout and wiring. Confirm the backplane revision and power supply rating before installation to ensure adequate power headroom for the new processor configuration.

Q2: What communication protocols does the NOVA-8522G2-R10 natively support, and how can I extend it for PROFIBUS or EtherCAT integration? Natively, the board supports Modbus TCP, EtherNet/IP, and OPC UA over its dual GbE interfaces, and Modbus RTU / RS-485 via onboard serial ports. For PROFIBUS DP or EtherCAT master functionality, install a compatible PCIe fieldbus card in one of the board's expansion slots. IEI and third-party vendors offer certified PCIe PROFIBUS and EtherCAT master cards that are validated for use with the NOVA platform. Driver support is available for Windows IoT and Linux environments.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The NANKMOS 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and DOA (dead on arrival) units. Warranty service includes board-level repair or replacement at NANKMOS's discretion. For mission-critical installations, we recommend maintaining one spare unit on-site. NANKMOS carries stock inventory of the NOVA-8522G2-R10 and can typically ship replacement units within 3–5 business days globally. Contact [email protected] or +86 18359268345 for warranty claims and expedited stock inquiries.
