Elmo Motion Control TUB-12/460 Servo Drive

Product Details

TUB-12/460 Product Description

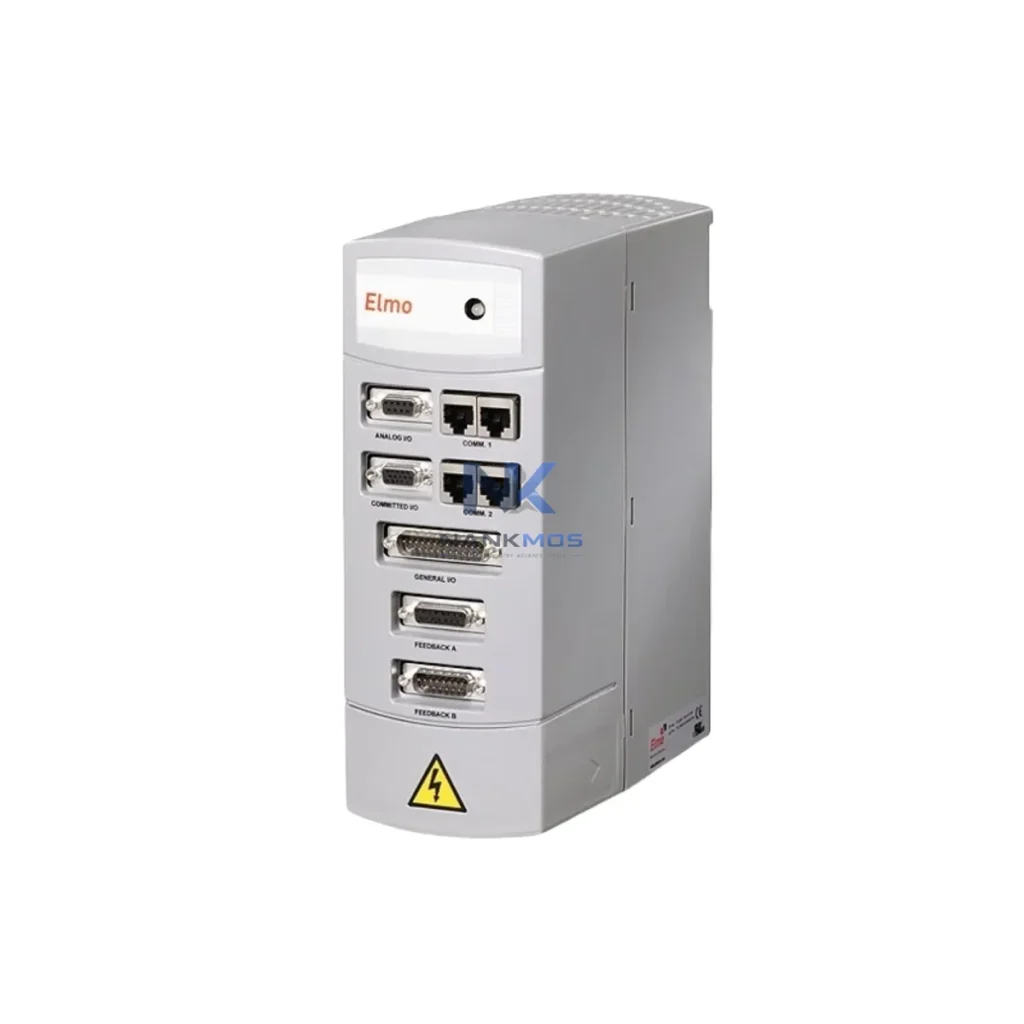

The Elmo TUB-12/460 is a high-performance servo drive engineered for seamless integration within the Elmo TUB series control architecture. Designed to operate as a precision motion execution node, the TUB-12/460 delivers 12 A continuous current at up to 460 VDC bus voltage, making it well-suited for demanding multi-axis automation platforms where signal fidelity, synchronization accuracy, and long-term operational reliability are non-negotiable engineering requirements.

In modern industrial control architectures, no drive operates in isolation. The TUB-12/460 is conceived as a contextually integrated component — one that functions within a layered system hierarchy spanning the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Its role is not simply to convert electrical power into mechanical motion, but to serve as a synchronized execution node that responds to real-time commands from the motion controller, reports diagnostic telemetry upstream, and maintains deterministic cycle times across multi-axis configurations.

Whether deployed in a standalone single-axis application or as part of a coordinated multi-drive gantry, the TUB-12/460 supports the engineering goals of modular scalability, redundancy-aware design, and long-term maintainability. All units supplied by NANKMOS are sourced from verified channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty from the date of delivery.

The TUB-12/460 achieves its full engineering value when deployed within a coherent Elmo-based automation platform. At the control layer, an Elmo Gold DC Whistle or Gold Twitter motion controller issues real-time trajectory commands via CANopen or EtherCAT, coordinating multiple TUB-series drives across a synchronized motion network. The TUB-12/460 receives cyclic synchronous position (CSP) or velocity (CSV) commands and executes them with sub-millisecond latency, ensuring deterministic motion across all axes.

At the power layer, a shared DC bus architecture — fed by a centralized AC/DC power supply or regenerative bus capacitor module — distributes energy to multiple TUB-12/460 units simultaneously. This topology reduces individual power supply footprint, enables energy recovery during deceleration, and simplifies cabinet wiring. Pairing the TUB-12/460 with an Elmo TUB bus capacitor module or compatible DC bus filter further stabilizes the supply rail under dynamic load conditions.

At the I/O and feedback layer, the TUB-12/460 interfaces directly with incremental or absolute encoders mounted on the servo motor shaft, providing closed-loop position feedback with high resolution. In systems requiring additional digital I/O — for homing sensors, limit switches, or safety interlocks — an Elmo I/O expansion module or a third-party EtherCAT I/O terminal block (such as Beckhoff EK1100 coupler with EL1008 digital input terminals) can be integrated into the same network segment without disrupting drive communication.

At the communication layer, the TUB-12/460 participates in an EtherCAT ring or CANopen segment managed by the motion controller. In larger architectures, an industrial Ethernet switch (unmanaged, DIN-rail mount) ensures reliable packet routing between the controller, drives, and any connected HMI panel — such as a Weintek or Siemens TP series touch panel — that provides operator visualization and parameter adjustment. The communication stack supports standard CiA 402 drive profiles, simplifying integration with third-party PLCs or SCADA systems where required.

At the protection layer, the TUB-12/460 incorporates over-current, over-voltage, under-voltage, and over-temperature fault detection with automatic shutdown and fault code reporting. In safety-critical applications, a safety relay module (e.g., Pilz PNOZ or Phoenix Contact PSR series) can be wired to the drive's STO (Safe Torque Off) input, enabling IEC 62061 / ISO 13849 compliant safe-stop functionality without requiring a full drive power cycle. Complementing this, a signal isolator or galvanic barrier module on analog reference inputs protects the drive from ground loop interference in electrically noisy environments such as welding lines or high-power press applications.

At the maintenance layer, the TUB-12/460 supports Elmo's Composer motion studio software for drive commissioning, parameter tuning, oscilloscope-style diagnostic capture, and firmware updates. Maintenance engineers can monitor real-time current waveforms, position error, velocity ripple, and thermal status without interrupting production. Spare-unit hot-swap procedures are straightforward given the drive's compact tube form factor and standardized connector pinout, minimizing mean time to repair (MTTR) in high-availability production environments.

The TUB-12/460 is deployed across a broad spectrum of industrial sectors where compact, high-precision servo drives are required within structured control architectures:

Electronics & Semiconductor Manufacturing: In pick-and-place machines, wafer handling robots, and PCB drilling systems, the TUB-12/460 provides the sub-micron positioning accuracy and low-ripple torque output required for delicate component handling. Its compact tube form factor allows dense multi-axis packing within space-constrained machine frames.

Packaging & Converting Lines: In servo-driven film tension control, rotary knife synchronization, and label applicator systems, the TUB-12/460 operates as a coordinated execution node within a multi-axis electronic line shaft. Its fast current loop response ensures tight velocity matching between master and follower axes, eliminating web tension spikes and registration errors.

Medical Device Assembly: In automated dispensing, syringe filling, and surgical instrument assembly systems, the TUB-12/460's low-noise torque control and deterministic EtherCAT communication support the precision and repeatability demanded by ISO 13485 production environments.

Robotics & Collaborative Automation: In SCARA, delta, and Cartesian robot platforms, multiple TUB-12/460 drives operate in synchronized CSP mode under a central motion controller, enabling coordinated multi-DOF trajectory execution with real-time collision avoidance and dynamic load compensation.

Power & Energy Infrastructure: In valve actuator control panels and turbine governor systems, the TUB-12/460 provides reliable closed-loop position control in environments with wide ambient temperature variation and high electrical noise, supported by its robust fault detection and STO safety input.

Q1: Is the TUB-12/460 compatible with third-party EtherCAT masters and PLCs outside the Elmo ecosystem? Yes. The TUB-12/460 implements the CiA 402 CANopen drive profile over EtherCAT (CoE), which is the industry-standard interface supported by Beckhoff TwinCAT, Omron Sysmac, Mitsubishi MELSEC iQ-R EtherCAT master modules, and other conformant EtherCAT masters. ESI (EtherCAT Slave Information) files are available from Elmo and can be imported directly into the master engineering tool. Basic CSP/CSV/CST operation is achievable without Elmo-specific software, though advanced tuning and diagnostics are best performed using Elmo Composer.

Q2: How should the TUB-12/460 be integrated into a shared DC bus architecture to ensure stability across multiple axes? In a shared DC bus configuration, all TUB-12/460 units connect their DC bus terminals in parallel, fed from a common AC/DC rectifier or regenerative power supply sized for the aggregate peak demand of all axes. A bus capacitor module should be installed close to the drive cluster to absorb regenerative energy spikes during simultaneous deceleration. Individual fusing or electronic circuit breakers on each drive's DC input are recommended to isolate faults without collapsing the shared bus. Elmo's application engineering documentation provides bus sizing guidelines based on axis count, motor ratings, and duty cycle.

Q3: What does the 12-Month Warranty cover, and what is the replacement process for a failed TUB-12/460 in a production environment? All TUB-12/460 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions confirmed through diagnostic review. In the event of a warranty claim, NANKMOS initiates an advance replacement process upon fault confirmation — shipping a tested replacement unit before the defective unit is returned — to minimize production downtime. Customers are advised to maintain one spare TUB-12/460 per machine line as part of their critical spare parts inventory strategy, given the drive's role as a single point of motion execution on each axis. Contact [email protected] with the unit serial number and fault code log to initiate a warranty claim.
