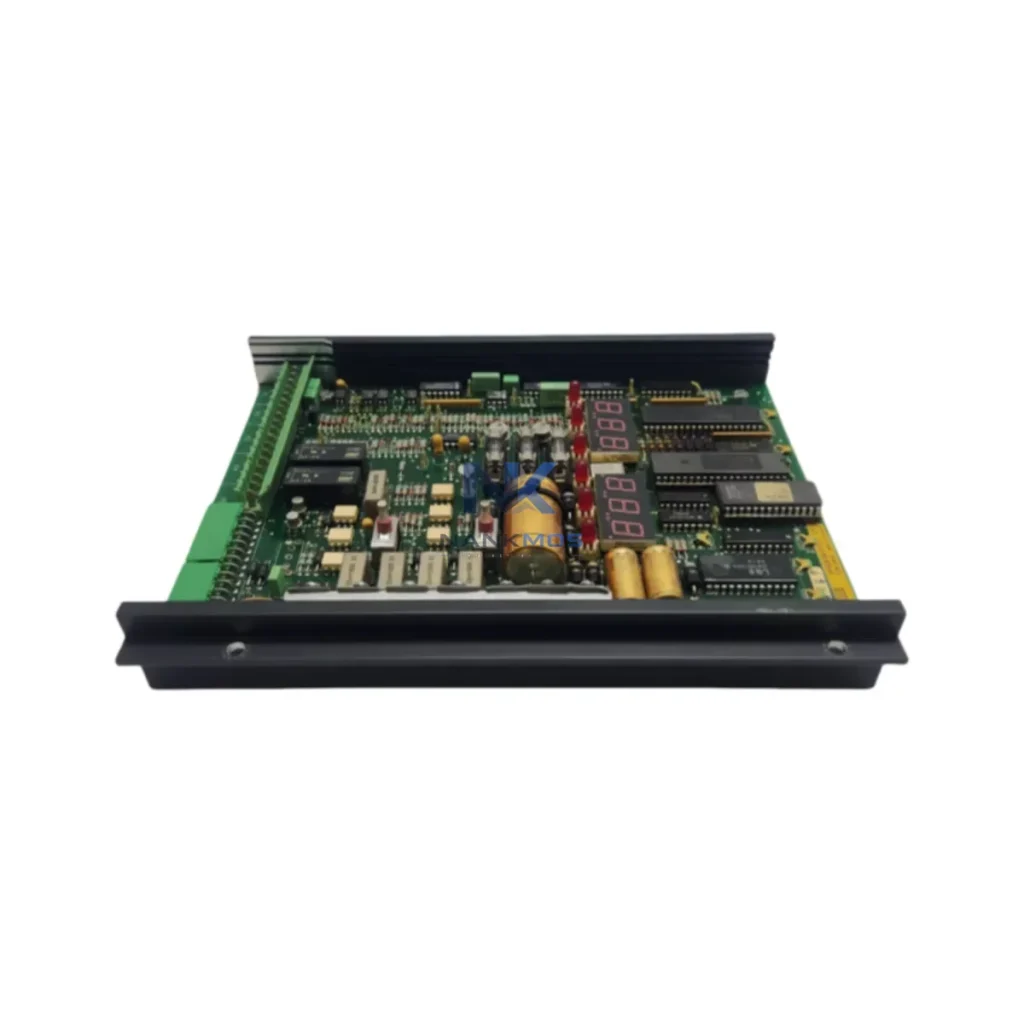

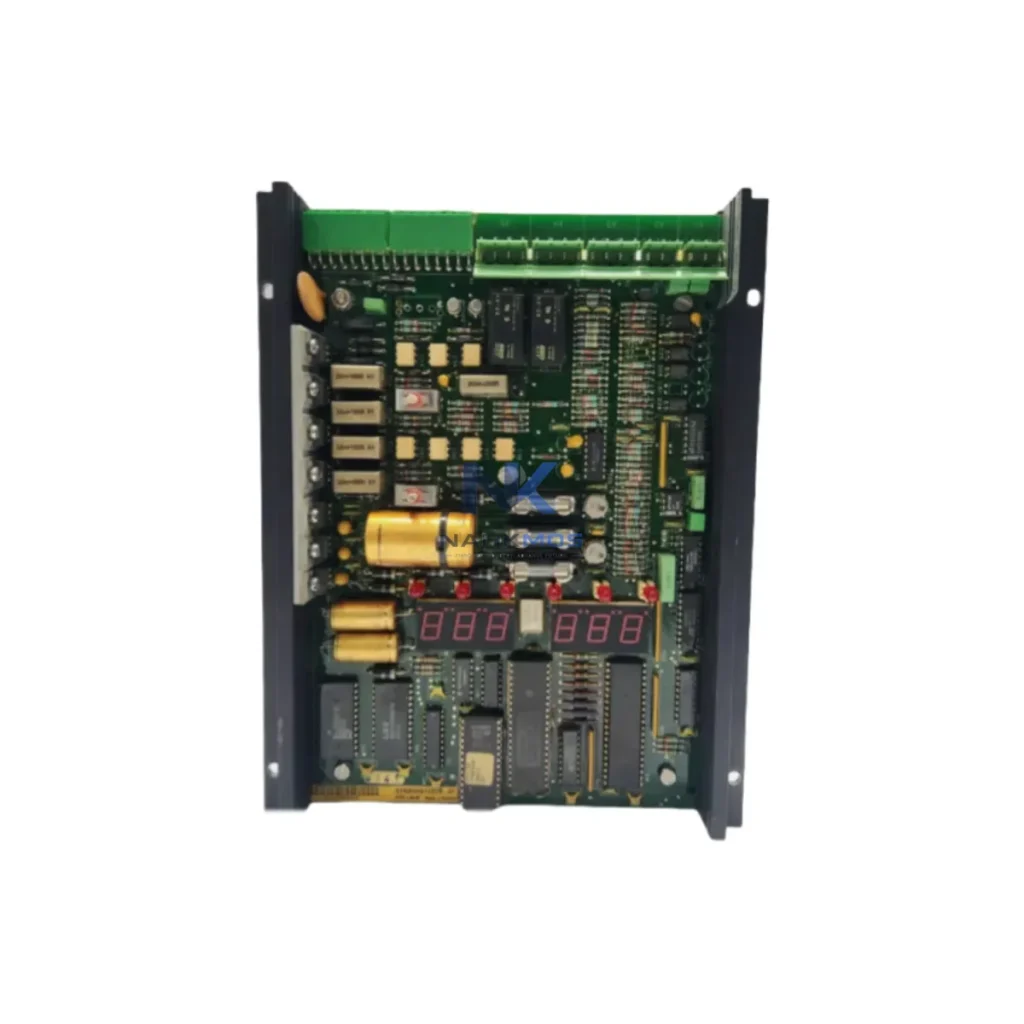

Alfa Laval VCU-160 MODULE 3183052091 Valve Control Unit

Product Details

VCU-160 MODULE 3183052091 Product Description

The Alfa Laval VCU-160 MODULE 3183052091 is a network-integrated valve control unit engineered for hygienic process automation in food & beverage, dairy, pharmaceutical, and chemical industries. Designed to operate within DeviceNet and AS-Interface (AS-i) fieldbus architectures, this module bridges the gap between field-level actuators and upper-level control systems, enabling real-time valve status feedback, remote diagnostics, and seamless SCADA/HMI integration across distributed automation networks.

In a modern smart factory, the data chain begins at the process valve and extends through every layer of the control hierarchy. The VCU-160 MODULE 3183052091 sits at the critical junction between physical actuation and digital intelligence. When a pneumatic valve opens or closes, the VCU-160 captures position feedback signals and transmits them over the DeviceNet segment to the PLC controller — such as an Allen-Bradley ControlLogix or Siemens S7-300 — where the data is processed, logged, and acted upon within milliseconds. This tight integration eliminates the latency and ambiguity that plague hardwired I/O architectures, replacing them with deterministic, protocol-native communication.

Upstream from the PLC, the valve status data flows through an industrial Ethernet switch — for example, a managed Layer 2 switch supporting PROFINET or EtherNet/IP — into the plant's SCADA backbone. Operators monitoring a Wonderware InTouch or Ignition SCADA platform receive live valve position data, cycle counts, and fault codes without manual polling. When a valve fails to reach its target position within the configured timeout window, the VCU-160 generates a diagnostic alarm that propagates through the network to the HMI panel, triggering an operator alert and logging the event for maintenance traceability.

The AS-Interface capability of the VCU-160 MODULE 3183052091 further extends its connectivity value. In installations where AS-i master modules — such as those integrated into Siemens ET 200SP remote I/O stations — manage distributed valve islands, the VCU-160 participates as an AS-i slave, reporting binary position states and receiving open/close commands over the two-wire AS-i bus. This architecture dramatically reduces field wiring complexity while maintaining full diagnostic transparency at the SCADA level.

For facilities implementing edge computing strategies, the VCU-160's network data can be aggregated by an industrial edge gateway — such as a Moxa MGate or Advantech ADAM series — which performs protocol translation from DeviceNet to Modbus TCP or OPC-UA, making valve operational data available to cloud-based MES and ERP platforms. This enables production managers to correlate valve cycle data with batch records, CIP cleaning cycles, and OEE metrics in real time, supporting continuous process improvement and regulatory compliance.

Pre-shipment testing is performed on every VCU-160 MODULE 3183052091 unit before dispatch. Each module is verified for correct DeviceNet node addressing, AS-i slave response, position feedback accuracy, and network communication integrity. Units ship with a 12-month warranty and are available from in-stock inventory, supporting urgent project timelines and MRO replacement requirements.

The VCU-160 MODULE 3183052091 anchors a complete smart factory data flow that spans from the process valve to the enterprise system. At the field level, pneumatic actuators fitted with the VCU-160 module report position states — open, closed, intermediate, or fault — directly onto the DeviceNet segment. A DeviceNet scanner card installed in an Allen-Bradley ControlLogix or CompactLogix PLC collects these states cyclically, integrating them into the PLC's I/O image table for ladder logic processing.

Where AS-Interface topology is preferred, an AS-i master module — embedded in a Siemens ET 200SP distributed I/O station or a standalone Bihl+Wiedemann AS-i gateway — polls the VCU-160 as a standard AS-i slave. The AS-i master then forwards aggregated valve data over PROFIBUS DP or PROFINET to the main PLC, maintaining a unified control namespace across mixed fieldbus environments.

At the network layer, managed industrial Ethernet switches — such as those from the Hirschmann MICE or Phoenix Contact FL SWITCH series — provide the backbone for real-time data transport between PLCs, remote I/O panels, HMI terminals, and SCADA servers. VLAN segmentation and QoS prioritization ensure that valve alarm traffic receives deterministic delivery latency, critical for safety-instrumented process lines.

Variable frequency drives (VFDs) controlling pump and agitator motors adjacent to the valve stations can share the same DeviceNet segment as the VCU-160, allowing the PLC to coordinate valve sequencing with motor speed ramp-up and ramp-down profiles. This tight coupling between valve control and drive control is essential in CIP (Clean-in-Place) and SIP (Sterilize-in-Place) cycles, where precise timing prevents product contamination and pressure surges.

An industrial edge gateway — such as a Moxa MGate MB3660 or Advantech ECU-1251 — can bridge the DeviceNet data from the VCU-160 into Modbus TCP or OPC-UA, making valve operational metrics available to cloud-connected MES platforms and digital twin environments. Maintenance engineers can remotely access valve cycle counts, fault histories, and position deviation trends without entering the production floor, reducing unplanned downtime and supporting predictive maintenance strategies.

Many process plants still operate with hardwired valve feedback — discrete 24 VDC signals routed through terminal blocks to PLC digital input cards. This architecture creates data silos: the PLC knows whether a valve is open or closed, but has no visibility into cycle count, response time deviation, or partial-stroke failure. The VCU-160 MODULE 3183052091 eliminates this gap by delivering structured, protocol-native diagnostic data over DeviceNet or AS-i, transforming a binary signal into a rich data object that SCADA and MES systems can consume directly.

Protocol fragmentation is another common challenge on brownfield sites, where legacy PROFIBUS DP segments coexist with newer EtherNet/IP or PROFINET zones. By deploying the VCU-160 within a DeviceNet island and bridging to the plant Ethernet backbone via a protocol gateway, engineers can integrate valve data into the unified SCADA namespace without replacing existing PLC infrastructure. This phased integration approach protects capital investment while progressively eliminating data blind spots.

Remote monitoring of geographically distributed valve stations — across multiple production buildings or outdoor tank farms — is enabled by routing VCU-160 data through industrial cellular routers or fiber-optic Ethernet extenders. Operators at a central control room receive the same real-time valve status as if the equipment were local, supporting lean staffing models and centralized alarm management.

Production line transparency is further enhanced by feeding VCU-160 cycle data into OEE dashboards. Each valve actuation event is timestamped and correlated with batch records, enabling quality managers to reconstruct the exact valve sequence for any production run — a capability increasingly required by FDA 21 CFR Part 11 and EHEDG audit frameworks.

Q1: What communication protocols does the Alfa Laval VCU-160 MODULE 3183052091 support?The VCU-160 MODULE 3183052091 supports DeviceNet and AS-Interface (AS-i) fieldbus protocols. DeviceNet enables integration with Allen-Bradley ControlLogix/CompactLogix PLCs and other CIP-compatible controllers. AS-i support allows the module to operate as a slave on two-wire AS-i networks managed by Siemens, Bihl+Wiedemann, or other AS-i master devices. Protocol gateway bridging to Modbus TCP or OPC-UA is achievable via third-party edge gateways.

Q2: How does the VCU-160 MODULE 3183052091 support remote diagnostics and predictive maintenance?The module transmits real-time valve position feedback, fault codes, and cycle count data over the fieldbus network to the PLC and SCADA system. Maintenance teams can monitor valve response time trends, detect partial-stroke deviations, and receive alarm notifications remotely via SCADA HMI or mobile dashboards — without requiring physical access to the valve station. This capability is particularly valuable for unmanned or remotely operated process facilities.

Q3: Is the VCU-160 MODULE 3183052091 compatible with existing SCADA and HMI platforms?Yes. Because the VCU-160 communicates via standard DeviceNet or AS-i protocols, its data is accessible to any SCADA or HMI platform that interfaces with a compatible PLC or AS-i master — including Siemens WinCC, Wonderware InTouch, Rockwell FactoryTalk, and Inductive Automation Ignition. No proprietary middleware is required; standard PLC I/O mapping exposes valve data as native tags within the SCADA project.

Q4: What quality assurance and warranty terms apply to the VCU-160 MODULE 3183052091?Every VCU-160 MODULE 3183052091 unit undergoes pre-shipment functional testing covering DeviceNet node communication, AS-i slave response, position feedback accuracy, and network integrity verification. Units are shipped from in-stock inventory and are covered by a 12-month warranty against manufacturing defects. Expedited shipping is available for urgent MRO and project replacement requirements.
