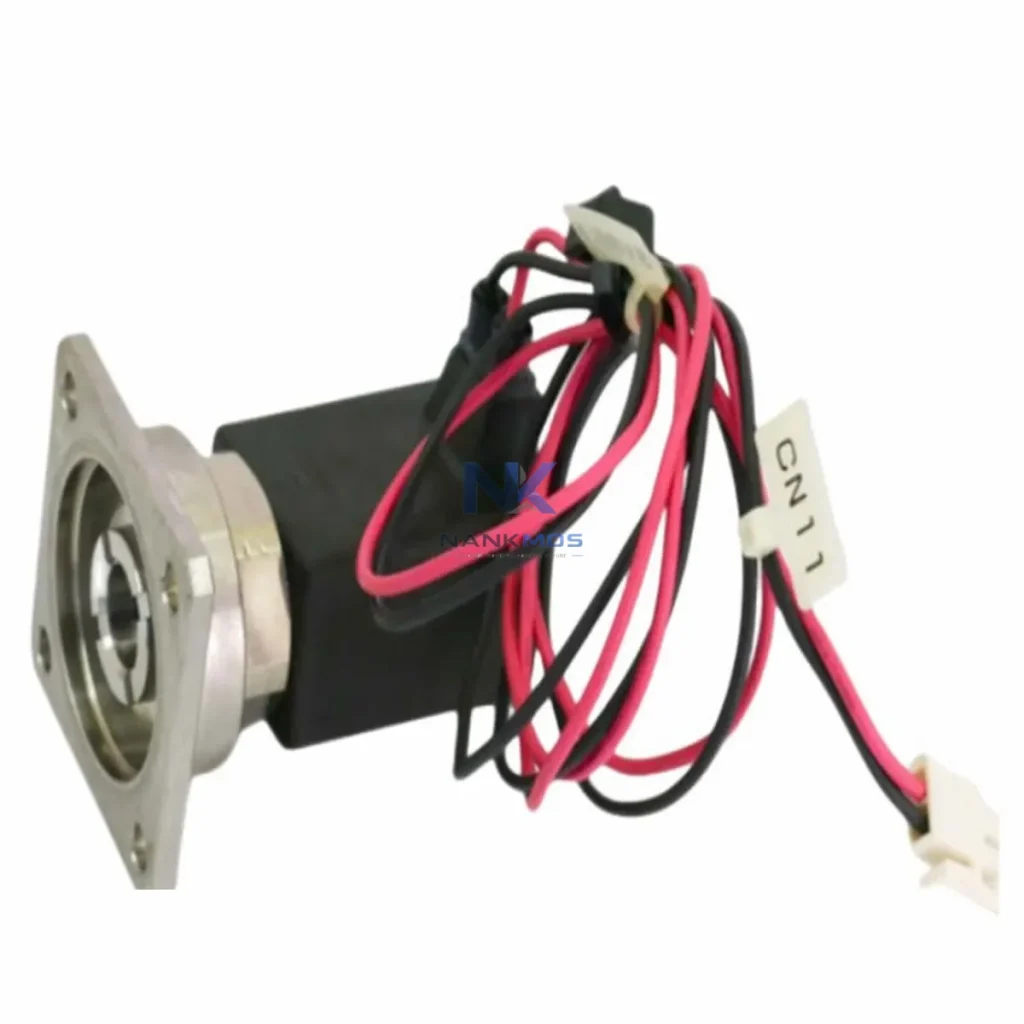

SMC VCZW31-5G-15-04-J-X21 0190-11558 Circulating Fluid Valve

Product Details

VCZW31-5G-15-04-J-X21 0190-11558 Product Description

The SMC VCZW31-5G-15-04-J-X21 is a precision-engineered circulating fluid valve from SMC's VCZ Series, purpose-built for integration into layered industrial control architectures. Designed to deliver consistent flow regulation, low-pressure-drop performance, and long-cycle reliability, this valve serves as a critical fluid control node within process automation systems where signal stability, modular expandability, and long-term maintenance efficiency are non-negotiable engineering requirements. Whether deployed in temperature-controlled coolant loops, hydraulic bypass circuits, or precision fluid distribution manifolds, the VCZW31-5G-15-04-J-X21 provides the mechanical precision and system compatibility demanded by modern control engineers.

In a complete automation architecture, fluid control is not an isolated function — it is a coordinated layer that interacts directly with the control layer, I/O layer, communication layer, and power layer. The VCZW31-5G-15-04-J-X21 is engineered with this systems-level perspective in mind, enabling seamless contextual integration across multi-vendor control platforms and mixed-protocol environments. Its compact form factor, standardized port sizing (Rc 1/2), and SMC-native compatibility make it a preferred choice for system integrators who require predictable performance across extended operational cycles.

The VCZW31-5G-15-04-J-X21 achieves its highest system value when deployed as part of a coordinated automation platform rather than as a standalone component. In a typical control cabinet architecture, the valve's solenoid coil is driven by a discrete output signal from a PLC digital output module — such as the SMC EX600 SI Unit or a compatible fieldbus I/O node — which translates control-layer commands into precise fluid switching events. This tight coupling between the control layer and the fluid layer eliminates signal latency and ensures deterministic response times critical for process-sensitive applications.

At the communication layer, the valve island can be integrated with SMC EX500 or EX260 Fieldbus Systems, enabling EtherNet/IP, PROFIBUS, or CC-Link connectivity to the main PLC rack. This allows the VCZW31-5G-15-04-J-X21 to participate in network-level diagnostics, valve cycle counting, and predictive maintenance routines without additional wiring overhead. When paired with an SMC VV5QC11 or VV5Q11 manifold valve station, multiple circulating valves can be grouped into a single pneumatic/fluid island, reducing cabinet footprint and simplifying commissioning.

For power layer integrity, the solenoid coil (5G designation) is designed for 24 VDC operation, compatible with standard SITOP PSU100S or Phoenix Contact QUINT-PS DIN-rail power supplies commonly used in Siemens S7-300/S7-1500 or Allen-Bradley ControlLogix control cabinets. Stable 24 VDC rail voltage is essential for consistent solenoid actuation and prevention of valve chatter under load fluctuation conditions.

At the I/O layer, discrete feedback from valve position sensors — such as SMC D-M9 or D-A93 reed switch sensors mounted on actuator bodies — can be wired back to PLC input modules, providing real-time valve state confirmation and enabling interlock logic for process safety. This bidirectional signal flow between the fluid layer and the control layer is a hallmark of well-engineered automation architectures.

For HMI integration, valve status and cycle data can be surfaced on Siemens TP700 Comfort, Weintek MT8000, or Proface GP4000 operator panels, giving maintenance technicians immediate visual confirmation of fluid circuit status without requiring PLC programming access. In redundant architecture designs, a secondary VCZW31-5G-15-04-J-X21 can be installed in a parallel fluid path, with switchover logic managed by the PLC to ensure zero-downtime fluid circulation during valve maintenance or failure events.

At the protection layer, upstream installation of SMC AW20 or AW30 filter-regulator units ensures that fluid entering the valve is free of particulate contamination that could compromise the valve seat or orifice geometry over extended service cycles. This upstream protection directly extends valve service life and reduces unplanned maintenance intervals.

Manufacturing & Machine Tool Cooling: In CNC machining centers and grinding machines, the VCZW31-5G-15-04-J-X21 manages coolant circulation loops that maintain spindle bearing temperatures within specification. PLC-controlled valve switching sequences coordinate coolant flow with spindle speed and feed rate, ensuring thermal stability across multi-shift production cycles.

Power Generation & Electrical Switchgear: In transformer cooling systems and high-voltage switchgear cabinets, circulating fluid valves regulate dielectric oil or deionized water flow through heat exchangers. The valve's DIN connector and 24 VDC coil make it directly compatible with substation automation RTUs and IEC 61850-compliant control systems.

Petrochemical & Process Industry: In chemical reactor temperature control loops, the VCZW31-5G-15-04-J-X21 provides reliable on/off control of cooling water or heat transfer fluid circuits. Its brass body and stainless wetted parts offer compatibility with mildly corrosive process fluids, while the solenoid actuation enables rapid response to PID controller output signals from DCS platforms.

Water Treatment & Utilities: In municipal water treatment facilities and industrial wastewater systems, the valve controls recirculation flows in membrane filtration, UV disinfection, and chemical dosing circuits. Integration with SCADA systems via PLC fieldbus modules enables remote monitoring and automated flow balancing across distributed pump stations.

Packaging & Food Processing Lines: In beverage filling and food processing equipment, the valve manages CIP (Clean-In-Place) fluid circuits, controlling the flow of cleaning agents and rinse water through product contact surfaces. The valve's compact form factor and standard port sizing simplify integration into hygienic manifold assemblies.

Q1: Is the VCZW31-5G-15-04-J-X21 compatible with SMC manifold valve stations for multi-circuit fluid control?A: The VCZ Series is designed for integration with SMC's VCZ manifold systems, allowing multiple circulating valves to share a common fluid supply and return rail. This manifold architecture reduces individual pipe connections, simplifies leak testing, and enables centralized solenoid wiring to a single fieldbus SI unit. Confirm manifold compatibility with the specific VCZ manifold part number and port pitch specifications before ordering.

Q2: What PLC output module specifications are required to drive the 5G solenoid coil reliably?A: The 5G coil designation indicates a 24 VDC solenoid with standard SMC power consumption (typically 1.5–2.5 W). Any PLC digital output module rated for 24 VDC sourcing or sinking output with a minimum current capacity of 100 mA per channel is compatible. Transistor output modules (NPN or PNP) are preferred over relay output modules for high-cycle applications to avoid contact wear. Verify coil inrush current against the output module's short-circuit protection rating.

Q3: What does the 12-Month Warranty cover, and what is the recommended maintenance interval for long-term deployment?A: The 12-Month Warranty covers manufacturing defects in materials and workmanship from the date of shipment. For long-term deployment, SMC recommends periodic inspection of the valve seat and orifice for wear or contamination at intervals determined by fluid quality and cycle frequency — typically every 12–24 months in clean fluid applications. Maintaining upstream filtration (5–10 μm recommended) and stable operating pressure within the rated range are the most effective measures for extending service life beyond the warranty period. Replacement coils and seal kits are available as service parts to support in-field maintenance without full valve replacement.
