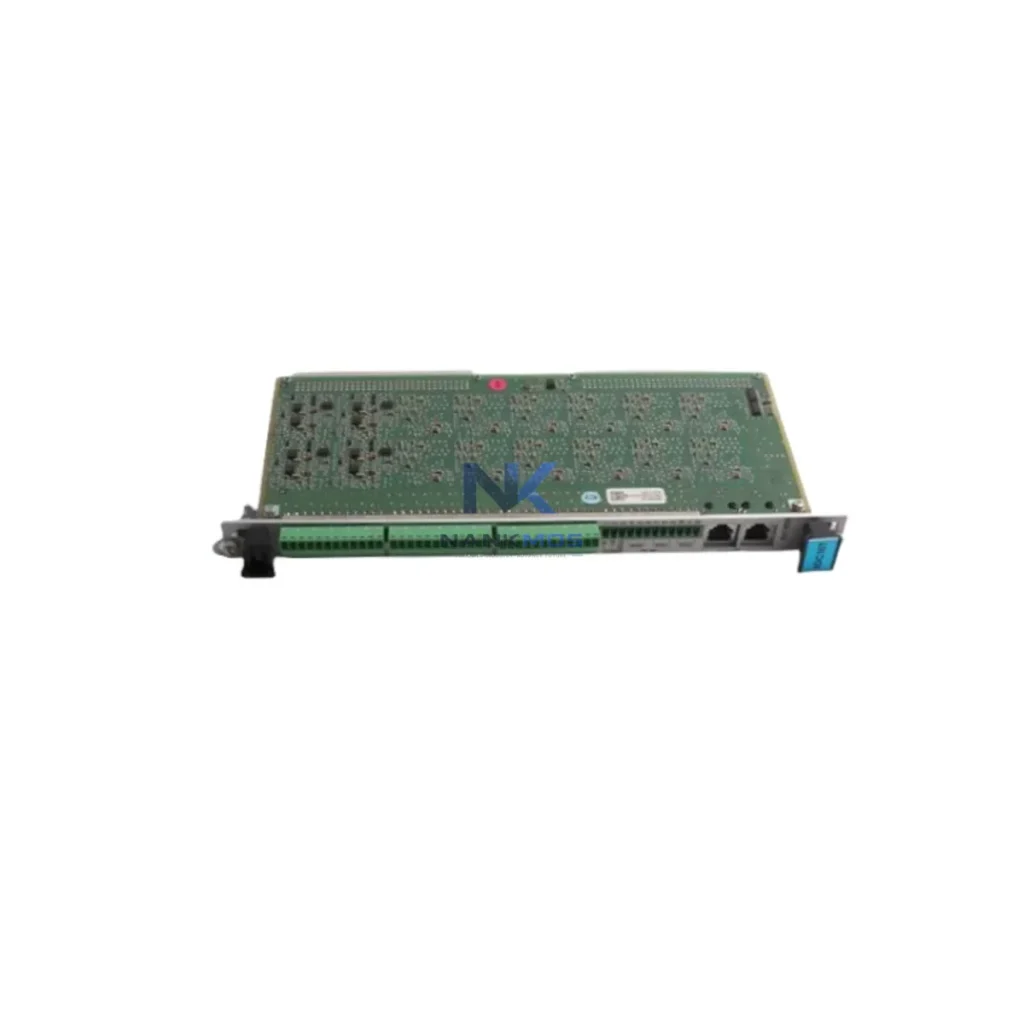

Meggitt VM600 IOC4T PNR-200-560-000-019 I/O Module

Product Details

VM600 IOC4T PNR-200-560-000-019 Product Description

The Meggitt VM600 IOC4T (PNR: 200-560-000-019) is a precision-engineered I/O card designed for seamless integration within the VM600 rack-based condition monitoring and machinery protection architecture. As a core signal interface component, the IOC4T bridges transducer-level inputs with the VM600 platform's processing and communication layers, enabling consistent, high-fidelity data acquisition across rotating machinery protection systems in demanding industrial environments.

Engineered to Meggitt's exacting standards for vibration and condition monitoring, the VM600 IOC4T supports multi-channel signal conditioning, ensuring that raw transducer outputs — from accelerometers, velocity sensors, and proximity probes — are accurately routed to the appropriate processing modules within the VM600 rack. This signal integrity is foundational to reliable machinery protection, predictive maintenance, and long-term asset health management.

The VM600 IOC4T does not operate in isolation — its value is fully realized within a coherent, layered VM600 system architecture. In a complete machinery protection deployment, the IOC4T works in concert with the VM600 MPC4 machinery protection card, which processes the conditioned signals and applies protection logic, trip thresholds, and alarm management. The VM600 RPS6U rack power supply provides stable, regulated power to all modules within the rack, ensuring that signal conditioning and processing remain unaffected by upstream power fluctuations.

At the communication layer, the VM600 AMC8 advanced monitoring card aggregates processed data from multiple I/O and protection cards, enabling high-speed data transfer to plant-level SCADA or DCS platforms via standard industrial protocols such as Modbus TCP, OPC-UA, or Profibus. This communication bridge is essential for integrating the VM600 platform into broader plant automation architectures managed by systems such as the ABB System 800xA or Emerson DeltaV DCS.

For installations requiring redundancy, the VM600 architecture supports dual-rack configurations where a secondary VM600 rack — equipped with mirrored IOC4T cards and MPC4 protection modules — provides hot-standby capability. This redundancy design is critical in applications such as gas turbine protection, compressor monitoring, and large rotating machinery in power generation and petrochemical facilities.

At the HMI and visualization layer, the VM600 system interfaces with Meggitt Vibro-Meter VibroSight software, providing real-time trend visualization, alarm history, and diagnostic dashboards. Operators can monitor all channels connected through the IOC4T in a unified interface, reducing diagnostic time and improving response to developing machinery faults.

Terminal connectivity within the control cabinet is typically managed through Phoenix Contact PTFIX or Weidmüller Klippon terminal blocks, which provide organized, labeled wiring interfaces between field transducers and the VM600 rack's I/O cards. Proper terminal management ensures signal integrity and simplifies maintenance access during scheduled inspections or fault diagnosis.

For installations requiring signal isolation — particularly in environments with high electromagnetic interference from variable frequency drives (VFDs) or large motor starters — signal isolators such as the Pepperl+Fuchs KFD2 series can be integrated upstream of the IOC4T inputs, protecting signal fidelity and preventing ground loop interference from corrupting vibration measurements.

Industrial Ethernet switches, such as the Hirschmann MACH series or Cisco IE3000, provide the network backbone for VM600 data communication in large plant environments, ensuring deterministic, low-latency data transfer between the VM600 AMC8 communication card and plant-level historian or SCADA servers.

Power Generation: In gas turbine and steam turbine protection systems, the VM600 IOC4T serves as the primary signal interface for shaft vibration, bearing temperature, and axial displacement transducers. Its multi-channel architecture allows a single rack to monitor multiple critical measurement points simultaneously, reducing hardware footprint while maintaining full protection coverage per API 670 machinery protection standards.

Petrochemical & Refining: Compressor trains in ethylene, LNG, and refinery applications demand continuous, high-reliability vibration monitoring. The IOC4T's compatibility with proximity probe inputs makes it well-suited for monitoring journal bearing vibration and shaft position on centrifugal and reciprocating compressors, where early fault detection directly impacts process safety and production continuity.

Mining & Minerals Processing: Large grinding mills, crushers, and conveyor drive systems in mining operations benefit from the VM600 IOC4T's robust signal conditioning in high-vibration, high-dust environments. Integration with the VM600 MPC4 protection card enables automatic trip responses to protect high-value rotating assets from catastrophic failure.

Marine & Offshore: Shipboard propulsion systems, diesel generators, and offshore platform rotating equipment require machinery protection systems certified for marine environments. The VM600 platform, with the IOC4T as its signal interface core, supports DNV-GL and ABS-certified installations, providing reliable protection in corrosive, high-humidity marine conditions.

Water & Wastewater Treatment: Large pump stations and blower systems in municipal water treatment facilities use the VM600 IOC4T to monitor motor and pump bearing health, enabling predictive maintenance scheduling that reduces unplanned downtime and extends asset service life.

Q1: Is the VM600 IOC4T compatible with all VM600 rack configurations, and can it be mixed with other VM600 I/O cards in the same rack?A: Yes. The VM600 IOC4T is designed for the standard VM600 rack backplane and is fully compatible with other VM600 series cards, including the MPC4 machinery protection card, AMC8 communication card, and RPS6U power supply. Multiple IOC4T cards can be installed in a single rack to expand channel capacity, and they operate independently without cross-channel interference, making mixed-card rack configurations straightforward for system integrators.

Q2: What is the recommended approach for integrating the VM600 IOC4T into an existing DCS or SCADA architecture, and which communication protocols are supported?A: Integration is achieved through the VM600 AMC8 advanced monitoring card, which aggregates data from all I/O and protection cards in the rack and provides communication interfaces supporting Modbus TCP/IP, OPC-UA, and Profibus DP. For DCS integration with platforms such as ABB System 800xA, Emerson DeltaV, or Honeywell Experion, the AMC8 acts as the gateway, mapping VM600 channel data to DCS tag structures. Engineering configuration is performed via Meggitt's VibroSight software, which provides tag mapping, alarm threshold configuration, and communication parameter setup.

Q3: What warranty and post-shipment support does NANKMOS provide for the VM600 IOC4T, and how is long-term spare parts availability managed?A: NANKMOS provides a 12-Month Warranty on the VM600 IOC4T, covering manufacturing defects and functional performance. Every unit undergoes pre-shipment functional testing to verify signal conditioning performance and backplane communication integrity before dispatch. For long-term spare parts management, NANKMOS maintains dedicated inventory of VM600 series components to support planned maintenance cycles, emergency replacements, and multi-site fleet management programs. Customers are encouraged to contact [email protected] for volume pricing, lead time commitments, and tailored spare parts supply agreements.
