Meggitt VM600 RLC16 200-570-000-111 Relay Card

Product Details

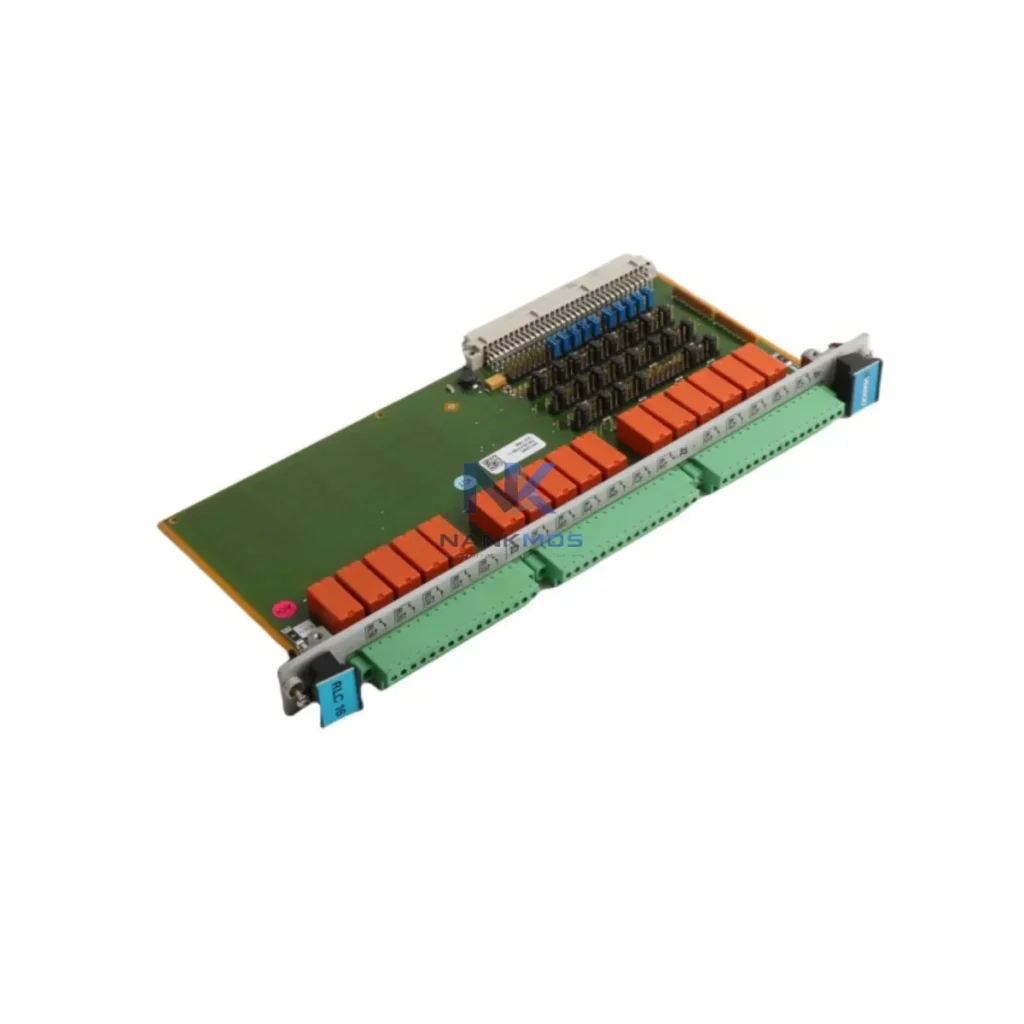

VM600 RLC16 200-570-000-111 Product Description

The Meggitt VM600 RLC16 200-570-000-111 is a high-precision relay output card engineered for the VM600 machinery protection and condition monitoring platform. Designed for deployment in energy-intensive industrial environments, this relay card plays a critical role in load management, equipment protection, and production line energy optimisation. By delivering fast, reliable switching responses to alarm and trip signals from the VM600 rack, it enables plant operators to reduce unnecessary energy consumption, prevent thermal overload, and maintain stable production rhythms across rotating machinery assets.

In modern smart factories where energy efficiency is a key performance indicator, the VM600 RLC16 200-570-000-111 serves as the decisive output interface between condition monitoring intelligence and physical load control. When vibration, temperature, or process deviation thresholds are exceeded, this relay card executes immediate switching actions — isolating faulty drives, de-energising motors, or triggering protective shutdowns — thereby preventing cascading failures that would otherwise result in prolonged downtime and wasted energy from idle or overloaded equipment.

The VM600 RLC16 200-570-000-111 does not operate in isolation — it is the output execution layer of a tightly integrated energy-aware automation architecture. Within a VM600 rack, it works in direct coordination with signal conditioning cards such as the Meggitt VM600 MPC4 200-510-000-111 (machinery protection card) and the VM600 AMC8 200-500-000-111 (analogue monitoring card), which continuously process vibration and process signals from proximity probes, accelerometers, and velocity sensors. When these upstream cards detect anomalies, the RLC16 relay card translates those digital decisions into physical switching actions.

At the drive and motor control layer, the relay outputs from the VM600 RLC16 interface directly with ABB ACS880 variable frequency drives and Siemens SINAMICS S120 servo drive systems, enabling coordinated motor shutdown or speed reduction commands that prevent energy waste from motors running under fault conditions. In applications where a Schneider Electric Altivar Process ATV630 drive governs pump or fan loads, the RLC16 relay trip signal can trigger a controlled ramp-down rather than an abrupt stop, protecting both the mechanical load and the drive's power electronics.

For energy monitoring and load management, the VM600 RLC16 integrates with Siemens SENTRON PAC3200 power monitoring modules and Schneider Electric PowerLogic PM8000 series meters via the plant's DCS or SCADA layer. When the relay card executes a trip, the power monitoring system logs the load drop event, enabling energy managers to correlate protection events with consumption anomalies and identify chronic overload conditions that inflate energy bills.

At the PLC level, the relay outputs connect to Siemens S7-1500 PLC digital input modules or Rockwell Automation Allen-Bradley ControlLogix I/O racks, where the trip and alarm states are processed by the plant's main control logic. This integration allows the PLC to initiate production line sequencing changes — such as bypassing a faulty asset, rerouting process flow, or adjusting production tempo — in response to machinery protection events, thereby maintaining overall line efficiency even during partial equipment outages.

HMI visibility is provided through Siemens SIMATIC TP1500 Comfort Panel or Weintek cMT Series HMI displays, where operators can monitor relay status, acknowledge alarms, and review trip histories in real time. This transparency reduces the time operators spend investigating energy anomalies and accelerates corrective action. Communication to the plant's SCADA system — whether Wonderware System Platform or Ignition by Inductive Automation — is handled via the VM600 rack's communication interface, ensuring that relay events are logged, trended, and available for predictive maintenance analysis.

In high-throughput production environments — petrochemical plants, power generation facilities, cement mills, and automotive manufacturing lines — unplanned equipment failures are among the most significant sources of energy waste. A motor or compressor that continues to run under a developing fault condition draws disproportionately high current, generates excess heat, and accelerates wear on adjacent components. The VM600 RLC16 200-570-000-111 addresses this directly by ensuring that protection decisions made by the VM600 monitoring system are executed with minimal latency, isolating the fault before it propagates.

By enabling fast, reliable trip and alarm relay switching, the RLC16 card supports a predictive maintenance strategy that shifts maintenance activity from reactive (post-failure) to condition-based (pre-failure). This transition has a measurable impact on energy consumption: equipment that is maintained in optimal condition operates closer to its rated efficiency curve, consuming less power per unit of output. Compressors that are tripped and inspected before bearing failure avoid the energy penalty of running with degraded mechanical efficiency; pumps that are isolated before seal failure avoid cavitation-induced power spikes.

The relay card also contributes to production line tempo stability. In automated lines where a single asset failure can halt an entire production sequence, the VM600 RLC16's fast response time minimises the duration of unplanned stops. Shorter, more predictable downtime windows allow production schedulers to maintain tighter cycle times, reducing the energy cost of line restarts — which typically involve high inrush currents from motors and drives returning to operating speed simultaneously.

For facilities pursuing ISO 50001 energy management certification or implementing IEC 62443 industrial cybersecurity frameworks, the VM600 RLC16 200-570-000-111 provides a documented, auditable protection output layer that supports both energy performance and operational resilience objectives. Every relay event is timestamped and logged, providing the data foundation for energy audits, maintenance planning, and continuous improvement programmes.

All units supplied by NANKMOS are sourced from verified supply channels, subjected to functional output testing prior to dispatch, and covered by a 12-Month Warranty. In-stock availability ensures rapid deployment to minimise production downtime and energy losses associated with extended equipment outages.

Q1: How does the VM600 RLC16 200-570-000-111 contribute to energy savings on a production line? The RLC16 relay card executes trip and alarm outputs from the VM600 machinery protection system, isolating motors, drives, and rotating equipment when fault conditions are detected. By preventing equipment from continuing to operate under fault conditions — which typically results in elevated current draw, excess heat generation, and accelerated wear — the card directly reduces wasted energy and lowers the thermal load on control panels and motor control centres.

Q2: Is the VM600 RLC16 200-570-000-111 compatible with third-party PLCs and SCADA systems? Yes. The relay outputs are dry-contact switching outputs that are universally compatible with digital input modules on Siemens S7-1500, Rockwell ControlLogix, Mitsubishi MELSEC iQ-R, and other major PLC platforms. SCADA integration is achieved via the VM600 rack's communication interface, supporting OPC-DA/UA, Modbus TCP, and proprietary protocols depending on the VM600 communication card installed in the rack.

Q3: Can this relay card replace an existing VM600 RLC16 module, and what is the recommended replacement procedure? The VM600 RLC16 200-570-000-111 is a direct replacement for compatible VM600 rack slots. Prior to replacement, it is recommended to document all relay assignment configurations from the existing module using the VM600 configuration software, power down the rack in accordance with the site's lockout/tagout procedure, swap the module, and restore the configuration. NANKMOS supplies units that have been functionally tested and are ready for immediate installation.

Q4: What warranty and testing assurance is provided with this unit? Every VM600 RLC16 200-570-000-111 supplied by NANKMOS is covered by a 12-Month Warranty from the date of dispatch. Each unit undergoes functional relay output testing prior to shipment to verify switching performance and contact integrity. In-stock units are available for same-day or next-business-day dispatch, minimising production downtime. For technical support or warranty claims, contact NANKMOS directly.
