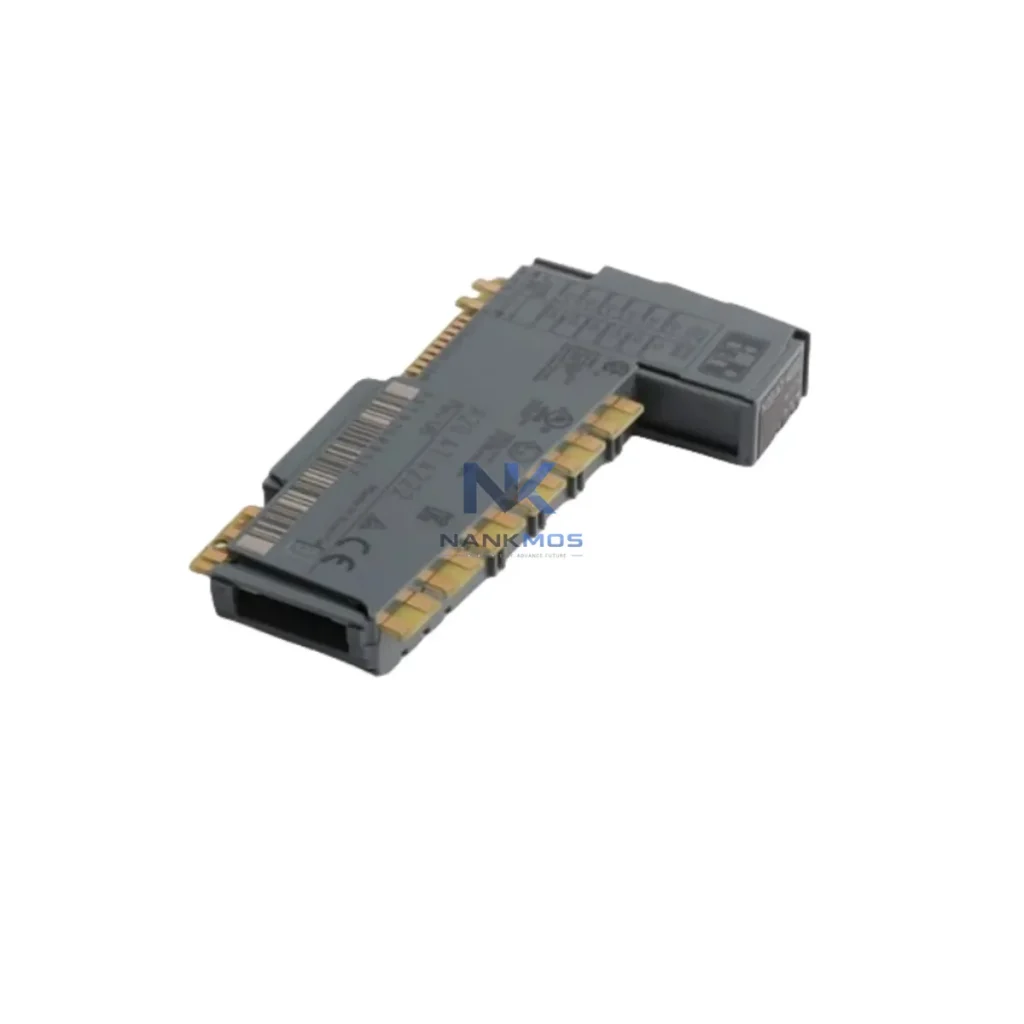

B&R Automation X20 AT 4222 Thermocouple Analog Input Module

Product Details

X20 AT 4222 Product Description

The B&R X20AT4222 is a high-precision thermocouple analog input module engineered for seamless integration within the X20 modular I/O architecture. Designed to serve as a critical node in the smart factory data chain, the X20AT4222 captures real-time temperature signals from Type K, J, N, and other thermocouple sensors deployed across production lines, furnaces, extruders, and process reactors. Its native compatibility with the X2X Link communication bus and POWERLINK Ethernet protocol ensures that every temperature measurement is transmitted with deterministic timing and zero data loss — forming the backbone of a transparent, connected automation environment.

In modern industrial facilities, the ability to move process data reliably from field instruments to supervisory systems is no longer optional — it is the foundation of operational excellence. The X20AT4222 fulfills this role by bridging the gap between raw thermocouple signals and the high-speed digital networks that feed SCADA platforms, HMI dashboards, and MES data historians. Whether deployed in a standalone X20 CPU rack or distributed across a multi-node X20 remote I/O station, this module delivers consistent, calibrated temperature data that drives real-time decisions at every level of the automation hierarchy.

The X20AT4222 sits at the signal acquisition layer of the smart factory data chain. Thermocouple sensors installed on heating zones, cooling circuits, or process vessels feed raw millivolt signals directly into the module's four input channels. The X20AT4222 performs onboard cold-junction compensation and analog-to-digital conversion, producing calibrated engineering-unit values that are immediately available on the X2X Link backplane bus.

These digitized temperature values are then consumed by the X20 CPU — such as the X20CP1586 or X20CP3586 — which executes the control logic and forwards process data upstream via POWERLINK. In distributed architectures, the X20AT4222 can be mounted in a remote I/O station connected through an X20BC0083 POWERLINK bus controller, extending the data reach across large plant floors without signal degradation. The POWERLINK network carries synchronized process data to the Automation Studio engineering environment, where it is mapped to SCADA tags and HMI variables in real time.

At the SCADA and HMI layer, temperature trends from the X20AT4222 are visualized alongside data from complementary modules such as the X20AO4622 analog output module — which drives control valves or heater relays based on the temperature feedback — and the X20DI9371 digital input module, which captures interlock and alarm signals from safety relays. This closed-loop data flow enables precise temperature regulation, predictive maintenance alerts, and full process traceability within a unified X20 platform.

For facilities integrating third-party equipment, the X20AT4222 data can be bridged to Modbus TCP, PROFINET, or EtherNet/IP networks through B&R's X20 gateway modules, enabling interoperability with Siemens SIMATIC HMI panels, Rockwell FactoryTalk SCADA, or Wonderware InTouch historian systems. Edge computing nodes — such as industrial PCs running B&R's mapp Technology software — can subscribe to the POWERLINK data stream and apply machine learning models for anomaly detection and thermal runaway prediction, pushing insights to cloud dashboards without disrupting the real-time control loop.

Power supply integrity for the X20AT4222 and its neighboring modules is maintained by X20 power supply modules such as the X20PS9400, which provides regulated 24 VDC to the backplane and ensures stable operation even during grid fluctuations. Industrial Ethernet switches with PROFINET or POWERLINK port support complete the network infrastructure, connecting the X20 system to plant-wide OT networks and enabling remote access for engineering teams performing diagnostics from off-site locations.

Many industrial facilities face persistent challenges when attempting to consolidate temperature data from legacy thermocouple instruments into modern digital control systems. The X20AT4222 directly addresses these pain points by providing a standards-compliant, protocol-native interface that eliminates the need for external signal conditioners or protocol converters between the sensor and the PLC.

Protocol Fragmentation: Sites running mixed automation environments — where B&R X20 CPUs coexist with third-party PLCs or DCS systems — can leverage the X20AT4222's POWERLINK output alongside gateway modules to publish temperature data in Modbus TCP or OPC UA format, creating a unified data namespace accessible to any SCADA or MES platform without proprietary middleware.

Data Islands and Blind Spots: Remote process areas with limited wiring infrastructure can be served by X20 remote I/O stations hosting the X20AT4222, connected back to the main control cabinet via a single POWERLINK fiber or copper cable. This eliminates analog signal runs that are susceptible to EMI interference and voltage drop, replacing them with a robust digital data link that carries multiple channel values simultaneously.

Remote Monitoring and Diagnostics: The X20AT4222 supports module-level diagnostics accessible through Automation Studio's online monitoring tools. Engineers can remotely inspect channel status, wire-break detection flags, and out-of-range alarms without dispatching field technicians, reducing mean time to repair and minimizing unplanned downtime on critical thermal processes.

Production Line Transparency: By feeding calibrated temperature data into SCADA historian databases, the X20AT4222 enables long-term trend analysis, SPC charting, and energy consumption reporting — giving plant managers the visibility needed to optimize setpoints, reduce scrap rates, and demonstrate regulatory compliance for food, pharmaceutical, or chemical manufacturing processes.

Alarm Tracking and System Expansion: The X20 platform's modular architecture allows additional X20AT4222 modules to be added to an existing rack without system reconfiguration, scaling thermocouple input capacity as production lines expand. Alarm thresholds configured in the CPU logic are automatically propagated to HMI and SCADA alarm management systems, ensuring that every temperature excursion is logged, timestamped, and routed to the responsible operator.

Q1: What communication protocols does the X20AT4222 support, and how does it integrate with SCADA systems? The X20AT4222 communicates natively via the X2X Link backplane bus within the X20 rack and transmits data to the network layer through POWERLINK Ethernet. SCADA integration is achieved by mapping POWERLINK process variables to OPC UA, Modbus TCP, or proprietary SCADA drivers through the X20 CPU or a dedicated gateway module. This ensures compatibility with leading SCADA platforms including Ignition, WinCC, and FactoryTalk without requiring additional hardware.

Q2: How does the X20AT4222 maintain network stability in high-EMI industrial environments? The X20AT4222 uses the X2X Link digital backplane bus for all internal data transfer, eliminating analog signal paths that are vulnerable to electromagnetic interference. The POWERLINK Ethernet connection supports shielded cable installations and ring topology redundancy, ensuring that a single cable fault does not interrupt data flow. The module also includes onboard filtering and cold-junction compensation circuits that maintain measurement accuracy in electrically noisy environments.

Q3: Can the X20AT4222 support remote diagnostics and predictive maintenance applications? Yes. The X20AT4222 provides channel-level diagnostic data — including wire-break detection, over-range flags, and module health status — that is accessible through Automation Studio's online monitoring interface and can be forwarded to remote diagnostic platforms via OPC UA or MQTT. This data supports predictive maintenance workflows by enabling continuous monitoring of thermocouple sensor health and early detection of measurement drift before process quality is affected.

Q4: What warranty and pre-shipment testing does the X20AT4222 include? Every X20AT4222 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes functional testing prior to shipment. Testing verifies channel accuracy, backplane communication integrity, and module identification on the X2X Link bus. In-stock units are available for immediate dispatch to support urgent project timelines, with global shipping options to minimize lead times for system integrators and OEM customers worldwide.
