Panametrics XMTC-62-21 Conductivity Transmitter

Product Details

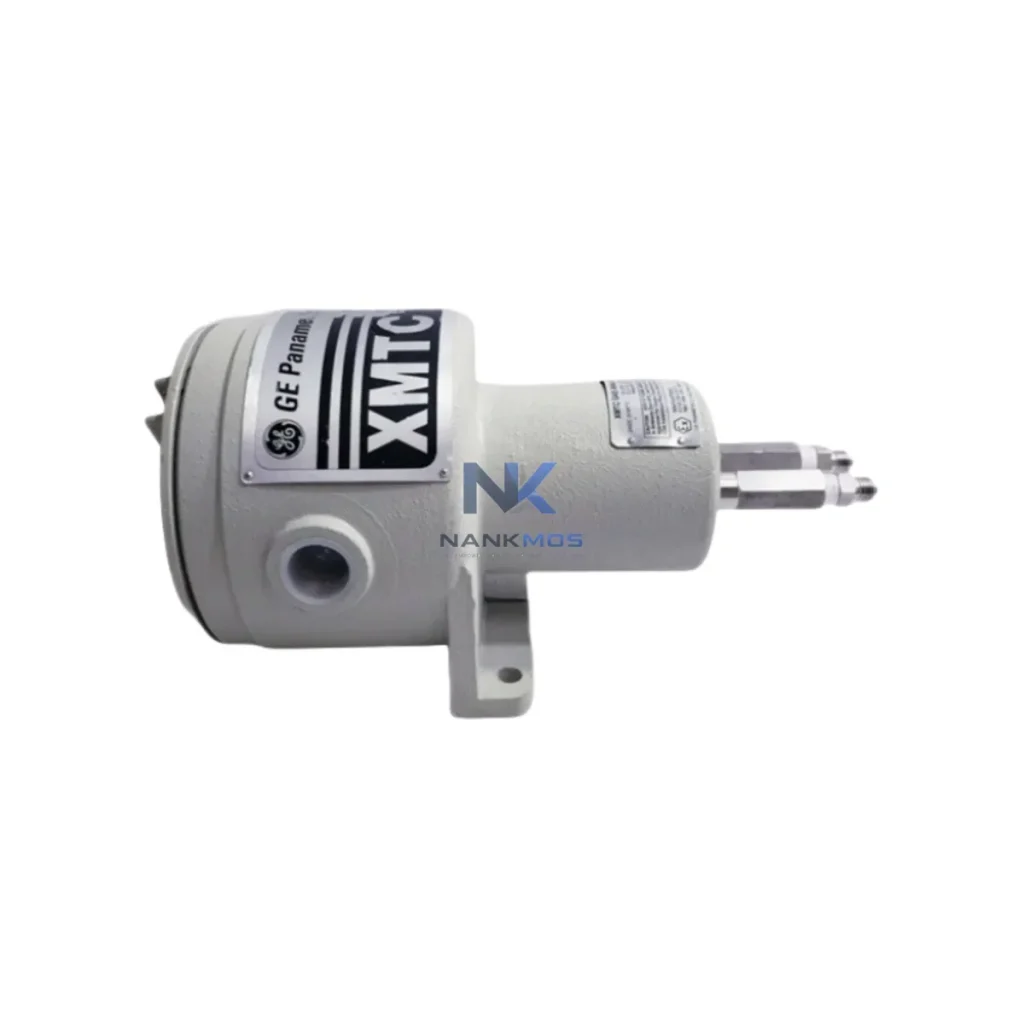

XMTC-62-21 Product Description

The Panametrics XMTC-62-21 is a precision conductivity transmitter engineered for seamless integration into multi-layer industrial control architectures. Designed within the XMTC Series platform, this transmitter delivers stable, high-accuracy conductivity measurement signals that feed directly into DCS, PLC, and SCADA control layers — enabling real-time process monitoring, closed-loop control, and system-wide data consistency. Whether deployed in water treatment, chemical processing, power generation, or pharmaceutical manufacturing, the XMTC-62-21 serves as a critical sensing node that bridges the field instrument layer with the supervisory control layer, ensuring signal integrity from the process medium to the control room.

In modern industrial automation, conductivity measurement is not an isolated function — it is a foundational parameter that influences dosing control, quality assurance, corrosion protection, and regulatory compliance. The XMTC-62-21 is built to operate within this broader system context, providing a reliable 4-20mA analog output that integrates directly with analog input modules across major DCS and PLC platforms. Its robust housing and field-calibration capability reduce maintenance downtime and support long-term deployment in demanding process environments.

The XMTC-62-21 is most effective when deployed as part of a coordinated automation architecture rather than as a standalone instrument. In a typical process control system, the transmitter's 4-20mA output connects to an analog input (AI) module on a DCS or PLC rack — such as a Honeywell Experion AI card, an ABB S800 AI810 module, or a Siemens ET 200SP AI module — where the signal is scaled, filtered, and passed to the control logic layer for closed-loop regulation or alarm management.

At the control layer, the XMTC-62-21 signal may feed into a Honeywell C300 Controller, a Siemens S7-400 CPU, or an ABB AC800M controller, where conductivity setpoints are compared against live readings to trigger dosing pumps, valve actuators, or bypass sequences. In distributed architectures, the signal may be routed through a PROFIBUS PA segment or a HART multiplexer to aggregate field data before transmission to the supervisory layer.

For systems requiring signal isolation or long-distance transmission, a signal isolator or loop-powered repeater — such as those in the Phoenix Contact MINI Analog series or Pepperl+Fuchs KFD2 range — can be inserted between the XMTC-62-21 and the AI module to eliminate ground loops and protect input card integrity. In multi-transmitter installations, a marshalling panel with terminal blocks (e.g., Weidmüller or Phoenix Contact rail-mount terminals) organizes field wiring before entry into the control cabinet.

Power supply stability is equally critical. The XMTC-62-21 loop is typically powered by a 24VDC rail-mount power supply — such as a Phoenix Contact QUINT or a Siemens SITOP PSU — ensuring clean, regulated power that prevents measurement drift caused by supply fluctuations. In redundant architectures, dual power supplies with diode ORing modules maintain loop continuity during supply switchover events.

At the HMI and SCADA layer, conductivity trends from the XMTC-62-21 are visualized on operator stations running Wonderware InTouch, Siemens WinCC, or Honeywell Experion Station, enabling operators to monitor process quality in real time and respond to out-of-spec conditions before they escalate. Alarm thresholds configured in the DCS controller trigger audible and visual alerts, supporting rapid operator intervention.

This layered integration — from the XMTC-62-21 sensing node through AI modules, controllers, signal conditioners, power supplies, and HMI platforms — demonstrates the transmitter's role as a foundational component in a coherent, maintainable, and scalable process automation system.

Water Treatment & Desalination: The XMTC-62-21 is widely deployed in municipal and industrial water treatment plants to monitor conductivity across reverse osmosis membranes, ion exchange columns, and effluent discharge points. Continuous conductivity feedback enables automated chemical dosing and membrane flush cycles, reducing chemical consumption and extending membrane service life.

Power Generation & Boiler Water Chemistry: In thermal power plants and combined-cycle facilities, boiler feedwater and steam condensate conductivity must be maintained within tight limits to prevent turbine blade corrosion and boiler scaling. The XMTC-62-21 provides the real-time measurement data required for automated blowdown control and chemical treatment systems integrated with plant DCS platforms.

Chemical & Petrochemical Processing: Conductivity measurement is used in chemical plants to monitor reaction completeness, detect phase separation, and verify product purity in continuous process streams. The XMTC-62-21's stable output supports closed-loop control of neutralization reactors and product quality verification systems.

Pharmaceutical & Food & Beverage: In regulated manufacturing environments, conductivity is a key parameter for CIP (Clean-in-Place) validation, purified water system monitoring, and product concentration verification. The XMTC-62-21 supports compliance with USP and EP water quality standards when integrated with validated DCS or batch control systems.

Mining & Metallurgy: In hydrometallurgical processes such as leaching, solvent extraction, and electrowinning, conductivity monitoring supports process efficiency and reagent management. The XMTC-62-21's robust construction suits the harsh chemical environments typical of mining operations.

Q1: Is the XMTC-62-21 compatible with both DCS and PLC analog input modules? Yes. The XMTC-62-21 provides a standard 4-20mA two-wire output that is universally compatible with analog input (AI) modules across major DCS and PLC platforms, including Honeywell Experion, ABB System 800xA, Siemens PCS 7, Emerson DeltaV, and Rockwell ControlLogix. No signal conversion is required for standard AI card integration. For HART-enabled systems, verify the specific XMTC-62-21 variant supports HART communication before specifying.

Q2: What installation and commissioning considerations apply when integrating the XMTC-62-21 into an existing control architecture? Key commissioning steps include verifying loop power supply voltage (typically 24VDC), confirming AI module input impedance compatibility, performing a two-point calibration using certified conductivity standards, and configuring engineering unit scaling in the DCS or PLC. Cable shielding and grounding practices should follow IEC 61000-5-2 guidelines to minimize EMI-induced measurement errors. Pre-shipment testing at NANKMOS ensures the unit is verified functional before site installation.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains in-stock inventory of the XMTC-62-21 and XMTC Series components to support rapid deployment and spare-parts replenishment for ongoing maintenance programs. Each unit undergoes pre-shipment functional testing. For long-term maintenance contracts or volume procurement, contact NANKMOS directly to discuss stocking agreements and lead-time commitments.
