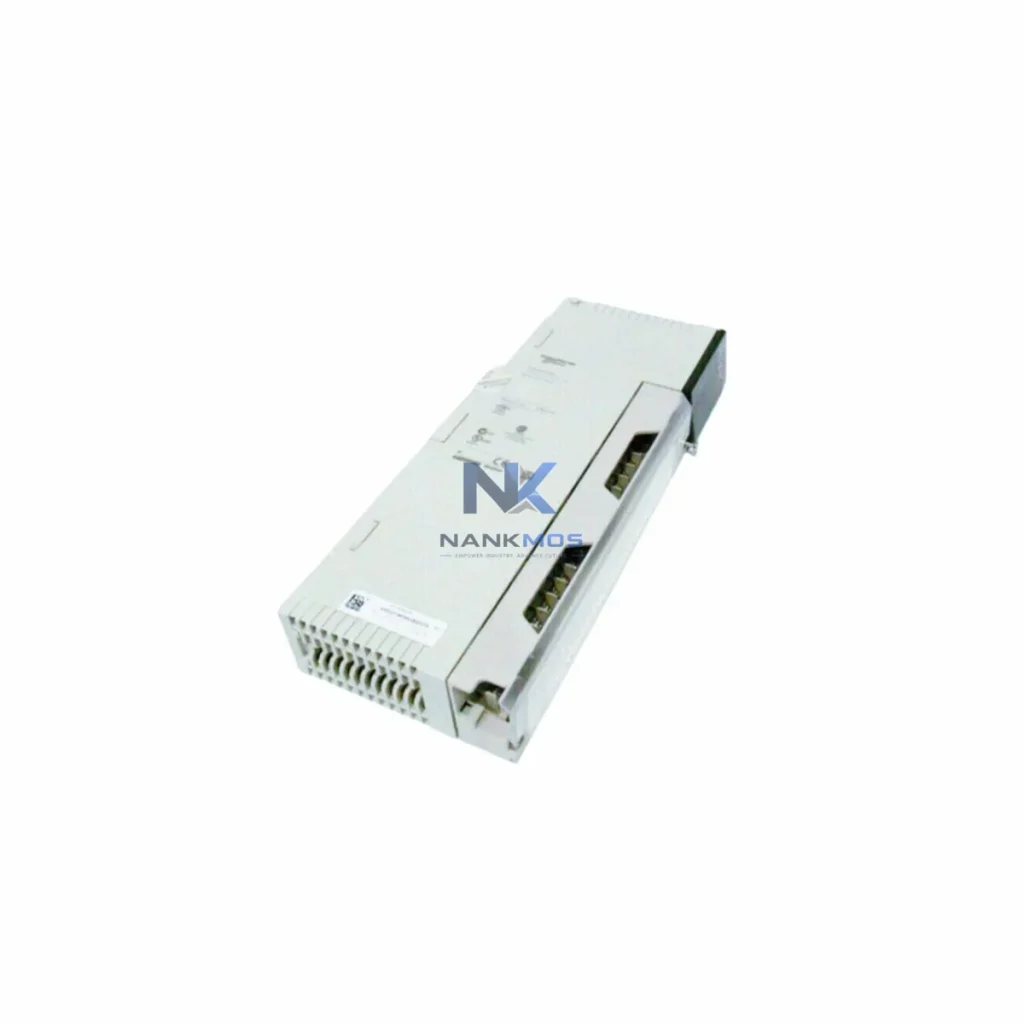

Schneider Electric 140-DAI-540-00 Discrete Input Module

Product Details

140-DAI-540-00 Product Description

The Schneider Electric 140DAI54000 is a 32-channel, 120 VAC discrete input module engineered for the Modicon Quantum automation platform. Designed to serve as a critical signal acquisition layer within distributed control architectures, this module delivers reliable field-level data to the Quantum CPU backplane, enabling deterministic scan cycles, high-density I/O expansion, and long-term maintainability across demanding industrial environments. Whether deployed in a primary control rack or a remote I/O drop, the 140DAI54000 integrates seamlessly into the Quantum system's modular topology, supporting both standalone and redundant configurations.

As a core component of the Modicon Quantum I/O layer, the 140DAI54000 is built to operate continuously in environments where signal integrity, electrical isolation, and thermal stability are non-negotiable. Its optically isolated input circuits protect the CPU backplane from field-side transients, while its 32-channel density reduces rack slot consumption and simplifies cabinet layout. The module is fully compatible with the Quantum 140 series backplane infrastructure, allowing engineers to mix discrete and analog I/O modules within the same rack without compromising scan performance or diagnostic visibility.

The 140DAI54000 does not operate in isolation — its value is fully realised when positioned within a coherent Modicon Quantum control architecture. At the CPU layer, modules such as the 140CPU65160 or 140CPU67160 provide the processing backbone, executing ladder logic and function block programs while managing the backplane scan cycle that the 140DAI54000 feeds into. The CPU's deterministic I/O scan ensures that discrete field signals captured by the 140DAI54000 are processed within defined cycle times, which is essential for time-critical applications such as motor interlock sequences and emergency shutdown logic.

Power distribution across the Quantum rack is managed by dedicated power supply modules such as the 140CPS11420 or 140CPS21400, which provide regulated 24 VDC backplane power to all installed modules including the 140DAI54000. Proper power budget planning — accounting for the module's backplane current draw — is a prerequisite for stable multi-slot rack configurations. For remote I/O architectures, the 140CRP93200 remote I/O head module extends the Quantum backplane over RIO coaxial cable drops, allowing the 140DAI54000 to be deployed in field junction boxes or remote panels while maintaining synchronised data exchange with the main CPU rack.

Communication gateway modules such as the 140NOE77101 Ethernet TCP/IP network option module enable the Quantum platform to interface with SCADA systems, historian servers, and HMI terminals over standard Ethernet infrastructure. When paired with the 140DAI54000's discrete input data, the NOE module allows operators to monitor field device states in real time via Wonderware, iFIX, or Vijeo Citect HMI platforms. For Modbus Plus network topologies, the 140NOM21100 provides peer-to-peer messaging between Quantum PLCs, enabling distributed control strategies where discrete input states from one rack influence output logic in another.

On the output side, the 140DAO84000 discrete AC output module complements the 140DAI54000 within the same rack, forming a balanced I/O pair for motor control, valve actuation, and contactor switching applications. For mixed signal environments, the 140ACI04000 analog current input module can be installed alongside the 140DAI54000 to capture 4–20 mA process signals from transmitters, providing the CPU with both discrete status and continuous process variable data within a single scan cycle. Terminal block accessories such as the 140XTS00200 wiring system simplify field wiring termination and reduce installation time during commissioning.

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 140DAI54000 monitors proximity sensors, limit switches, and safety light curtain outputs across conveyor and robotic assembly stations. Its 32-channel density allows a single module to cover an entire production cell, reducing rack count and simplifying PLC program organisation. The module's optical isolation protects the Quantum CPU from inductive switching noise generated by servo drives and variable frequency drives operating in the same control cabinet.

Power Generation & Electrical Substations: In power plant auxiliary systems and substation automation, the 140DAI54000 captures 120 VAC status signals from circuit breaker auxiliary contacts, relay trip outputs, and transformer tap position indicators. Its compatibility with the Quantum redundancy architecture — using dual CPU modules such as the 140CPU67160 in hot-standby configuration — ensures that discrete input data remains available to the control system even during a CPU switchover event, which is critical for continuous power generation operations.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 140DAI54000 to monitor pump run/fail status, valve open/closed feedback, and level switch outputs across distributed pump stations. The module's wide operating temperature range and humidity tolerance make it suitable for installation in outdoor field panels and wet-area control rooms. Integration with SCADA systems via the 140NOE77101 Ethernet module enables centralised alarm management and remote diagnostics without requiring on-site personnel for routine status checks.

Oil, Gas & Petrochemical: In process plant safety instrumented systems and basic process control systems, the 140DAI54000 provides discrete input acquisition for emergency shutdown pushbuttons, fire and gas detector outputs, and pressure switch contacts. Its deterministic scan performance supports the time-critical logic execution required in safety-related control functions, and its modular form factor allows rapid module replacement during planned maintenance shutdowns, minimising process downtime.

Q1: Is the 140DAI54000 compatible with both local and remote Quantum I/O racks? Yes. The 140DAI54000 is fully compatible with both local Quantum CPU racks and remote I/O drops managed by the 140CRP93200 remote I/O head module. In remote configurations, the module communicates with the main CPU via the Quantum RIO coaxial cable network, maintaining the same scan cycle behaviour as a locally installed module. Engineers should verify the remote I/O drop's power budget and cable length limits during system design to ensure signal integrity across the full installation.

Q2: Can the 140DAI54000 be used in a Quantum hot-standby redundancy architecture? Yes. The 140DAI54000 is compatible with Quantum hot-standby CPU configurations using dual 140CPU67160 modules and the 140CHS11000 hot-standby module. In this architecture, both primary and standby CPUs receive identical I/O scan data from the 140DAI54000, ensuring bumpless switchover in the event of a CPU fault. Proper rack slot assignment and Unity Pro redundancy configuration are required to enable this capability. NANKMOS supplies tested 140DAI54000 modules with a 12-Month Warranty, supporting long-term reliability in redundant control architectures.

Q3: What is the lead time and warranty coverage for the 140DAI54000 supplied by NANKMOS? NANKMOS maintains in-stock inventory of the 140DAI54000 for immediate dispatch. Each module undergoes pre-shipment functional testing to verify channel integrity, backplane communication, and optical isolation performance before delivery. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For urgent project requirements or bulk procurement, contact NANKMOS directly at [email protected] or +86 18359268345 to confirm availability and arrange expedited shipping.
