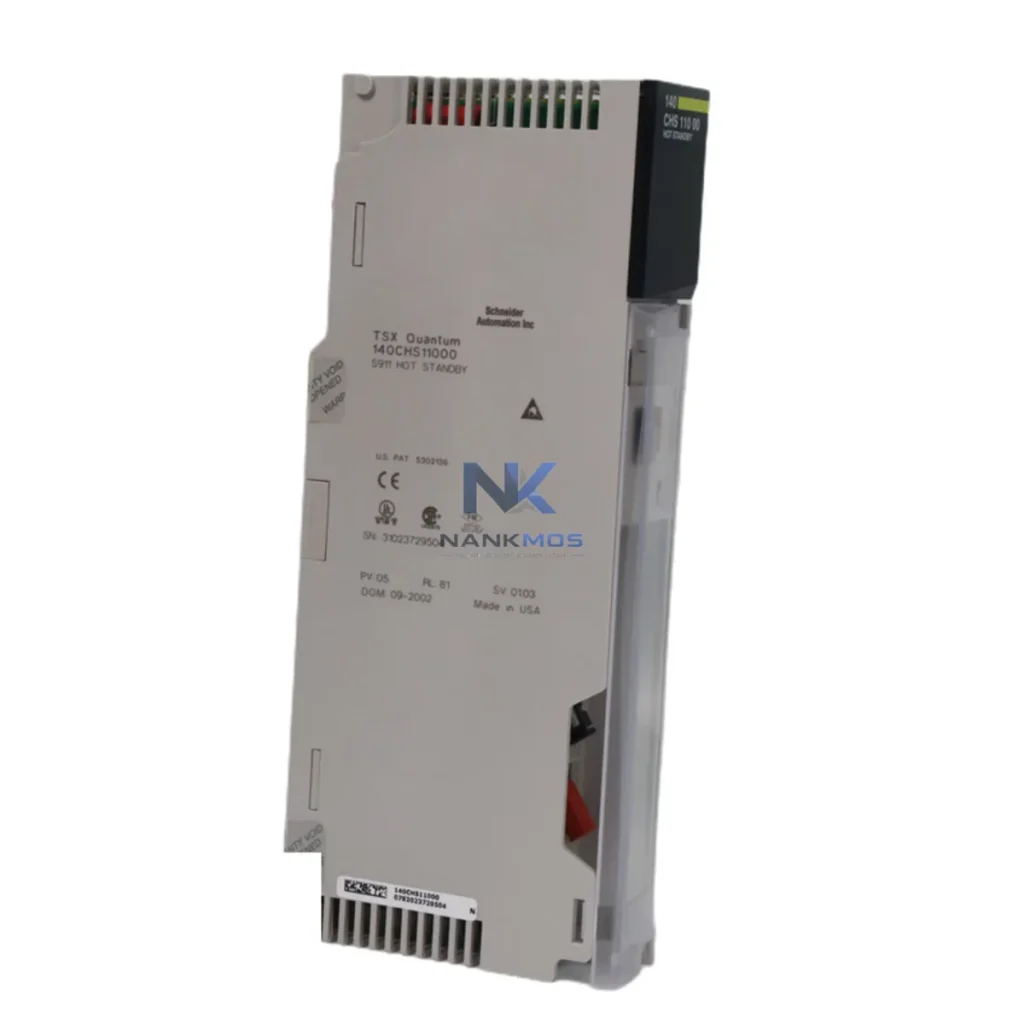

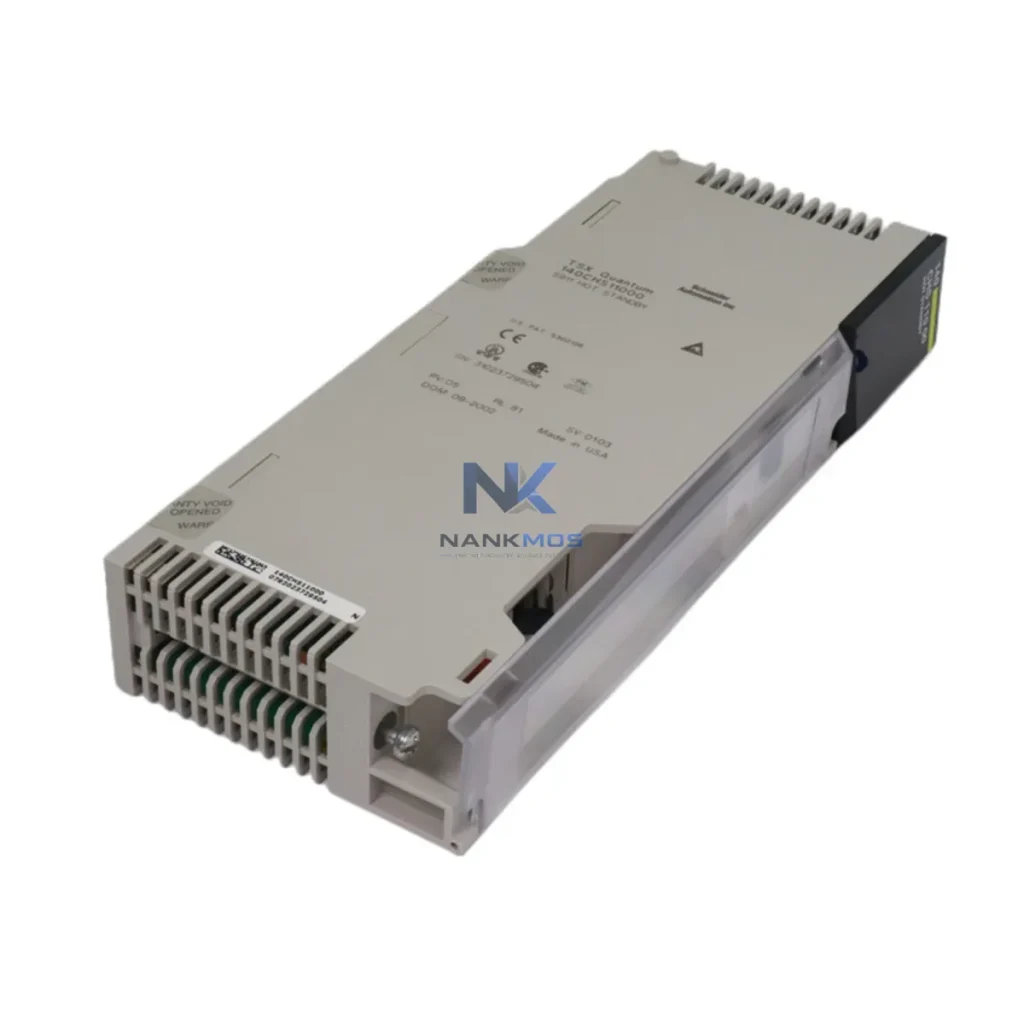

Schneider Electric 140CHS11000 PLC Hot Standby Module

Product Details

140CHS11000 Product Description

The Schneider Electric 140CHS11000 is a Quantum Hot Standby CPU module engineered for mission-critical industrial automation environments where network continuity, real-time data integrity, and zero-downtime operation are non-negotiable. Designed as a core component of the Modicon Quantum platform, the 140CHS11000 delivers seamless redundancy across the control layer, enabling smart factories to maintain uninterrupted data flow between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, and enterprise-level MES platforms.

In modern connected factory architectures, the 140CHS11000 serves as the backbone of a resilient automation network. It synchronizes the primary and standby CPUs over a dedicated hot standby link, ensuring that any switchover event is transparent to the process — no data loss, no communication gap, no production interruption. This level of network-linked redundancy is essential for energy facilities, continuous process plants, and high-throughput discrete manufacturing lines where even a momentary control outage translates directly into financial loss or safety risk.

The 140CHS11000 sits at the heart of a layered industrial data architecture. At the field level, sensors, actuators, and transmitters feed real-time process values into remote I/O racks — such as the Quantum 140DAI54000 digital input module and 140ACI04000 analog input module — which relay structured data upward through the Modbus Plus network or Ethernet backplane to the primary Quantum CPU. The 140CHS11000 continuously mirrors this CPU state to the standby unit, so that if the primary encounters a fault, the standby assumes control within milliseconds without any perceptible disruption to the data pipeline.

At the network layer, the 140NOE77101 Ethernet communication module bridges the Quantum backplane to the plant-wide Industrial Ethernet infrastructure, enabling the 140CHS11000-managed system to exchange data with upstream SCADA servers, historian databases, and OPC-UA gateways. Variable frequency drives — such as the Altivar ATV630 series — connected via Modbus TCP report speed, torque, and fault status in real time, while the SCADA platform aggregates these values for trend analysis and alarm management. HMI panels running Vijeo Designer or Magelis terminals display live process data sourced directly from the redundant Quantum CPU pair, ensuring operators always see current, validated information regardless of which CPU is active.

Edge intelligence is extended further through protocol gateways such as the Moxa MGate MB3480 or similar Modbus-to-EtherNet/IP converters, which allow legacy field devices to participate in the modern data fabric without hardware replacement. Industrial managed switches — for example, the Hirschmann RS20 series — provide VLAN segmentation and ring redundancy (MRP/RSTP) at the network layer, protecting the hot standby synchronization link from broadcast storms or topology changes. Power quality is sustained by Schneider Electric Phaseo ABL8 series power supplies, which deliver stable 24 VDC to I/O racks and communication modules, preventing voltage-induced communication errors that could trigger false switchovers.

At the supervisory layer, the redundant Quantum system managed by the 140CHS11000 integrates natively with EcoStruxure Plant SCADA Expert (formerly Vijeo Citect) and third-party platforms via OPC-DA/UA servers. Data historians capture every tag value at configurable scan rates, feeding dashboards that visualize OEE, energy consumption per production zone, and predictive maintenance KPIs. Remote diagnostic access is enabled through secure VPN tunnels terminating at the plant DMZ, allowing engineering teams to interrogate CPU diagnostics, I/O module health, and network statistics without physical site presence.

Many industrial sites operating Modicon Quantum infrastructure face a common set of challenges: protocol fragmentation between legacy Modbus RTU field devices and modern Ethernet-based control systems, data silos that prevent SCADA from accessing real-time drive or sensor values, and insufficient redundancy that exposes the control layer to single points of failure. The 140CHS11000 directly addresses the redundancy gap — but its value extends beyond failover. By maintaining a continuously synchronized standby CPU, it eliminates the data discontinuity that occurs during unplanned controller restarts, preserving historian integrity and preventing alarm floods that typically accompany cold-start recoveries.

For sites struggling with production line transparency, the 140CHS11000 enables a fully instrumented control backbone where every I/O module, drive, and gateway reports status through a single, coherent network. Alarm tracking becomes deterministic: fault events are timestamped at the CPU level and propagated to SCADA with sub-second latency, enabling root-cause analysis without manual log correlation. System expansion is straightforward — additional Quantum I/O racks, communication modules, or remote drop stations can be added to the Modbus Plus or Ethernet network without disrupting the hot standby pair, supporting phased smart factory upgrades without production downtime.

Remote monitoring and diagnostics are further strengthened by the module's compatibility with Unity Pro / EcoStruxure Control Expert diagnostic tools, which provide online CPU health monitoring, memory utilization tracking, and communication error counters accessible from any networked engineering workstation. Every unit supplied by NANKMOS undergoes pre-shipment functional testing to verify hot standby synchronization, communication link integrity, and I/O backplane compatibility before dispatch.

Q1: What communication protocols does the 140CHS11000 support for SCADA integration? The 140CHS11000 operates within the Modicon Quantum platform, which supports Modbus TCP/IP, Modbus Plus, and EtherNet/IP via companion communication modules such as the 140NOE77101. These protocols enable direct integration with SCADA platforms including EcoStruxure Plant SCADA Expert, Wonderware System Platform, iFIX, and any OPC-DA/UA compliant supervisory system.

Q2: How fast is the switchover between primary and standby CPUs, and does it affect network communication? The 140CHS11000 hot standby architecture achieves switchover in under one PLC scan cycle under normal operating conditions, which is typically imperceptible to connected SCADA, HMI, and drive systems. Modbus TCP connections are maintained through the switchover event, and the standby CPU resumes I/O scanning with the last synchronized data state, preventing process upsets or communication timeouts.

Q3: Is the 140CHS11000 compatible with existing Quantum I/O racks and third-party network devices? Yes. The 140CHS11000 is fully compatible with the Modicon Quantum I/O backplane and all standard Quantum I/O modules. Third-party devices communicating via Modbus TCP or Modbus Plus — including drives, gateways, remote I/O adapters, and industrial switches — integrate without modification. Protocol gateways can bridge additional fieldbus protocols (PROFIBUS, DeviceNet, CANopen) into the Quantum network where required.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle pre-shipment testing? Every 140CHS11000 supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification including hot standby link integrity checks, backplane communication tests, and firmware version confirmation. In-stock units are available for immediate dispatch, and our technical team provides post-sale support for integration queries and diagnostic assistance.
