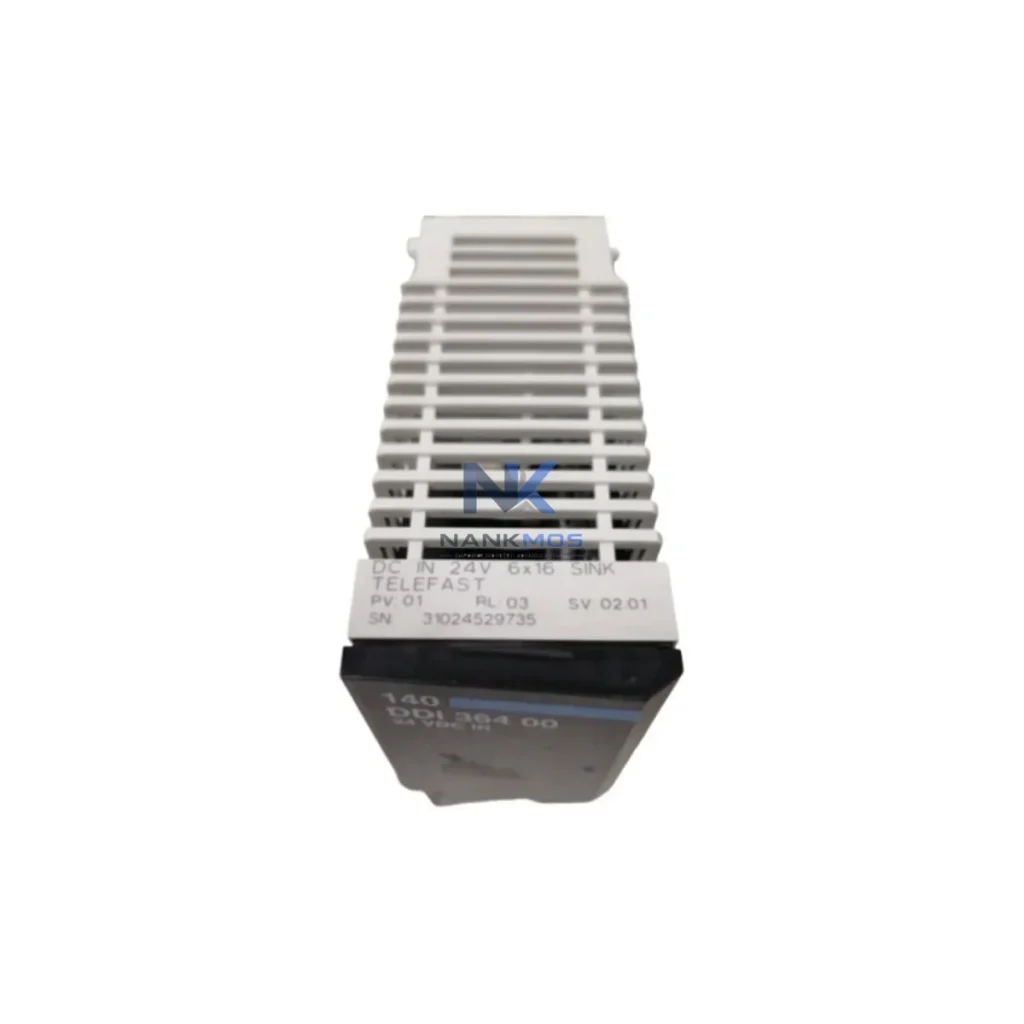

Schneider Electric 140DDI36400 PLC DC Input Module

Product Details

140DDI36400 Product Description

The Schneider Electric 140DDI36400 is a 32-channel 24 VDC discrete input module engineered for the Modicon Quantum automation platform. Within a fully integrated industrial control architecture, this module occupies a critical position at the I/O layer, serving as the primary interface between field-level sensing devices and the Quantum CPU's logic execution engine. Its design philosophy centers on signal fidelity, high-density channel capacity, and seamless contextual integration with the broader Quantum rack ecosystem — making it an indispensable component for engineers building scalable, redundant, and diagnostically capable control systems.

The 140DDI36400 does not function in isolation — its true value emerges when deployed within a complete Modicon Quantum control architecture. At the CPU layer, the module interfaces directly with processors such as the 140CPU65160 or 140CPU67160, which execute ladder logic and function block programs that consume the discrete input states delivered by the 140DDI36400 across the backplane bus. The CPU's scan cycle reads all 32 channels simultaneously, ensuring deterministic input latency that is essential for time-critical process control.

Power integrity across the rack is maintained by the 140CPS11420 or 140CPS21400 power supply modules, which provide regulated 24 VDC and 5 VDC rails to both the backplane and field-side circuits. Stable power delivery directly influences the signal threshold accuracy of the 140DDI36400, particularly in environments with fluctuating field supply voltages common in heavy industrial settings.

For applications requiring high-density mixed I/O, the 140DDI36400 is commonly deployed alongside discrete output modules such as the 140DDO36400 (32-channel 24 VDC output) and analog modules like the 140ACI04000 (4-channel analog current input) or 140ACO02000 (2-channel analog current output). This combination enables a single Quantum rack to handle both digital field signals and process variable measurements within a unified backplane architecture, reducing cabinet footprint and inter-module wiring complexity.

Network connectivity is extended through communication modules such as the 140NOE77101 Ethernet TCP/IP module or the 140NOM21200 Modbus Plus network option module. These communication layers allow the input states captured by the 140DDI36400 to be transmitted upstream to SCADA systems, historian servers, or remote HMI panels — enabling real-time monitoring and alarm management without additional signal conditioning hardware.

At the HMI layer, operator interfaces such as the HMIGTO5310 Magelis advanced touchscreen panel connect via Ethernet or serial links to the Quantum CPU, displaying the discrete input status mapped from the 140DDI36400 channels. This direct data path from field sensor through I/O module, CPU, and HMI creates a transparent and auditable signal chain that simplifies both commissioning and fault diagnosis.

For redundant architectures — common in power generation, water treatment, and petrochemical applications — the 140DDI36400 can be deployed in hot-standby configurations using the 140CPU67160S redundancy CPU pair combined with the 140CRP93200 remote I/O head adapter. This arrangement ensures that a single module failure does not interrupt process control, with automatic CPU switchover occurring within one scan cycle.

Manufacturing & Discrete Production Lines: In automotive assembly and electronics manufacturing, the 140DDI36400 captures proximity sensor, limit switch, and photoelectric sensor signals across conveyor systems, robotic work cells, and quality inspection stations. Its 32-channel density reduces the number of I/O racks required per control panel, directly lowering hardware and installation costs.

Power Generation & Electrical Substations: Utility-grade control systems rely on the 140DDI36400 to monitor breaker status, relay feedback, and protection relay trip signals. The module's optical isolation ensures that high-voltage transients on the field side do not propagate to the Quantum backplane, protecting CPU integrity in environments with significant electromagnetic interference.

Petrochemical & Refinery Process Control: In hazardous area applications, the 140DDI36400 interfaces with intrinsically safe barriers and Zener diode isolators to monitor valve position feedback, pressure switch states, and emergency shutdown (ESD) system inputs. Its deterministic scan behavior is critical for SIL-rated safety instrumented systems where input response time directly affects process safety integrity.

Water & Wastewater Treatment: Municipal water treatment facilities use the 140DDI36400 to monitor pump run/fault status, level switch states, and flow switch feedback across distributed pump stations. When combined with remote I/O adapters and Modbus Plus networking, a single Quantum CPU can supervise multiple geographically separated pump stations through a unified control architecture.

Mining, Metallurgy & Heavy Industry: Ore processing plants and steel mills deploy the 140DDI36400 in high-vibration, high-temperature environments where signal reliability is paramount. The module's robust optical isolation and wide operating temperature range make it suitable for installation in control rooms adjacent to furnaces, crushers, and conveyor drives.

Q1: Is the 140DDI36400 compatible with all Modicon Quantum backplane sizes, and can it be mixed with analog I/O modules in the same rack? Yes. The 140DDI36400 is compatible with all standard Quantum backplanes including the 140XBP01600 (16-slot), 140XBP01000 (10-slot), and 140XBP00600 (6-slot) configurations. It can be freely mixed with analog input modules (e.g., 140ACI04000), analog output modules (e.g., 140ACO02000), and other discrete I/O modules within the same rack. Slot assignment is managed through the Quantum configuration software (Unity Pro / EcoStruxure Control Expert), which automatically maps each module's I/O addresses to the CPU's memory table.

Q2: What is the recommended wiring practice for the 140DDI36400 in a high-noise industrial environment, and how does the module handle input signal debouncing? For installations in environments with significant electrical noise — such as those near variable frequency drives (VFDs), large motor starters, or welding equipment — it is recommended to use shielded twisted-pair cables for field wiring, with shield grounding at the control panel end only. The 140DDI36400 incorporates hardware input filtering with a nominal response time of approximately 3 ms, which provides effective debouncing for mechanical contacts and suppresses high-frequency noise spikes. For applications requiring faster response, the module's input filter characteristics should be verified against the CPU scan time to ensure adequate signal capture.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and availability for the 140DDI36400 from NANKMOS? NANKMOS provides a 12-Month Warranty on all 140DDI36400 units shipped, covering manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) replacements. Each unit undergoes pre-shipment functional testing to verify channel integrity, isolation resistance, and backplane communication before dispatch. Stock availability is maintained for rapid fulfillment, with standard lead times of 3–7 business days for in-stock units. For large-volume project orders or urgent requirements, please contact [email protected] or call +86 18359268345 for dedicated sourcing support and expedited shipping arrangements.
