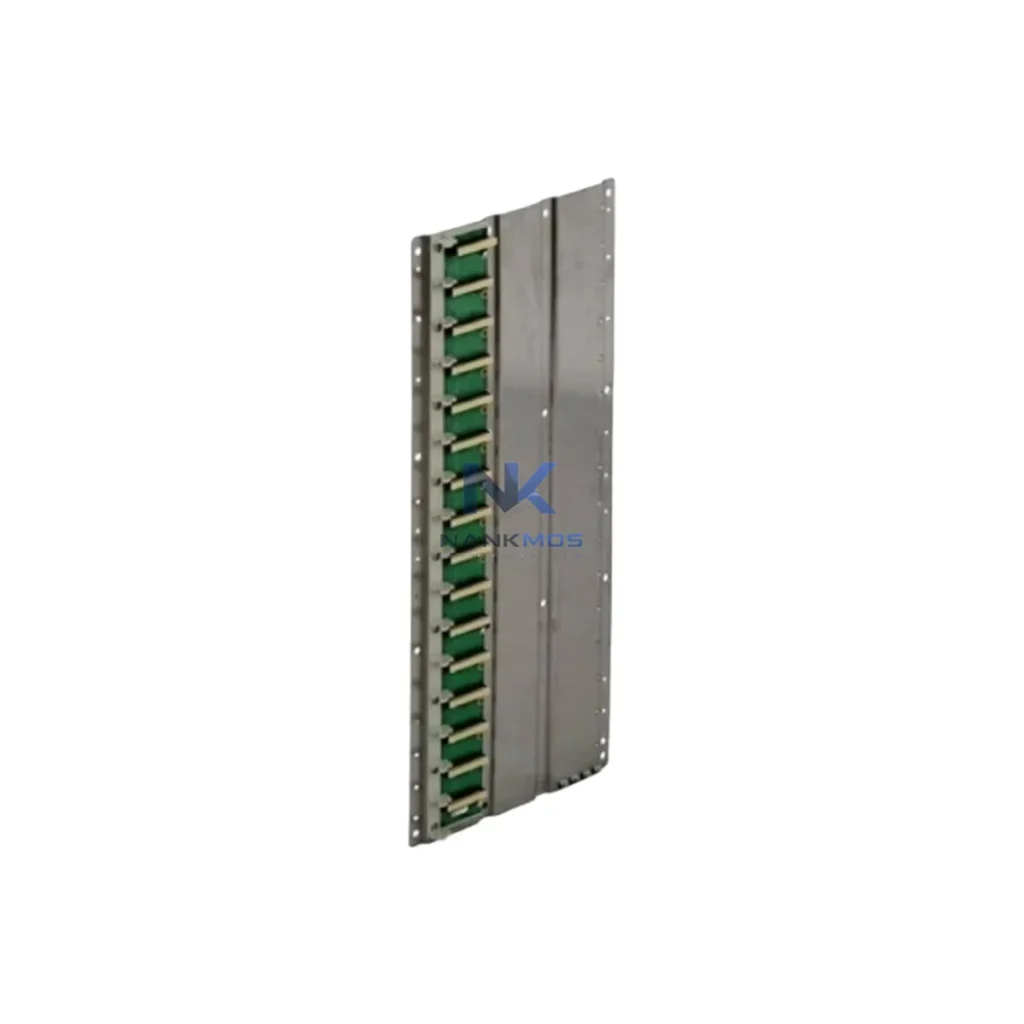

Schneider Electric 140XBP01600 PLC Backplane

Product Details

140XBP01600 Product Description

The Schneider Electric 140XBP01600 is a 16-slot Modbus Plus backplane engineered for the Modicon Quantum PLC platform, delivering a high-integrity communication backbone across complex industrial automation architectures. Designed to serve as the physical and logical hub of a distributed control system, the 140XBP01600 enables seamless data exchange between field devices, control modules, and supervisory systems — forming the foundation of a connected, transparent smart factory environment.

In modern industrial facilities, the demand for real-time data visibility across every layer of the automation pyramid has never been greater. The 140XBP01600 addresses this need by providing a robust, high-speed Modbus Plus network interface that links PLC CPUs, remote I/O racks, communication processors, and application-specific modules within a unified control architecture. Whether deployed in discrete manufacturing, process automation, or hybrid production environments, this backplane ensures that signal acquisition, protocol conversion, and data transmission occur with minimal latency and maximum reliability.

The 140XBP01600 backplane sits at the heart of a Modicon Quantum control rack, physically hosting and electrically interconnecting all installed modules — from the 140CPU65160 processor module to communication adapters, analog and digital I/O modules, and specialty function cards. In a typical smart factory deployment, the data flow begins at the field level, where sensors, actuators, and instrumentation devices transmit process signals to remote I/O stations such as the Modicon Momentum I/O platform or Quantum RIO drop adapters. These signals are aggregated and forwarded over the Modbus Plus network to the Quantum CPU hosted on the 140XBP01600 backplane, where real-time control logic is executed.

The 140NOM21100 Modbus Plus network option module, when installed alongside the CPU on the same backplane, extends the network reach to peer PLCs, SCADA servers, and HMI terminals — enabling plant-wide data visibility without additional protocol conversion hardware. For facilities requiring integration with Ethernet-based supervisory systems, the 140NOE77100 Ethernet TCP/IP communication module can be installed in an adjacent slot on the same 140XBP01600 backplane, bridging Modbus Plus field data to Modbus TCP/IP for SCADA platforms such as Wonderware, iFIX, or Citect. This dual-protocol capability within a single rack eliminates data silos and ensures that production KPIs, alarm states, and process variables are continuously available to operators and engineers at the supervisory level.

For distributed architectures spanning multiple production zones, the 140CRP93100 RIO head-end module installed on the 140XBP01600 backplane manages communication with remote I/O drops across the plant floor, collecting data from distributed sensors, variable frequency drives, and smart field devices. The backplane's 16-slot capacity provides ample room to co-host the 140ACI04000 analog input module for temperature and pressure signal acquisition alongside the 140DDO35300 digital output module for actuator control — all sharing the same high-speed backplane bus managed by the 140XBP01600. This integrated approach reduces wiring complexity, shortens scan cycle times, and improves overall system determinism.

Edge gateway devices and industrial Ethernet switches positioned upstream of the Quantum rack aggregate data from multiple control nodes and forward consolidated datasets to cloud analytics platforms or on-premise MES/ERP systems. The 140XBP01600 ensures that the Quantum rack remains a reliable, low-latency data source within this broader industrial IoT architecture, supporting continuous data visualization, trend analysis, and predictive maintenance workflows.

Many industrial sites operating legacy Modicon Quantum systems face persistent challenges around protocol fragmentation, data isolation, and limited remote visibility. The 140XBP01600 directly addresses these pain points by providing a stable, high-capacity backplane that supports the simultaneous installation of multiple communication modules — enabling protocol bridging between Modbus Plus, Modbus RTU, Modbus TCP/IP, and proprietary fieldbus networks within a single rack footprint.

Sites struggling with data silos — where PLC data remains trapped within isolated control islands — benefit from the 140XBP01600's ability to host both local I/O modules and network communication processors side by side. This co-location eliminates the need for external protocol converters or additional gateway hardware, reducing both capital expenditure and potential points of failure. For remote monitoring applications, the backplane supports the installation of communication modules that enable dial-up or Ethernet-based remote access, allowing maintenance engineers to perform remote diagnostics, parameter adjustments, and firmware updates without requiring physical site visits.

Production line transparency is further enhanced through the backplane's support for high-density I/O modules that capture granular process data — machine cycle counts, energy consumption metrics, reject rates, and equipment runtime hours — and make this data available to SCADA and MES systems in real time. Alarm management is streamlined as fault conditions detected at the field level are immediately propagated through the Modbus Plus network to the supervisory layer, triggering automated notifications and enabling rapid corrective action. System expansion is straightforward: additional Quantum racks connected via Modbus Plus or RIO cable can be integrated into the existing architecture without disrupting ongoing production, providing a scalable path to accommodate future capacity growth or process changes.

Q1: What communication latency can be expected on the Modbus Plus network supported by the 140XBP01600?Modbus Plus operates as a deterministic token-passing network with a typical scan cycle in the range of 1–5 milliseconds per node, depending on network size and message volume. The 140XBP01600 backplane ensures that all installed communication modules share a high-speed internal bus, minimizing inter-module latency and supporting time-critical control applications.

Q2: Is the 140XBP01600 compatible with both legacy and current Modicon Quantum CPU modules?Yes. The 140XBP01600 is designed for the Modicon Quantum platform and is compatible with the full range of Quantum CPU modules, including the 140CPU43412A, 140CPU65160, and 140CPU67160 series. Protocol compatibility is maintained across Modbus Plus, Modbus RTU, and Modbus TCP/IP communication modules installed in the same rack.

Q3: How does the 140XBP01600 support remote diagnostics and network stability monitoring?When paired with Ethernet communication modules such as the 140NOE77100, the 140XBP01600-hosted Quantum system can be accessed remotely via Modbus TCP/IP for real-time diagnostics, module health monitoring, and network traffic analysis. Schneider Electric's Unity Pro and Control Expert software platforms provide integrated diagnostic tools that leverage the backplane's module communication capabilities to identify faults, communication errors, and performance degradation without interrupting production.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 140XBP01600?Every 140XBP01600 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify backplane bus integrity, slot connectivity, and physical condition. In-stock units are available for immediate dispatch, supporting urgent project timelines and minimizing procurement lead times for MRO and capital project requirements.
