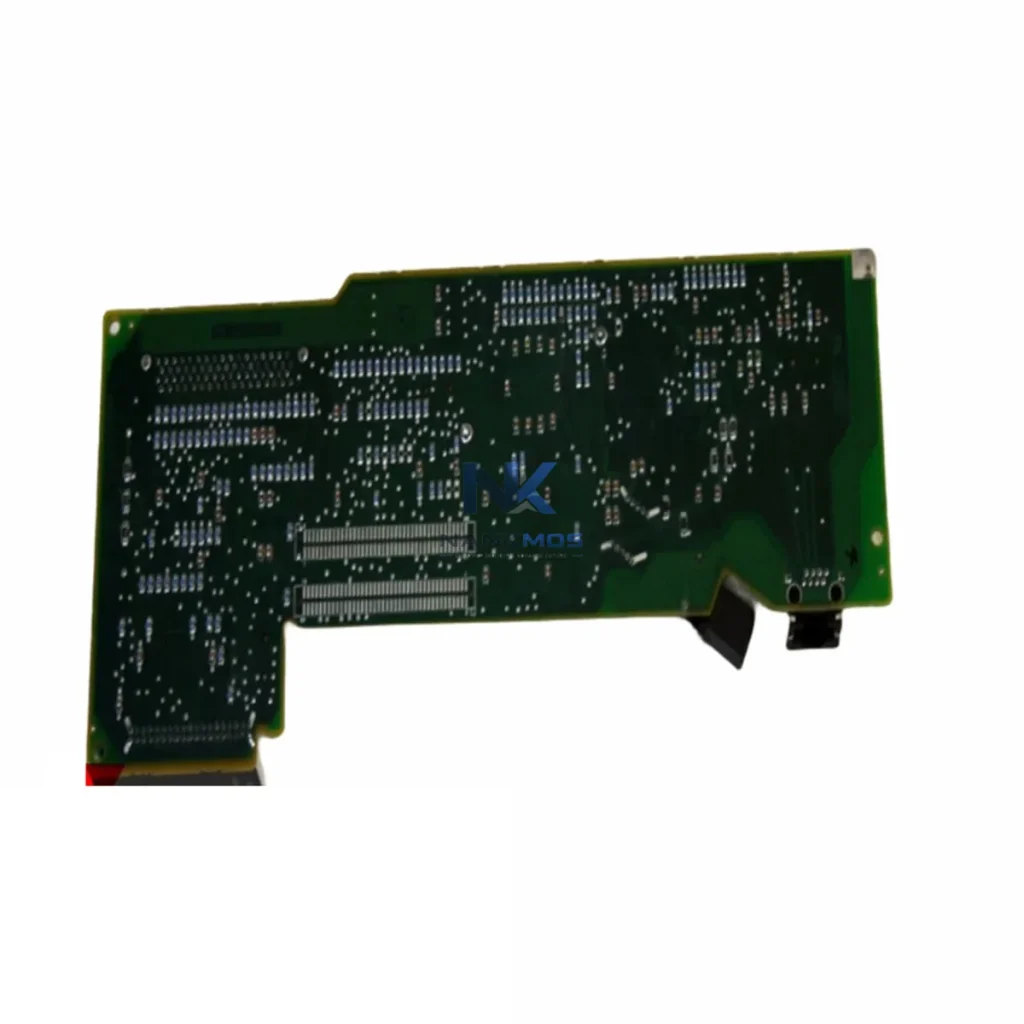

Schneider Electric 140NOE77100 Ethernet Communication Module

Product Details

140NOE77100 Product Description

The Schneider Electric 140NOE77100 is a high-performance Modbus TCP/IP Ethernet communication module engineered for the Quantum PLC platform. Designed to serve as the backbone of industrial data connectivity, this module bridges field-level devices and upper-level control systems across the full smart factory data chain — from signal acquisition and protocol conversion to real-time monitoring, remote diagnostics, and SCADA visualization. With its robust Ethernet interface and native Modbus TCP/IP support, the 140NOE77100 enables seamless integration of distributed automation assets into a unified, transparent network architecture.

In modern manufacturing environments, data latency and protocol fragmentation are among the most persistent barriers to operational efficiency. The 140NOE77100 addresses these challenges directly by providing a stable, high-throughput Ethernet link between the Quantum backplane and plant-wide Ethernet infrastructure. Whether connecting to Wonderware InTouch, Ignition SCADA, or Vijeo Citect HMI platforms, this module delivers consistent, low-latency data exchange that supports real-time decision-making at every level of the automation hierarchy.

Deployed alongside Quantum CPU modules such as the 140CPU65150 or 140CPU67160, the 140NOE77100 acts as the primary network gateway, routing process data from field I/O racks — including 140DDI35300 discrete input modules and 140ACI04000 analog input modules — to supervisory systems without data loss or communication gaps. Its integration with the Quantum backplane ensures that all I/O data is available on the Ethernet segment within milliseconds, supporting alarm management, trend logging, and production reporting workflows.

The module's Modbus TCP/IP protocol stack is fully compatible with a wide range of third-party devices, including Schneider Electric ATV61 and ATV71 variable frequency drives, enabling direct drive parameter monitoring and fault diagnostics over the plant network. This eliminates the need for dedicated serial communication links and reduces wiring complexity in large-scale automation installations. Remote technicians can access drive status, energy consumption data, and fault histories from any SCADA workstation connected to the same Ethernet segment.

For edge connectivity and IIoT integration, the 140NOE77100 pairs effectively with Schneider Electric ConneXium industrial Ethernet switches, which provide managed switching, VLAN segmentation, and port mirroring capabilities essential for maintaining network determinism in high-traffic automation environments. When combined with edge gateways such as the EcoStruxure Machine Advisor or third-party OPC-UA gateways, the module enables cloud-based data aggregation, predictive maintenance analytics, and remote asset management — extending the reach of the Quantum platform into Industry 4.0 architectures.

Remote I/O expansion is fully supported through the 140NOE77100's network routing capabilities. Distributed Quantum RIO drop adapters, including the 140CRA93100, can be addressed over the same Ethernet segment, allowing plant engineers to extend I/O coverage across large facilities without running dedicated communication cables. This architecture supports modular plant expansion, enabling new production lines or process cells to be added to the network with minimal reconfiguration of the central control system.

The 140NOE77100 also supports Transparent Ready web server functionality, providing built-in HTTP access to module diagnostics, network statistics, and I/O data tables via a standard web browser. This feature significantly reduces the time required for commissioning and fault isolation, as maintenance personnel can verify communication status and data integrity without specialized software tools. Integration with Schneider Electric Unity Pro or Control Expert programming environments further streamlines configuration and online monitoring workflows.

Every 140NOE77100 unit supplied by NANKMOS undergoes pre-shipment functional verification, including communication link testing, Modbus TCP/IP response validation, and physical inspection. Units are sourced from verified supply channels and are backed by a 12-Month Warranty, ensuring reliable performance from the moment of installation. In-stock availability supports rapid deployment for both planned system expansions and emergency replacement scenarios.

In a fully connected smart factory deployment, the 140NOE77100 sits at the intersection of field-level automation and plant-wide data infrastructure. At the field layer, sensors and actuators feed signals into Quantum discrete and analog I/O modules — such as the 140DDI35300 and 140ACI04000 — which are processed by the Quantum CPU (e.g., 140CPU65150) and made available to the network via the 140NOE77100's Ethernet port. This data stream flows upward through ConneXium managed Ethernet switches, which segment traffic between the control network and the supervisory network, ensuring that SCADA polling cycles do not interfere with real-time PLC scan times.

At the drive layer, Schneider Electric ATV61 and ATV71 variable frequency drives connected via Modbus TCP/IP report speed references, current draw, fault codes, and energy metrics directly to the SCADA historian. Alarm conditions — such as overcurrent trips or communication timeouts — are immediately flagged in the HMI layer, where operators using Vijeo Designer or Wonderware InTouch panels receive visual and audible alerts with full fault context. The 140NOE77100's fast response time ensures that alarm propagation latency remains within acceptable limits for process-critical applications.

For remote diagnostics, maintenance engineers access the 140NOE77100's built-in web server from any networked workstation, reviewing real-time Modbus register maps, connection status tables, and error logs without interrupting production. When integrated with EcoStruxure Plant or similar IIoT platforms, this data is forwarded to cloud dashboards for trend analysis, predictive maintenance scheduling, and KPI reporting. The 140CRA93100 remote I/O drop adapters extend this visibility to distributed field cabinets, ensuring that every node in the automation network contributes to the plant-wide data picture.

Industrial sites running legacy Quantum systems frequently encounter data silos caused by protocol fragmentation — serial Modbus RTU devices that cannot communicate directly with Ethernet-based SCADA systems, or remote I/O drops that lack network visibility. The 140NOE77100 resolves these gaps by providing a native Modbus TCP/IP gateway that bridges legacy field devices and modern supervisory infrastructure without requiring protocol converters or additional middleware.

Production line transparency is achieved through continuous data polling of all connected devices, with the 140NOE77100 maintaining persistent Ethernet connections to SCADA clients and responding to read/write requests within deterministic timeframes. This eliminates the data latency that often causes discrepancies between actual plant conditions and SCADA displays, enabling operators to make accurate, real-time decisions based on live process data.

System expansion is straightforward: additional Quantum I/O racks or remote drop adapters can be added to the network without modifying the 140NOE77100's configuration, as the module supports multiple simultaneous Modbus TCP/IP client connections. Alarm tracking is centralized through the SCADA historian, which logs all fault events with timestamps and device identifiers, supporting root-cause analysis and regulatory compliance reporting. For sites requiring network redundancy, the 140NOE77100 can be deployed in dual-ring Ethernet topologies using ConneXium switches with RSTP support, ensuring continuous data flow even in the event of a single link failure.

Q1: What is the communication latency of the 140NOE77100 in a Modbus TCP/IP network? The 140NOE77100 supports 10/100 Mbps auto-negotiating Ethernet with Modbus TCP/IP response times typically in the low millisecond range under normal network load conditions. For time-critical applications, network segmentation using managed ConneXium switches is recommended to isolate control traffic from general plant Ethernet traffic.

Q2: Is the 140NOE77100 compatible with third-party SCADA and HMI systems? Yes. The module uses standard Modbus TCP/IP, which is supported by virtually all major SCADA platforms including Ignition, Wonderware InTouch, Vijeo Citect, and iFIX. OPC-DA and OPC-UA connectivity can be achieved through standard Modbus TCP/IP OPC servers, enabling integration with any OPC-compliant supervisory system.

Q3: Can the 140NOE77100 support remote diagnostics without on-site access? Yes. The module's built-in Transparent Ready web server provides HTTP-based access to diagnostic pages, Modbus register tables, and network statistics from any standard web browser on the plant network. For remote access beyond the plant firewall, integration with a secure VPN or EcoStruxure remote access solution is recommended.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 140NOE77100? All 140NOE77100 units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional testing, including Ethernet communication verification and physical inspection. Units are sourced from verified supply channels and shipped with full traceability documentation. In-stock availability ensures rapid dispatch for both planned and emergency procurement requirements.
