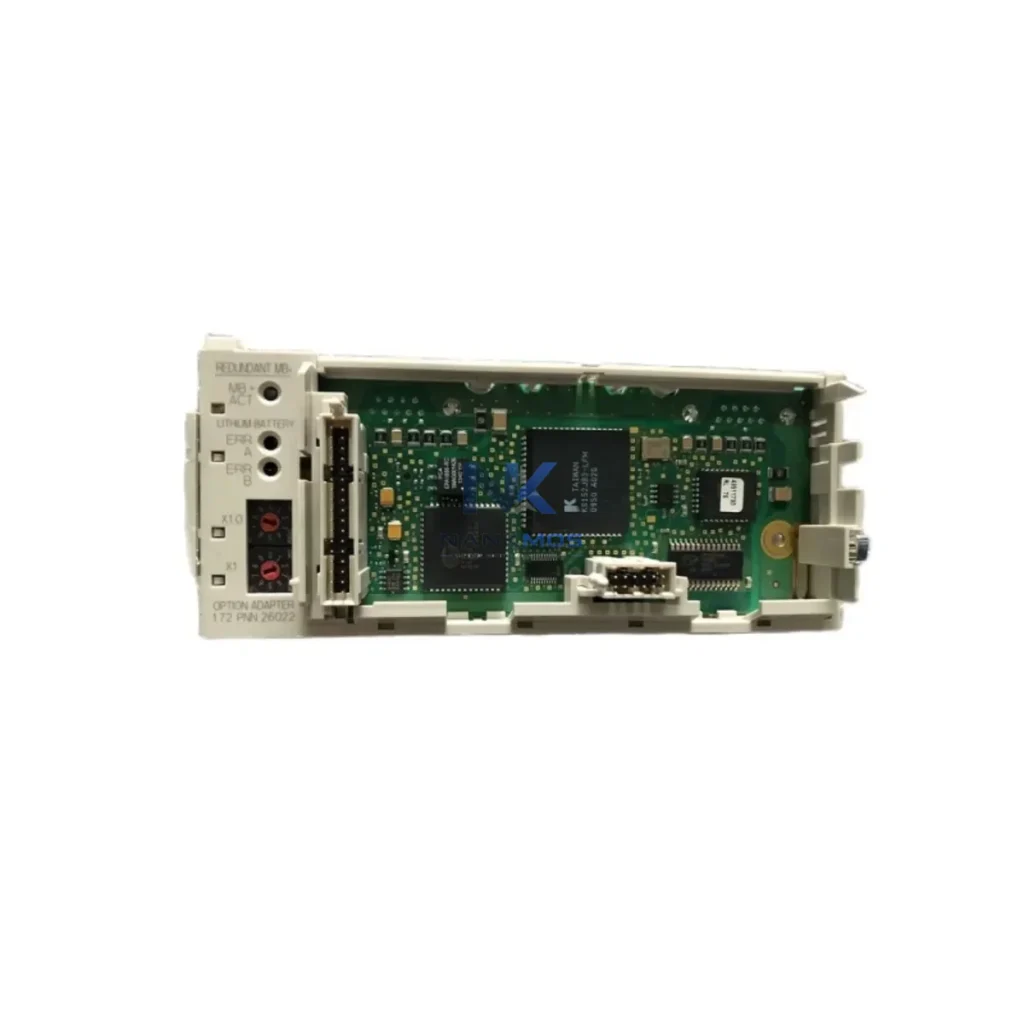

Schneider Electric 172PNN26022 Communication Gateway

Product Details

172PNN26022 Product Description

The Schneider Electric 172PNN26022 is a high-performance Modbus Plus communication gateway engineered for the Momentum PLC platform, delivering seamless protocol bridging, real-time data transmission, and deterministic network communication across complex industrial automation architectures. Designed for demanding environments in manufacturing, energy management, petrochemical processing, and semiconductor fabrication, the 172PNN26022 serves as the critical data link between field-level devices and upper-layer control and monitoring systems.

In modern smart factory deployments, data integrity and communication continuity are non-negotiable. The 172PNN26022 integrates directly into the Momentum backplane, enabling the host PLC to participate in Modbus Plus peer-to-peer networks at up to 1 Mbps. This allows distributed I/O nodes, remote sensor clusters, and variable frequency drives to exchange process data with the central controller without polling delays or protocol mismatches. The result is a tightly synchronized automation backbone capable of supporting real-time SCADA visibility, alarm management, and predictive maintenance workflows.

The 172PNN26022 sits at the heart of a layered industrial communication architecture. At the field level, sensors, proximity switches, and analog transmitters feed signals into Momentum I/O adapters such as the 170ADI34000 discrete input module and 170AAO92100 analog output module. These I/O nodes communicate upstream to the Momentum processor — for example, the 171CCC96020 or 171CCC98020 CPU — which hosts the 172PNN26022 as its Modbus Plus network interface.

Across the Modbus Plus segment, the 172PNN26022 enables the Momentum controller to exchange global data tables with peer nodes including Schneider Electric Quantum PLCs (e.g., 140CPU65150) and Premium series controllers. Variable frequency drives such as the Altivar ATV71 series can be integrated via Modbus Plus communication cards, allowing the PLC to issue speed references and read drive fault registers in real time. This eliminates the need for hardwired analog setpoint signals and enables full drive diagnostics from the SCADA layer.

At the supervisory level, SCADA platforms connect to the Modbus Plus network through dedicated gateways such as the Schneider Electric 174CEV30010 Ethernet/Modbus Plus bridge or the 174CEV30020, translating MB+ frames into Modbus TCP for integration with Wonderware, iFIX, or Citect SCADA systems. HMI panels — including Magelis XBTGT series touchscreens — can be configured to poll the 172PNN26022-hosted data registers directly, providing operators with live process visualization, trend logging, and alarm acknowledgment from the plant floor.

For edge connectivity and IIoT integration, an industrial edge gateway running OPC-UA or MQTT can subscribe to data published via the Modbus Plus-to-Ethernet bridge, forwarding structured process data to cloud analytics platforms or MES systems. This complete data chain — from field sensor through PLC, across the Modbus Plus backbone, through protocol conversion, and up to enterprise dashboards — is made reliable and deterministic by the 172PNN26022's network interface design.

Industrial managed switches such as the Schneider Electric ConneXium TCSESM083F23F0 provide the Ethernet switching layer that interconnects Modbus TCP gateways, SCADA servers, and engineering workstations, ensuring network segmentation and redundancy across the automation LAN. Power for the Momentum rack is supplied by dedicated industrial power supplies such as the 170XTS00100, maintaining stable 24 VDC bus voltage for all communication modules including the 172PNN26022.

Many legacy automation sites operate with fragmented communication architectures — islands of Modbus RTU devices, proprietary fieldbus segments, and Ethernet-connected SCADA servers that cannot natively exchange data. The 172PNN26022 addresses this by providing a standardized Modbus Plus interface that bridges the Momentum PLC into the broader network, eliminating protocol mismatches between field devices and control systems.

Remote monitoring is a persistent challenge in distributed plant environments. Without a reliable network interface, operators must physically access control panels to read PLC registers or acknowledge alarms. With the 172PNN26022 installed, all Momentum processor data — including I/O status, program variables, and diagnostic registers — is accessible from any node on the Modbus Plus network, enabling remote diagnostics from engineering workstations or SCADA clients without interrupting production.

Production line transparency is achieved through continuous data polling across the MB+ segment. Process variables such as motor current, valve position, temperature setpoints, and batch counters are updated in real time across all connected nodes, enabling MES systems to track OEE metrics, detect anomalies, and trigger maintenance alerts before equipment failures occur. Alarm tracking is centralized through the SCADA layer, which receives fault codes and status bits from the 172PNN26022-connected Momentum controller and routes notifications to the appropriate maintenance teams.

System expansion is straightforward: additional Momentum nodes, remote I/O drops, or peer PLCs can be added to the Modbus Plus segment without reconfiguring the existing network topology. The 172PNN26022 supports up to 64 nodes per MB+ segment, providing substantial headroom for phased plant expansions and new production line integrations.

Q: What is the maximum communication speed of the 172PNN26022 on a Modbus Plus network?A: The 172PNN26022 operates at 1 Mbps on the Modbus Plus network, supporting deterministic token-passing communication with cycle times suitable for real-time process control and SCADA data acquisition.

Q: Is the 172PNN26022 compatible with Schneider Electric Quantum and Premium PLCs on the same Modbus Plus segment?A: Yes. Modbus Plus is a peer-to-peer protocol, and the 172PNN26022-equipped Momentum controller can exchange global data and messaging with Quantum (140 series) and Premium (TSX series) PLCs on the same MB+ segment, enabling multi-platform control architectures.

Q: How does the 172PNN26022 support remote diagnostics and network stability monitoring?A: The module exposes network diagnostic registers accessible via the Momentum processor's data table, including token rotation counts, error counters, and node status flags. These registers can be polled by SCADA systems or HMI panels to monitor network health, detect communication faults, and trigger maintenance alerts without requiring physical access to the control panel.

Q: What warranty and pre-shipment testing does the 172PNN26022 include?A: Every 172PNN26022 unit is covered by a 12-month warranty and undergoes functional testing prior to shipment to verify communication integrity, backplane compatibility, and network participation. Global inventory is maintained to support urgent project timelines and MRO replacement requirements.
