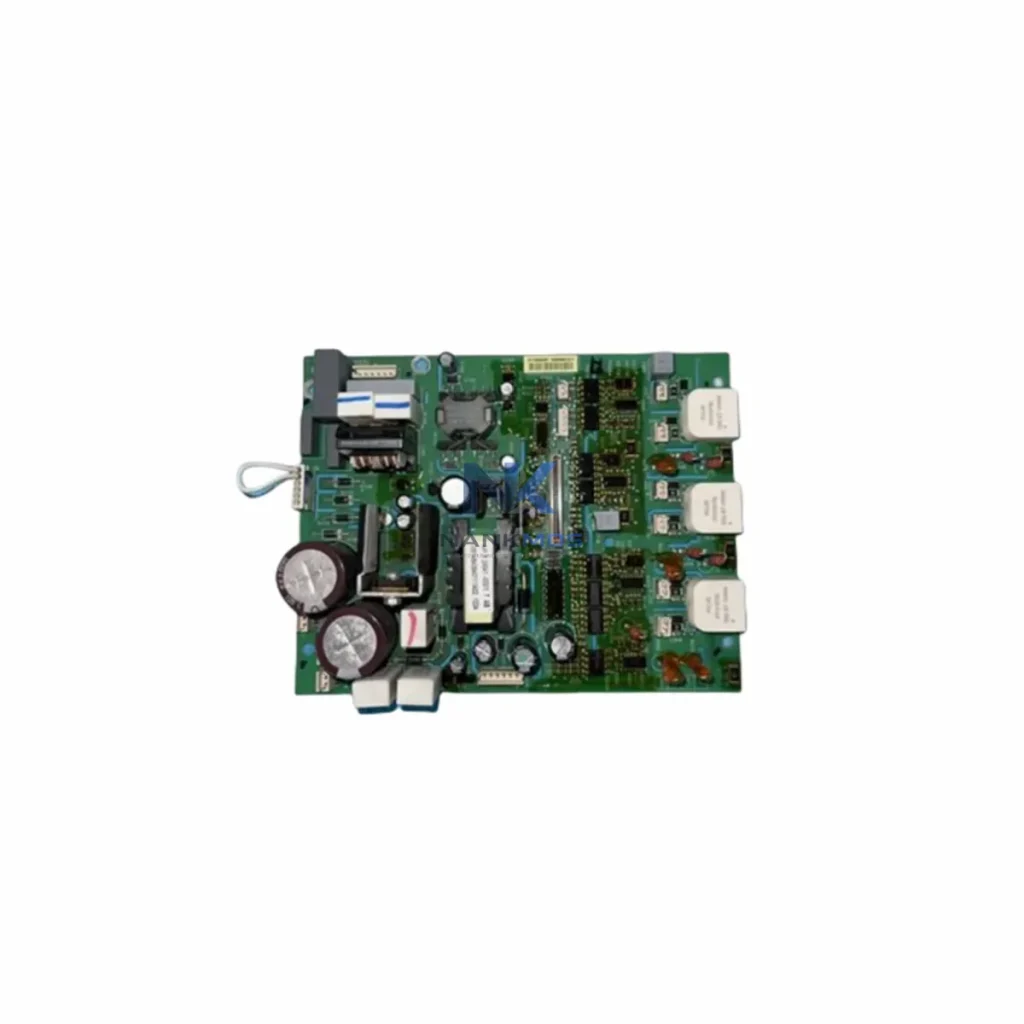

Schneider Electric ATS48C 16250850112A08 Power Supply Board

Product Details

ATS48C 16250850112A08 Product Description

The Schneider Electric 16250850112A08 is a precision-engineered power supply board designed for the ATS48 series soft starter — one of Schneider's most widely deployed motor energy management platforms in heavy industry. This board governs the internal power regulation architecture of the ATS48 unit, directly influencing how the soft starter manages inrush current, thermal load distribution, and motor ramp-up efficiency across demanding production environments. With verified in-stock availability, pre-shipment functional testing, and a 12-Month Warranty, the 16250850112A08 is a reliable replacement and upgrade component for facilities prioritizing energy efficiency and production continuity.

In modern industrial energy optimization strategies, the power supply board is not a passive component — it is the foundation upon which the soft starter's energy-control logic operates. The ATS48 platform is engineered to reduce motor energy consumption during start and stop cycles, and the 16250850112A08 ensures that the internal power rails supplying the control electronics remain stable, clean, and within specification. Any degradation in this board directly translates to erratic motor behavior, increased thermal stress, and elevated energy waste — making timely replacement with a verified OEM-equivalent component critical to maintaining production line efficiency.

The ATS48 soft starter, powered by the 16250850112A08 board, operates as a central node in a power-aware motor control architecture. In a typical production line configuration, the ATS48 receives start/stop commands from a Schneider Modicon M340 or M580 PLC, which coordinates motor sequencing across multiple drive zones. The PLC communicates via Modbus RTU or CANopen — both natively supported by the ATS48 platform — enabling real-time load management and energy-optimized motor scheduling.

Upstream of the ATS48, a Schneider PowerLogic PM5000 series power monitoring module tracks active power, reactive power, and power factor at the motor feeder level. When the 16250850112A08 board is functioning correctly, the ATS48's internal power supply remains stable, ensuring that the soft starter's energy-saving algorithms — including motor current limiting and torque control during ramp-up — execute without interruption. Any instability in the power board directly corrupts these measurements and undermines the energy management strategy.

On the output side, the ATS48 drives three-phase induction motors in pump stations, fan arrays, and conveyor systems. In facilities using Schneider Altivar ATV320 or ATV630 variable frequency drives alongside soft starters, the 16250850112A08 ensures that the ATS48 units handling fixed-speed loads remain energy-efficient, while the VFDs manage variable-speed zones. This hybrid drive architecture — soft starters for fixed loads, VFDs for variable loads — is a proven strategy for reducing overall plant energy consumption by 15–30%.

For I/O integration, the ATS48 connects to Schneider TM3 or TM2 expansion I/O modules mounted on the same DIN rail as the Modicon PLC, providing digital feedback signals including run status, fault output, and thermal alarm. These signals feed into the plant's SCADA system — typically running on a Schneider EcoStruxure Plant SCADA Expert (Vijeo Citect) platform — where energy consumption trends, motor runtime hours, and fault histories are logged and analyzed for predictive maintenance scheduling.

The Schneider XBGT or HMIGTO series HMI panels installed at motor control centers provide operators with real-time visibility into soft starter status, energy consumption per motor, and fault diagnostics. When the 16250850112A08 board is replaced and the ATS48 is restored to full operation, operators immediately observe normalized current curves and stable energy readings on the HMI — confirming that the energy-control function has been fully restored. Additionally, Schneider XGSM or ConneXium industrial communication gateways bridge the ATS48's serial interface to Ethernet-based plant networks, enabling remote monitoring and energy reporting without additional hardware investment.

A failed or degraded power supply board in the ATS48 does not simply cause a fault — it silently degrades the soft starter's energy-control capability. Motors may start with excessive inrush current, bypassing the controlled ramp-up that the ATS48 is designed to enforce. This results in mechanical stress on couplings and gearboxes, increased thermal load on motor windings, and measurable spikes in energy consumption at the plant's power monitoring level. Over time, repeated uncontrolled starts accelerate motor insulation degradation and increase the frequency of unplanned downtime events.

Replacing the 16250850112A08 board restores the ATS48's full energy-optimization capability. The soft starter resumes controlled motor acceleration, limiting peak current to the programmed threshold and reducing reactive power demand during start cycles. In pump and fan applications — where the ATS48 is most commonly deployed — this translates directly to lower energy bills, reduced peak demand charges, and extended motor service life. Facilities operating multiple ATS48 units across a production floor can expect measurable improvements in overall power factor and a reduction in thermal load on switchgear and cabling infrastructure.

From a production line rhythm perspective, a stable ATS48 power supply board ensures that motor start sequences execute on schedule, without the delays caused by soft starter faults or protective shutdowns. In automated production lines where PLC-controlled motor sequencing governs throughput, even a single soft starter fault can cascade into a line stoppage. The 16250850112A08 eliminates this risk by restoring the ATS48 to its designed operating state, supporting consistent production cadence and minimizing unplanned downtime.

For facilities implementing predictive maintenance programs, the restored ATS48 provides accurate thermal and current data to the SCADA system, enabling condition-based maintenance scheduling rather than reactive repair. This shift from reactive to predictive maintenance is one of the most impactful strategies for improving equipment utilization rates and reducing total maintenance costs in energy-intensive industrial environments.

Q1: Will replacing the 16250850112A08 board restore the ATS48's full energy-saving performance? Yes. The 16250850112A08 is the internal power supply board that sustains the ATS48's control electronics. Replacing a degraded or failed board restores stable internal power, allowing the soft starter's motor ramp control, current limiting, and energy-optimization algorithms to function as designed. Post-replacement, you should observe normalized motor start curves and stable energy readings at your power monitoring module.

Q2: Is the 16250850112A08 compatible with all ATS48 soft starter variants? The 16250850112A08 is designed for the ATS48C series. Before installation, verify your ATS48 model number and internal board revision against the part number. If you are unsure of compatibility, contact NANKMOS with your full ATS48 model reference for confirmation. We recommend cross-referencing the ATS48 service manual or Schneider Electric's spare parts documentation for your specific unit.

Q3: What is the testing and shipping process for this board? Every 16250850112A08 unit dispatched by NANKMOS undergoes pre-shipment functional verification to confirm electrical integrity and component condition. Units are packaged in anti-static protective packaging suitable for sensitive electronic components. Standard lead time for in-stock units is 3–7 business days depending on destination. Expedited shipping options are available on request.

Q4: What does the 12-Month Warranty cover? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the ATS48's specified environmental parameters. Warranty claims are processed through NANKMOS directly — contact [email protected] with your order reference and a description of the fault for rapid resolution.
