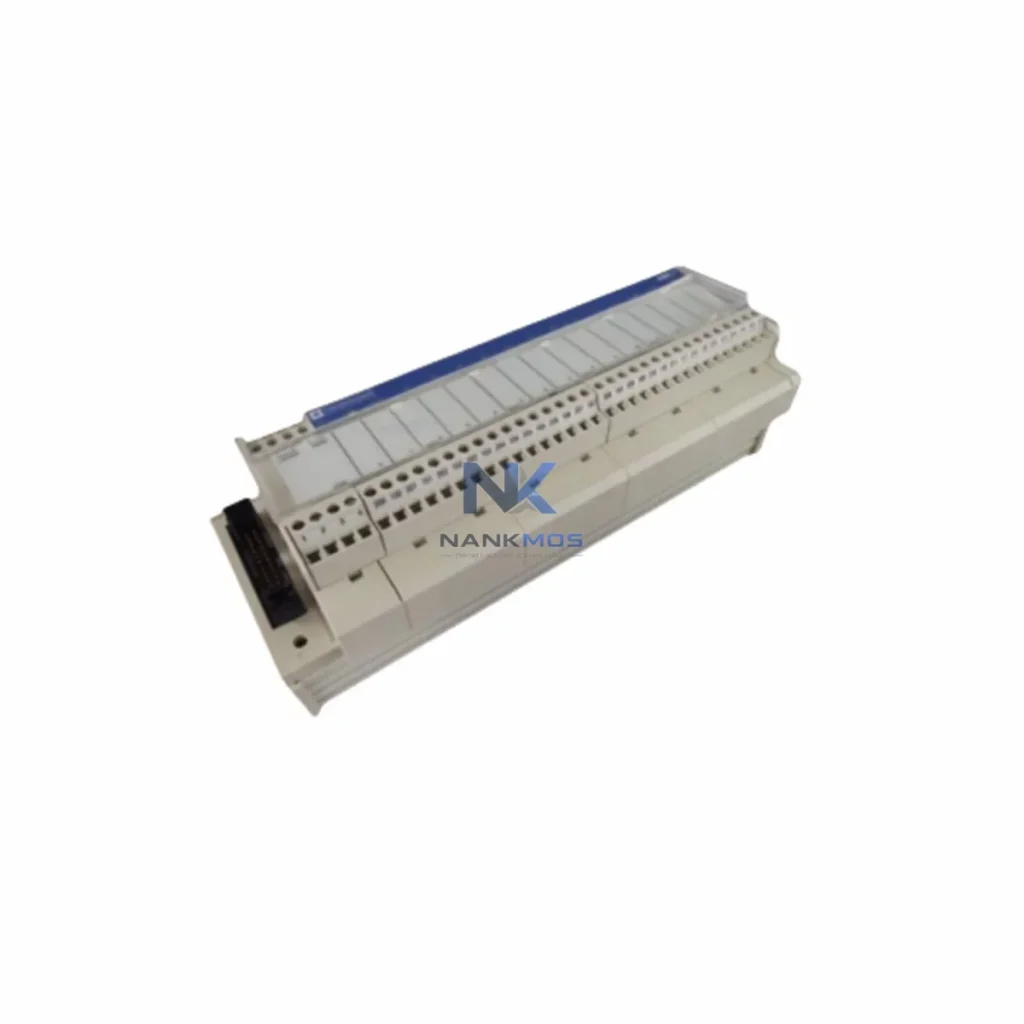

Schneider Electric 03855500115A10 Communication Gateway

Product Details

03855500115A10 Product Description

The Schneider Electric 03855500115A10 is a high-performance Modbus Communication Gateway engineered for the Modicon automation platform, purpose-built to serve as the critical data bridge between field-level devices and upper-layer control and monitoring systems. In modern smart factory environments, seamless data flow across every layer of the automation hierarchy — from sensors and actuators on the shop floor to SCADA dashboards in the control room — is no longer optional. The 03855500115A10 delivers exactly this connectivity, enabling real-time protocol conversion, stable network transmission, and transparent device integration across complex industrial topologies.

Designed to operate within Schneider Electric's Modicon ecosystem, this gateway supports Modbus RTU and Modbus TCP/IP communication, allowing legacy serial devices to communicate fluently with Ethernet-based control networks. Whether bridging a Modicon M340 PLC to a remote I/O rack, connecting a Vijeo Citect SCADA system to distributed field instruments, or aggregating data from multiple Altivar variable frequency drives into a unified monitoring platform, the 03855500115A10 provides the protocol intelligence and network stability that industrial data chains demand.

In a fully connected smart factory, the 03855500115A10 sits at the intersection of operational technology (OT) and information technology (IT), orchestrating data movement across every layer of the automation stack. The data flow begins at the field level, where sensors — including pressure transmitters, temperature probes, and flow meters communicating over Modbus RTU — send raw process values to the gateway via RS-485 serial links. The 03855500115A10 converts these serial signals into Modbus TCP/IP packets and forwards them upstream to a Modicon M340 PLC or Modicon M580 ePAC over the plant Ethernet backbone.

From the PLC layer, processed data travels through a managed ConneXium industrial Ethernet switch — part of Schneider Electric's network infrastructure portfolio — ensuring deterministic, low-latency packet delivery across the factory LAN. The switch connects the PLC network to an EcoStruxure Machine SCADA Expert (Vijeo Citect) server, where operators gain real-time visibility into production KPIs, alarm states, and equipment health. Simultaneously, a Modicon STB remote I/O island deployed at a remote panel feeds additional discrete and analog signals back through the 03855500115A10, extending the data chain without requiring additional PLC hardware.

Variable speed drives — such as Altivar Process ATV600 series VFDs — report motor speed, current draw, fault codes, and energy consumption via Modbus RTU to the gateway, which aggregates this drive data alongside PLC process values for unified dashboard visualization. An EcoStruxure Edge Control edge gateway deployed at the machine level further pre-processes high-frequency data before forwarding summarized metrics to the cloud analytics layer, reducing bandwidth load on the plant network while preserving data fidelity for remote diagnostics.

HMI panels — including Magelis GTU series touchscreens — connect directly to the Modbus TCP/IP network, pulling live process data from the 03855500115A10 to display real-time trends, setpoint controls, and alarm acknowledgment screens for line operators. For facilities integrating energy management, PowerLogic PM series power meters communicate their energy data through the same Modbus network, enabling the SCADA system to correlate production output with energy consumption in a single unified data model.

This end-to-end data architecture — from field sensor through protocol gateway, industrial switch, PLC, edge gateway, HMI, and SCADA — represents the complete smart factory data chain that the Schneider Electric 03855500115A10 is designed to anchor and sustain.

Protocol Fragmentation: Many industrial sites operate a mix of legacy serial devices alongside modern Ethernet-based controllers. Without a capable gateway, Modbus RTU instruments cannot communicate with Modbus TCP/IP networks, creating data silos that blind operators to critical process variables. The 03855500115A10 eliminates this fragmentation by performing transparent, real-time protocol conversion, ensuring every field device — regardless of its native interface — contributes data to the unified plant network.

Data Islands and Production Opacity: When VFDs, remote I/O modules, and sensors operate in isolation, production managers lack the cross-system visibility needed to optimize throughput and respond to faults proactively. By centralizing Modbus data collection through the 03855500115A10, all device data flows into a single SCADA or MES data model, transforming isolated equipment into a transparent, interconnected production system.

Remote Monitoring and Diagnostics: Unplanned downtime caused by undetected equipment faults is one of the highest costs in industrial operations. The 03855500115A10 enables continuous remote monitoring by maintaining a live Modbus TCP/IP connection between field devices and the SCADA server, allowing maintenance engineers to detect anomalies, track alarm histories, and perform remote diagnostics without physical site visits — reducing mean time to repair (MTTR) and extending equipment service life.

System Scalability: As production lines expand, new devices must be integrated without disrupting existing network architecture. The 03855500115A10's multi-node Modbus polling capability allows additional field instruments and drives to be added to the network incrementally, supporting phased factory expansion without gateway replacement or network redesign.

Alarm Tracking and Compliance: Regulatory and quality management requirements demand complete alarm logs and event histories. With the 03855500115A10 feeding timestamped data to the SCADA historian, every alarm event — from drive overcurrent faults to sensor out-of-range conditions — is captured, logged, and available for audit and root-cause analysis.

Q1: Does the Schneider 03855500115A10 support both Modbus RTU and Modbus TCP/IP simultaneously? Yes. The 03855500115A10 is designed to bridge Modbus RTU serial networks (RS-232/RS-485) with Modbus TCP/IP Ethernet networks, performing real-time protocol conversion between the two. This allows legacy serial field devices to communicate transparently with modern Ethernet-based PLCs, SCADA servers, and HMI systems without firmware changes on either side.

Q2: What is the communication latency for data exchange through this gateway? Under normal plant network conditions, the 03855500115A10 delivers deterministic, low-latency data exchange suitable for real-time process monitoring and control feedback loops. Actual latency depends on network load, polling frequency, and the number of connected Modbus nodes. For time-critical control applications, it is recommended to configure polling intervals and node counts in line with Schneider Electric's Modicon network design guidelines.

Q3: Is the 03855500115A10 compatible with third-party SCADA and HMI systems beyond Schneider Electric's own platforms? Yes. Because the gateway communicates over standard Modbus TCP/IP, it is compatible with any SCADA, HMI, or data historian platform that supports the Modbus protocol — including Wonderware, iFIX, Ignition, and WinCC, among others. This makes the 03855500115A10 a versatile integration component in multi-vendor automation environments.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 03855500115A10? Every Schneider Electric 03855500115A10 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication integrity, protocol conversion performance, and interface connectivity before dispatch. Units are held in stock and available for immediate shipment, with full technical support available throughout the warranty period.
