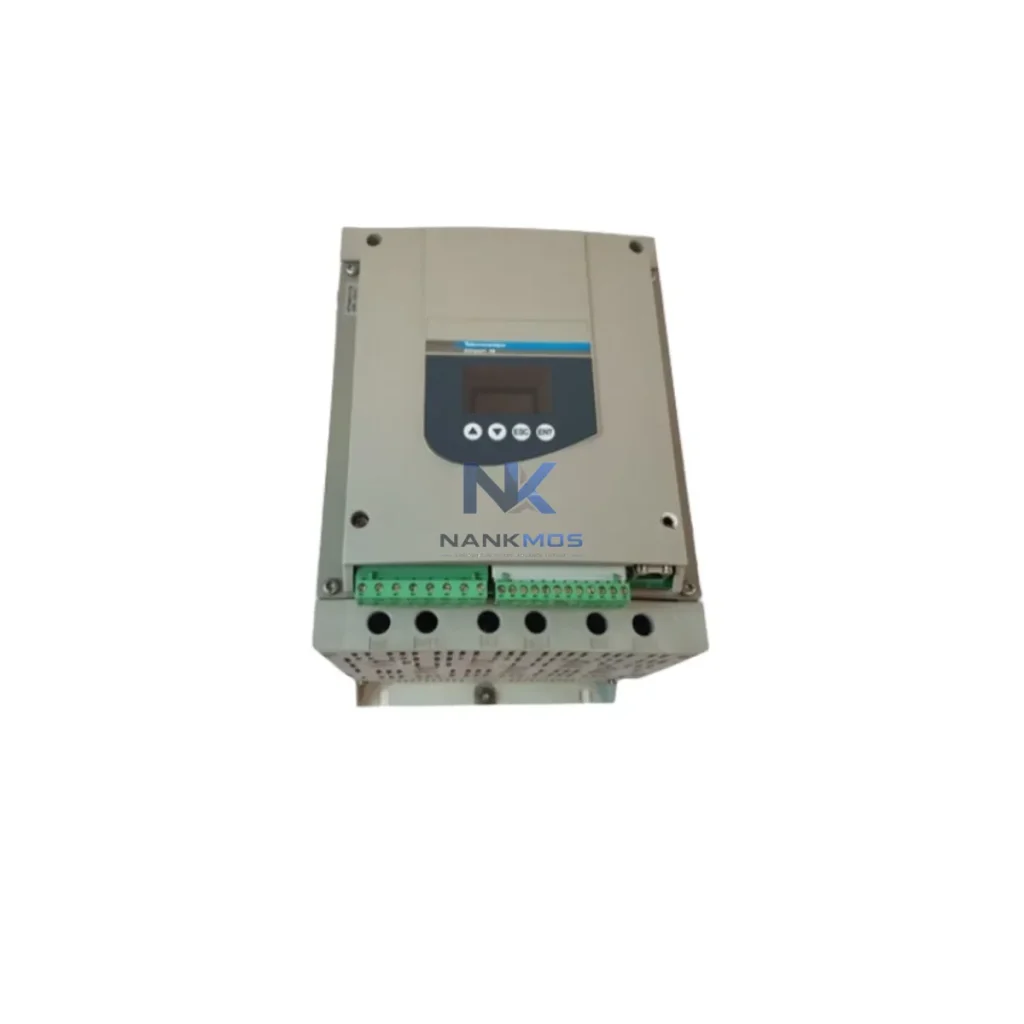

Schneider Electric ATS48C11Q Soft Starter

Product Details

ATS48C11Q Product Description

The Schneider Electric ATS48C11Q is a high-capacity soft starter from the Altistart 48 series, engineered for seamless integration into layered industrial control architectures. Rated for 110 A at 208–690 V AC, this unit delivers controlled motor acceleration and deceleration across demanding applications in manufacturing, power generation, water treatment, and process industries. Its design philosophy centers on system coherence — enabling engineers to deploy motor control as a coordinated layer within a broader automation platform rather than as a standalone device.

In modern industrial environments, motor starting events represent one of the highest-stress moments in an electrical system. The ATS48C11Q addresses this by progressively ramping voltage to the motor, eliminating inrush current spikes that can destabilize upstream power distribution, trip protection relays, or cause mechanical shock to coupled loads such as pumps, compressors, fans, and conveyors. This controlled start profile directly supports system-level stability across the control architecture.

The ATS48C11Q achieves its full value when deployed as part of a coordinated automation platform. At the control layer, it interfaces directly with Schneider Electric Modicon M340 and M580 PLCs via Modbus RTU, enabling the controller to issue start, stop, and parameter commands while receiving real-time motor status, thermal state, and fault diagnostics. This bidirectional data exchange eliminates the need for separate monitoring relays and reduces wiring complexity in the control cabinet.

At the I/O layer, the ATS48C11Q's digital and analog I/O terminals connect to TeSys D or TeSys K contactors and overload relays, forming a complete motor starter assembly. Engineers frequently pair this soft starter with Schneider Electric LRD thermal overload relays for secondary protection and with LC1D contactors for bypass or isolation switching. The combination creates a motor control center (MCC) cell that meets IEC 60947-4-2 coordination requirements.

For communication-intensive installations, the optional VW3A48 communication modules extend the ATS48C11Q's connectivity to CANopen, DeviceNet, or Profibus DP networks, enabling integration into distributed control systems (DCS) or SCADA platforms. This is particularly relevant in water treatment plants and chemical processing facilities where motor status must be aggregated at a supervisory level alongside field instruments and valve positioners.

At the power layer, the ATS48C11Q is typically fed from Schneider Electric Compact NSX or PowerPact molded case circuit breakers (MCCBs), which provide upstream short-circuit protection coordinated with the soft starter's internal current-limiting capability. Proper coordination between the MCCB trip curve and the soft starter's current ramp profile ensures that nuisance tripping is eliminated during heavy-load starts.

HMI integration is achieved through Magelis HMIGTO or HMISCU operator panels connected to the same Modbus network, giving operators a graphical view of motor running state, accumulated thermal capacity, and fault history without requiring additional instrumentation. For installations using EcoStruxure Machine Expert or Unity Pro engineering software, the ATS48C11Q device library blocks simplify programming and reduce commissioning time.

In redundant architecture designs, the ATS48C11Q supports hot-standby motor configurations when paired with a bypass contactor scheme controlled by the Modicon M580 Hot Standby CPU. This arrangement ensures that a soft starter fault does not interrupt the process — the bypass path activates within one control scan cycle, maintaining motor operation while the fault is diagnosed and cleared.

At the maintenance layer, the ATS48C11Q's built-in diagnostic registers — accessible via Modbus function codes — provide accumulated start count, last fault code, thermal state percentage, and operating hours. These parameters feed directly into predictive maintenance workflows managed by EcoStruxure Asset Advisor or third-party CMMS platforms, enabling condition-based maintenance scheduling rather than fixed-interval replacement.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing, the ATS48C11Q controls conveyor drive motors, hydraulic pump motors, and cooling fan drives. Its adjustable deceleration ramp prevents product spillage on inclined conveyors and reduces mechanical wear on belt tensioners. Integration with the plant's Modicon M340 PLC allows production supervisors to monitor motor health from the SCADA workstation without leaving the control room.

Water & Wastewater Treatment: Pump stations represent one of the most demanding soft starter applications. The ATS48C11Q's torque control capability prevents water hammer in long pipeline systems by ensuring that pump discharge pressure rises gradually. In municipal water treatment facilities, multiple ATS48C11Q units are deployed across raw water intake pumps, filter backwash pumps, and sludge transfer pumps, all monitored via a central Vijeo Citect SCADA system over Modbus TCP/IP through an ATV61 gateway.

Power Generation & Utilities: In diesel generator auxiliary systems and gas turbine cooling circuits, the ATS48C11Q manages large fan and pump motors that must start reliably under full load. Its phase imbalance detection protects motors in environments where supply quality may be compromised by generator switching transients. The 12-Month Warranty provides assurance for critical utility infrastructure where unplanned downtime carries significant operational cost.

Mining & Minerals Processing: Ore conveyor systems, ball mill drives, and slurry pump stations benefit from the ATS48C11Q's high current rating and robust thermal model. In underground mining environments, the IP54-rated enclosure option protects the unit from dust and moisture ingress. Remote diagnostics via Modbus RTU allow maintenance engineers to assess motor and starter health without entering hazardous areas.

Petrochemical & Offshore: In ATEX-classified zones, the ATS48C11Q is installed in pressurized or purged enclosures to control motors driving compressors, agitators, and cooling water pumps. Its compatibility with Profibus DP (via VW3A48 module) enables integration into Siemens PCS 7 or Honeywell Experion DCS platforms commonly found in refinery environments, demonstrating the unit's cross-platform contextual integration capability.

Q1: How does the ATS48C11Q integrate with Modicon M340 or M580 PLCs for system-level motor control? The ATS48C11Q communicates via Modbus RTU over RS-485, using a standard 2-wire connection to the PLC's serial communication module (e.g., BMX NOM 0200 for M340 or BMENOC0301 Ethernet gateway for M580). Schneider Electric provides pre-built function blocks in Unity Pro and EcoStruxure Machine Expert that map ATS48 registers to PLC variables, enabling start/stop commands, parameter writes, and status reads within the same PLC scan cycle. This eliminates the need for hardwired control circuits and simplifies cabinet wiring. The 12-Month Warranty covers the communication module and soft starter unit as a system-integrated assembly.

Q2: What upstream protection coordination is required for the ATS48C11Q in a panel-build application? IEC 60947-4-2 Type 2 coordination requires that the upstream MCCB (e.g., Schneider Compact NSX100F with Micrologic trip unit) be selected so that its instantaneous trip threshold exceeds the soft starter's maximum current ramp peak but remains below the SCR withstand rating. Schneider Electric's coordination tables in the Altistart 48 installation manual specify compatible MCCB frame sizes and trip settings for each ATS48 current rating. For the ATS48C11Q (110 A), a 160 A frame MCCB with an appropriate trip setting is typically specified. This coordination data is available from NANKMOS technical support as part of the pre-sales engineering service.

Q3: What is the stock availability and lead time for the ATS48C11Q, and what does the 12-Month Warranty cover? NANKMOS maintains inventory of the ATS48C11Q to support urgent project timelines. Units are pre-tested prior to shipment, including functional verification of communication ports, protection relay outputs, and parameter memory. The 12-Month Warranty covers manufacturing defects in the power electronics, control board, and communication interfaces under normal operating conditions as defined by IEC 60947-4-2. Warranty claims are processed through NANKMOS with replacement units dispatched from stock to minimize system downtime. Contact [email protected] or +86 18359268345 for current availability and lead time confirmation.
