Schneider Electric ATV11HU09M2E Variable Speed Drive

Product Details

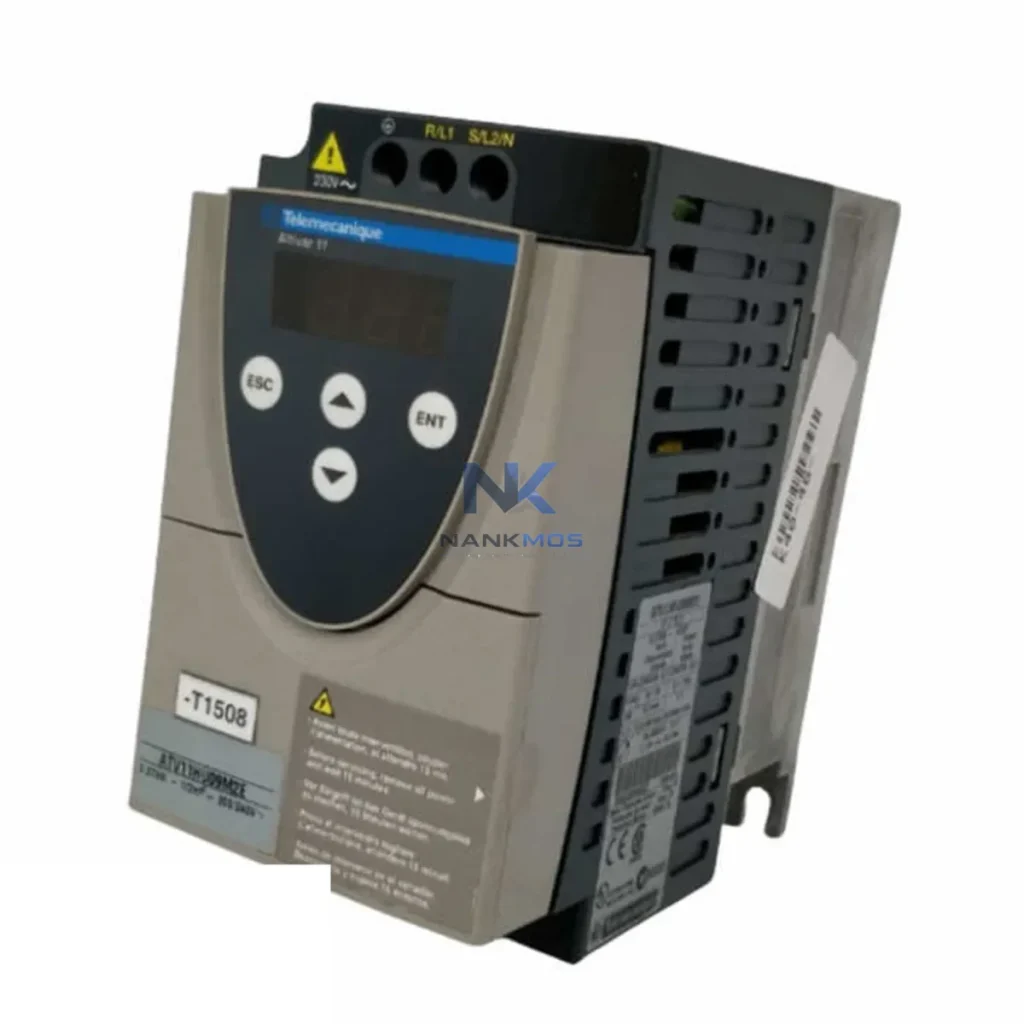

ATV11HU09M2E Product Description

The Schneider Electric ATV11HU09M2E is a compact, single-phase input variable frequency drive (VFD) from the Altivar 11 series, engineered for seamless integration into distributed and centralized control architectures across light industrial and process automation environments. Rated at 0.09 kW (1/8 HP) with a 200–240 V single-phase supply and three-phase output, the ATV11HU09M2E delivers precise motor speed regulation, soft-start capability, and energy-efficient operation within a minimal DIN-rail or panel-mount footprint. Its design philosophy centers on system coherence — enabling engineers to deploy a consistent drive platform across multiple motor axes without introducing architectural fragmentation or communication incompatibilities.

Within a layered automation architecture, the ATV11HU09M2E occupies the execution layer, receiving speed references and run/stop commands from the control layer above it. Whether the upstream controller is a Modicon M221 compact PLC, a Modicon M241 logic controller, or a Zelio Logic smart relay, the ATV11HU09M2E responds to analog (0–10 V or 4–20 mA) or digital command signals with consistent, repeatable behavior. This signal fidelity is critical in multi-drive installations where coordinated motion — such as synchronized conveyor lines, pump staging, or fan arrays — demands that each drive in the system respond identically to the same reference input.

The ATV11 series was designed as a platform, not a standalone product. When deployed alongside other ATV11 variants — such as the ATV11HU18M2E (0.18 kW), ATV11HU29M2E (0.25 kW), or ATV11HU41M2E (0.37 kW) — the ATV11HU09M2E enables engineers to build a scalable, multi-axis drive architecture using a single product family. This uniformity reduces spare parts inventory, simplifies technician training, and accelerates commissioning across sites. For installations requiring three-phase input at higher power ratings, the ATV11 platform bridges naturally into the Altivar 12 and Altivar 312 series, preserving parameter logic and wiring conventions across the broader Schneider Electric drive ecosystem.

At the I/O and signal layer, the ATV11HU09M2E supports configurable digital inputs for forward/reverse run, preset speeds, and fault reset, alongside an analog input for continuous speed reference. These I/O points interface directly with the output modules of Modicon TM3 expansion I/O or Modicon TM2 digital output modules, enabling tight integration without additional signal conditioning hardware. Where signal isolation is required — particularly in environments with high electromagnetic interference from adjacent drives, contactors, or welding equipment — pairing the ATV11HU09M2E with a dedicated signal isolator or surge protection module at the I/O terminal ensures long-term signal integrity and protects the drive's internal logic circuitry.

Power supply architecture is equally important to system reliability. The ATV11HU09M2E draws from a single-phase 200–240 V AC supply, and in panel designs where multiple drives share a common bus, the upstream power distribution must account for inrush current during simultaneous starts. Schneider Electric Acti9 iC60 circuit breakers or GV2 motor protection circuit breakers are recommended upstream protection devices, providing coordinated short-circuit and overload protection that aligns with the drive's internal electronic protection thresholds. For installations requiring DC bus sharing or regenerative braking, the ATV11HU09M2E's architecture supports external braking resistor connection, enabling controlled deceleration in high-inertia load applications.

From a communication and diagnostics perspective, the ATV11HU09M2E provides local parameter access via its integrated keypad and LED indicators, enabling on-site commissioning and fault diagnosis without external tools. For networked installations, the drive's analog and digital I/O can be mapped to fieldbus signals through a gateway device — such as the Schneider Electric TCSEGDB23F24FA Ethernet gateway or a compatible Modbus RTU-to-Ethernet bridge — allowing the ATV11HU09M2E to participate in SCADA-level monitoring and remote diagnostics. This capability is particularly valuable in water treatment, HVAC, and food processing applications where drive status, output frequency, and fault codes must be logged continuously for process optimization and regulatory compliance.

In HMI-integrated architectures, the ATV11HU09M2E's operating parameters — including output frequency, motor current, and fault history — can be surfaced on a Magelis HMIGTO or Magelis STO operator panel connected to the upstream PLC. This visibility allows operators to monitor drive performance in real time without accessing the drive's local keypad, reducing the need for panel door openings in hazardous or cleanroom environments. The combination of PLC, HMI, and ATV11HU09M2E within a single Schneider Electric ecosystem also simplifies software integration, as SoMachine or EcoStruxure Machine Expert can configure both the controller and the drive parameters from a unified engineering environment.

Long-term maintenance efficiency is a core design consideration for the ATV11HU09M2E. Its compact, sealed construction minimizes dust ingress in industrial environments, and its conformal-coated PCB option (where applicable) extends service life in humid or corrosive atmospheres. Preventive maintenance schedules can be aligned with the drive's built-in operating hour counter, and fault log data accessible via the keypad enables root-cause analysis without specialized diagnostic equipment. NANKMOS maintains verified stock of the ATV11HU09M2E and related ATV11 series variants, with pre-shipment functional testing performed on every unit to confirm output voltage symmetry, control response, and protection function integrity prior to dispatch.

Every ATV11HU09M2E supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sales fault analysis to ensure that each drive performs as specified within your control system design.

The ATV11HU09M2E achieves its full architectural value when deployed as part of a coordinated Schneider Electric automation platform. At the control layer, a Modicon M221 or Modicon M241 PLC issues speed references and run commands to the drive via digital and analog outputs, enabling closed-loop process control without additional motion controllers. For multi-axis installations, the Modicon TM3DQ16R digital output expansion module provides the additional discrete outputs required to command multiple ATV11 drives simultaneously from a single controller rack.

At the I/O layer, Modicon TM3AI8 analog input modules capture process feedback signals — such as pressure transducer outputs or flow meter signals — and feed them back to the PLC for speed reference calculation, creating a closed-loop drive control architecture. Where signal isolation is required between the drive's analog input and the PLC's analog output, a Phoenix Contact MINI MCR signal isolator or equivalent DIN-rail isolator module ensures ground loop elimination and signal fidelity across long cable runs.

Power distribution to the ATV11HU09M2E is best managed through a Schneider Electric Acti9 iC60N single-pole circuit breaker rated at 6A, providing coordinated upstream protection. For installations with multiple drives on a shared panel, a Schneider Electric Linergy busbar system simplifies power distribution wiring and reduces panel assembly time. Upstream surge protection using a Schneider Electric iPRD surge arrester protects the drive's input rectifier from transient overvoltages common in industrial power environments.

At the HMI layer, a Magelis HMISTO511 or Magelis HMISTU655 operator panel connected to the Modicon M221 PLC provides real-time visualization of drive output frequency, motor current, and fault status, enabling operators to monitor and adjust drive parameters without accessing the drive's local keypad. For remote monitoring, an EcoStruxure Machine Advisor gateway or Schneider Electric TCSEGDB23F24FA Ethernet gateway bridges the drive's I/O data to a SCADA or cloud monitoring platform via Modbus TCP/IP.

In redundant architecture designs, a Schneider Electric Zelio Logic SR3B261BD smart relay can serve as a backup command source for the ATV11HU09M2E, automatically switching to a preset speed reference if the primary PLC communication is interrupted. This redundancy pattern is common in water treatment pump stations and HVAC fan control panels where continuous motor operation is required regardless of controller availability.

Manufacturing & Packaging Lines: The ATV11HU09M2E is widely deployed on light conveyor drives, label applicator motors, and small pump drives in packaging and assembly lines. Its compact footprint allows integration into space-constrained control panels, and its soft-start capability reduces mechanical stress on conveyor belts and gearboxes, extending equipment service life.

Water Treatment & HVAC: In water treatment facilities and building HVAC systems, the ATV11HU09M2E controls small circulation pumps, dosing pumps, and fan motors. Its energy-saving V/f control reduces power consumption during partial-load operation, and its analog speed reference input enables direct integration with building management system (BMS) analog outputs for demand-based speed control.

Process & Chemical Industries: In petrochemical and chemical processing plants, the ATV11HU09M2E drives small agitator motors, metering pumps, and cooling fan drives within distributed control panels. Its IP20 enclosure is suitable for installation inside sealed control cabinets in classified areas, and its overtemperature protection prevents drive damage in high-ambient-temperature process environments.

Mining & Metallurgy: For auxiliary motor drives in mining conveyor systems and metallurgical process lines, the ATV11HU09M2E provides reliable speed control for small feed motors and cooling fans. Its robust protection suite — including phase loss detection and overcurrent shutdown — ensures safe operation in environments with unstable power supply quality.

Marine & Offshore: In marine auxiliary systems and offshore platform control panels, the ATV11HU09M2E controls small pump and fan motors within compact, vibration-resistant control enclosures. Its wide input voltage tolerance accommodates the voltage fluctuations common in shipboard power distribution systems, and its DIN-rail mounting simplifies installation in space-constrained marine panels.

Q1: Is the ATV11HU09M2E compatible with Modicon M221 and M241 PLCs for direct analog speed reference control? Yes. The ATV11HU09M2E accepts a 0–10 V or 4–20 mA analog speed reference signal directly from the analog output modules of Modicon M221 and M241 PLCs, including the TM221C16R and TM241CE24T variants. No additional signal conditioning is required for standard installations. The drive's digital inputs can be wired to the PLC's transistor or relay outputs for run/stop and direction commands, enabling full drive control from the PLC without a fieldbus interface. NANKMOS provides pre-sales wiring diagram support to confirm I/O compatibility for your specific PLC variant.

Q2: Can multiple ATV11HU09M2E drives be installed in the same control panel, and what are the derating requirements? Multiple ATV11HU09M2E drives can be installed side-by-side in the same control panel, subject to thermal derating requirements. At ambient temperatures above 40°C, output current derating applies per the ATV11 installation guide. Adequate panel ventilation — typically achieved through forced-air cooling with a panel fan rated at a minimum of 30 m³/h per drive — is recommended for multi-drive installations. Drives should be mounted vertically with a minimum 50 mm clearance above and below each unit to ensure adequate airflow. NANKMOS technical support can review your panel layout and thermal calculations prior to order to confirm derating compliance.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on ATV11HU09M2E units supplied by NANKMOS? The 12-Month Warranty provided by NANKMOS covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive's rated input tolerance, or unauthorized modification. To initiate a warranty claim, contact NANKMOS at [email protected] with the unit serial number, purchase order reference, and a description of the fault symptom. Our technical team will assess the fault remotely and, where confirmed as a warranty defect, arrange replacement or repair with priority dispatch. All warranty units undergo pre-shipment functional testing before return to service.
