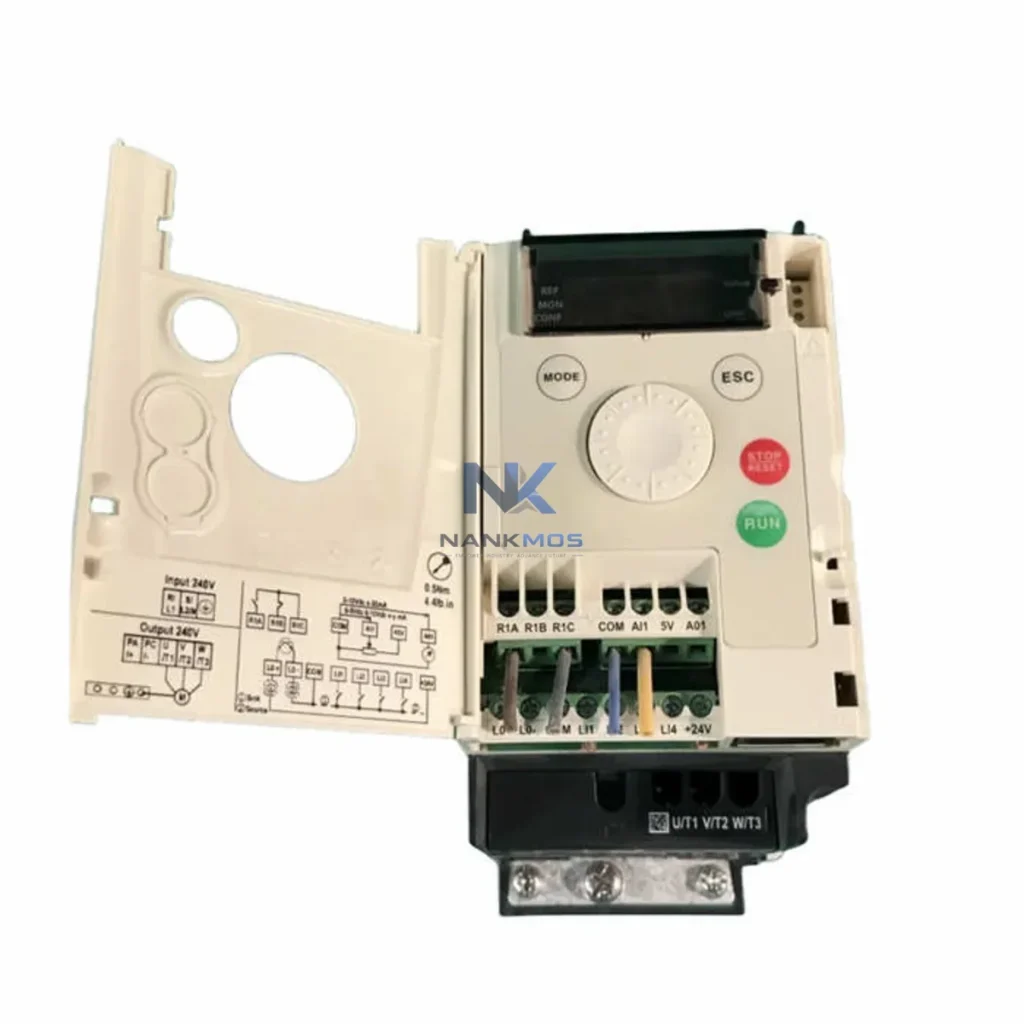

Schneider Electric ATV12H037M2 Variable Frequency Drive

Product Details

ATV12H037M2 Product Description

The Schneider Electric ATV12H037M2 is a compact Altivar 12 series variable frequency drive engineered for seamless integration into industrial data networks and smart factory architectures. Rated at 0.37 kW for single-phase 200–240 V supply, this drive delivers precise motor speed control while simultaneously serving as a critical node in the plant-wide communication chain. Its native Modbus RTU interface enables direct participation in the data flow between field devices, PLC controllers, SCADA platforms, and upper-level MES systems — making it far more than a standalone motor starter. In modern connected factories, every drive on the network is a data source, and the ATV12H037M2 is built to fulfill that role reliably.

In a fully connected smart factory, the ATV12H037M2 sits at the intersection of the physical process layer and the digital data layer. The data flow begins at the sensor level: temperature transmitters, pressure transducers, and proximity switches feed real-time process values into field I/O modules such as the Schneider TM3 expansion I/O series. These signals are aggregated by a Modicon M221 or M241 PLC, which simultaneously polls the ATV12H037M2 over Modbus RTU to read drive status registers — output frequency, motor current, DC bus voltage, and active fault codes — at scan cycle speeds that keep the control loop tight and responsive.

From the PLC, structured data packets travel upstream through an industrial Ethernet switch — such as a managed layer-2 switch with IGMP snooping for multicast traffic control — to a SCADA gateway or edge computing node. At this layer, a protocol conversion gateway (for example, a Moxa MGate or equivalent Modbus-to-EtherNet/IP bridge) can translate the RS-485 Modbus RTU frames from the ATV12H037M2 into EtherNet/IP or MQTT payloads, enabling the drive's operational data to be consumed by cloud-based MES platforms or IIoT dashboards without any re-engineering of the drive's native communication stack.

On the visualization side, a Magelis HMIGXU or HMISTO HMI panel connects directly to the Modbus RTU segment, providing operators with a local touchscreen view of drive speed setpoints, run/stop commands, and fault history. Simultaneously, the same data stream feeds a SCADA server running Wonderware or Ignition, where trend historians log motor load profiles over time, enabling predictive maintenance algorithms to flag bearing wear or overload conditions before they cause unplanned downtime. The ATV12H037M2's built-in fault memory stores the last four fault codes with timestamps, giving maintenance engineers a precise starting point for remote diagnostics without dispatching field technicians.

For multi-drive installations — such as conveyor lines, pump stations, or HVAC systems — multiple ATV12H037M2 units can be daisy-chained on a single RS-485 Modbus RTU segment alongside Altivar 312 or Altivar 320 drives, sharing the same communication bus and PLC polling routine. This architecture dramatically reduces wiring complexity and allows a single Modicon M251 controller to supervise an entire motor group, adjusting speed references dynamically based on process feedback from flow meters or level sensors connected through TM3 analog input modules. The result is a tightly integrated, data-rich automation cell where every motor contributes to the plant's digital twin.

At the power distribution level, a Schneider iEM3000 series energy meter on the same Modbus network provides per-circuit energy consumption data alongside the drive's own power readings, enabling energy management dashboards to correlate motor load with production throughput. This complete data chain — from sensor to drive to PLC to SCADA to cloud — is what transforms a conventional motor control installation into a smart factory asset, and the ATV12H037M2 is a proven, cost-effective entry point into that architecture.

Many industrial sites still operate with fragmented automation islands: drives that run in standalone mode, PLCs that cannot read drive fault data, and SCADA systems that have no visibility into motor performance. The ATV12H037M2 directly addresses these data gaps. Its Modbus RTU port eliminates the protocol barrier between the drive and the control network, allowing integrators to map drive parameters directly into PLC data tables without additional hardware adapters in most Modbus-native architectures.

For sites where protocol heterogeneity is a challenge — for example, where legacy Profibus DP devices coexist with newer Modbus RTU equipment — a Modbus-to-Profibus gateway can bridge the ATV12H037M2 into the existing network without replacing the drive or the PLC. This preserves capital investment while extending network transparency to previously isolated drives. Remote monitoring becomes straightforward: once the drive is on the network, SCADA alarm management can trigger email or SMS notifications on overcurrent, overvoltage, or motor thermal fault conditions, replacing manual inspection rounds with automated alarm workflows.

Production line transparency improves significantly when drive data is historized. Trend analysis of output frequency versus production count reveals speed-quality correlations that are invisible to operators relying on local keypad readouts alone. System expansion is equally simplified: adding a new ATV12H037M2 to an existing Modbus segment requires only address configuration via the drive's integrated keypad and a single entry in the PLC polling table — no new cabling infrastructure, no additional communication cards.

Q1: What is the maximum Modbus RTU network length for the ATV12H037M2? The RS-485 physical layer supports cable runs up to 1,200 meters at standard baud rates (up to 19,200 bps), with up to 31 slave devices per segment without repeaters. For longer runs or higher node counts, RS-485 repeaters maintain signal integrity without affecting Modbus protocol performance.

Q2: Is the ATV12H037M2 compatible with third-party SCADA and HMI systems? Yes. Modbus RTU is an open, widely supported protocol. The ATV12H037M2 is compatible with any Modbus RTU master, including Siemens, Mitsubishi, and Omron PLCs, as well as SCADA platforms such as Ignition, Wonderware, and iFIX, provided the correct register map (available in the Altivar 12 programming manual) is configured in the master device.

Q3: How does remote diagnostics work for the ATV12H037M2 over the network? The drive exposes fault codes, warning states, output current, frequency, and thermal state via Modbus holding registers. A SCADA system or PLC can poll these registers continuously and trigger alarms or automated responses — such as reducing load or initiating a controlled stop — without operator intervention. Historical fault logs stored in the drive can also be read remotely for post-event analysis.

Q4: What warranty and pre-shipment testing does the ATV12H037M2 include? Every ATV12H037M2 unit supplied by NANKMOS carries a 12-Month Warranty and undergoes pre-shipment functional verification, including power-on testing and communication port validation. Verified stock is maintained for immediate dispatch, supporting both urgent replacement requirements and planned project procurement schedules.
