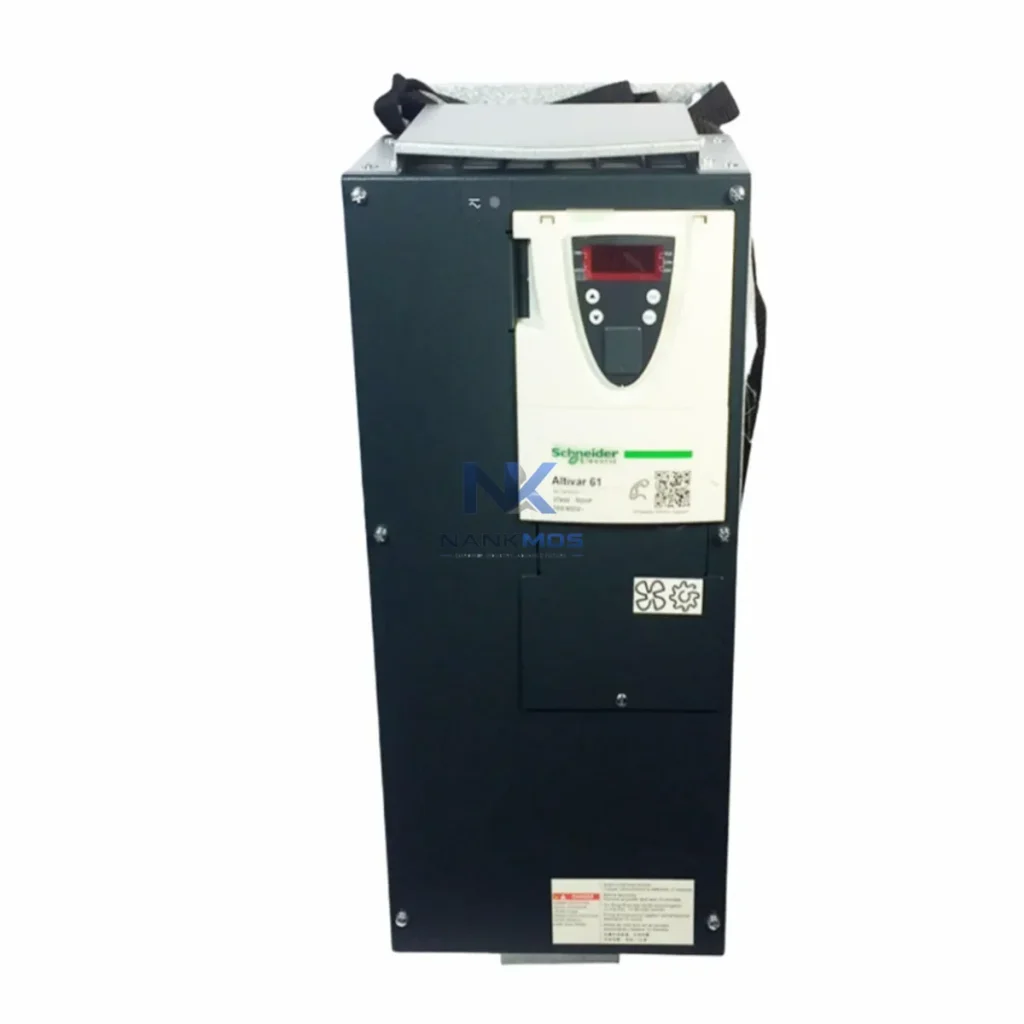

Schneider Electric ATV61HD37N4 Variable Speed Drive

Product Details

ATV61HD37N4 Product Description

The Schneider Electric ATV61HD37N4 is a 37kW (50HP) three-phase variable speed drive from the Altivar 61 series, engineered for seamless integration within multi-layer industrial control architectures. Operating on a 380–480V AC supply and delivering precise motor speed regulation across demanding process environments, the ATV61HD37N4 is not simply a standalone drive — it is a system-matched component designed to function cohesively within the broader automation stack. Its architecture-ready design supports coordinated deployment alongside PLCs, distributed I/O, communication gateways, HMI terminals, and power management modules, enabling engineers to build scalable, redundancy-capable, and diagnostically transparent control systems.

In modern industrial automation, variable speed drives occupy a critical position at the intersection of the control layer and the execution layer. The ATV61HD37N4 receives speed and torque commands from upstream controllers — such as the Schneider Modicon M340 or Modicon Premium PLC — via Modbus RTU, CANopen, or optional fieldbus cards supporting PROFIBUS DP, DeviceNet, or Ethernet/IP. This communication flexibility ensures that the drive can be integrated into both legacy control architectures and contemporary Ethernet-based plant networks without requiring infrastructure replacement. The drive's embedded communication ports and optional communication cards allow it to report real-time operating parameters — output frequency, motor current, fault codes, thermal state — directly to the supervisory layer, enabling centralized diagnostics and predictive maintenance workflows.

At the control layer, the ATV61HD37N4 interfaces with Schneider Modicon PLCs through structured function blocks, allowing engineers to implement closed-loop speed control, process PID regulation, and multi-drive coordination sequences within a unified programming environment. The drive supports analog reference inputs (0–10V, 4–20mA) and digital command inputs compatible with standard I/O modules such as the Schneider TM3 or TM2 expansion I/O series, ensuring signal integrity across the full control chain. Logic interlocks, safety relay outputs, and fault relay contacts can be wired directly to the control cabinet's terminal block assemblies, maintaining system-level protection coordination without additional signal conditioning hardware.

From a power and electrical architecture perspective, the ATV61HD37N4 incorporates an integrated EMC filter and DC bus choke provisions, reducing harmonic disturbance on the supply network and protecting adjacent equipment — including servo drives, soft starters, and motor protection relays — from conducted interference. When deployed in multi-drive panels alongside units such as the ATV71 series or ATV312 compact drives, the ATV61HD37N4's EMC compliance ensures that the overall panel meets industrial electromagnetic compatibility standards without requiring extensive external filtering. The drive's braking transistor output supports connection to external braking resistors for applications requiring rapid deceleration, such as centrifuges, hoists, or high-inertia conveyor systems.

For HMI integration, the ATV61HD37N4 is fully compatible with Schneider Magelis HMI terminals via Modbus serial or Ethernet connections, enabling operators to monitor drive status, adjust speed references, and acknowledge faults from a centralized touchscreen interface. Parameter configuration and commissioning can also be performed using the SoMove PC software tool or the optional remote keypad, reducing on-site commissioning time and enabling parameter cloning across multiple drives in the same installation. This capability is particularly valuable in large-scale projects where dozens of drives must be configured to identical specifications within tight commissioning schedules.

In redundancy-critical applications — such as water treatment pump stations, HVAC systems in data centers, or continuous process lines in petrochemical plants — the ATV61HD37N4 supports bypass contactor schemes and multi-motor switching configurations. When paired with Schneider TeSys motor starters, contactor assemblies, and thermal overload relays, the drive can be integrated into a fully coordinated motor control center (MCC) that provides both variable speed operation and direct-on-line fallback capability. This dual-mode architecture ensures process continuity even in the event of drive maintenance or fault isolation, meeting the uptime requirements of critical infrastructure applications.

The ATV61HD37N4 is equally suited to process control applications in mining, metallurgy, marine auxiliary systems, and packaging lines, where load profiles are variable and energy efficiency is a primary operational concern. The drive's energy-saving algorithms — including automatic motor adaptation (AMA) and flux optimization — reduce motor losses during partial-load operation, contributing to measurable reductions in facility energy consumption. In pump and fan applications governed by affinity laws, the energy savings achievable through variable speed operation versus fixed-speed operation with throttling valves or dampers are substantial, with typical payback periods of 12–24 months depending on operating hours and energy tariffs.

All ATV61HD37N4 units supplied by NANKMOS are sourced from verified distribution channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty against manufacturing defects and operational failures. Each unit is inspected for firmware version consistency, parameter default integrity, and physical condition prior to dispatch. Stock availability is maintained to support both immediate replacement requirements and planned project procurement, with fast international shipping to manufacturing facilities, system integrators, and MRO procurement teams worldwide.

The ATV61HD37N4 achieves its full operational potential when deployed as part of a coordinated automation platform rather than as an isolated component. In a typical Schneider Electric control architecture, the drive occupies the execution layer, receiving speed references and command signals from a Modicon M340 or Modicon M580 PLC via Modbus RTU or Ethernet/IP. The PLC's CPU module — such as the BMX P34 2020 or BMX P58 2040 — executes the application program and manages the drive's operating state through structured function blocks, enabling seamless integration of speed control, process interlocks, and fault management within a single programming environment.

At the I/O layer, TM3 digital and analog expansion modules distribute field signals — pressure transmitters, flow sensors, temperature probes, and limit switches — to the PLC, which in turn generates the analog speed reference or digital command signals consumed by the ATV61HD37N4. Signal isolation between field instruments and the drive's analog inputs can be achieved using DIN-rail mounted signal isolators or signal conditioners, ensuring that ground loops and common-mode noise do not compromise speed reference accuracy in electrically noisy environments such as steel mills or chemical processing plants.

Communication integrity across the control network is maintained by managed industrial Ethernet switches — such as the Schneider ConneXium or Hirschmann MACH series — which provide VLAN segmentation, port mirroring, and redundant ring topologies (MRP/RSTP) to ensure that drive command latency remains within acceptable bounds even under high network load. For installations requiring PROFIBUS DP communication, the ATV61HD37N4 accepts optional VW3A3607 PROFIBUS DP cards, enabling integration into Siemens S7-based architectures or mixed-vendor control systems without protocol conversion gateways.

Power distribution to the drive is managed through Schneider Compact NSX or PowerPact circuit breakers with motor protection functions, coordinated with TeSys D or TeSys K contactors for safe isolation and bypass switching. Upstream harmonic mitigation — where required by grid codes or facility power quality standards — can be addressed through line reactors or active harmonic filters installed at the MCC level, complementing the ATV61HD37N4's integrated EMC filter and DC bus choke provisions.

For operator interaction, Magelis GTO or HMIGTO series HMI panels provide real-time visualization of drive operating parameters, alarm histories, and trend data, connected to the control network via Ethernet or Modbus serial. In installations where remote monitoring is required, the Schneider EcoStruxure Plant architecture enables cloud-based performance analytics and predictive maintenance alerts, extending the diagnostic reach of the ATV61HD37N4 beyond the local control room to enterprise-level asset management platforms.

Water & Wastewater Treatment: The ATV61HD37N4 is widely deployed in pump station and aeration basin applications, where variable flow demand requires continuous speed adjustment to maintain process setpoints. Its PID controller and sleep/wake functions reduce energy consumption during low-demand periods, while the bypass contactor scheme ensures uninterrupted pumping during drive maintenance intervals.

Mining & Mineral Processing: In conveyor drive and crusher feed applications, the drive's sensorless flux vector control delivers high starting torque at low speeds, enabling controlled acceleration of high-inertia loads without mechanical shock. The drive's thermal protection and overload management functions protect motors operating in dusty, high-ambient-temperature environments characteristic of underground and open-pit mining operations.

Oil, Gas & Petrochemical: Compressor and pump drives in hazardous area installations benefit from the ATV61HD37N4's compatibility with ATEX-certified motors and its ability to interface with safety PLCs via hardwired STO (Safe Torque Off) inputs, meeting functional safety requirements for SIL 2 applications when combined with appropriate safety relay modules.

HVAC & Building Automation: In large commercial and industrial HVAC systems, the drive's energy-saving algorithms and BACnet/Modbus integration capability allow it to participate in building energy management systems (BEMS), responding to demand signals from central building controllers to optimize fan and pump speeds in real time.

Packaging & Material Handling: High-cycle-rate packaging lines require drives capable of rapid acceleration and deceleration with precise speed repeatability. The ATV61HD37N4's closed-loop flux vector mode, combined with encoder feedback from the motor, delivers the speed accuracy and dynamic response required for synchronized multi-axis packaging machinery.

Marine Auxiliary Systems: Onboard vessel auxiliary drives — including seawater cooling pumps, ballast pumps, and HVAC fans — benefit from the ATV61HD37N4's wide supply voltage tolerance and robust EMC performance, ensuring reliable operation in the electrically challenging environment of a ship's engine room.

Q1: Is the ATV61HD37N4 compatible with Modicon M340 and M580 PLCs for closed-loop speed control? Yes. The ATV61HD37N4 integrates natively with Modicon M340 and M580 PLCs via Modbus RTU (integrated port) or Ethernet/IP (with optional VW3A3627 card). Schneider's Unity Pro and EcoStruxure Control Expert software libraries include pre-built function blocks for ATV61 drive control, enabling closed-loop speed regulation, fault management, and parameter read/write within the PLC application program. No third-party gateway or protocol converter is required for standard Schneider Electric control architectures.

Q2: What fieldbus options are available, and how does the drive handle communication redundancy in critical process applications? The ATV61HD37N4 supports optional communication cards for PROFIBUS DP (VW3A3607), CANopen (VW3A3608), DeviceNet (VW3A3609), and Ethernet/IP / Modbus TCP (VW3A3627), providing broad compatibility with multi-vendor control architectures. For communication redundancy in critical applications, the drive can be configured with a fallback speed reference via its analog input, ensuring continued operation at a predefined safe speed if the fieldbus communication is interrupted. This fallback behavior is configurable via the drive's parameter menu and can be coordinated with the PLC's communication fault handling logic.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's stock verification process? All ATV61HD37N4 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. Prior to shipment, each unit undergoes pre-shipment functional testing to verify power-up integrity, parameter default consistency, and communication port operation. Units are sourced from verified distribution channels and stored in controlled warehouse conditions to prevent electrostatic discharge damage and environmental degradation. Replacement or repair support is provided within the warranty period, with technical assistance available to support installation, commissioning, and fault diagnosis throughout the product lifecycle.
