Schneider Electric ATV930D37N4 Variable Frequency Drive

Product Details

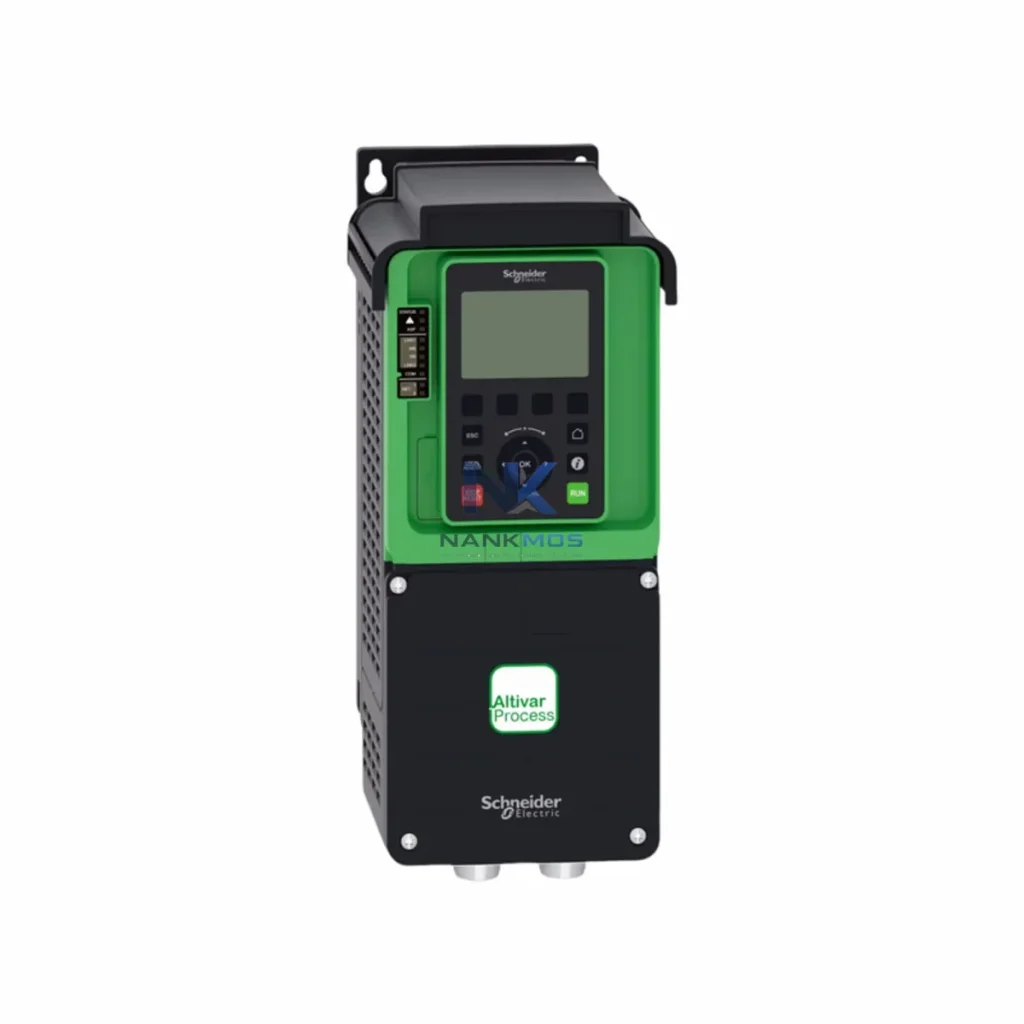

ATV930D37N4 Product Description

The Schneider Electric ATV930D37N4 is a 37 kW Altivar Process variable frequency drive engineered for seamless integration into smart factory data architectures. Built on dual-protocol support — Modbus TCP and Ethernet/IP — this drive functions not merely as a motor controller but as an active node in the plant-wide communication network, enabling real-time data exchange between field devices, PLC controllers, SCADA platforms, HMI terminals, and cloud-based analytics systems. In modern industrial environments where every millisecond of downtime carries measurable cost, the ATV930D37N4 delivers the connectivity depth that automation engineers demand.

In a fully connected smart factory, the ATV930D37N4 sits at the intersection of field-level actuation and plant-level intelligence. The data flow begins at the sensor layer: pressure transmitters, flow meters, and temperature probes feed analog and digital signals into remote I/O modules — such as the Schneider Electric TM3 expansion I/O series — which aggregate field data and forward it upstream via Modbus TCP. The ATV930D37N4 receives speed references and torque commands from a Modicon M340 or M580 PLC over Ethernet/IP, executing precise motor control while simultaneously reporting back drive status, output frequency, current draw, and fault codes in real time.

At the supervisory layer, a Wonderware or Vijeo Citect SCADA system polls the ATV930D37N4 through its embedded Ethernet/IP adapter, visualizing drive performance on operator dashboards alongside data from Schneider Electric Altivar ATV320 compact drives deployed on auxiliary conveyor lines. HMI terminals — such as the Magelis HMIGTO series — display live motor speed, energy consumption trends, and alarm histories, giving operators immediate visibility into process deviations without leaving the control room.

For facilities running mixed-protocol environments, the ATV930D37N4's dual-port embedded Ethernet switch enables daisy-chain network topologies, reducing cabling infrastructure while maintaining deterministic communication latency below 10 ms. Edge gateways — such as the Schneider Electric EcoStruxure Machine Advisor gateway or third-party Moxa MGate protocol converters — can bridge legacy Modbus RTU devices on the plant floor into the Ethernet/IP backbone, ensuring that older instrumentation such as legacy pressure controllers or Profibus-connected sensors remain visible within the unified data network.

Variable speed drives on pump and fan applications — including companion units like the ATV930U75N4 and ATV930C13N4 deployed across parallel process lines — share the same EtherNet/IP network segment, allowing the Modicon M580 PLC to execute coordinated multi-drive sequencing, load balancing, and energy optimization routines from a single control program. Power quality data from Schneider Electric PowerLogic PM8000 power meters is integrated into the same SCADA layer, giving energy managers a complete picture of drive-level consumption versus plant-wide power draw.

At the data aggregation layer, the EcoStruxure Plant architecture collects time-stamped drive logs, alarm events, and energy KPIs from the ATV930D37N4 and forwards them to cloud analytics or on-premise MES platforms. This enables predictive maintenance workflows: vibration anomalies detected by connected sensors trigger automated work orders in the CMMS before mechanical failure occurs, reducing unplanned downtime and extending motor service life.

Many industrial sites operate with fragmented communication architectures — islands of Modbus RTU devices that cannot speak directly to Ethernet/IP controllers, drives that report faults only locally, and SCADA systems that lack real-time visibility into motor-level parameters. The ATV930D37N4 directly addresses these integration gaps.

Protocol Fragmentation: The drive's native support for both Modbus TCP and Ethernet/IP eliminates the need for external protocol gateways in most Schneider Electric control architectures. Where legacy Modbus RTU devices remain on-site, a single MGate or EcoStruxure gateway bridges the protocol boundary without disrupting the existing network topology.

Data Silos: By exposing over 200 drive parameters — including output frequency, motor current, DC bus voltage, thermal state, and fault history — via standard Ethernet/IP objects, the ATV930D37N4 makes drive data natively consumable by any EtherNet/IP-compatible SCADA, historian, or MES platform, eliminating manual data collection and transcription errors.

Remote Monitoring Gaps: The embedded web server provides browser-based access to drive status, parameter configuration, and energy dashboards without requiring proprietary software. Remote engineers can diagnose faults, adjust PID setpoints, and review alarm logs from any networked workstation, reducing on-site service visits and accelerating fault resolution.

Production Line Transparency: Integration with EcoStruxure Plant enables real-time OEE (Overall Equipment Effectiveness) calculations at the drive level, surfacing bottlenecks and underperforming assets directly on plant manager dashboards. Alarm events from the ATV930D37N4 are time-stamped and correlated with upstream process data, enabling root-cause analysis within minutes rather than hours.

System Scalability: The dual-port embedded switch supports linear and ring network topologies, allowing new drives, I/O modules, and smart sensors to be added to the network without redesigning the cabling infrastructure. As production lines expand, the ATV930D37N4 scales within the existing EtherNet/IP architecture without requiring additional network hardware.

Q1: What is the communication latency of the ATV930D37N4 on an Ethernet/IP network? The ATV930D37N4 supports cyclic I/O data exchange with a minimum RPI (Requested Packet Interval) of 5 ms on EtherNet/IP, delivering deterministic real-time control suitable for coordinated multi-drive applications. Modbus TCP polling cycles are configurable based on network load and PLC scan time, typically achieving sub-10 ms response times in standard plant network environments.

Q2: Is the ATV930D37N4 compatible with third-party SCADA and HMI systems beyond Schneider Electric platforms? Yes. Because the drive implements standard EtherNet/IP and Modbus TCP protocols, it is compatible with any SCADA, DCS, or HMI platform that supports these open industrial standards — including Siemens WinCC, Rockwell FactoryTalk, Ignition by Inductive Automation, and GE iFIX. EDS (Electronic Data Sheet) files are available for seamless integration into third-party EtherNet/IP configuration tools.

Q3: How does remote diagnostics work, and what data is accessible without on-site access? The ATV930D37N4 includes an embedded web server accessible via standard browser over the plant Ethernet network or VPN. Remote engineers can view real-time drive parameters, fault logs, energy consumption data, and alarm histories. Parameter adjustments and drive resets can be performed remotely, significantly reducing the need for on-site service visits and accelerating mean time to repair (MTTR).

Q4: What does the 12-Month Warranty cover, and how are units tested before shipment? All ATV930D37N4 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including power-on verification, communication port validation, and parameter integrity checks. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination to minimize production impact. Stock is maintained for immediate dispatch to reduce lead times on critical replacement orders.
