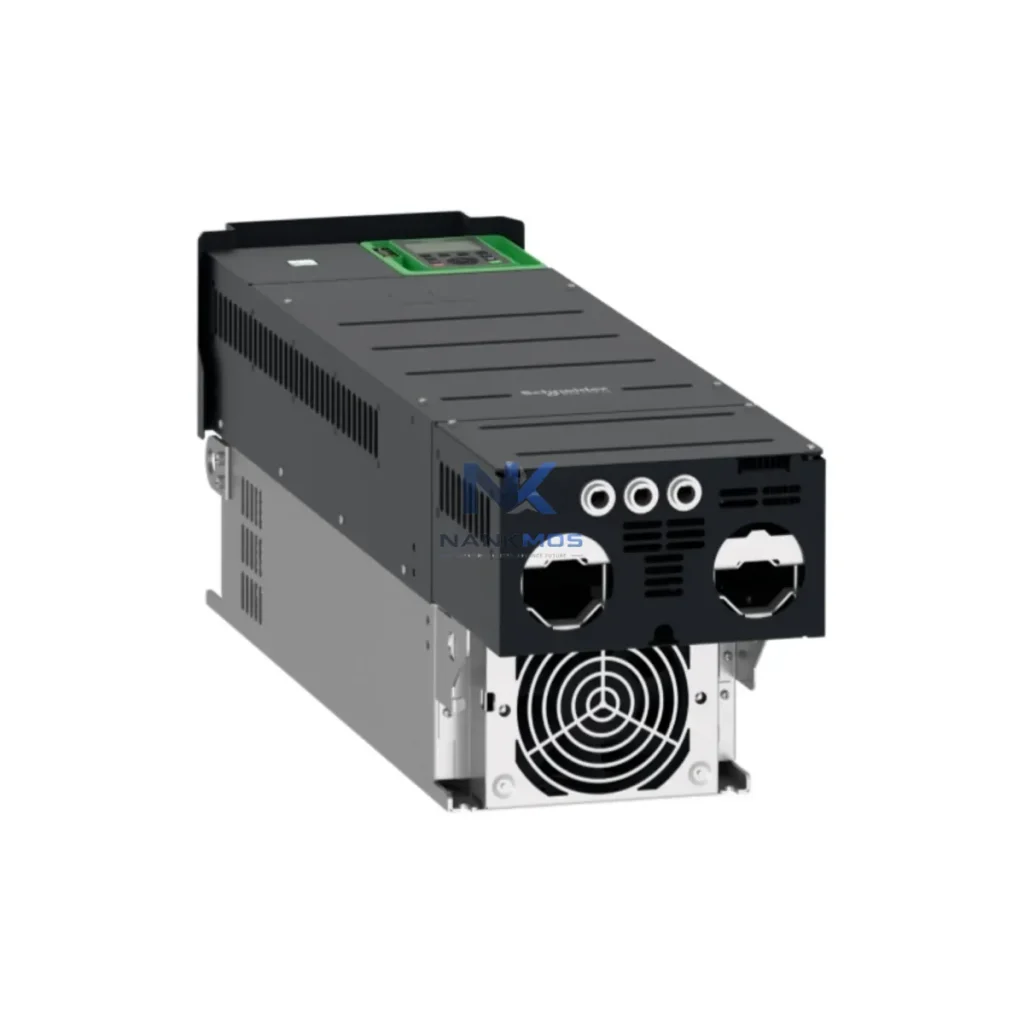

Schneider Electric ATV930D75N4 Variable Speed Drive

Product Details

ATV930D75N4 Product Description

The Schneider Electric ATV930D75N4 is a 75 kW three-phase variable speed drive (VFD) from the Altivar 930 series, engineered to deliver precise energy control, dynamic load management, and measurable efficiency gains across demanding industrial production environments. Designed for integration into EcoStruxure-enabled automation architectures, this drive enables factories to reduce unnecessary energy consumption, stabilize production line throughput, and extend the operational lifespan of connected motor systems.

In modern smart manufacturing, energy efficiency is not a standalone feature — it is a system-level outcome. The ATV930D75N4 is built to operate as a core node within a fully integrated power-aware automation architecture. When paired with a Schneider Modicon M580 PLC, the drive receives real-time process commands via EtherNet/IP or Modbus TCP, enabling closed-loop speed regulation that directly responds to production demand signals rather than running motors at fixed full speed.

For energy monitoring and load visibility, the ATV930D75N4 integrates seamlessly with Schneider PowerLogic PM8000 power monitoring units, which capture real-time kWh consumption, power factor, and harmonic distortion data. This data feeds into the EcoStruxure Power Monitoring Expert (PME) platform, giving energy managers a complete picture of drive-level consumption across the production floor. When combined with Schneider iEM3000 series energy meters, operators can isolate per-machine energy costs and identify inefficient load cycles.

On the motor side, the ATV930D75N4 supports direct control of IE3 and IE4 premium efficiency induction motors, and its built-in motor parameter auto-tuning function ensures optimal torque delivery at every operating point. For applications requiring precise positioning or high-dynamic response, the drive can be coordinated with Schneider Lexium 32 servo drives through a shared CANopen Motion Bus, allowing synchronized multi-axis motion while maintaining centralized energy oversight.

The drive's digital and analog I/O terminals connect directly to Schneider TM3 I/O expansion modules on the Modicon platform, enabling real-time feedback from process sensors — including temperature transmitters, pressure transducers, and flow meters — to dynamically adjust motor speed based on actual process conditions. This eliminates the energy waste associated with fixed-speed operation and throttling valve control. For operator visibility, the Magelis HMIGTO series HMI panels provide a graphical interface for monitoring drive status, energy consumption trends, fault history, and production throughput in real time.

Communication flexibility is a key strength of the ATV930D75N4. Its support for Profinet IO and Profibus DP allows integration into Siemens-based control environments, while its native EtherNet/IP adapter supports Allen-Bradley PLC architectures. This cross-platform compatibility makes the drive a versatile energy-control component in multi-vendor production lines. For SCADA connectivity, the drive's process data — speed reference, output current, active power, and fault codes — can be mapped directly into Wonderware System Platform or Schneider EcoStruxure Operator Terminal Expert for plant-wide energy dashboards.

The fundamental value of the ATV930D75N4 in a production line context is its ability to match motor output precisely to actual process demand. In pump and fan applications — which account for a significant share of industrial electricity consumption — the relationship between motor speed and power consumption follows the affinity laws: a 20% reduction in speed results in approximately 50% reduction in power draw. The ATV930D75N4's variable torque control mode exploits this relationship continuously, delivering energy savings of 20–50% compared to direct-on-line (DOL) motor starting.

Beyond raw energy savings, the drive contributes to production line stability through its advanced ramp control and anti-jerk functions. Smooth acceleration and deceleration profiles reduce mechanical stress on couplings, gearboxes, and conveyor belts, extending equipment service intervals and reducing unplanned downtime. The drive's built-in catch-on-the-fly function allows it to reconnect to a spinning motor without stopping the line — a critical capability in continuous process industries where stopping a conveyor or pump mid-cycle carries significant productivity costs.

Thermal load management is another area where the ATV930D75N4 delivers measurable value. Its intelligent fan control system activates cooling only when internal temperature thresholds are approached, reducing auxiliary power consumption and extending fan bearing life. The drive's thermal model continuously estimates motor winding temperature based on current draw and ambient conditions, triggering automatic derating before thermal damage occurs — protecting both the drive and the connected motor from heat-related failures.

For predictive maintenance integration, the ATV930D75N4 logs detailed operational data — including running hours, number of starts, peak current events, and fault history — that can be extracted via Modbus TCP or the drive's embedded web server. This data supports condition-based maintenance strategies, allowing maintenance teams to schedule interventions based on actual equipment condition rather than fixed time intervals, reducing both maintenance costs and unplanned production stops.

NANKMOS maintains ready stock of the ATV930D75N4 and the broader Altivar 930 series, with all units subject to pre-shipment functional testing covering output voltage balance, insulation resistance, and control signal response. Every unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Fast global shipping is available to support urgent production line replacement requirements.

Q1: What energy savings can I realistically expect from the ATV930D75N4 in a pump or fan application? In variable torque applications such as centrifugal pumps and HVAC fans, the ATV930D75N4 typically delivers 20–50% reduction in motor energy consumption compared to fixed-speed DOL operation. Actual savings depend on the load profile, operating hours, and the degree of speed variation required by the process. The drive's built-in energy saving function (ESF) further optimizes the voltage-to-frequency ratio at partial loads to maximize efficiency.

Q2: Is the ATV930D75N4 compatible with my existing PLC and SCADA system? Yes. The ATV930D75N4 supports a wide range of industrial communication protocols including Modbus RTU, Modbus TCP, EtherNet/IP, Profinet IO, Profibus DP, and CANopen. This makes it compatible with control platforms from Schneider Electric (Modicon M340, M580), Siemens (S7 series), Rockwell Automation (ControlLogix, CompactLogix), and most major SCADA systems including EcoStruxure PME, Wonderware, and Ignition.

Q3: Can the ATV930D75N4 replace my existing Altivar 71 or Altivar 61 drive without rewiring? The Altivar 930 series is designed as a functional successor to the Altivar 71 and Altivar 61 platforms. While terminal layouts and parameter structures differ, Schneider Electric provides migration guides and parameter conversion tools to facilitate the transition. In most cases, the power wiring connections are compatible, and control wiring can be adapted with minor modifications. NANKMOS technical support can assist with migration planning for your specific application.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process? Every ATV930D75N4 unit shipped by NANKMOS undergoes pre-shipment functional testing that includes output phase balance verification, insulation resistance measurement, control terminal signal response, and display/keypad functionality checks. The 12-month warranty covers manufacturing defects and component failures under normal industrial operating conditions from the date of shipment. Warranty claims are processed with priority support, and replacement units are dispatched from stock to minimize production downtime.
