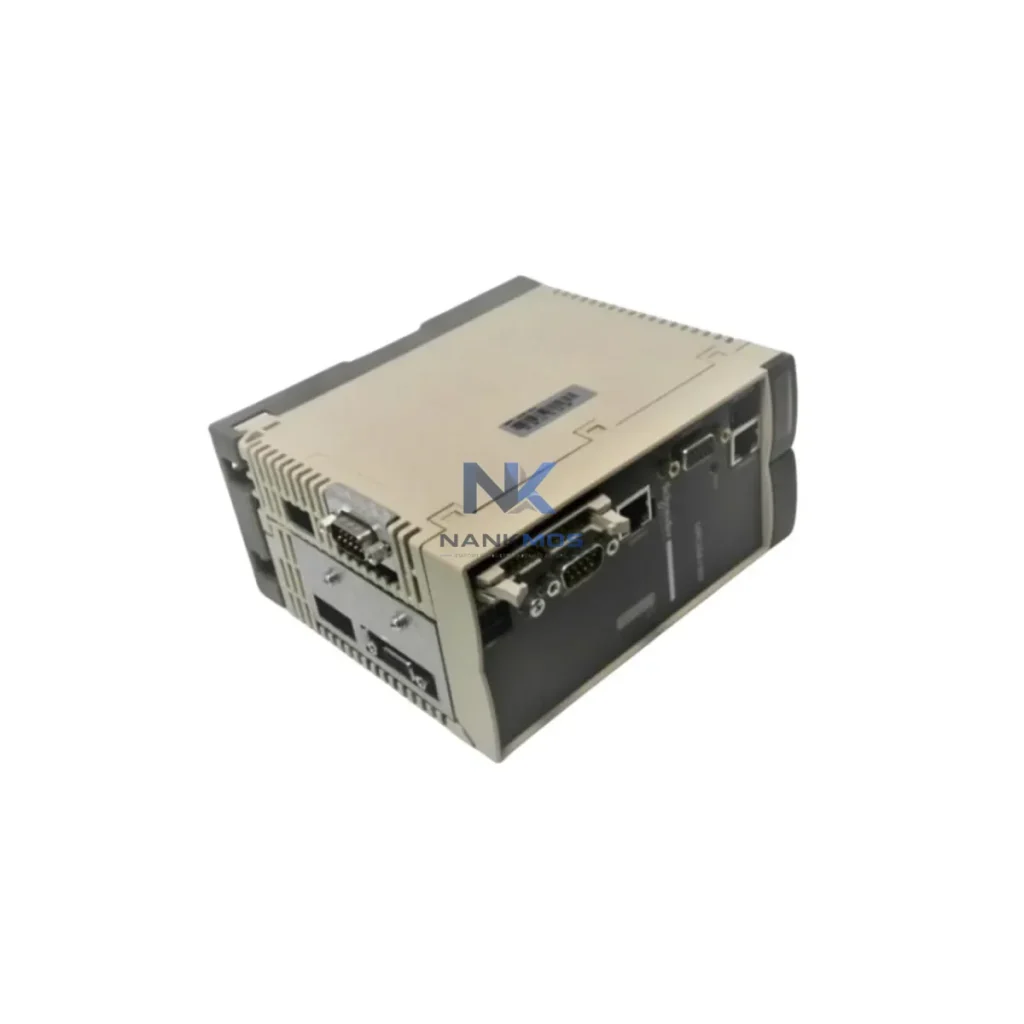

Schneider Electric LMC20A1307 Motion Controller

Product Details

LMC20A1307 Product Description

The Schneider Electric LMC20A1307 is engineered as a centralized motion coordination node within the Lexium servo control architecture. Rather than functioning as a standalone device, it is designed to operate as the motion intelligence layer within a broader EcoStruxure Machine automation platform — coordinating servo drives, I/O modules, communication gateways, and HMI systems into a unified, deterministic control environment.

At the drive layer, the LMC20A1307 interfaces directly with Lexium 32A and Lexium 32M servo drives via CANopen or Sercos III, enabling synchronized multi-axis positioning with sub-millisecond cycle times. For higher-performance applications, integration with Lexium 62 servo drives over Sercos III provides enhanced dynamic response and real-time torque control across coordinated axes. The controller's motion kernel supports electronic cam, gearing, and interpolated path control — critical for packaging lines, labeling machines, and precision assembly systems.

At the I/O layer, the LMC20A1307 connects to TM3DI16 digital input modules and TM3DQ16R digital output relay modules through the SoMachine I/O bus, enabling distributed signal acquisition across the machine frame without additional fieldbus hardware. For analog process signals, TM3AI8 analog input modules extend the controller's sensing capability to pressure transducers, load cells, and temperature sensors — supporting closed-loop process feedback within the same programming environment.

Communication architecture is handled through the controller's native Modbus TCP and EtherNet/IP ports, allowing upstream integration with Modicon M340 or Modicon M580 PLCs acting as supervisory controllers in multi-tier automation hierarchies. For SCADA connectivity, the LMC20A1307 can exchange real-time production data with Vijeo Designer-based HMI panels such as the HMIGTO5310, providing operators with axis status, fault diagnostics, and production counters on a single visualization platform.

Power distribution integrity is maintained through Phaseo ABL8 series 24 VDC power supplies, which provide regulated, filtered control voltage to the LMC20A1307 and its connected I/O modules. For applications requiring redundant power paths, dual-feed configurations with ABL8RPS24100 redundancy modules ensure uninterrupted controller operation during single-supply failures — a critical requirement in continuous process and pharmaceutical packaging environments.

At the protection layer, integration with Tesys GV2 motor protection circuit breakers and Zelio Logic safety relays provides hardwired safety interlocking that complements the LMC20A1307's software-based fault detection. This layered protection architecture ensures that both motion faults and electrical overcurrent events are handled at the appropriate system level, reducing nuisance trips and improving overall machine availability.

The LMC20A1307 is deployed across a wide range of industrial sectors where coordinated multi-axis motion, deterministic cycle times, and long-term platform stability are non-negotiable requirements.

Packaging and Converting Lines: In horizontal flow-wrap, vertical form-fill-seal, and cartoning machines, the LMC20A1307 manages electronic cam profiles between infeed conveyors, forming stations, and sealing jaws. Its SoMachine Motion programming environment allows machine builders to implement flying shear, registration correction, and product pitch adjustment without external cam controllers — reducing panel complexity and commissioning time.

Printing and Labeling Systems: Web tension control, register mark detection, and print head synchronization are handled through the controller's high-speed I/O capture and real-time axis correction algorithms. Integration with vision system triggers via TM3 digital inputs enables closed-loop label placement accuracy to within ±0.1 mm at production speeds.

Semiconductor and Electronics Assembly: Pick-and-place gantry systems, dispensing robots, and wafer handling platforms benefit from the LMC20A1307's interpolated path control and sub-millisecond position update rates. The controller's deterministic Sercos III communication eliminates jitter-induced positioning errors that are unacceptable in precision electronics manufacturing.

Food and Beverage Processing: Hygienic machine designs using stainless-steel servo motors paired with Lexium 32 drives are coordinated by the LMC20A1307 to manage filling, capping, and conveying sequences. The controller's integrated diagnostic logging supports OEE tracking and predictive maintenance scheduling — reducing unplanned downtime in high-throughput production environments.

Pharmaceutical and Life Sciences: Blister packaging, tablet counting, and liquid filling lines require motion controllers with validated software environments and full audit trail capability. The LMC20A1307's EcoStruxure Machine Expert platform supports IEC 62443 cybersecurity guidelines and FDA 21 CFR Part 11 compliance frameworks, making it suitable for regulated manufacturing environments.

Metal Fabrication and Press Lines: Servo press applications, coil feeding systems, and transfer press automation use the LMC20A1307's torque-controlled motion profiles to manage material feed accuracy and die protection. Electronic gearing between the press crankshaft encoder and the feed axis eliminates mechanical gearboxes — reducing maintenance intervals and improving feed repeatability.

Q1: Is the LMC20A1307 compatible with both Lexium 32 and Lexium 62 servo drive families, and can they be mixed within the same motion project? Yes. The LMC20A1307 supports mixed-drive architectures within a single SoMachine Motion project. Lexium 32 drives connect via CANopen DS402, while Lexium 62 drives use Sercos III for higher-bandwidth applications. Both drive families can coexist on separate motion buses managed by the same controller, allowing machine builders to optimize cost and performance across different axis groups. Axis mapping, scaling, and cam profile assignments are configured independently per drive type within the EcoStruxure Machine Expert environment.

Q2: What expansion options are available for I/O and communication when the LMC20A1307's native ports are fully utilized? The LMC20A1307 supports TM3 I/O expansion modules connected via the local I/O bus, providing up to 14 additional modules for digital inputs, digital outputs, analog inputs, analog outputs, and specialty functions such as encoder interfaces and temperature measurement. For communication expansion, the controller's USB and Ethernet ports support simultaneous Modbus TCP, EtherNet/IP, and CANopen master connections. Additional fieldbus protocols can be added through compatible communication gateway modules installed in the same control cabinet, enabling integration with PROFIBUS, DeviceNet, or legacy serial networks without replacing the motion controller.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty replacement or technical support? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. Units that develop faults within the warranty period are eligible for direct replacement or repair at no additional cost. To initiate a warranty claim, contact our technical team with the unit's serial number, purchase order reference, and a description of the observed fault. Pre-shipment functional testing is performed on all LMC20A1307 units before dispatch, and test records are retained for traceability. Replacement stock is maintained to minimize lead times for warranty exchanges, ensuring minimal disruption to production schedules.
