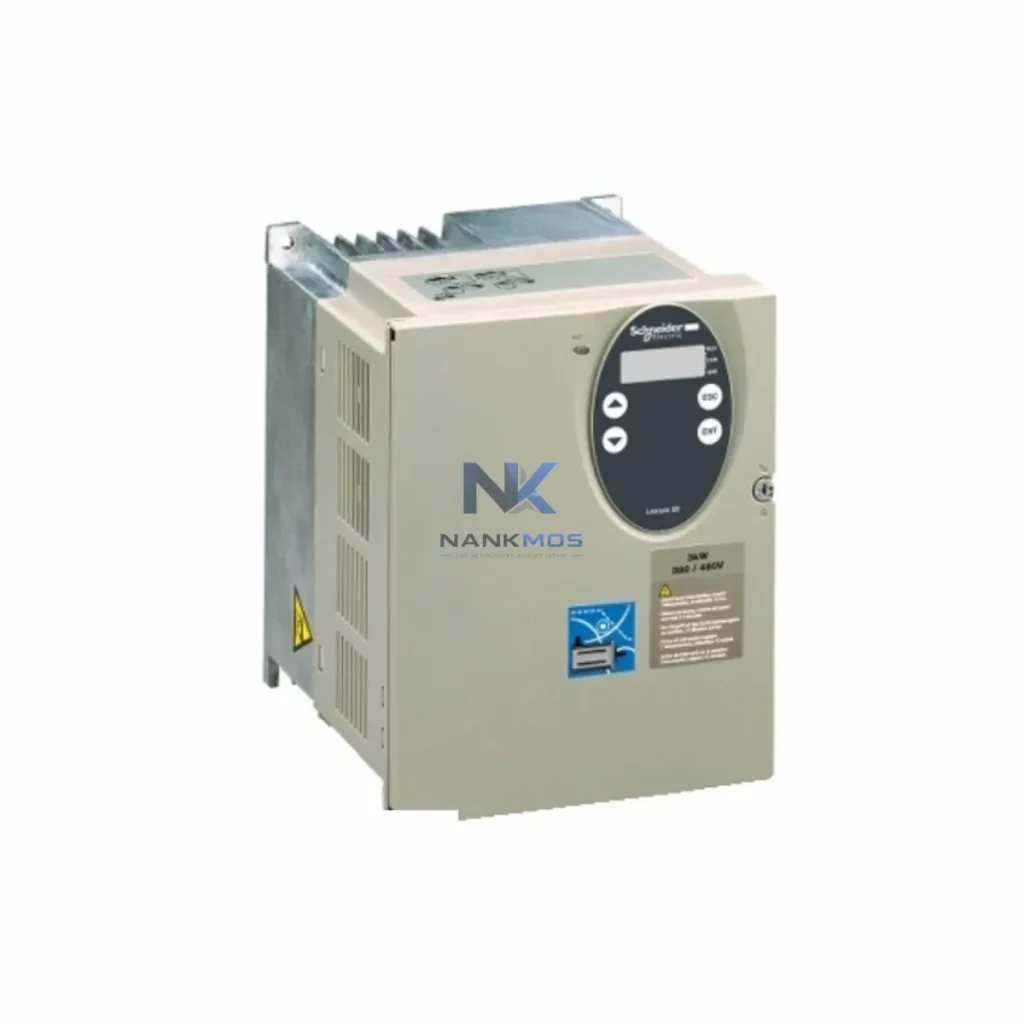

Schneider Electric LXM05AD28M2 AC Servo Drive

Product Details

LXM05AD28M2 Product Description

The LXM05AD28M2 is engineered as a native axis-drive component within the Schneider Electric Lexium 05 motion platform, designed to operate in tight coordination with the broader Modicon and Lexium control ecosystem. In a typical multi-axis machine architecture, the LXM05AD28M2 operates alongside the Modicon M340 PLC (BMX P34 series) or Modicon M580 ePAC as the supervisory controller, receiving motion commands via CANopen DS402 or pulse-direction signals. The drive pairs directly with BSH servo motors (e.g., BSH0702P01A2A) from the Lexium family, ensuring matched encoder feedback and tuned current loop performance.

At the I/O layer, the LXM05AD28M2 integrates with Modicon TM3 distributed I/O modules for digital and analog signal conditioning — enabling real-time position confirmation, limit switch monitoring, and safety interlock feedback without additional signal converters. For multi-axis coordination, the drive shares a CANopen network with other LXM05A or LXM28A servo drives, allowing synchronized motion profiles managed by a single motion controller such as the LMC058 Logic Motion Controller.

Power distribution to the LXM05AD28M2 is typically sourced through Schneider Electric Phaseo ABL8 power supplies or a dedicated servo transformer, with line filtering provided by VW3A4601 EMC input filters to suppress conducted emissions and protect upstream equipment. In cabinet-level designs, the drive is mounted alongside Schneider Electric Acti9 circuit breakers and TeSys D contactors for motor protection and safe energy isolation during maintenance windows.

For communication transparency across the plant network, the LXM05AD28M2 can be integrated via a CANopen-to-EtherNet/IP gateway (e.g., Anybus X-gateway) or through the Modicon M580's native Ethernet backplane, enabling SCADA and MES systems to monitor axis status, fault codes, and cycle counts in real time. This architecture supports the SoMachine Motion or EcoStruxure Machine Expert programming environment for unified PLC and motion logic development.

The LXM05AD28M2 is deployed across a wide range of precision motion applications in industrial environments:

Packaging & Converting Lines: The drive controls servo axes for film tension, cut-to-length, and registration mark tracking on high-speed packaging machines, where consistent torque response and sub-millisecond position loop closure are critical to label accuracy and throughput.

Semiconductor & Electronics Assembly: In pick-and-place and dispensing systems, the LXM05AD28M2 delivers the smooth velocity profiles and fine positioning resolution required for component placement on PCBs, operating in coordinated multi-axis gantry configurations.

Food & Beverage Processing: The drive's IP20 panel-mount form factor and compatibility with stainless-steel BSH servo motors make it suitable for portioning, filling, and capping machines in hygienic production environments, where rapid recipe changeover and repeatable torque control reduce product waste.

Textile & Printing Machinery: Synchronized multi-axis control via CANopen enables the LXM05AD28M2 to manage winding tension, web speed, and print head positioning across multi-station printing lines, maintaining registration accuracy at variable production speeds.

Material Handling & Intralogistics: In automated conveyor sorting, palletizing, and robotic transfer systems, the drive provides the dynamic speed response and regenerative braking capability needed for high-cycle-rate operations, reducing energy consumption and mechanical wear on drive trains.

Process & Energy Industries: For valve actuator control and pump speed regulation in water treatment, chemical dosing, and power generation auxiliary systems, the LXM05AD28M2 offers stable torque control under variable load conditions, supporting long-term unattended operation with remote diagnostic access via Modbus RTU.

Q1: Is the LXM05AD28M2 compatible with both CANopen and pulse-direction control architectures? Yes. The LXM05AD28M2 natively supports CANopen DS402 for network-based motion coordination with Modicon PLCs and LMC motion controllers, as well as pulse-direction (step/direction) input for integration with third-party CNC controllers or standalone motion indexers. The control mode is configured via the SoMachine Motion or EcoStruxure Machine Expert commissioning tool, allowing the same hardware to serve different machine architectures without firmware changes.

Q2: What redundancy and fault-tolerance provisions apply when using the LXM05AD28M2 in a multi-axis system? In multi-axis CANopen networks, the LXM05AD28M2 supports node-level fault detection with configurable NMT error responses, allowing the supervisory PLC to isolate a faulted axis and continue operating remaining axes. For safety-critical applications, the drive can be paired with a Preventa XPSMC safety controller to implement STO (Safe Torque Off) per IEC 62061 SIL 2, ensuring controlled axis shutdown without full system de-energization. Redundant power supply configurations using dual Phaseo ABL8 units further protect against single-point power failures in the control cabinet.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every LXM05AD28M2 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment test protocol including power-on functional verification, output current measurement, encoder feedback signal integrity check, and communication port validation. Units that do not pass all test criteria are quarantined and not shipped. Warranty coverage includes repair or replacement for confirmed manufacturing defects and component failures under normal operating conditions. For supply continuity, NANKMOS maintains buffer stock of LXM05 series drives to support rapid replacement in the event of a warranty claim, minimizing production downtime for customers operating time-sensitive manufacturing lines.
