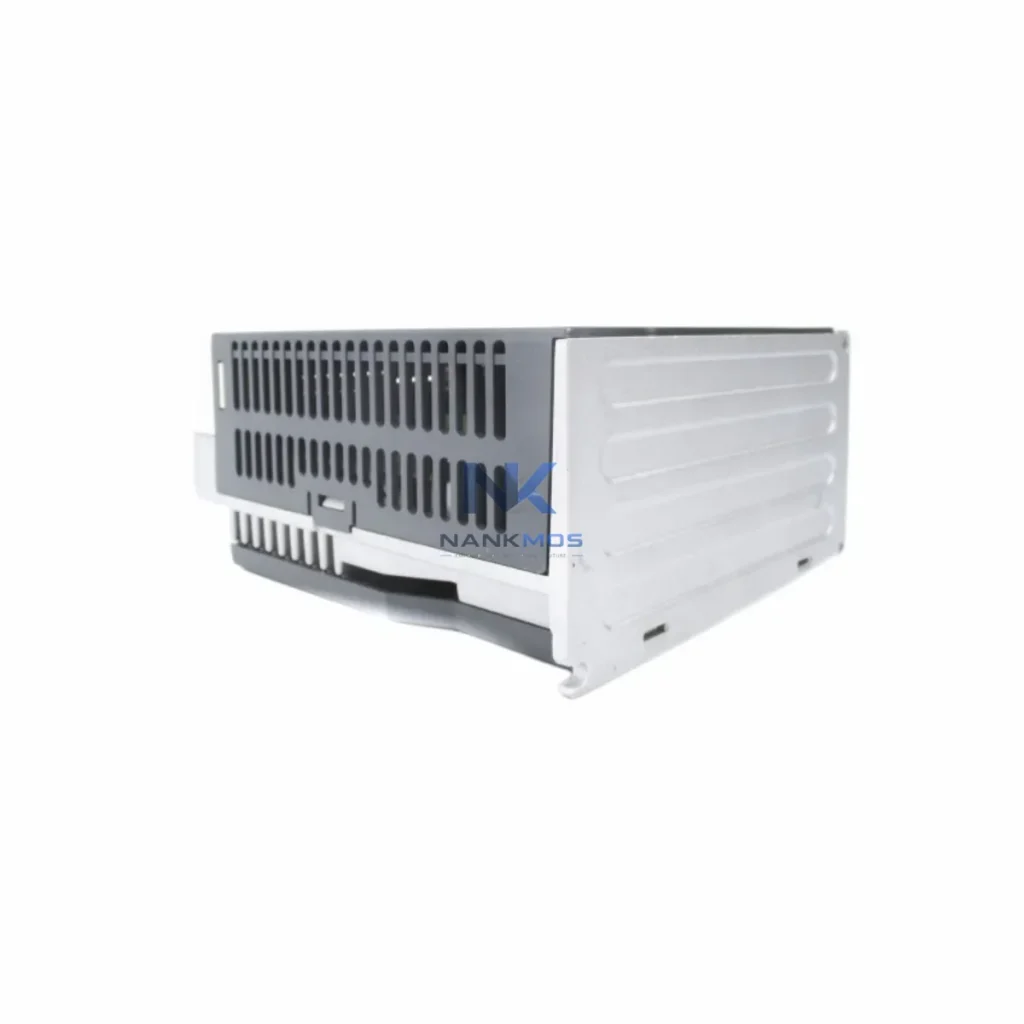

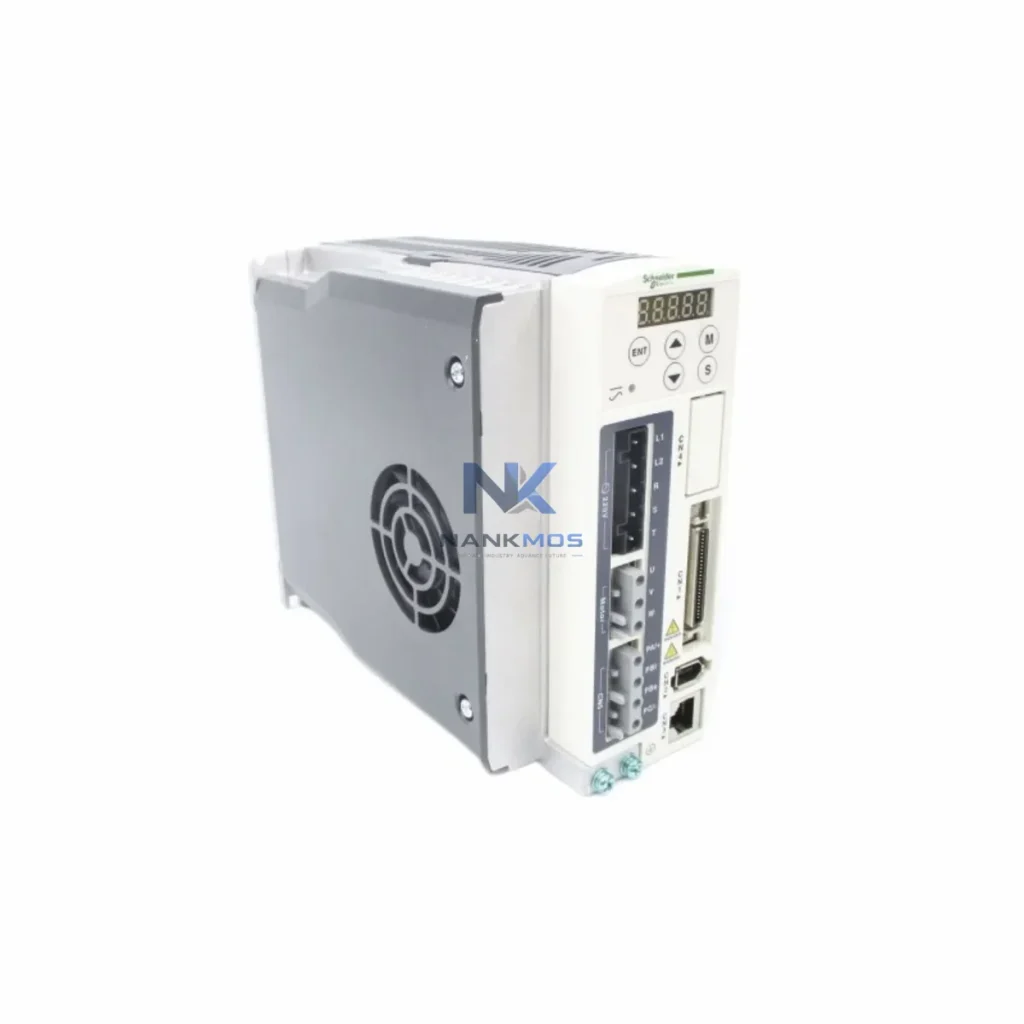

Schneider Electric LXM23DU10M3X Servo Drive

Product Details

LXM23DU10M3X Product Description

The Schneider Electric LXM23DU10M3X is a high-performance EtherCAT servo drive from the Lexium 23 series, engineered to serve as a precision motion control node within modern smart factory data architectures. Rated at 1.0 kW and designed for seamless integration into distributed automation networks, the LXM23DU10M3X delivers deterministic real-time communication, sub-millisecond cycle synchronization, and robust protocol compatibility — making it a foundational component in any industrial connectivity strategy that demands both motion accuracy and network transparency.

In today's connected manufacturing environment, servo drives are no longer isolated motion controllers. They are active participants in the plant-wide data chain. The LXM23DU10M3X connects field-level actuators and mechanical axes directly into the EtherCAT backbone, enabling upstream systems — including Schneider Electric Modicon M262 logic controllers, EcoStruxure Machine Expert SCADA platforms, and Vijeo Designer HMI terminals — to receive live position feedback, torque data, fault codes, and drive health metrics in real time. This bidirectional data flow eliminates the traditional gap between motion layer and supervisory layer, giving engineers full visibility from the servo axis to the control room dashboard.

The LXM23DU10M3X operates at the intersection of motion control and industrial networking. In a typical smart factory deployment, the data flow begins at the servo motor encoder — a Schneider Electric BSH or BMH series servo motor — where position and velocity signals are captured at the hardware level and fed into the LXM23DU10M3X drive. The drive processes these signals internally and simultaneously transmits structured EtherCAT process data objects (PDOs) upstream through the network ring.

At the controller level, a Schneider Electric Modicon M262 or M241 PLC acts as the EtherCAT master, polling all connected drives — including the LXM23DU10M3X and adjacent Lexium 23 nodes — within a synchronized scan cycle. This architecture supports multi-axis coordination across gantry systems, conveyor lines, and robotic pick-and-place cells without introducing timing jitter. The M262's built-in OPC UA server then bridges the EtherCAT motion data into the plant Ethernet layer, making it accessible to EcoStruxure Plant SCADA and Wonderware historian systems for long-term trend analysis and KPI dashboards.

For facilities that operate mixed-protocol environments, an AnyBus X-gateway or Schneider Electric ConneXium industrial Ethernet switch can be inserted between the EtherCAT segment and a Modbus TCP or PROFINET backbone, allowing the LXM23DU10M3X's drive data to flow into legacy SCADA nodes or third-party DCS platforms without requiring a full network redesign. Remote I/O modules such as the Schneider Electric TM3 expansion series can be co-located on the same controller rack, aggregating digital and analog field signals alongside the servo feedback data into a unified process image.

At the edge, a Schneider Electric EcoStruxure Machine Advisor or compatible edge gateway device can subscribe to the OPC UA data streams generated by the M262, performing local analytics — including vibration trend detection, thermal load monitoring, and predictive maintenance alerts — before forwarding compressed event data to cloud-based EcoStruxure Asset Advisor dashboards. This edge-to-cloud architecture ensures that even in low-bandwidth or intermittent connectivity scenarios, critical drive health data is preserved and transmitted reliably.

Variable frequency drives such as the Schneider Electric Altivar ATV320 or ATV630 series, when deployed on the same production line, can share the same EtherCAT or Modbus TCP segment, allowing the LXM23DU10M3X's motion sequences to be coordinated with pump, fan, or conveyor speed references in a unified motion-and-process control strategy. Vijeo Designer HMI panels mounted at operator stations display real-time axis position, drive status, and alarm history sourced directly from the LXM23DU10M3X's EtherCAT data stream, enabling operators to intervene immediately when fault conditions arise.

Many industrial sites face a persistent challenge: servo drives and motion controllers operate in isolation from the broader plant network, creating data silos that prevent engineers from correlating motion faults with upstream process events. The LXM23DU10M3X directly addresses this by implementing the CiA 402 drive profile over EtherCAT, a standardized object dictionary that allows any compliant EtherCAT master to read drive parameters, fault registers, and real-time process variables without custom programming or proprietary middleware.

Protocol fragmentation is another common barrier. Sites that have invested in Modbus RTU legacy wiring alongside newer EtherCAT infrastructure can use the LXM23DU10M3X's parameter gateway capability — accessed through the SoMachine / EcoStruxure Machine Expert software environment — to map drive objects into Modbus register tables, making servo data visible to existing SCADA polling engines without replacing field wiring. This approach preserves capital investment while extending network transparency to the motion layer.

Remote diagnostics are fully supported through the EtherCAT network. Engineers can read the LXM23DU10M3X's internal fault log, thermal history, and encoder error counters from any networked workstation running EcoStruxure Machine Expert or a compatible EtherCAT diagnostic tool, eliminating the need for on-site visits to retrieve drive data. Alarm thresholds can be configured remotely and pushed to the drive via SDO (Service Data Object) writes, enabling proactive maintenance scheduling based on actual operating conditions rather than fixed time intervals.

For production line transparency, the LXM23DU10M3X's real-time PDO data can be logged by the Modicon M262 at 1 ms resolution and forwarded to a Historian or MES database, providing a complete audit trail of axis motion events, cycle times, and fault occurrences. This data supports OEE (Overall Equipment Effectiveness) calculations, downtime root-cause analysis, and continuous improvement initiatives without requiring additional instrumentation.

Q1: What is the minimum EtherCAT cycle time supported by the LXM23DU10M3X?The LXM23DU10M3X supports EtherCAT synchronization cycles as short as 250 µs when paired with a compatible EtherCAT master such as the Schneider Electric Modicon M262. This ensures deterministic motion control with sub-millisecond latency, suitable for high-speed multi-axis synchronization applications.

Q2: Can the LXM23DU10M3X integrate with non-EtherCAT SCADA systems?Yes. Through the Modicon M262 EtherCAT master's OPC UA server or via an AnyBus gateway module, the LXM23DU10M3X's drive data can be bridged to Modbus TCP, PROFINET, or EtherNet/IP networks, making it compatible with a wide range of SCADA, DCS, and MES platforms without modifying the drive's native EtherCAT configuration.

Q3: How is network stability maintained in multi-axis EtherCAT topologies?The LXM23DU10M3X uses EtherCAT's distributed clock mechanism to maintain nanosecond-level synchronization across all nodes in the network ring. In the event of a cable fault or node dropout, the EtherCAT master detects the topology change within one bus cycle and generates a diagnostic event, allowing the control system to execute a safe stop sequence before the fault propagates to adjacent axes.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every LXM23DU10M3X unit supplied by NANKMOS undergoes functional verification prior to shipment, including power-on testing, EtherCAT communication handshake validation, and parameter integrity checks. The 12-Month Warranty covers manufacturing defects and communication interface failures under normal operating conditions. Units are shipped with original packaging and documentation to ensure traceability and support warranty claims throughout the coverage period.
