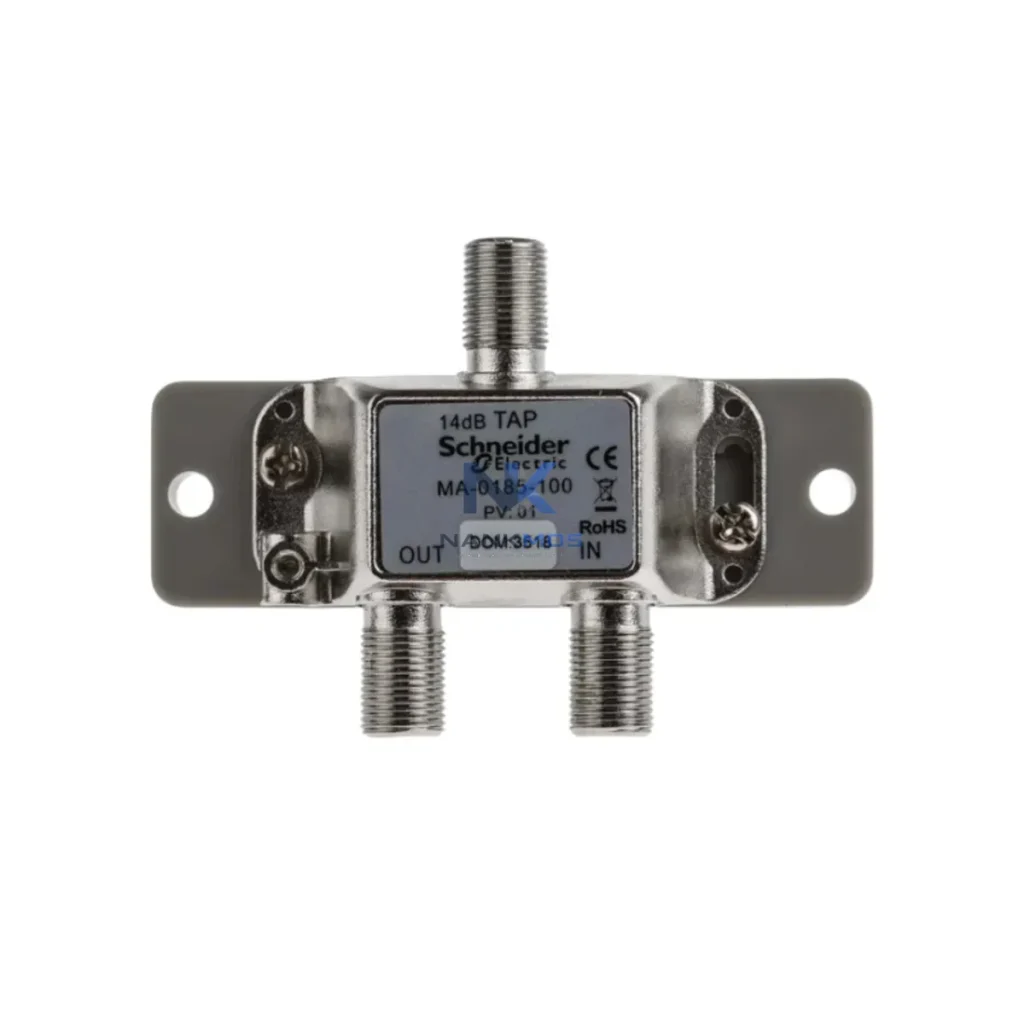

Schneider Electric MA-0185-100 Network Communication Module

Product Details

MA-0185-100 Product Description

The Schneider Electric MA-0185-100 is a Modbus Plus network line tap engineered for seamless integration within Modicon-based distributed control architectures. Designed to extend and branch Modbus Plus trunk cabling without signal degradation, this line tap plays a critical role in maintaining network integrity across multi-node industrial automation systems. Whether deployed in a greenfield installation or retrofitted into an existing control cabinet, the MA-0185-100 delivers the passive connectivity performance that Modicon PLC platforms demand for deterministic, high-reliability communication.

In modern industrial control environments, the communication layer is as mission-critical as the control layer itself. The MA-0185-100 enables field devices, remote I/O drops, and distributed controllers to share a common Modbus Plus backbone without introducing impedance mismatches or reflection artifacts that could compromise data integrity. Its compact form factor and tool-free tap mechanism make it suitable for dense control cabinet layouts where space and installation time are both at a premium.

The MA-0185-100 line tap is not a standalone component — it is a foundational element of the Modicon Modbus Plus communication layer that binds together an entire distributed control architecture. In a typical Modicon 984 or Quantum-based system, the Modbus Plus network connects the primary CPU module (such as the 140CPU65160 or 140CPU67160) to remote I/O adapter modules (140CRA93100), distributed I/O drops, and peer-to-peer controller nodes across the plant floor.

At the control layer, Modicon Quantum CPUs rely on the Modbus Plus backbone to exchange data with remote racks housing analog input modules (140ACI04000), discrete output modules (140DDO35300), and specialty function modules. Each remote I/O drop connects to the trunk via a line tap identical in function to the MA-0185-100, ensuring that the impedance characteristics of the network remain consistent from the head-end controller to the furthest field device.

At the power layer, Modicon Quantum power supply modules (140CPS11420 or 140CPS21400) provide regulated 24 VDC backplane power to each remote rack, while the communication integrity of the Modbus Plus segment is preserved by correct tap placement and termination resistors at each trunk end. The MA-0185-100 supports this architecture by providing a mechanically secure, electrically passive branch point that does not load the trunk signal.

At the HMI and SCADA layer, Magelis HMI terminals and Vijeo Citect SCADA stations connect to the Modbus Plus network through dedicated communication ports or via Modbus Plus-to-Ethernet bridges (174CEV30010), allowing operators to monitor and control the entire distributed system from a centralized interface. The line tap ensures that HMI drop cables can be connected and disconnected for maintenance without interrupting trunk communication to other nodes.

For redundant architectures, Modicon Hot Standby systems (140CPU67160S paired with 140CHS11000 Hot Standby modules) rely on a stable, well-terminated Modbus Plus network to synchronize primary and standby CPU states. Any degradation in the communication layer — caused by a poorly installed tap or an impedance mismatch — can trigger unnecessary failover events. The MA-0185-100, when correctly installed per Schneider Electric network planning guidelines, eliminates this risk by providing a consistent, low-reflection branch point.

In gateway and protocol conversion scenarios, the Modbus Plus network interfaces with Profibus DP, DeviceNet, or EtherNet/IP segments through communication bridges such as the 174PBT10000 Profibus gateway. The MA-0185-100 provides the physical drop connection point for these gateway devices, ensuring that the protocol boundary is cleanly defined at the network tap level rather than at the CPU backplane.

Manufacturing & Assembly Lines: In automotive body shop and general manufacturing environments, Modicon Quantum systems control conveyor drives, robotic welding cells, and vision inspection stations across multiple production zones. The MA-0185-100 line tap enables each zone controller or remote I/O drop to connect to the shared Modbus Plus backbone, allowing the central Quantum CPU to coordinate sequencing, interlocking, and fault reporting across the entire line without dedicated point-to-point wiring between each station.

Power Generation & Electrical Utilities: In power plant auxiliary systems and substation automation, Modicon PLCs manage motor control centers, transformer protection relays, and switchgear interlocking. The Modbus Plus network provides the deterministic communication required for time-critical protection and control functions. The MA-0185-100 ensures that each protection relay interface module or motor management relay can be tapped onto the network trunk without compromising the signal quality that safety-critical applications demand.

Petrochemical & Refinery Process Control: In continuous process environments such as crude distillation units and catalytic cracking plants, Modicon-based DCS-adjacent systems manage valve positioners, flow transmitters, and pressure controllers distributed across large physical areas. The MA-0185-100 supports the long trunk runs and multiple drop connections typical of these installations, maintaining network integrity across distances that can exceed several hundred meters.

Water & Wastewater Treatment: Municipal water treatment facilities use Modicon PLCs to control pump stations, chemical dosing systems, and filtration processes distributed across geographically separated sites. The Modbus Plus network, supported by correctly installed line taps, provides the reliable communication backbone that allows a central SCADA system to monitor and control remote pump stations without the latency or reliability issues associated with serial polling over long cable runs.

Mining & Minerals Processing: In underground and surface mining operations, Modicon systems control conveyor belt drives, crusher motors, and ventilation fans in harsh environments with high levels of electrical noise. The MA-0185-100 passive tap design is inherently immune to the EMI-induced communication errors that can affect active network components, making it well-suited for the electrically noisy environments typical of mining and minerals processing facilities.

Q1: How many MA-0185-100 line taps can be installed on a single Modbus Plus trunk segment, and what is the maximum trunk length? A Modbus Plus trunk segment supports up to 32 nodes per segment, with a maximum trunk cable length of 450 meters using standard Modbus Plus shielded twisted-pair cable. Each MA-0185-100 tap counts as one node connection point. For installations requiring more than 32 nodes or longer distances, Modbus Plus repeaters (such as the SA-0185-001) can be used to extend the network. Termination resistors (120 Ω) must be installed at both ends of each trunk segment to prevent signal reflections that could cause communication errors across all connected nodes.

Q2: Is the MA-0185-100 compatible with both Modicon 984 and Quantum PLC platforms, and can it be used in a mixed-platform architecture? Yes. The MA-0185-100 is a passive network tap that is compatible with any device that supports the Modbus Plus physical layer specification, including Modicon 984 series PLCs, Modicon Quantum CPUs, Modicon Premium controllers with MB+ communication cards, and third-party devices with Modbus Plus ports. In mixed-platform architectures where legacy 984 controllers coexist with newer Quantum systems on the same Modbus Plus segment, the MA-0185-100 provides a consistent, platform-agnostic connection point that does not require configuration or firmware updates.

Q3: What does the 12-Month Warranty cover for the MA-0185-100, and what is the pre-shipment testing process? Every MA-0185-100 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes pre-shipment functional testing to verify connector integrity, passive tap impedance characteristics, and mechanical assembly quality. Units that fail any test parameter are quarantined and not dispatched. In the event of a warranty claim, NANKMOS provides replacement or repair at no additional cost within the warranty period. For mission-critical applications where extended coverage is required, please contact our technical sales team to discuss extended warranty and spare parts stocking arrangements.
