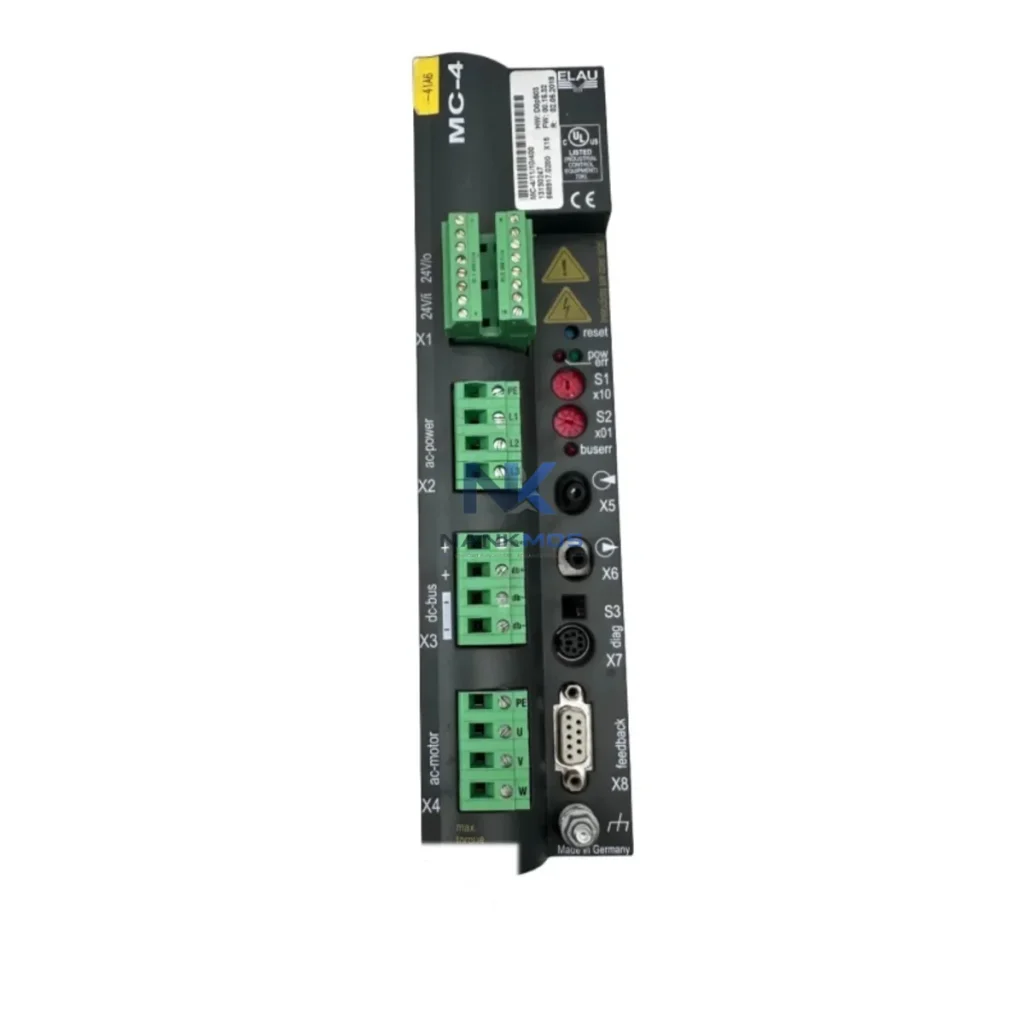

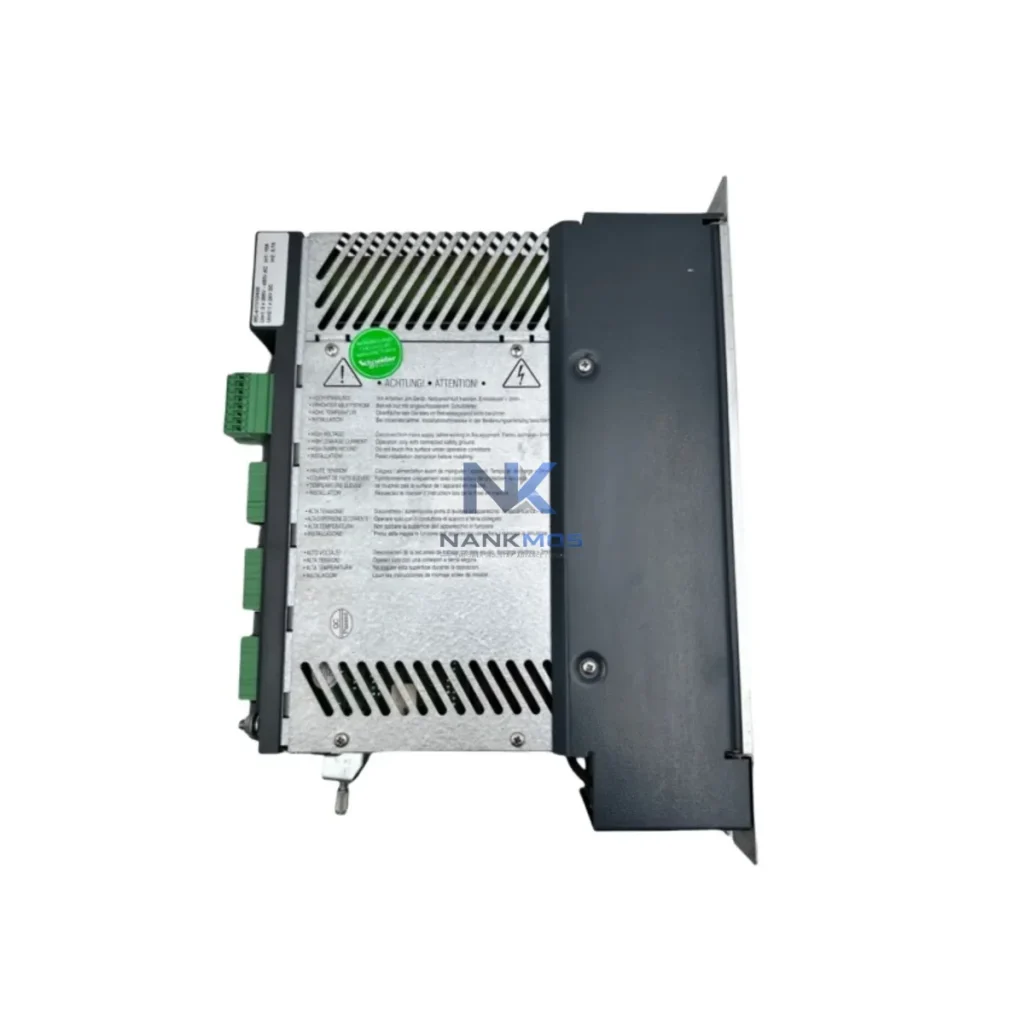

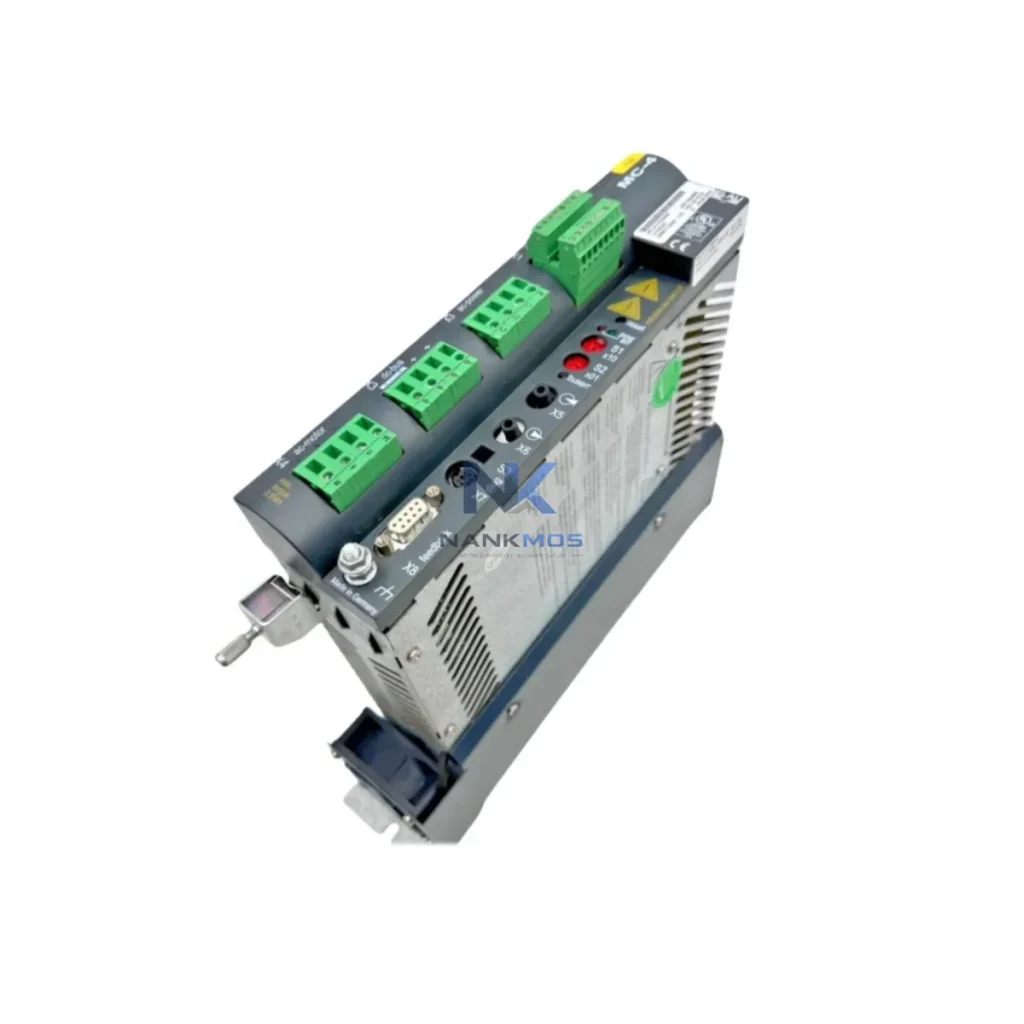

Schneider Electric MC-4/11/10/400 HW: E0P603 SW:00.22.03

Product Details

MC-4/11/10/400 HW: E0P603 SW:00.22.03 Product Description

The Schneider Electric MC-4/11/10/400 (HW: E0P603 / SW: 00.22.03) is a high-performance PacDrive motion controller engineered for energy-conscious industrial environments. Designed to coordinate multi-axis servo systems with precision, this controller plays a central role in reducing unnecessary energy consumption, stabilizing production line rhythm, and maximizing equipment utilization across demanding manufacturing applications. Whether deployed in packaging machinery, automotive assembly, or continuous process lines, the MC-4/11/10/400 delivers the intelligent motion control needed to meet modern industrial energy efficiency standards.

In a fully integrated smart production line, the MC-4/11/10/400 does not operate in isolation — it functions as the motion intelligence hub that coordinates energy flow across the entire drive system. When paired with Schneider Lexium 32 servo drives, the controller enables synchronized multi-axis motion profiles that eliminate unnecessary acceleration peaks, directly reducing instantaneous power demand on the 400 VAC drive bus. This coordinated approach prevents energy spikes that would otherwise stress the upstream Schneider Altivar Process ATV630 variable frequency drive managing auxiliary motor loads on the same line.

The MC-4/11/10/400 communicates natively over SERCOS III and Modbus TCP, allowing seamless integration with Schneider Modicon M580 PLCs that handle supervisory logic and energy scheduling. Through this PLC link, production managers can implement time-of-use energy strategies — ramping down non-critical axes during peak tariff windows while maintaining throughput on priority stations. The controller's real-time feedback loop also interfaces with Schneider PowerLogic PM5000 series power monitoring modules, enabling the SCADA layer to log per-axis energy consumption and identify inefficient motion segments for optimization.

On the field device level, the MC-4/11/10/400 receives position and load feedback from Schneider ILM integrated servo motors equipped with encoder feedback, allowing the controller to apply adaptive torque profiles that reduce motor heating and extend winding life. This thermal load reduction is further supported by the controller's ability to coordinate regenerative braking energy — capturing deceleration energy from Lexium ILA servo actuators and redistributing it across the drive bus rather than dissipating it as heat through braking resistors.

For operator visibility, the MC-4/11/10/400 connects to Schneider Magelis HMIGTO series HMI panels, where production staff can monitor axis status, energy consumption trends, and fault diagnostics in real time. This closed-loop visibility between the motion controller, HMI, and Schneider ConneXium managed Ethernet switches ensures that communication latency does not introduce motion jitter that would force the controller to apply corrective torque bursts — a common hidden source of energy waste in poorly networked servo systems.

When integrated into a broader energy management architecture, the MC-4/11/10/400 also supports connection to Schneider EcoStruxure Machine Expert software, enabling engineers to simulate motion profiles offline, validate energy consumption estimates before deployment, and push optimized motion programs to the controller without production downtime. This software-hardware synergy is what transforms the MC-4/11/10/400 from a standalone motion controller into a true energy-control node within a smart factory ecosystem.

Factory energy waste in servo-driven production lines typically originates from three sources: uncoordinated axis motion causing power demand spikes, excessive idle-state energy draw from drives awaiting commands, and thermal losses from poorly tuned motion profiles. The Schneider MC-4/11/10/400 addresses all three through its PacDrive architecture.

By centralizing motion coordination for up to four servo axes, the MC-4/11/10/400 enables electronic cam profiling and gearbox emulation — replacing mechanical synchronization components that introduce friction losses and require lubrication energy. This digital approach to synchronization not only reduces mechanical energy waste but also eliminates the maintenance downtime associated with worn cams and gearboxes, directly improving Overall Equipment Effectiveness (OEE).

The controller's load-adaptive torque management continuously adjusts servo output based on real-time load feedback, preventing the over-torquing that causes unnecessary motor heating and accelerated insulation degradation. In high-cycle applications such as pick-and-place or form-fill-seal packaging, this adaptive control can reduce per-cycle energy consumption by optimizing the acceleration and deceleration ramps to match actual inertia loads rather than worst-case design parameters.

For predictive maintenance integration, the MC-4/11/10/400 exposes axis load history, following error trends, and drive temperature data through its communication interfaces. Maintenance teams connected via EcoStruxure Asset Advisor can monitor these parameters remotely, identifying bearings approaching failure or drive components operating outside thermal limits before they cause unplanned stops. Preventing a single unplanned stoppage on a high-throughput line can recover hours of lost production — energy that would otherwise be consumed restarting cold equipment and running quality purge cycles.

From a supply chain perspective, NANKMOS maintains verified stock of the MC-4/11/10/400 with full hardware revision E0P603 and firmware SW: 00.22.03, ensuring that replacement units are immediately available for critical line repairs. Every unit undergoes functional testing prior to shipment, and all products are covered by a 12-month warranty — giving procurement and maintenance teams the confidence to standardize on this controller across multiple production lines without long-term support risk.

Q1: What measurable energy savings can the MC-4/11/10/400 deliver on a packaging line? The MC-4/11/10/400 contributes to energy savings primarily through coordinated motion profiling and regenerative braking management. In multi-axis packaging applications, synchronized electronic cam profiles typically reduce peak power demand by 15–30% compared to uncoordinated axis operation. Actual savings depend on line speed, inertia loads, and the number of axes coordinated. Integration with PowerLogic power monitoring modules allows site engineers to measure baseline and post-optimization consumption for accurate ROI reporting.

Q2: Is the MC-4/11/10/400 compatible with existing Modicon PLC and Altivar VFD infrastructure? Yes. The MC-4/11/10/400 supports Modbus TCP and Ethernet/IP communication, enabling direct integration with Modicon M340 and M580 PLCs for supervisory coordination. For lines that include Altivar ATV630 or ATV930 variable frequency drives managing auxiliary motors, the PLC layer can synchronize VFD speed references with motion controller output to maintain production rhythm without energy-wasting speed mismatches between servo and induction motor-driven stations.

Q3: What is the recommended replacement and testing process when substituting a failed MC-4/11/10/400? NANKMOS supplies the MC-4/11/10/400 with hardware revision E0P603 and firmware SW: 00.22.03 pre-verified. Upon receipt, the replacement unit should be installed into the existing PacDrive backplane, firmware version confirmed via Machine Expert, and axis parameters restored from the project backup. NANKMOS recommends a no-load jog test followed by a loaded cycle test at 50% and 100% speed before returning the line to full production. All units shipped by NANKMOS are tested prior to dispatch to minimize commissioning risk.

Q4: What does the 12-month warranty cover, and how is inventory availability managed for critical spares? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, excluding damage from incorrect installation, overvoltage events, or environmental contamination beyond the controller's rated IP class. NANKMOS maintains dedicated stock of the MC-4/11/10/400 to support critical spare requirements, with expedited shipping available for emergency line-down situations. Customers managing multi-line facilities are encouraged to contact NANKMOS to discuss consignment or reserved stock arrangements that ensure immediate availability without carrying excess capital in on-site inventory.
