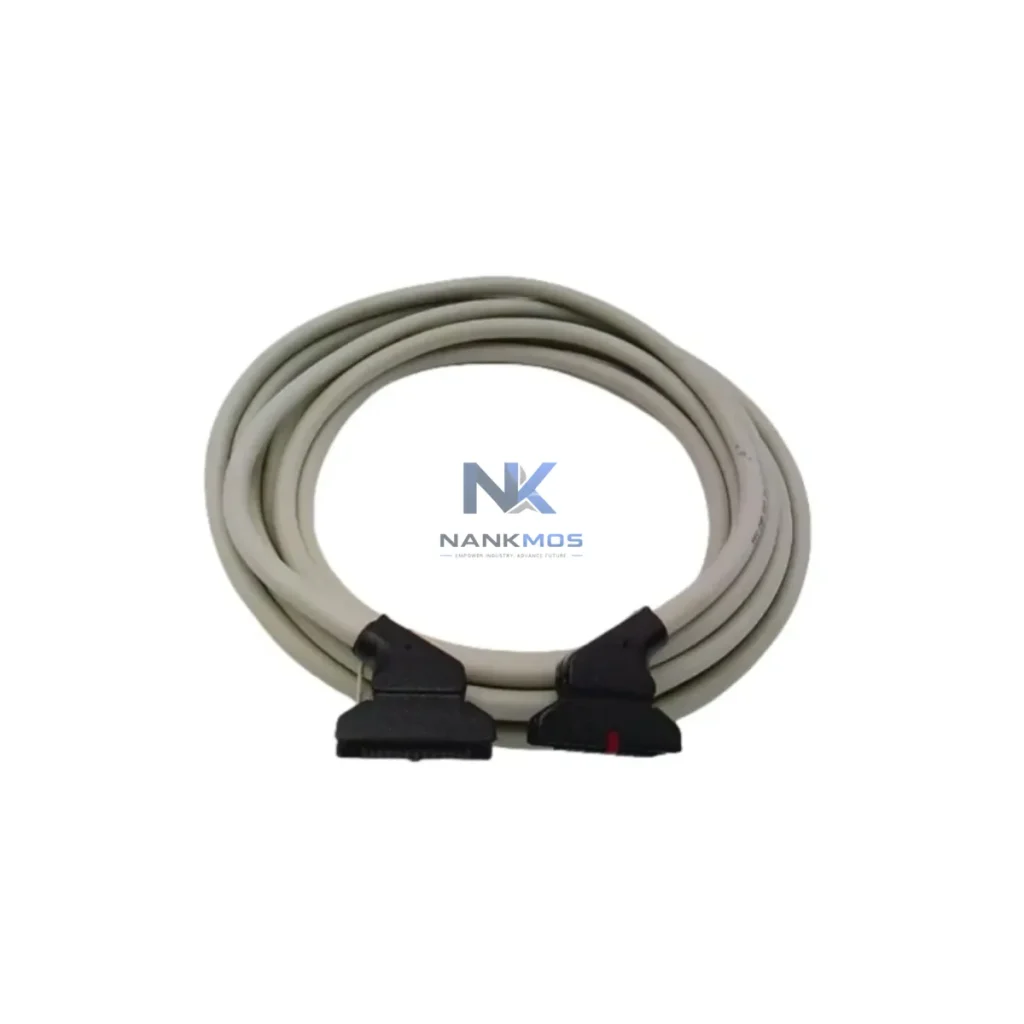

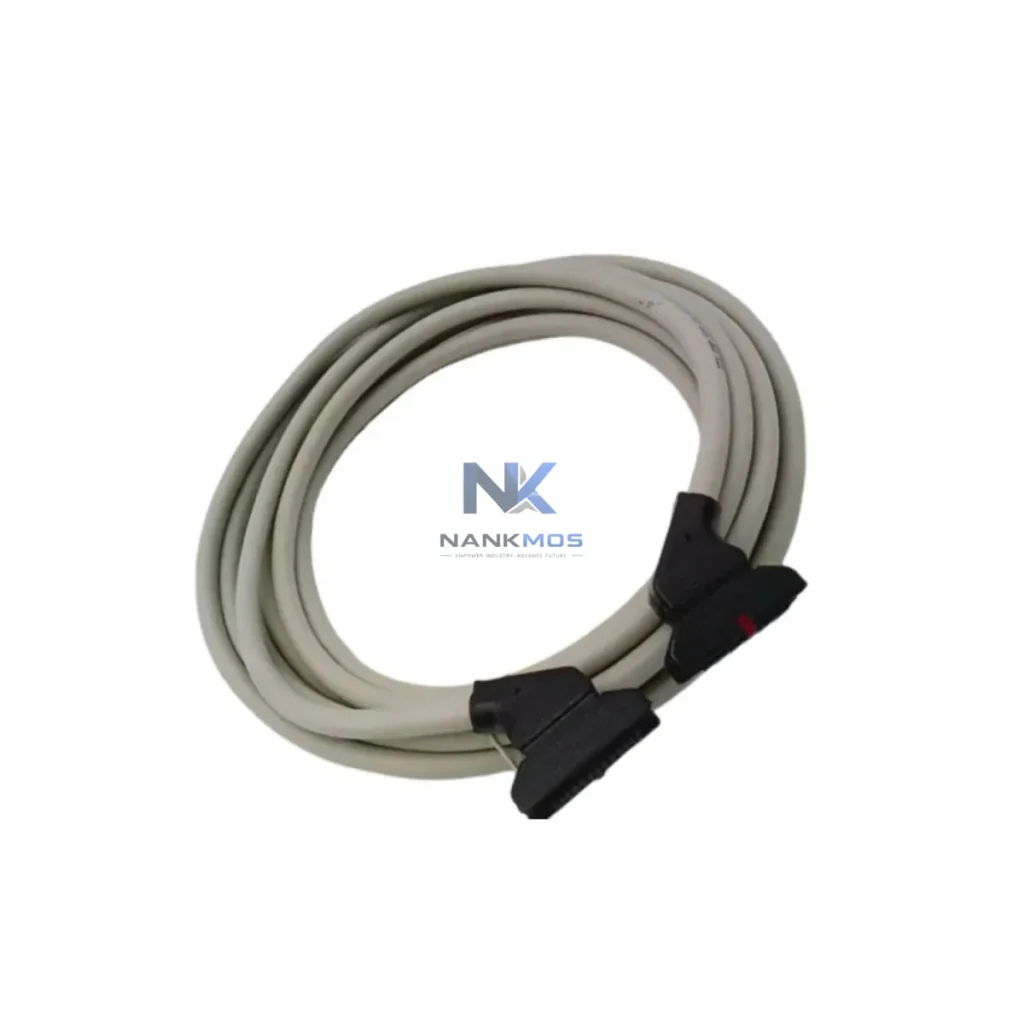

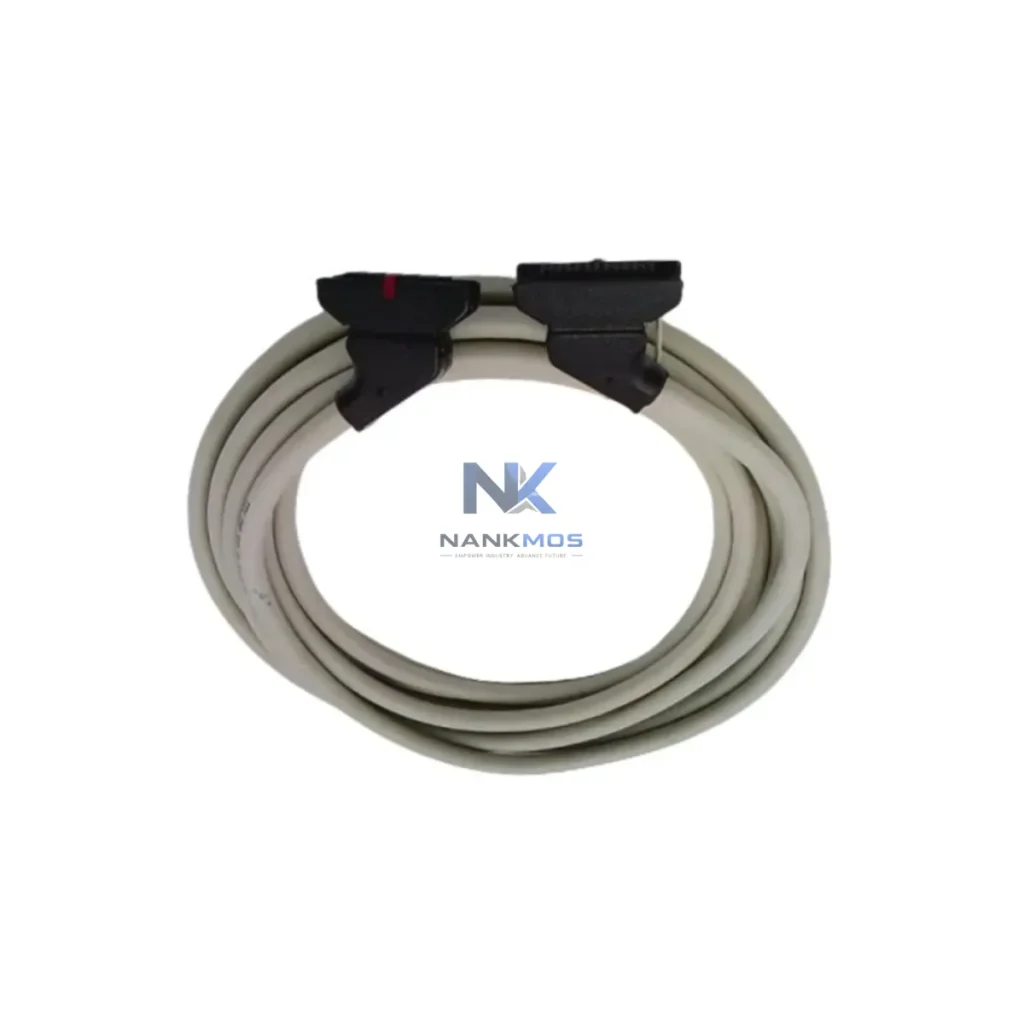

Schneider Electric TSXCDP503 PLC Programming Cable

Product Details

TSXCDP503 Product Description

The Schneider Electric TSXCDP503 is a dedicated programming cable engineered for seamless integration within the TSX Premium PLC control architecture. Designed to establish a reliable RS-232 / USB-to-serial communication link between a programming workstation running Unity Pro or PL7 Pro software and the TSX Premium CPU module, this cable is a foundational component for commissioning, diagnostics, firmware updates, and ongoing maintenance operations across demanding industrial environments.

In modern industrial automation, no component operates in isolation. The TSXCDP503 serves as the physical communication bridge at the programming and maintenance layer, enabling engineers to interact directly with the control system's intelligence core. Whether deployed in a greenfield installation or integrated into an existing TSX Premium rack system, this cable ensures that the programming interface remains stable, noise-resistant, and fully compatible with Schneider Electric's proprietary communication protocols.

The TSXCDP503 achieves its full value when understood within the broader TSX Premium automation platform. At the control layer, it connects directly to the TSXP574634M or TSXP576634M CPU modules — high-performance processors that manage real-time task execution, memory management, and inter-module communication across the Premium rack. These CPUs rely on accurate, low-latency programming access to maintain deterministic scan cycles, and the TSXCDP503 provides exactly that interface without introducing signal degradation.

At the I/O layer, the TSX Premium architecture accommodates a wide range of discrete and analog I/O modules such as the TSXDEY16D2 digital input module and the TSXAEY414 analog input module. These modules are mounted on TSXRKY8EX or TSXRKY12EX rack backplanes, which provide the physical and electrical backbone for module-to-CPU data exchange. Proper programming and configuration of these I/O modules — performed via the TSXCDP503 cable — is essential for accurate signal mapping and process variable acquisition.

The communication layer in a TSX Premium system typically includes the TSXETY110 Ethernet TCP/IP module or the TSXSCP114 serial communication module, enabling the PLC to exchange data with SCADA systems, HMI panels, and remote I/O stations. Before any network communication can be validated, the base CPU configuration must be established through the programming port — a task that depends entirely on a reliable TSXCDP503 connection.

At the HMI layer, Magelis panels such as the XBTGT5330 or XBTGT2330 are commonly paired with TSX Premium controllers. These operator terminals communicate with the CPU over Ethernet or Uni-Telway, but their tag databases and screen logic must be aligned with the PLC program — a process that begins with correct CPU programming via the TSXCDP503. At the power layer, the TSXPSY2600M or TSXPSY5500M power supply modules provide regulated 24 VDC to the rack, ensuring stable operation of all modules including the CPU during programming sessions.

For systems requiring redundancy, the TSX Premium platform supports hot-standby configurations using dual CPU racks. In these architectures, the TSXCDP503 is used to individually configure and validate each CPU before synchronization, making it an indispensable tool during both initial commissioning and periodic maintenance windows. The cable's robust shielding ensures signal integrity even in electrically noisy environments typical of motor control centers and high-voltage switchgear panels.

The TSXCDP503 is deployed across a wide spectrum of industrial sectors where TSX Premium PLCs form the backbone of process control:

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, TSX Premium controllers manage conveyor sequencing, robotic cell coordination, and quality inspection systems. The TSXCDP503 enables rapid program updates and fault diagnostics without interrupting production, supporting lean maintenance strategies and minimizing unplanned downtime.

Power Generation & Distribution: Substations and power plant auxiliary systems rely on TSX Premium PLCs for protection relay coordination, transformer monitoring, and load management. The TSXCDP503 allows maintenance engineers to access and modify control logic safely during scheduled outages, ensuring compliance with IEC 61511 and IEC 61850 operational standards.

Water & Wastewater Treatment: Municipal water treatment facilities use TSX Premium systems to control pump stations, chemical dosing, and filtration processes. The TSXCDP503 supports remote site commissioning where Ethernet infrastructure may not yet be available, providing a direct, secure programming interface for field engineers.

Oil, Gas & Petrochemical: In upstream and downstream process plants, TSX Premium PLCs govern compressor control, pipeline monitoring, and emergency shutdown systems. The TSXCDP503 is used during SIL validation and functional safety testing to upload and verify safety-critical programs with full audit traceability.

Mining & Metallurgy: Ore processing, conveyor drive control, and smelting furnace management systems built on TSX Premium architecture require periodic program modifications as process parameters evolve. The TSXCDP503 provides the reliable low-level access needed for these high-stakes adjustments.

All units supplied by NANKMOS are subject to pre-shipment functional testing, verifying cable continuity, connector integrity, and communication handshake performance. Each TSXCDP503 is covered by a 12-Month Warranty from the date of shipment, with full technical support available throughout the warranty period.

Q1: Is the TSXCDP503 compatible with all TSX Premium CPU variants, and can it be used with Unity Pro on modern Windows operating systems? The TSXCDP503 is compatible with the full range of TSXP57 series CPU modules within the TSX Premium platform, including the TSXP574634M, TSXP576634M, and TSXP57454M variants. It connects to the TER (terminal) port on the CPU front panel. For use with Unity Pro on Windows 10 or Windows 11, a USB-to-RS-232 adapter with a correctly installed WHQL-certified driver is required, as modern PCs no longer include native RS-232 ports. NANKMOS recommends validating the COM port assignment in Device Manager before initiating a Unity Pro connection session.

Q2: How does the TSXCDP503 fit into a hot-standby redundant TSX Premium architecture, and what is the recommended commissioning sequence? In a hot-standby configuration, two TSX Premium racks — each equipped with a TSXP57 CPU and a TSXHSY100 hot-standby module — operate in parallel. The TSXCDP503 must be used to individually program and validate each CPU before the hot-standby link is activated. The recommended sequence is: (1) program and test the primary CPU in standalone mode using the TSXCDP503, (2) transfer the validated program to the standby CPU via the same cable, (3) configure the TSXHSY100 synchronization parameters, and (4) activate the redundancy link. This sequence ensures both CPUs hold identical application programs before entering synchronized operation.

Q3: What inventory availability and lead time can be expected for the TSXCDP503, and what does the 12-Month Warranty cover? NANKMOS maintains stock of the TSXCDP503 to support both project-based procurement and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments, with expedited options available upon request. The 12-Month Warranty covers manufacturing defects, connector failure, and cable shielding integrity from the date of shipment. It does not cover damage resulting from incorrect wiring, excessive mechanical stress, or use outside the specified operating temperature range. Warranty claims are processed within 5 business days, with replacement units dispatched upon confirmation of the defect.
