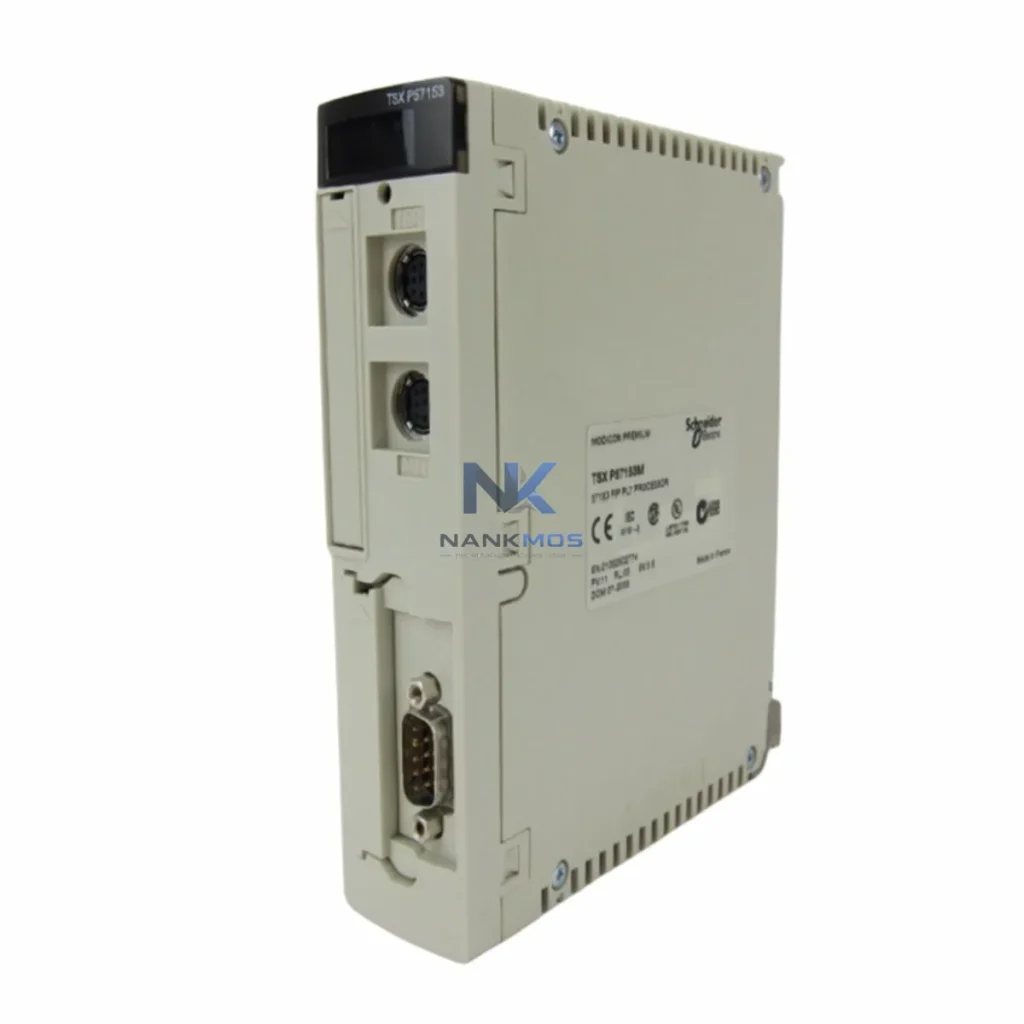

Schneider Electric TSXP57153M PLC Processor Module

Product Details

TSXP57153M Product Description

The Schneider Electric TSXP57153M is a high-performance PLC processor module from the Premium57 series, engineered to serve as the central intelligence node in industrial data communication architectures. Designed for demanding automation environments, the TSXP57153M integrates Modbus Plus protocol natively, enabling seamless, deterministic data exchange across field devices, remote I/O stations, HMI panels, SCADA systems, and upper-level MES/ERP platforms. In smart factory deployments where data continuity, protocol consistency, and real-time responsiveness are non-negotiable, the TSXP57153M delivers the processing backbone that keeps every layer of the automation pyramid connected and synchronized.

Programmed via Schneider Electric's Unity Pro environment, the TSXP57153M supports structured text, ladder diagram, function block diagram, and sequential function chart languages, giving automation engineers the flexibility to implement complex control logic while maintaining full network visibility. Its onboard Modbus Plus port enables direct peer-to-peer communication with other Premium57 processors, Momentum I/O adapters, and Quantum PLC platforms, forming a cohesive multi-node network without requiring additional gateway hardware in standard topologies.

In a fully connected smart factory, the TSXP57153M operates as the central processing and communication hub, orchestrating data flow from the lowest field level up through supervisory and enterprise systems. At the field level, sensors, actuators, and distributed I/O modules — including Schneider Electric's TSXDEY16D2 and TSXDSY16T2 discrete I/O modules mounted on the Premium57 rack — feed real-time process signals directly into the processor's memory via the backplane bus. The TSXP57153M processes this data at scan cycle speeds suited for time-critical control loops, ensuring that field-level events are captured and acted upon without latency.

For remote I/O expansion across large plant floors, the TSXP57153M communicates over Modbus Plus with Momentum M1E processor adapters and associated Momentum I/O bases, extending the control network to remote cabinets and field junction boxes without running dedicated point-to-point wiring. This architecture dramatically reduces installation complexity while maintaining deterministic communication timing across all nodes. Where Ethernet connectivity is required for SCADA or HMI integration, a TSXETY110 or TSXETY410 Ethernet module installed in the Premium57 rack bridges the Modbus Plus network to TCP/IP infrastructure, enabling the TSXP57153M's process data to flow into Wonderware InTouch, Schneider Electric Vijeo Citect, or third-party SCADA platforms in real time.

Variable speed drives — such as Schneider Electric Altivar ATV71 or ATV312 series — connect to the Modbus Plus network via their integrated communication ports or optional communication cards, allowing the TSXP57153M to issue speed references, read drive status, monitor fault codes, and log energy consumption data without operator intervention. This closed-loop integration between the PLC processor and the drive network is fundamental to energy management and predictive maintenance strategies in smart manufacturing environments.

At the supervisory layer, HMI terminals such as the Magelis XBTGT series communicate with the TSXP57153M over Modbus Plus or Ethernet, rendering live process data, alarm states, and trend graphs for operators on the plant floor. Simultaneously, the TSXETY module routes aggregated data upstream to SCADA servers and historian databases, where data visualization tools transform raw process values into actionable production intelligence. Edge gateway devices — including Schneider Electric's EcoStruxure Machine Advisor-compatible gateways — can further aggregate TSXP57153M data for cloud-based remote monitoring and predictive analytics, completing the digital thread from field sensor to enterprise dashboard.

Many industrial sites operating legacy automation infrastructure face persistent challenges: protocol fragmentation between older Modbus RTU devices and modern Ethernet-based systems, data silos that prevent production transparency, and limited remote diagnostic capability that forces costly on-site service visits. The TSXP57153M addresses these challenges directly through its native Modbus Plus architecture and Unity Pro programming environment.

Protocol unification is achieved by pairing the TSXP57153M with a TSXSCA62 or TSXSCA72 communication module, which provides additional serial ports for Modbus RTU, ASCII, and character mode communication with legacy field instruments, barcode readers, and third-party controllers. This eliminates the need for standalone protocol converters and reduces the number of network boundaries where data can be lost or delayed. For sites requiring PROFIBUS DP integration, the TSXPBY100 PROFIBUS master module slots directly into the Premium57 rack, allowing the TSXP57153M to manage PROFIBUS slave devices — including remote I/O, drives, and smart sensors — as a unified network segment.

Remote diagnostics are enabled through the Ethernet uplink, where Unity Pro's online monitoring mode allows engineers to connect to the TSXP57153M from any networked workstation, inspect live variable values, force outputs for commissioning, and download program modifications without interrupting production. Alarm management is handled through structured Unity Pro alarm blocks that push fault notifications to SCADA and HMI systems in real time, enabling rapid response to process deviations and reducing mean time to repair. For production line transparency, the TSXP57153M's data logging capabilities feed shift reports and OEE calculations directly into MES platforms, closing the loop between machine-level performance and business-level KPIs.

System expansion is straightforward: the Premium57 rack architecture supports additional I/O, communication, and specialty modules without requiring processor replacement, protecting the capital investment in the TSXP57153M as production requirements evolve. All units supplied by NANKMOS are drawn from verified inventory, pre-shipment tested for communication integrity and processing function, and covered by a 12-Month Warranty — ensuring that every TSXP57153M deployed in a critical automation application performs to specification from day one.

Q: What communication protocols does the TSXP57153M support natively, and can it connect to Ethernet-based SCADA systems? A: The TSXP57153M features a native Modbus Plus port for deterministic peer-to-peer communication across the Premium57 network. For Ethernet/TCP-IP connectivity to SCADA, HMI, and MES systems, a TSXETY110 or TSXETY410 Ethernet module is installed in the same rack, bridging Modbus Plus data to standard TCP/IP infrastructure with minimal configuration overhead.

Q: How is network stability maintained in multi-node Modbus Plus architectures with the TSXP57153M? A: Modbus Plus uses a token-passing protocol that provides deterministic, collision-free communication across up to 32 nodes per segment. The TSXP57153M manages token rotation and peer messaging autonomously, ensuring consistent scan-cycle data exchange even under high network load. Repeaters can extend the network to additional segments where larger plant topologies require it.

Q: Can the TSXP57153M be diagnosed and reprogrammed remotely without interrupting production? A: Yes. Via the Ethernet module and Unity Pro's online mode, engineers can connect to the TSXP57153M remotely, monitor live variables, adjust program logic in run mode (where permitted by the application), and retrieve diagnostic data including I/O fault tables and communication error counters — all without halting the production process.

Q: What warranty and pre-shipment testing does NANKMOS provide for the TSXP57153M? A: Every TSXP57153M supplied by NANKMOS is sourced from verified inventory, subjected to pre-shipment functional and communication testing, and backed by a 12-Month Warranty. This ensures that units arrive ready for immediate integration into live automation systems, with full support available through [email protected] or +86 18359268345.
