Schneider Electric TSXPSY2600 PLC Power Supply Module

Product Details

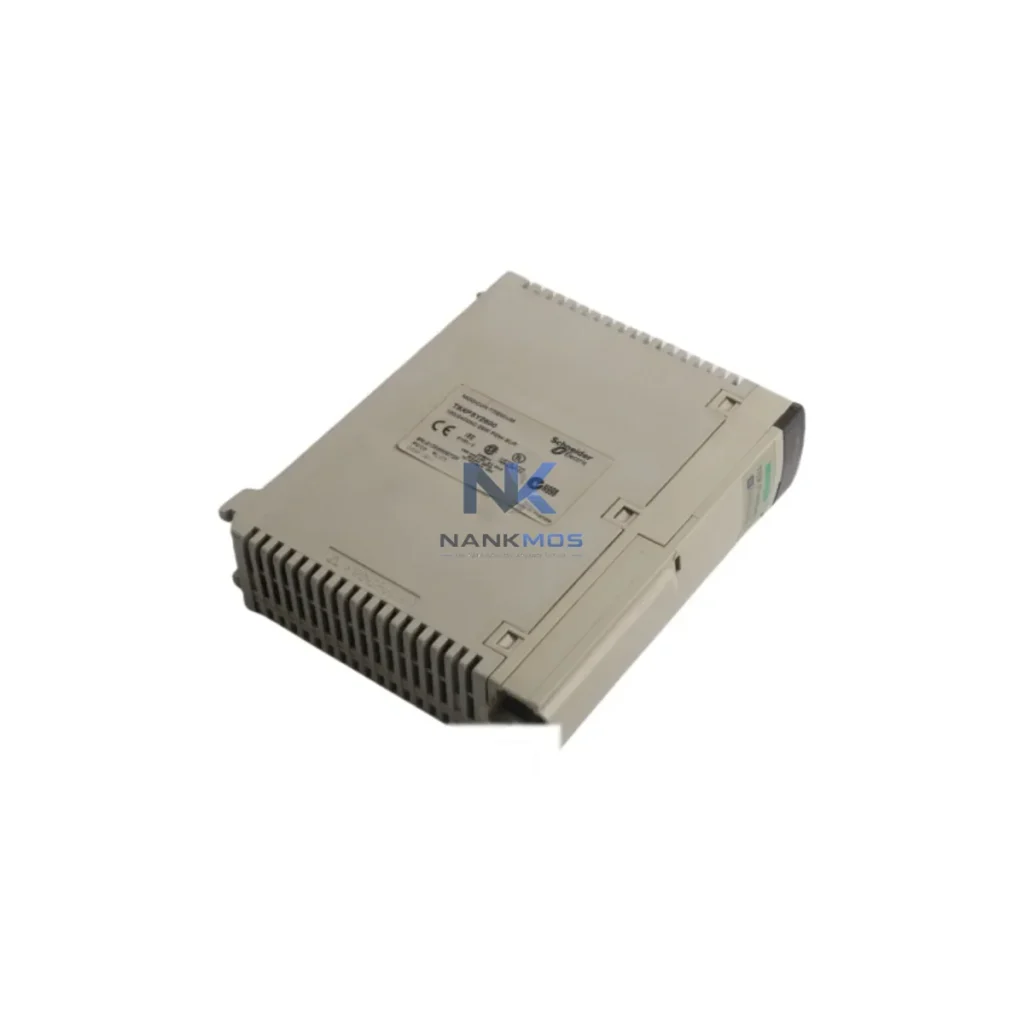

TSXPSY2600 Product Description

The Schneider Electric TSXPSY2600 is a high-efficiency, energy-control PLC power supply module engineered for the TSX Premium automation platform. Designed to deliver stable, regulated DC power to demanding industrial control architectures, the TSXPSY2600 plays a central role in reducing unnecessary energy consumption, managing load distribution, and sustaining consistent production line throughput. With a focus on power-aware automation, this module is a foundational component for factories pursuing measurable energy efficiency gains and reduced operational costs.

Sourced directly and shipped from verified inventory, every TSXPSY2600 unit undergoes pre-shipment functional testing to confirm output stability, thermal performance, and communication readiness. A 12-Month Warranty is included as standard, covering manufacturing defects and operational failures under normal industrial conditions.

In a fully integrated smart factory environment, the TSXPSY2600 does not operate in isolation — it is the regulated power backbone that enables every downstream component to perform within its optimal energy envelope. When paired with a TSXP574634M CPU running real-time process logic, the power supply ensures that scan-cycle timing remains deterministic even under variable load conditions, directly reducing the risk of energy spikes caused by CPU overrun or I/O polling delays.

On the I/O side, the TSXPSY2600 supports racks populated with TSXDEY16D2 digital input modules and TSXDSY16T2 digital output modules, both of which draw regulated 24 V DC from the internal bus. Stable bus voltage is critical here: voltage sag during high-density I/O switching events can trigger false reads or output glitches, leading to unnecessary actuator cycling and wasted energy. The TSXPSY2600's tight output regulation eliminates this risk.

For drive and motor control applications, the TSXPSY2600 integrates naturally into architectures that include Schneider Altivar ATV320 or ATV630 variable frequency drives. These drives rely on clean, stable PLC control signals — sourced ultimately from the power supply's regulated bus — to execute precise speed and torque commands. When the PLC accurately controls drive ramp profiles and stop sequences, motor energy consumption drops significantly compared to across-the-line starting methods.

Servo positioning systems using Lexium 32 servo drives and their associated motion controllers also benefit from the TSXPSY2600's stable power delivery. Servo axes require jitter-free control signals; any power instability at the PLC rack level propagates as positioning error, forcing the servo to make corrective moves that consume additional energy. A well-regulated supply eliminates this hidden energy cost.

On the communications side, the TSXPSY2600 supports racks equipped with TSXETY110 Ethernet TCP/IP communication modules and TSXPBY100 PROFIBUS DP master modules. These network interfaces connect the TSX Premium controller to SCADA systems, energy management platforms, and MES layers. Real-time energy data — motor load, drive efficiency, I/O cycle counts — flows through these communication modules to supervisory systems where load-shedding decisions and production scheduling optimizations are made. The power supply's role in keeping these modules online without interruption is therefore directly linked to the quality of energy management data available to plant operators.

Power monitoring modules such as the Schneider PowerLogic PM5350 energy meter can be integrated into the same control cabinet, providing granular kWh, kVAR, and power factor data that complements the PLC's process data. When SCADA dashboards aggregate both process and power data, maintenance teams gain the visibility needed to identify energy waste at the machine level — a capability that depends entirely on the TSXPSY2600 keeping the PLC rack operational and communicating.

Factory energy optimization is not a single-point intervention — it is a system-level discipline. The TSXPSY2600 contributes to this discipline in several measurable ways.

Reduced Idle-State Energy Draw: The TSXPSY2600's efficient AC/DC conversion means that even during low-production periods — shift changes, scheduled breaks, or demand-response events — the PLC rack consumes minimal standby power. This is particularly valuable in multi-shift operations where racks may remain energized but idle for extended periods.

Thermal Load Reduction: High-efficiency power conversion directly reduces heat dissipation within the control cabinet. Lower cabinet temperatures extend the service life of adjacent modules — CPUs, communication cards, and I/O modules — and reduce the duty cycle of cabinet cooling fans or air conditioners. In large installations with dozens of racks, this thermal benefit compounds into meaningful HVAC energy savings.

Production Line Rhythm Stability: Voltage instability at the PLC rack is one of the most underappreciated causes of production line micro-stoppages. When the power supply delivers consistent voltage under varying load conditions, the PLC's scan cycle remains stable, drive control signals remain accurate, and conveyor, robot, and press sequences execute on schedule. Eliminating micro-stoppages directly improves Overall Equipment Effectiveness (OEE) and reduces the energy wasted on restart sequences.

Predictive Maintenance Readiness: The TSXPSY2600's stable operation provides a reliable baseline for predictive maintenance programs. When power supply performance degrades — evidenced by increasing output ripple or thermal drift — condition monitoring systems connected via the PLC's communication modules can flag the anomaly before a failure occurs. Planned replacement during scheduled downtime is far less energy-intensive than emergency recovery from an unplanned outage.

In-Stock Availability & Fast Dispatch: NANKMOS maintains verified inventory of the TSXPSY2600, enabling rapid dispatch to minimize production downtime. All units are tested prior to shipment and covered by a 12-Month Warranty.

Q1: How does the TSXPSY2600 contribute to measurable energy savings on the production line?The TSXPSY2600 delivers ≥85% conversion efficiency, reducing heat dissipation and idle-state draw compared to older, less efficient power supply designs. When combined with variable frequency drives such as the Altivar ATV320 and precise PLC-based motor control, the overall system energy consumption can be reduced by 15–30% depending on the application profile. Stable bus voltage also eliminates energy-wasting micro-stoppages caused by power instability.

Q2: Is the TSXPSY2600 compatible with my existing TSX Premium rack and CPU?Yes. The TSXPSY2600 is designed for the TSX Premium rack family (TSX RKY series) and is compatible with TSXP57 and TSXP47 series CPUs. It supports racks populated with standard TSX Premium I/O modules, communication cards (including PROFIBUS DP and Ethernet TCP/IP), and motion control interfaces. If you are unsure about compatibility with a specific rack configuration, contact NANKMOS with your rack reference and we will confirm before shipment.

Q3: What is the recommended replacement procedure and how do I verify the replacement unit before installation?Power down the rack using the correct isolation procedure for your installation. Remove the TSXPSY2600 by releasing the module locking tab and sliding it from the rack slot. Insert the replacement unit, ensuring the bus connector is fully seated. Power up and verify output voltage at the rack test points (24 V DC ±5%). Confirm CPU status LEDs indicate normal operation before resuming production. All NANKMOS-supplied units are pre-tested and include a test report on request.

Q4: What does the 12-Month Warranty cover and how is a warranty claim processed?The 12-Month Warranty covers manufacturing defects and operational failures under normal industrial operating conditions (0–60 °C, correct input voltage range, no physical damage). To initiate a claim, contact NANKMOS at [email protected] with the order reference, unit serial number, and a description of the fault. NANKMOS will arrange replacement or repair within the warranty period. Units damaged by incorrect installation, overvoltage events, or environmental factors outside the specified range are not covered under the standard warranty.
