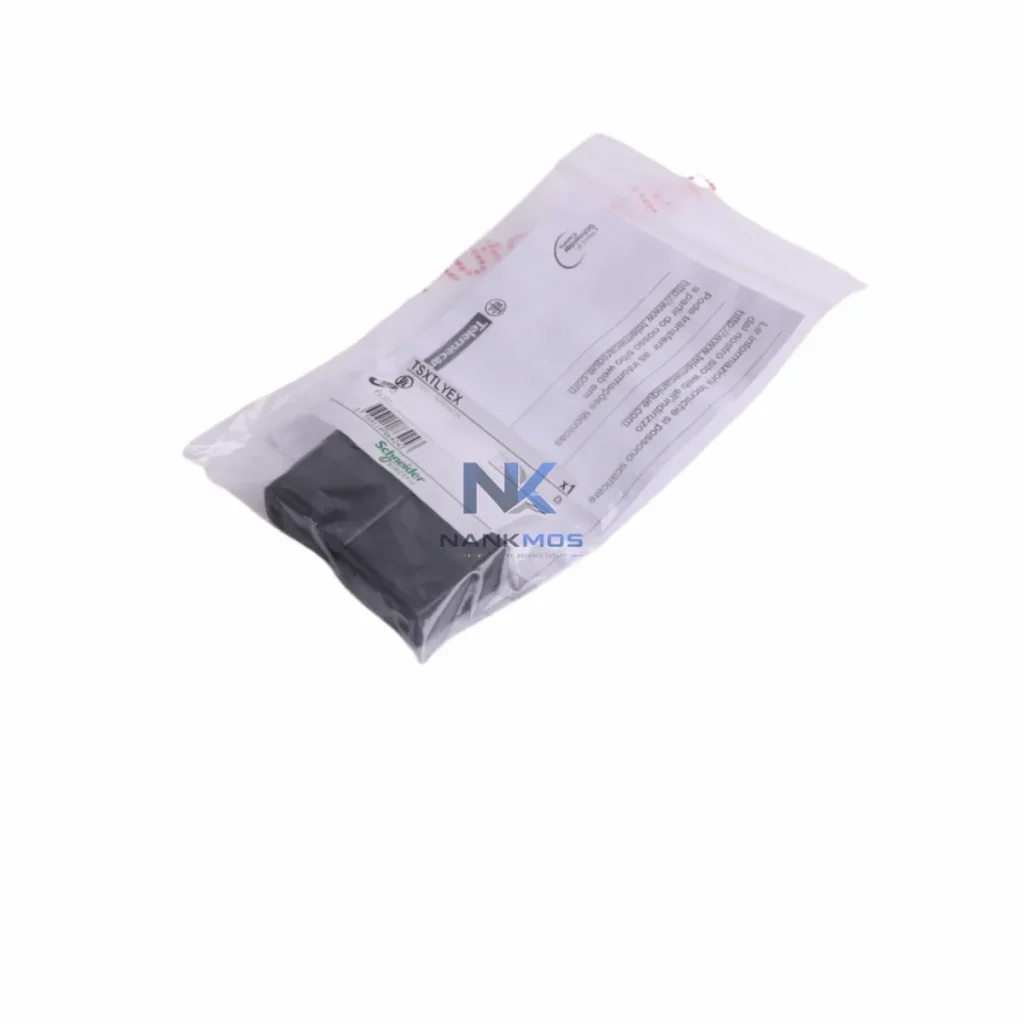

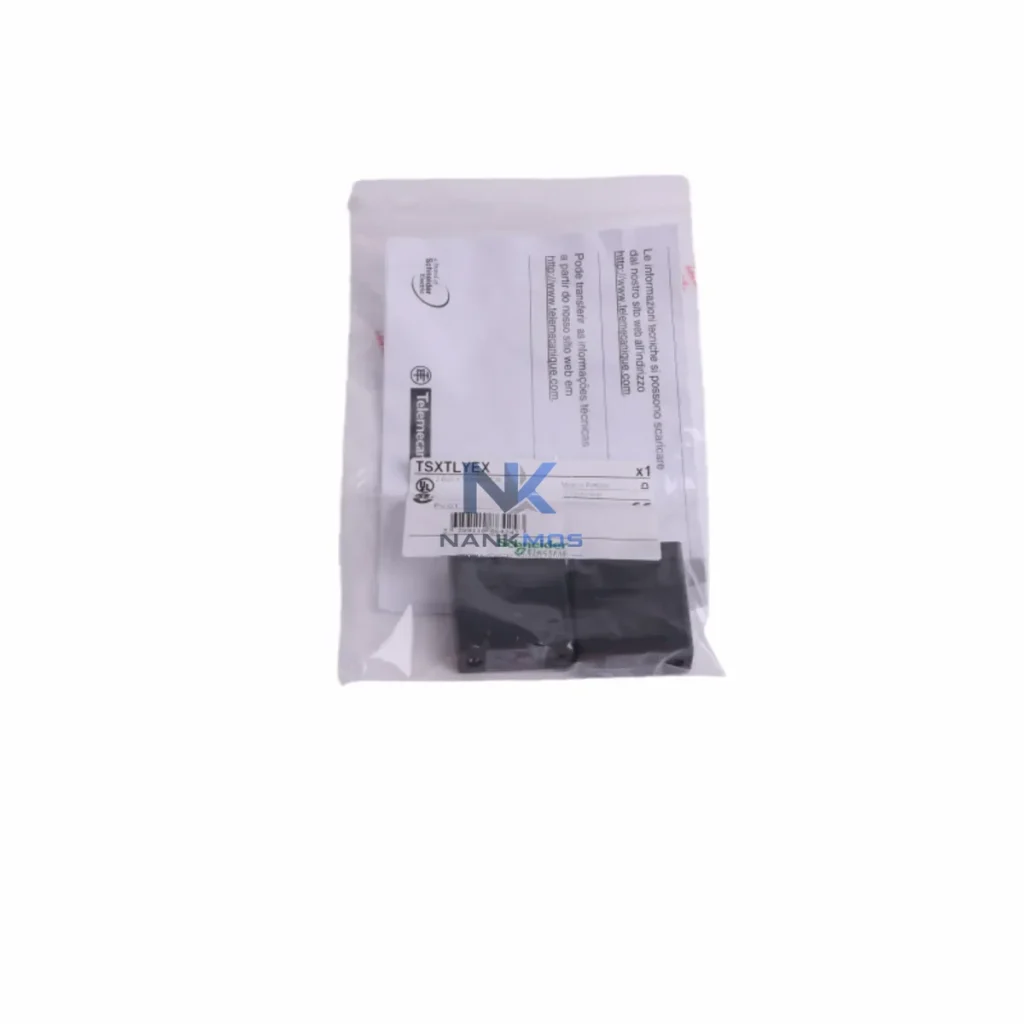

Schneider Electric TSXTLYEX Bus Terminator

Product Details

TSXTLYEX Product Description

The Schneider Electric TSXTLYEX is a dedicated bus terminator engineered for the TSX Premium programmable logic controller platform, specifically designed to terminate the X-bus backplane and ensure signal integrity across the entire control architecture. In modular PLC systems where rack expansion, distributed I/O, and multi-rack configurations are standard practice, the bus terminator plays a foundational role in preventing signal reflection, maintaining electrical impedance balance, and sustaining reliable data transmission across all connected modules. The TSXTLYEX is not a peripheral accessory — it is a structural component of the TSX Premium control system architecture, and its correct installation is a prerequisite for stable, long-term automation operation.

Deployed across manufacturing, energy, petrochemical, water treatment, mining, metallurgy, marine, and process control industries, the TSXTLYEX supports the full lifecycle of a TSX Premium-based control system — from initial rack commissioning and I/O expansion to long-term maintenance, redundancy design, and system diagnostics. Every unit ships with a 12-Month Warranty and undergoes pre-shipment functional testing to confirm bus termination performance before delivery.

The TSXTLYEX operates within the TSX Premium ecosystem as the electrical endpoint of the X-bus, and its function is inseparable from the broader control architecture. In a standard TSX Premium rack configuration, the system begins with a power supply module such as the TSXPSY2600M or TSXPSY5500M, which provides regulated 24 VDC and 5 VDC rails to all backplane-connected modules. The CPU — typically a TSXP571634M, TSXP572634M, or TSXP574634M — occupies the primary slot and manages all program execution, I/O scanning, and communication scheduling across the rack.

Digital and analog I/O modules such as the TSXDEY16D2 (16-channel 24 VDC digital input), TSXDSY16T2 (16-channel transistor digital output), and TSXAEY414 (4-channel analog input) are inserted into intermediate rack slots, each communicating with the CPU via the X-bus backplane. The TSXTLYEX is installed in the final rack slot to terminate this bus, ensuring that the electrical signal does not reflect back along the backplane — a condition that would cause data corruption, module communication errors, and unpredictable PLC behavior.

In multi-rack architectures, the TSX Premium platform uses extension racks connected via the TSXRKY12EX extension rack and TSXCBY1003 or TSXCBY0503 inter-rack cables. Each extension rack requires its own TSXTLYEX bus terminator in the last slot, making this component a recurring requirement across every rack in a distributed control cabinet. Communication modules such as the TSXETY110 (Ethernet TCP/IP) or TSXSCY21601 (serial communication) may also be installed in the rack, and the TSXTLYEX ensures that their backplane communication remains stable regardless of rack slot population density.

For HMI integration, Magelis panels connected via Uni-Telway or Modbus serial links rely on the CPU's communication ports, which in turn depend on a stable X-bus for internal data exchange. The TSXTLYEX directly supports HMI data refresh rates and alarm response times by maintaining backplane signal quality. In redundancy architectures using hot-standby CPU configurations, both primary and standby racks require correctly installed bus terminators to ensure seamless switchover without communication disruption.

Manufacturing & Discrete Automation: In automotive assembly lines, packaging machinery, and conveyor control systems, TSX Premium racks are configured with high-density digital I/O modules to manage hundreds of field signals. The TSXTLYEX ensures that all I/O modules communicate reliably with the CPU across the full rack width, supporting fast scan cycles and deterministic response times required for motion sequencing and safety interlock logic.

Power Generation & Electrical Substations: TSX Premium PLCs are widely deployed in power plant auxiliary control systems, transformer protection panels, and substation automation. In these environments, electrical noise from high-voltage switching events can induce signal interference on backplane buses. The TSXTLYEX provides the impedance termination necessary to suppress reflected signals and maintain data integrity under electrically harsh conditions.

Petrochemical & Process Industries: Continuous process control applications in refineries, chemical plants, and gas processing facilities require 24/7 system availability. TSX Premium racks in these environments are often configured with analog I/O modules for pressure, temperature, and flow measurement. The TSXTLYEX supports uninterrupted analog signal processing by maintaining stable backplane communication between the CPU and all analog modules across extended operating periods.

Water & Wastewater Treatment: Municipal water treatment facilities use TSX Premium systems for pump control, dosing automation, and SCADA integration. Multi-rack configurations with remote I/O extensions are common in large treatment plants, and each rack requires a TSXTLYEX to maintain bus integrity across the distributed control network.

Mining & Metallurgy: In ore processing, smelting, and materials handling applications, TSX Premium PLCs manage conveyor drives, crusher controls, and process monitoring. The TSXTLYEX supports reliable operation in high-vibration, high-dust environments by ensuring that backplane communication remains stable even under mechanical stress conditions.

Q1: Is the TSXTLYEX required in every TSX Premium rack, including extension racks? Yes. The TSXTLYEX must be installed in the last (rightmost) slot of every TSX Premium rack — both the main rack and all extension racks. Omitting the bus terminator in any rack will result in X-bus signal reflection, which causes module communication errors, CPU diagnostic faults, and potentially unpredictable I/O behavior. This is a mandatory installation requirement documented in the TSX Premium hardware installation guide. Each rack in a multi-rack system requires its own TSXTLYEX, so multi-rack projects should plan inventory accordingly.

Q2: Can the TSXTLYEX be used in TSX Micro or Modicon M340 racks? No. The TSXTLYEX is specifically designed for the TSX Premium X-bus backplane architecture and is not compatible with TSX Micro (which uses a different internal bus structure) or Modicon M340 (which uses an X80 backplane). Attempting to install the TSXTLYEX in non-Premium racks will result in physical incompatibility or incorrect termination. For Modicon M340 systems, the appropriate bus terminator is the BMXXBE1000 or equivalent X80 rack terminator. Always verify rack series compatibility before ordering replacement terminators for mixed-platform control cabinets.

Q3: What warranty and supply assurance does NANKMOS provide for the TSXTLYEX? Every TSXTLYEX supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes pre-delivery inspection to verify physical integrity and connector condition. NANKMOS maintains stock inventory of TSX Premium platform components to support urgent replacement requirements, planned maintenance shutdowns, and multi-unit project orders. For volume procurement, scheduled delivery, or technical compatibility verification, contact our engineering team at [email protected] or +86 18359268345.
