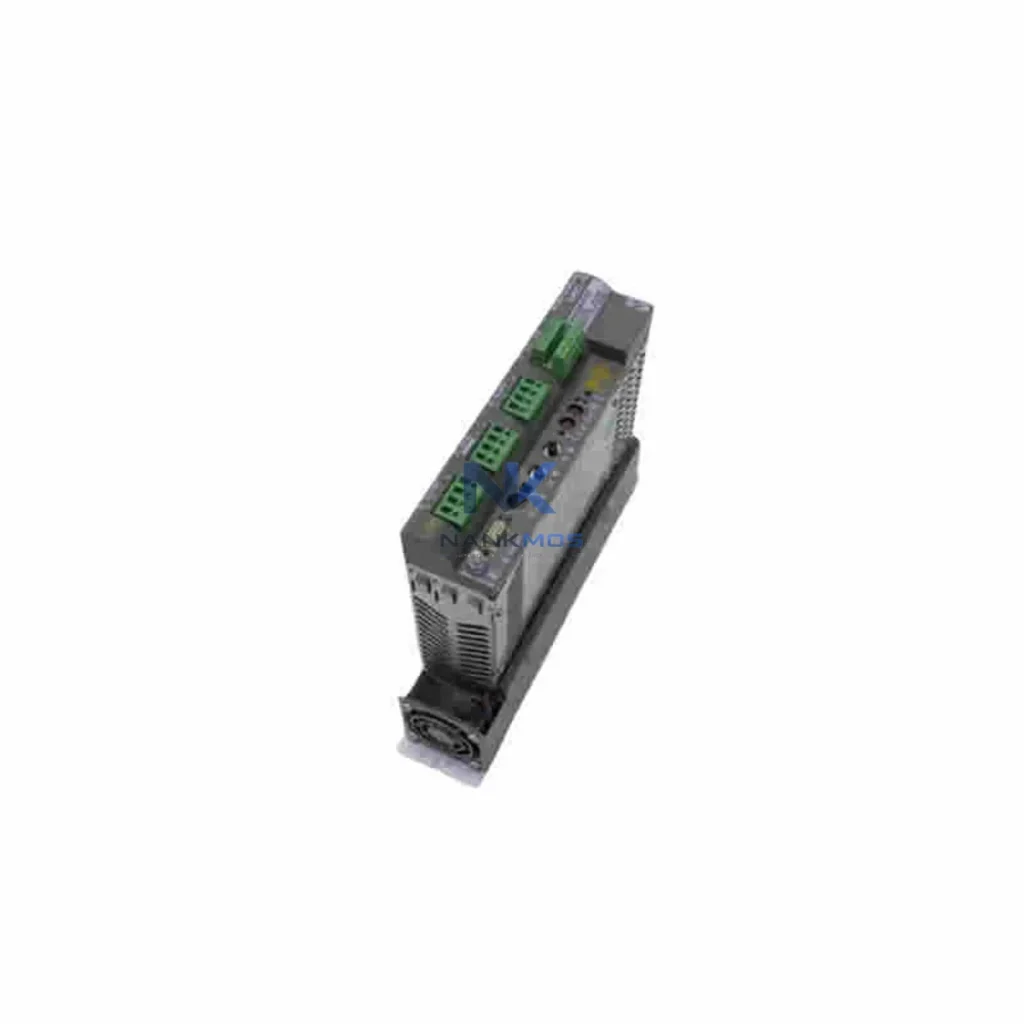

VDM01D10AA00 MC-4/11/10/400 Product Description

The Schneider Electric VDM01D10AA00 MC-4/11/10/400 is a high-performance Lexium series servo drive engineered for energy-conscious industrial automation. Designed to deliver precise torque and velocity control across demanding production environments, this drive reduces unnecessary energy draw by dynamically matching motor output to actual load requirements. Whether integrated into a standalone axis or embedded within a multi-axis coordinated motion system, the VDM01D10AA00 enables factories to cut energy waste, reduce thermal stress on equipment, and maintain consistent production throughput — all backed by a 12-month warranty and pre-shipment functional testing.

As industrial facilities face increasing pressure to reduce carbon footprint and operating costs, servo drives like the VDM01D10AA00 play a central role in load management strategy. Unlike fixed-speed motor starters, this Lexium drive continuously adjusts output frequency and voltage to match real-time mechanical demand, eliminating the energy losses associated with throttling, braking resistors, and inefficient partial-load operation. The result is measurable reduction in kWh consumption per production cycle — a critical metric for energy management systems and ISO 50001 compliance programs.

The VDM01D10AA00 is designed to operate as part of a tightly integrated automation architecture. In a typical smart production line, this Lexium servo drive receives motion commands from a Schneider Modicon M580 PLC via Sercos III or CANopen fieldbus, enabling deterministic, real-time axis coordination with sub-millisecond cycle times. The PLC's logic engine continuously evaluates production throughput targets and adjusts servo parameters accordingly, ensuring the drive never operates at unnecessary power levels during idle or low-demand phases.

For energy monitoring, the VDM01D10AA00 integrates naturally with Schneider PowerLogic PM5000 series power meters and iEM3000 energy monitoring modules, which capture per-axis energy consumption data and feed it into EcoStruxure Energy Manager or third-party SCADA platforms. This closed-loop visibility allows plant engineers to identify energy hotspots, benchmark drive efficiency across shifts, and trigger predictive maintenance alerts before thermal or mechanical degradation affects output quality.

On the motion side, the VDM01D10AA00 pairs with Schneider BSH and BMH series servo motors, which are matched to the drive's current and voltage profile for optimal efficiency across the full torque-speed curve. When deployed alongside Lexium 32 or Lexium 62 multi-axis drive modules, the VDM01D10AA00 can participate in shared DC bus configurations, allowing regenerative energy from decelerating axes to be redistributed to accelerating axes — significantly reducing net energy draw from the supply grid.

At the I/O and sensing layer, Schneider TM3 I/O expansion modules connected to the Modicon PLC provide real-time feedback from position encoders, temperature sensors, and load cells, enabling the servo system to adapt dynamically to changing production conditions. Magelis HMI panels provide operators with live drive status, energy consumption trends, and alarm management, while Advantys STB distributed I/O nodes extend control reach across large production cells without adding cable complexity. Communication with plant-level SCADA systems via OPC-UA or Modbus TCP ensures that energy data from the VDM01D10AA00 is available for enterprise-level reporting and ISO 50001 energy audits.

Deploying the Schneider VDM01D10AA00 in a production line context delivers measurable improvements across four key dimensions: energy consumption, thermal load, equipment uptime, and production throughput consistency.

Reduced Energy Consumption: By precisely matching motor torque to instantaneous load demand, the VDM01D10AA00 eliminates the energy waste inherent in fixed-speed or on/off motor control. In applications such as conveyor indexing, robotic joint actuation, and precision press control, this dynamic matching can reduce per-cycle energy consumption by 15–40% compared to conventional motor starters or older-generation drives. Over a multi-shift production schedule, these savings compound into significant reductions in electricity cost and carbon emissions.

Lower Thermal Load: Inefficient drives generate excess heat that must be managed through panel cooling systems, increasing HVAC energy consumption and accelerating component aging. The VDM01D10AA00's high switching efficiency and optimized PWM control minimize internal heat generation, reducing the thermal burden on the control cabinet and extending the service life of adjacent components including capacitors, contactors, and power supplies.

Minimized Downtime: Pre-shipment functional testing ensures that every VDM01D10AA00 unit shipped from NANKMOS inventory has been verified for correct operation before installation. Combined with the 12-month warranty, this testing protocol reduces the risk of early-life failures that cause unplanned production stoppages. The drive's built-in diagnostic registers, accessible via the Modicon PLC or a connected HMI, provide continuous health monitoring and early warning of overcurrent, overvoltage, and encoder fault conditions.

Stable Production Throughput: Servo drives maintain precise position and velocity control even under variable load conditions, ensuring that production line throughput remains consistent across shifts and product changeovers. This stability is particularly valuable in packaging, assembly, and material handling applications where timing accuracy directly affects product quality and OEE (Overall Equipment Effectiveness) scores. By maintaining tight control over axis motion profiles, the VDM01D10AA00 helps production managers achieve and sustain target cycle times without sacrificing energy efficiency.

NANKMOS maintains ready stock of the VDM01D10AA00 to support rapid deployment and emergency replacement scenarios. All units are sourced from authorized supply channels, stored under controlled conditions, and dispatched with full documentation to support installation, commissioning, and warranty registration.

Q1: What energy savings can I expect from deploying the VDM01D10AA00 on my production line? Actual savings depend on your application profile, duty cycle, and existing motor control method. In servo-controlled axes replacing fixed-speed or star-delta starters, energy reductions of 15–40% per cycle are commonly achieved through dynamic load matching and elimination of throttling losses. Integration with PowerLogic energy meters allows you to measure and verify savings in real time.

Q2: Is the VDM01D10AA00 compatible with my existing Schneider Modicon PLC and CANopen network? Yes. The VDM01D10AA00 supports CANopen and Sercos III communication protocols, making it directly compatible with Modicon M340 and M580 PLCs running SoMachine or EcoStruxure Machine Expert software. Existing motion function blocks and axis objects can be mapped to the drive without requiring significant reprogramming.

Q3: What is the pre-shipment testing process and what does the 12-month warranty cover? Every VDM01D10AA00 unit in NANKMOS inventory undergoes functional verification prior to dispatch, including power-on testing, communication interface checks, and output current validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported with replacement unit dispatch to minimize production downtime.

Q4: Can the VDM01D10AA00 replace an older Lexium or third-party servo drive in an existing installation? In most cases, yes. The VDM01D10AA00 is dimensionally and electrically compatible with other Lexium series drives and can replace aging units in existing control cabinets with minimal rewiring. For third-party drive replacements, parameter mapping and motor tuning will be required. NANKMOS recommends reviewing the drive's technical datasheet and consulting Schneider Electric's compatibility documentation before proceeding with a cross-brand substitution.
