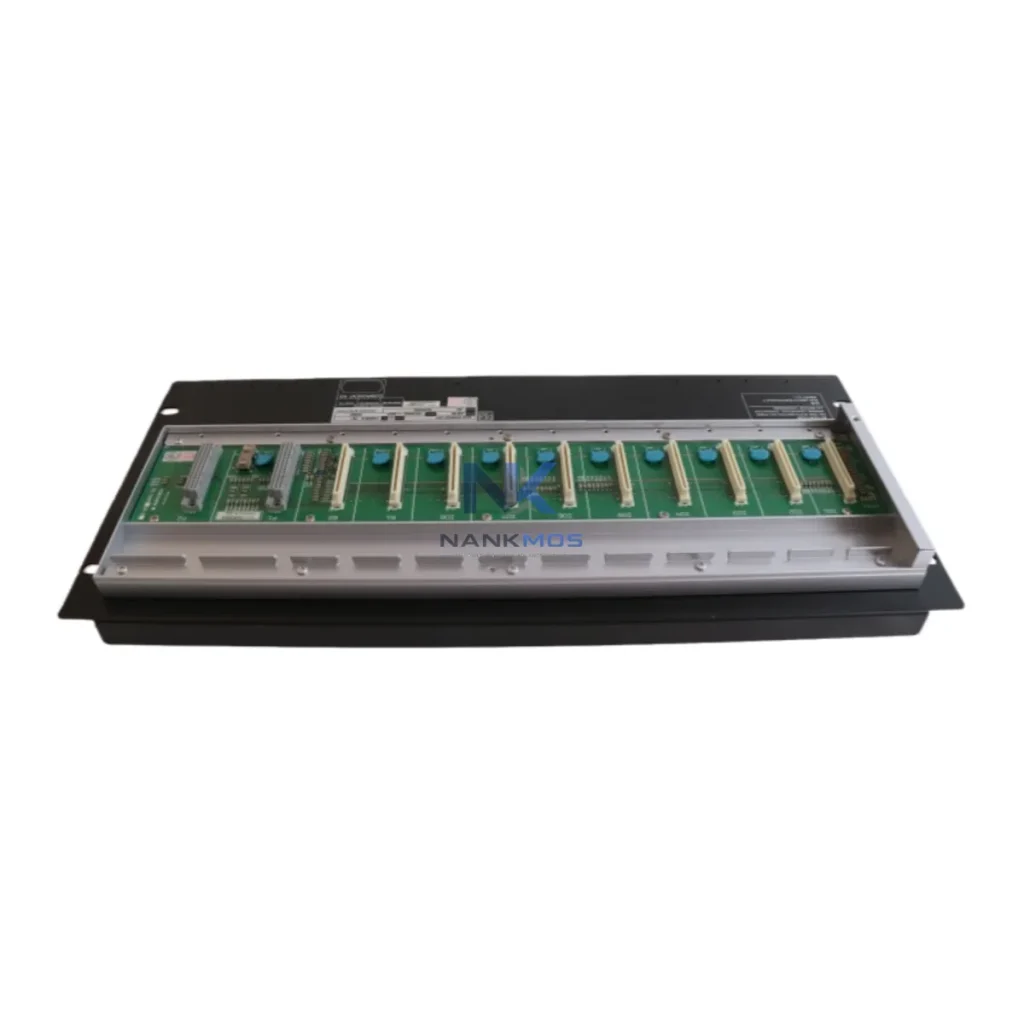

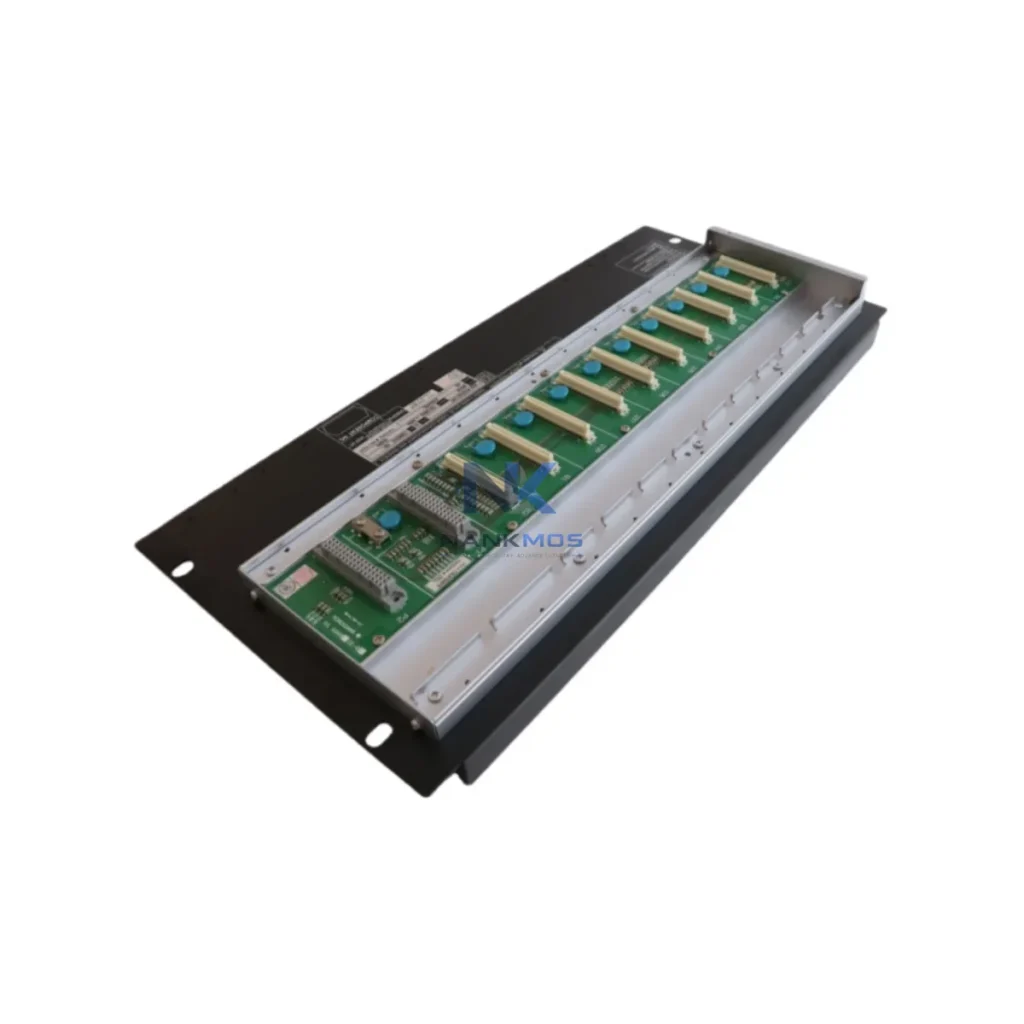

Yokogawa ANB10D-411/CU2N/NDEL DCS Node Unit

Product Details

ANB10D-411/CU2N/NDEL Product Description

The Yokogawa ANB10D-411/CU2N/NDEL is a high-performance DCS Node Unit engineered for the ProSafe-RS Safety Instrumented System, delivering seamless industrial network connectivity across the full smart factory data chain. Designed to bridge field-level instrumentation with upper-layer control and monitoring platforms, this node unit supports Modbus RTU/TCP and HART protocol communication, enabling reliable signal acquisition, protocol conversion, and real-time data transmission in demanding process automation environments.

In modern smart manufacturing facilities, the integrity of the data link between field devices and supervisory systems is mission-critical. The ANB10D-411/CU2N/NDEL serves as a robust communication backbone, connecting pressure transmitters, temperature sensors, flow meters, and other HART-enabled field instruments directly into the ProSafe-RS safety network. From there, process values are forwarded in real time to SCADA platforms, DCS controllers, and HMI workstations — ensuring operators have accurate, low-latency visibility into every critical loop.

The ANB10D-411/CU2N/NDEL sits at the heart of a layered industrial network architecture. At the field level, HART-enabled sensors — including Yokogawa EJA-series differential pressure transmitters and YTA-series temperature transmitters — communicate process variables directly through the node unit's HART multiplexing capability. These signals are digitized, validated, and forwarded upstream without signal degradation, even in electrically noisy plant environments.

Within the ProSafe-RS safety network, the ANB10D-411/CU2N/NDEL interfaces with Yokogawa SSC60S Safety Controller modules and SCP401 Safety CPU units, forming a tightly integrated safety instrumented loop. The node unit's Modbus TCP interface then bridges this safety layer to the plant-wide DCS — typically a Yokogawa CENTUM VP distributed control system — where process historians and advanced control algorithms consume the real-time data stream.

For remote I/O expansion, the ANB10D-411/CU2N/NDEL works alongside Yokogawa AMN11 Remote I/O Node Units, extending the network reach to geographically distributed field cabinets without requiring additional engineering workstations. Industrial Ethernet switches — such as managed Layer 2 switches with PROFINET or EtherNet/IP support — provide the physical network backbone, ensuring deterministic packet delivery and redundant ring topology where uptime is non-negotiable.

At the supervisory layer, SCADA platforms such as Yokogawa Exaquantum plant information management system aggregate historian data from multiple ANB10D nodes, enabling cross-plant KPI dashboards, energy monitoring, and predictive maintenance analytics. HMI panels connected via OPC-UA or Modbus TCP display live process values, alarm states, and device health indicators — giving control room operators a unified view of the entire production line.

Edge gateway devices — including Yokogawa OpreX Field Device Advisor — can be deployed alongside the ANB10D-411/CU2N/NDEL to perform local data pre-processing, anomaly detection, and secure cloud forwarding, supporting IIoT initiatives without disrupting the existing safety network architecture. Variable frequency drives (VFDs) and motor control centers connected via Modbus RTU are also integrated into the data flow, with the node unit acting as a protocol bridge between legacy serial devices and modern Ethernet-based control systems.

Many industrial facilities face persistent challenges with protocol fragmentation — legacy Modbus RTU devices on the plant floor cannot communicate natively with modern Ethernet-based SCADA or DCS platforms. The ANB10D-411/CU2N/NDEL resolves this by acting as a transparent protocol gateway, converting Modbus RTU frames to Modbus TCP packets in real time, eliminating the need for costly third-party protocol converters or custom middleware.

Data silos are another common pain point in multi-vendor automation environments. When safety systems, process control systems, and asset management platforms operate in isolation, operators lose visibility into cross-system correlations — for example, a rising valve stem friction value detected by a HART positioner may not be visible to the SCADA alarm management system. The ANB10D-411/CU2N/NDEL's multi-protocol support ensures that HART device diagnostics are surfaced alongside process values in the DCS historian, enabling condition-based maintenance workflows.

For remote monitoring and diagnostics, the node unit's Ethernet connectivity allows plant engineers to access device-level diagnostic data from any networked workstation — or via secure VPN from off-site locations. This capability is particularly valuable for unmanned or remotely operated facilities, where on-site troubleshooting is costly and time-consuming. Alarm events are timestamped at the node level, providing accurate sequence-of-events records for root cause analysis and regulatory compliance reporting.

Production line transparency is further enhanced by the node unit's ability to expose device health parameters — including loop current, sensor temperature, and communication error counts — to the SCADA historian. This data feeds into OEE (Overall Equipment Effectiveness) calculations and supports continuous improvement initiatives. As production requirements evolve, the ANB10D-411/CU2N/NDEL's modular architecture allows additional I/O nodes and communication modules to be added to the ProSafe-RS network without system downtime, providing a scalable path for future capacity expansion.

Every ANB10D-411/CU2N/NDEL unit supplied by NANKMOS undergoes pre-shipment functional testing, including communication loop verification, protocol handshake confirmation, and power-on diagnostics. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock availability for immediate dispatch.

Q1: What communication protocols does the ANB10D-411/CU2N/NDEL support, and is it compatible with third-party SCADA systems? The ANB10D-411/CU2N/NDEL supports Modbus RTU, Modbus TCP, and HART protocol natively within the ProSafe-RS architecture. Modbus TCP compatibility makes it interoperable with most major SCADA platforms — including Wonderware, Ignition, and iFIX — as well as Yokogawa's own Exaquantum and CENTUM VP systems. HART pass-through capability allows asset management software such as Yokogawa FieldMate to access device diagnostics without interrupting the process loop.

Q2: How does the node unit ensure network stability and low-latency data transmission in high-noise industrial environments? The ANB10D-411/CU2N/NDEL is designed to operate in electrically noisy plant environments, with galvanic isolation on serial interfaces and EMC-compliant Ethernet ports. The ProSafe-RS network architecture supports redundant communication paths, ensuring that a single cable or switch failure does not interrupt safety-critical data transmission. Deterministic Modbus TCP polling cycles maintain consistent scan times, typically below 100 ms for standard I/O configurations.

Q3: Can the ANB10D-411/CU2N/NDEL be integrated into an existing ProSafe-RS system without a full system shutdown? Yes. The ProSafe-RS architecture supports hot-standby redundancy and online module replacement for qualified node units. Integration of the ANB10D-411/CU2N/NDEL into an existing safety network can typically be performed during a planned maintenance window with minimal process interruption. NANKMOS recommends consulting the ProSafe-RS engineering manual and coordinating with your system integrator for site-specific installation planning.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? All ANB10D-411/CU2N/NDEL units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on self-test, Modbus communication loop verification, HART device detection confirmation, and visual inspection for physical damage. Units are packaged in anti-static ESD-safe materials and shipped with original documentation. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
