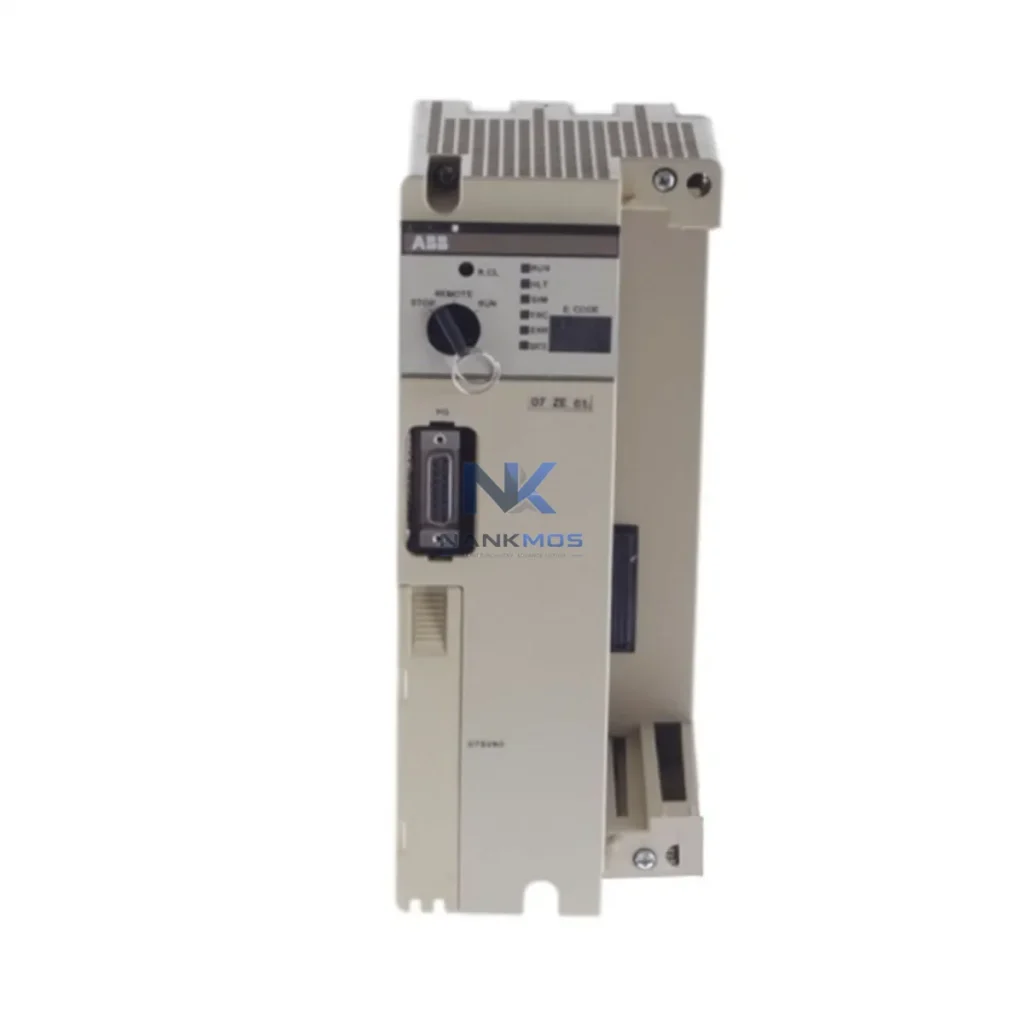

ABB 07ZE61R302 GJV3074321R302 Communication Gateway

Product Details

07ZE61R302 GJV3074321R302 Product Description

The ABB 07ZE61R302 (also referenced as GJV3074321R302) is a field-proven industrial communication gateway engineered for the AC500 PLC platform. Designed to bridge heterogeneous automation networks, this module enables seamless data exchange between field-level devices and supervisory control systems across Modbus TCP/IP, Modbus RTU, and PROFIBUS DP protocols — making it a critical link in any smart factory data architecture.

In modern industrial environments, the ability to move process data reliably from sensors and actuators up through PLCs, SCADA platforms, and MES layers is no longer optional — it is the foundation of operational transparency. The 07ZE61R302 addresses this need directly, providing deterministic, low-latency communication that supports real-time monitoring, remote diagnostics, and data-driven decision-making across the entire production chain.

Whether deployed in energy management systems, discrete manufacturing lines, or process automation facilities, this gateway integrates natively with the ABB AC500 ecosystem — including the PM573, PM583, and PM595 CPU modules — while simultaneously interfacing with third-party field devices, remote I/O stations, HMI panels, and edge computing nodes. Its dual-protocol capability eliminates the need for additional protocol converters, reducing panel footprint and simplifying network topology.

The 07ZE61R302 sits at the intersection of field-level sensing and plant-wide intelligence. In a typical smart factory deployment, field instruments — including pressure transmitters, flow meters, and temperature sensors connected via PROFIBUS DP — feed process values directly into the AC500 PLC through this gateway. The AC500 CPU (such as the PM583 or PM595) processes these inputs and forwards aggregated data upstream via Modbus TCP/IP to SCADA servers, historian databases, and MES platforms.

On the drive side, ABB ACS880 and ACS580 variable frequency drives equipped with PROFIBUS DP fieldbus adapters communicate their speed references, torque feedback, and fault status through the 07ZE61R302, enabling the control system to respond dynamically to load changes without manual intervention. This closed-loop data path is essential for energy optimization and predictive maintenance workflows.

Remote I/O expansion modules — such as ABB TU515 or TU516 terminal units paired with DC532 or AI523 I/O modules — extend the AC500's reach across large production floors. The 07ZE61R302 aggregates their signals and presents a unified data map to the SCADA layer, eliminating the need for separate communication processors at each I/O cluster.

At the HMI layer, CP600 and CP635 operator panels connect via Modbus TCP to display live process values, alarm states, and trend data sourced directly from the AC500 via this gateway. Operators gain real-time visibility into line status without requiring dedicated OPC-UA servers or middleware, reducing system complexity and potential failure points.

For edge computing and IIoT integration, the 07ZE61R302 pairs naturally with ABB Edge Gateways or third-party Linux-based edge nodes that poll Modbus TCP registers and forward structured JSON payloads to cloud analytics platforms. This architecture supports digital twin applications, OEE dashboards, and remote asset monitoring without modifying the core PLC program.

Industrial managed switches — such as those in the ABB EKS or compatible Hirschmann RS20 series — provide the Ethernet backbone that carries Modbus TCP traffic between the 07ZE61R302, SCADA servers, and edge nodes. Proper VLAN segmentation at the switch level ensures that control traffic is isolated from IT network traffic, maintaining deterministic response times even under high network load.

Protocol Fragmentation: Many brownfield sites run a mix of legacy PROFIBUS DP devices alongside newer Ethernet-based systems. The 07ZE61R302 resolves this by acting as a transparent protocol bridge — PROFIBUS DP slaves on one side, Modbus TCP masters on the other — without requiring firmware changes to existing field devices or PLC programs.

Data Silos and Production Transparency: When field data is trapped in isolated PLCs with no upstream path, production managers lose visibility into OEE, cycle times, and energy consumption. By routing all field signals through the AC500 and this gateway to a central SCADA or historian, operators gain a single source of truth for the entire production line.

Remote Monitoring and Diagnostics: Maintenance teams can access live register maps, communication diagnostics, and fault logs remotely via Modbus TCP polling — without traveling to the site. This capability is particularly valuable for multi-site operations where on-site response time is costly.

Alarm Tracking and Event Logging: The gateway's deterministic communication ensures that alarm events from PROFIBUS DP field devices are propagated to the SCADA layer with minimal latency, enabling accurate timestamping and root-cause analysis in historian systems.

System Scalability: As production lines expand, additional PROFIBUS DP slaves or Modbus RTU devices can be added to the network without replacing the gateway. The 07ZE61R302's address space and configuration flexibility accommodate growing device counts, protecting the initial infrastructure investment.

Q: What is the typical communication latency for Modbus TCP data exchange through the 07ZE61R302?A: Under normal network conditions with a managed industrial switch, Modbus TCP cycle times are typically in the range of 1–10 ms per transaction, depending on register count and network load. For time-critical applications, PROFIBUS DP cyclic communication offers deterministic sub-10 ms update rates.

Q: Is the 07ZE61R302 compatible with third-party SCADA platforms such as Ignition, WinCC, or InTouch?A: Yes. Since the module exposes a standard Modbus TCP server interface, any SCADA or HMI platform with a Modbus TCP driver — including Ignition, Siemens WinCC, Wonderware InTouch, and Aveva System Platform — can poll its registers directly without additional middleware.

Q: How is network stability maintained in high-vibration or electrically noisy industrial environments?A: The AC500 platform and the 07ZE61R302 are designed to IEC 61131-2 environmental standards, including EMC immunity testing. For additional resilience, deploying the module with shielded Ethernet cables, proper grounding, and a managed industrial switch with storm control and port security features is recommended.

Q: What does the 12-month warranty cover, and is pre-shipment testing performed?A: Every 07ZE61R302 / GJV3074321R302 unit shipped by NANKMOS undergoes functional verification prior to dispatch. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Units are shipped with original packaging where available, and our technical team provides post-sale support for integration and commissioning queries.
