1000 3BHE005774R0002 UN1000a-Z V1 Product Description

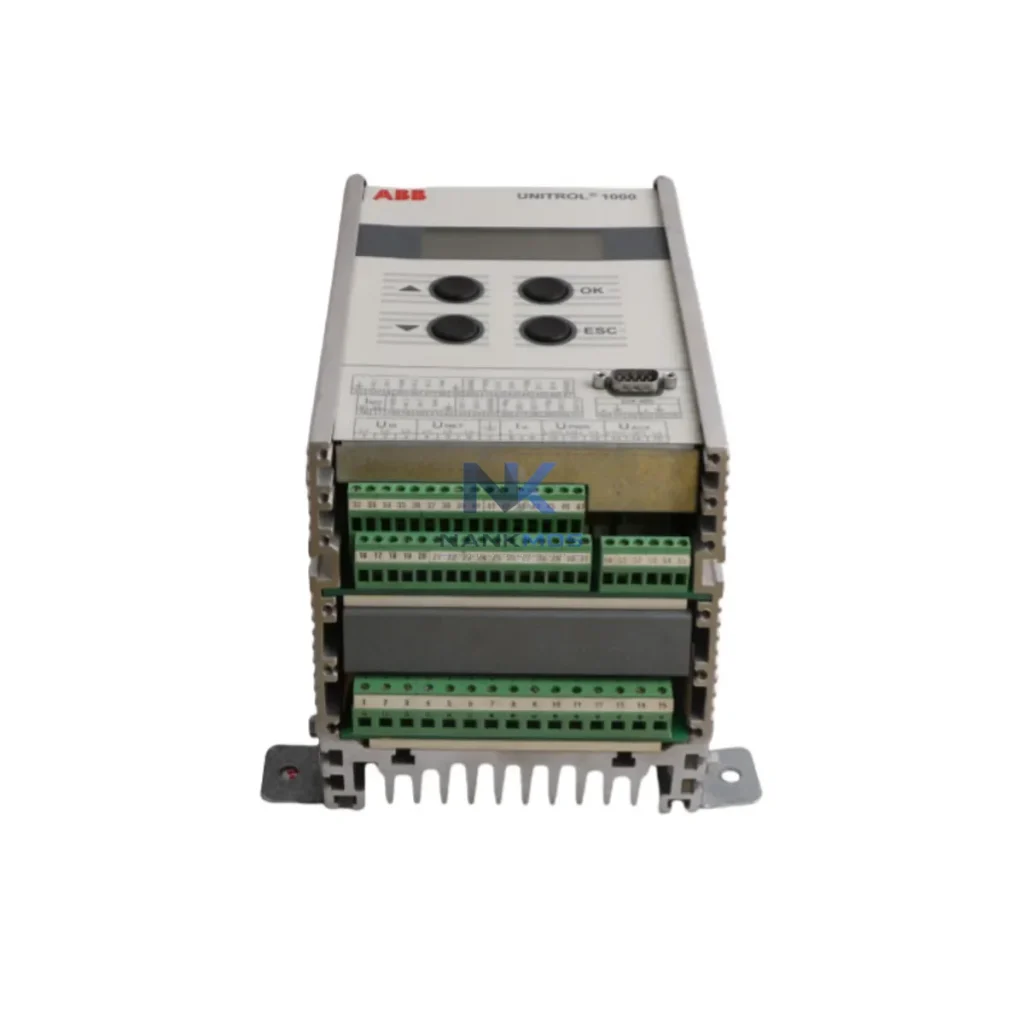

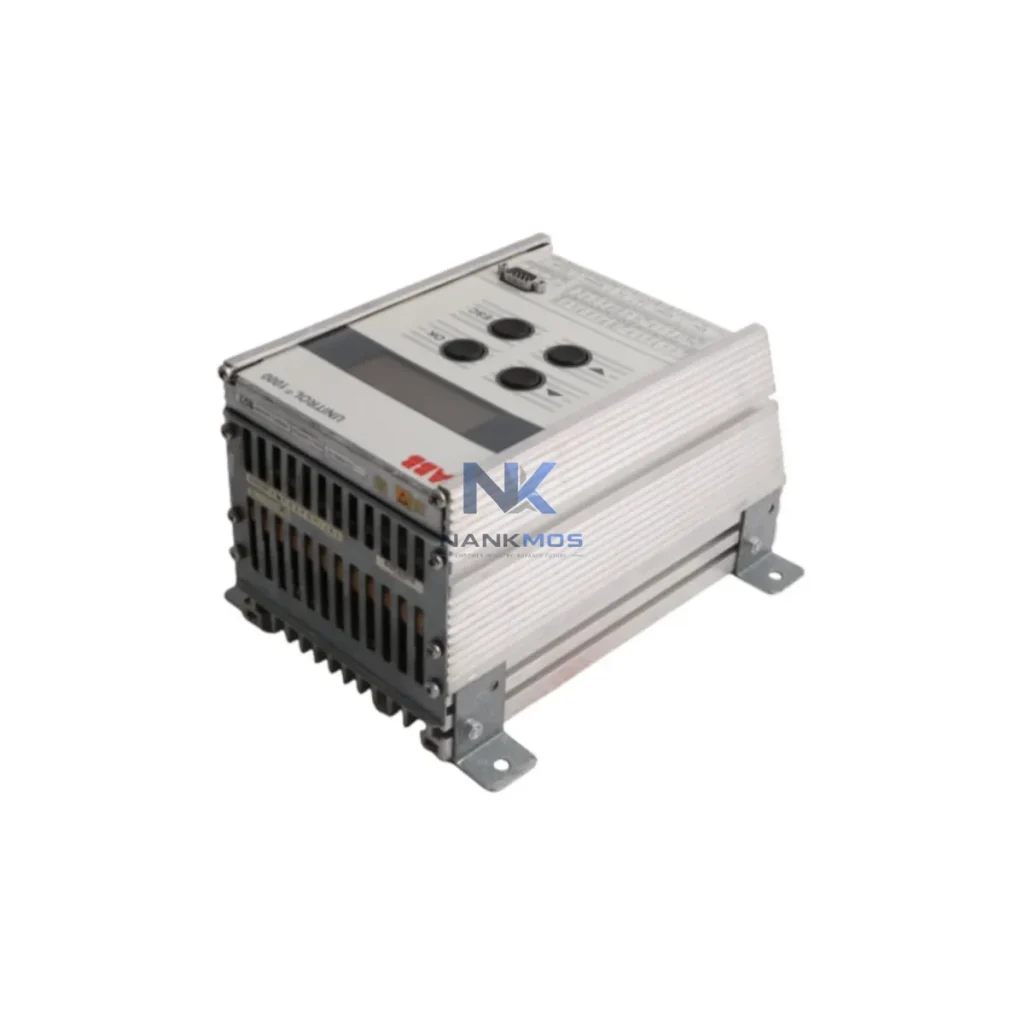

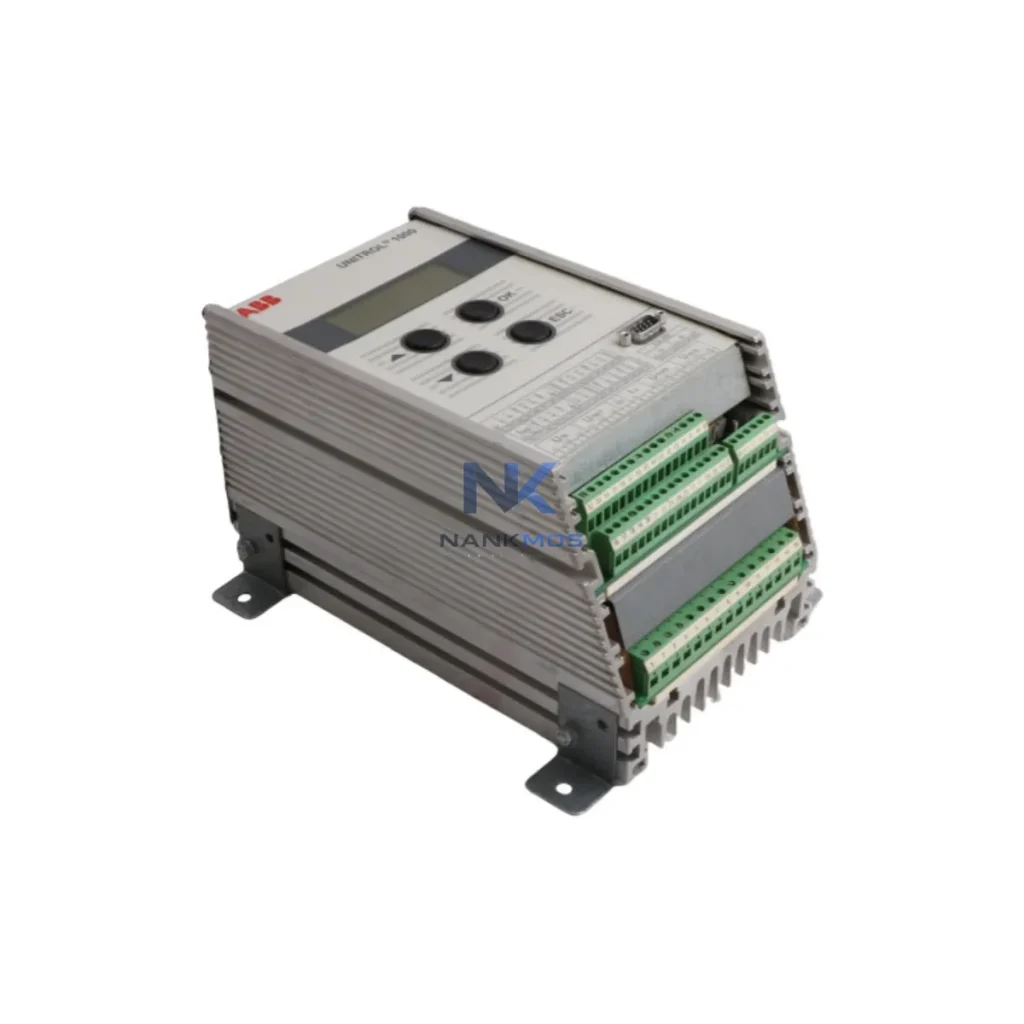

The ABB 3BHE005774R0002 is a high-performance automatic voltage regulator (AVR) from the UNITROL 1000 series, engineered for precision excitation control in synchronous generators and industrial power systems. Designed to operate at the intersection of power electronics and industrial data networks, this unit delivers real-time voltage stabilization while simultaneously serving as a critical node in the smart factory data chain — bridging field-level generator excitation signals with supervisory control, SCADA platforms, and remote diagnostic systems.

In modern industrial facilities — from power generation plants and petrochemical complexes to steel mills and water treatment stations — the AVR is no longer a standalone device. The 3BHE005774R0002 integrates natively into multi-layer automation architectures, enabling continuous data exchange between the generator excitation loop, the plant DCS, and upper-level MES or SCADA systems. Its dual-channel communication capability supports both Modbus RTU and PROFIBUS DP protocols, making it compatible with a wide range of PLCs, remote I/O modules, and industrial gateways deployed across the facility network.

The 3BHE005774R0002 sits at the heart of a layered industrial data flow. At the field level, the AVR continuously monitors generator terminal voltage and reactive power output, feeding real-time excitation setpoints back into the power loop. Simultaneously, via its Modbus RTU port over RS-485, it transmits live voltage, current, and alarm status data upstream to a Siemens S7-1500 PLC or ABB AC500 controller acting as the site automation master. The PLC aggregates this data alongside inputs from ABB ACS880 variable frequency drives controlling auxiliary motors, and from Yokogawa EJA110E differential pressure transmitters monitoring cooling water flow — creating a unified process view at the controller level.

From the PLC, data is forwarded via Industrial Ethernet (PROFINET or Modbus TCP) to an edge gateway — such as an HMS Anybus X-gateway or a Moxa MGate protocol converter — which bridges the plant floor network to the enterprise SCADA layer. At this level, operators using Wonderware InTouch or Ignition SCADA can visualize generator excitation trends, reactive power curves, and AVR fault histories on real-time dashboards. The 3BHE005774R0002's PROFIBUS DP interface also allows direct integration with ABB's own Symphony Plus DCS, enabling closed-loop excitation control commands to be issued from the control room without manual intervention at the generator panel.

For remote I/O expansion, the AVR's alarm and status outputs can be wired into a Phoenix Contact Axioline F remote I/O station or a Beckhoff EtherCAT terminal block, extending the monitoring reach to distributed generator sets across large plant footprints. HMI panels — such as the ABB CP600 or Siemens TP1200 Comfort — mounted at the generator control panel display live AVR parameters, enabling local operators to cross-reference readings against SCADA data without leaving the field. An industrial managed switch, such as the Hirschmann MACH104 or Cisco IE-3400, ensures deterministic, low-latency Ethernet communication between all these nodes, maintaining network stability even under high electromagnetic interference conditions typical of generator rooms.

At the top of the data chain, the SCADA historian archives all excitation events, voltage deviation records, and alarm logs, feeding predictive maintenance algorithms and energy efficiency reports. This complete data loop — from generator excitation signal through PLC, gateway, SCADA, and historian — is what transforms the 3BHE005774R0002 from a standalone AVR into a smart factory connectivity asset.

Many industrial sites operating legacy generators face a common set of data challenges: the AVR operates in isolation, excitation faults are only discovered after a generator trip, and there is no visibility into voltage stability trends from the control room. The ABB 3BHE005774R0002 directly addresses these gaps.

Protocol Fragmentation: Sites running mixed Modbus and PROFIBUS networks no longer need separate protocol converters for the AVR. The 3BHE005774R0002 supports both natively, reducing gateway hardware costs and eliminating protocol translation latency that can delay alarm propagation by hundreds of milliseconds.

Data Silos: By integrating the AVR into the plant Modbus TCP network, excitation data becomes available to any SCADA client or MES system on the network, breaking down the information barrier between the power generation team and the plant operations team.

Remote Monitoring Gaps: With Modbus TCP connectivity, remote engineers can poll the 3BHE005774R0002 from any network-connected workstation, enabling off-site diagnostics without dispatching field technicians — critical for unmanned substations or remote power stations.

Production Line Transparency: Voltage instability events logged by the AVR can be correlated with production quality data in the MES, helping engineers identify whether generator excitation fluctuations are contributing to product defects or process deviations on sensitive manufacturing lines.

Alarm Tracking and Escalation: The AVR's digital alarm outputs, when mapped into the SCADA alarm management system, enable automatic escalation workflows — sending SMS or email notifications to on-call engineers when excitation faults exceed defined thresholds, reducing mean time to response (MTTR).

System Scalability: As plant capacity expands, additional UNITROL 1000 units can be added to the Modbus network with minimal reconfiguration, supporting multi-generator parallel operation monitoring from a single SCADA node.

Q1: What is the communication latency of the 3BHE005774R0002 over Modbus RTU?A: Under standard RS-485 Modbus RTU configuration at 19200 baud, the AVR responds to polling requests within 5–20 ms, well within the requirements of most SCADA scan cycles (typically 500 ms–2 s). For time-critical applications, Modbus TCP over Ethernet reduces latency further to sub-5 ms.

Q2: Is the 3BHE005774R0002 compatible with third-party SCADA and DCS platforms?A: Yes. Because it uses standard Modbus RTU and PROFIBUS DP protocols, the unit integrates with any SCADA or DCS platform that supports these protocols — including Siemens WinCC, Wonderware, Ignition, ABB Symphony Plus, Yokogawa CENTUM VP, and Honeywell Experion PKS — without requiring proprietary drivers.

Q3: How is network stability maintained in high-EMI generator environments?A: The RS-485 physical layer used for Modbus RTU provides inherent common-mode noise rejection, and the unit's shielded cable recommendations and termination resistor guidelines ensure signal integrity in electrically noisy generator rooms. For Ethernet connectivity, fiber optic media converters can be used to eliminate ground loop interference entirely.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?A: Every ABB 3BHE005774R0002 unit supplied by NANKMOS undergoes pre-shipment functional testing covering excitation output, communication port integrity (Modbus RTU and PROFIBUS DP), alarm relay operation, and power supply verification. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with direct technical support available from our engineering team.
