ABB 1N2140 3HAC024775-001 SMB 3HAC044168-001

Product Details

1N2140 3HAC024775-001 SMB 3HAC044168-001 Product Description

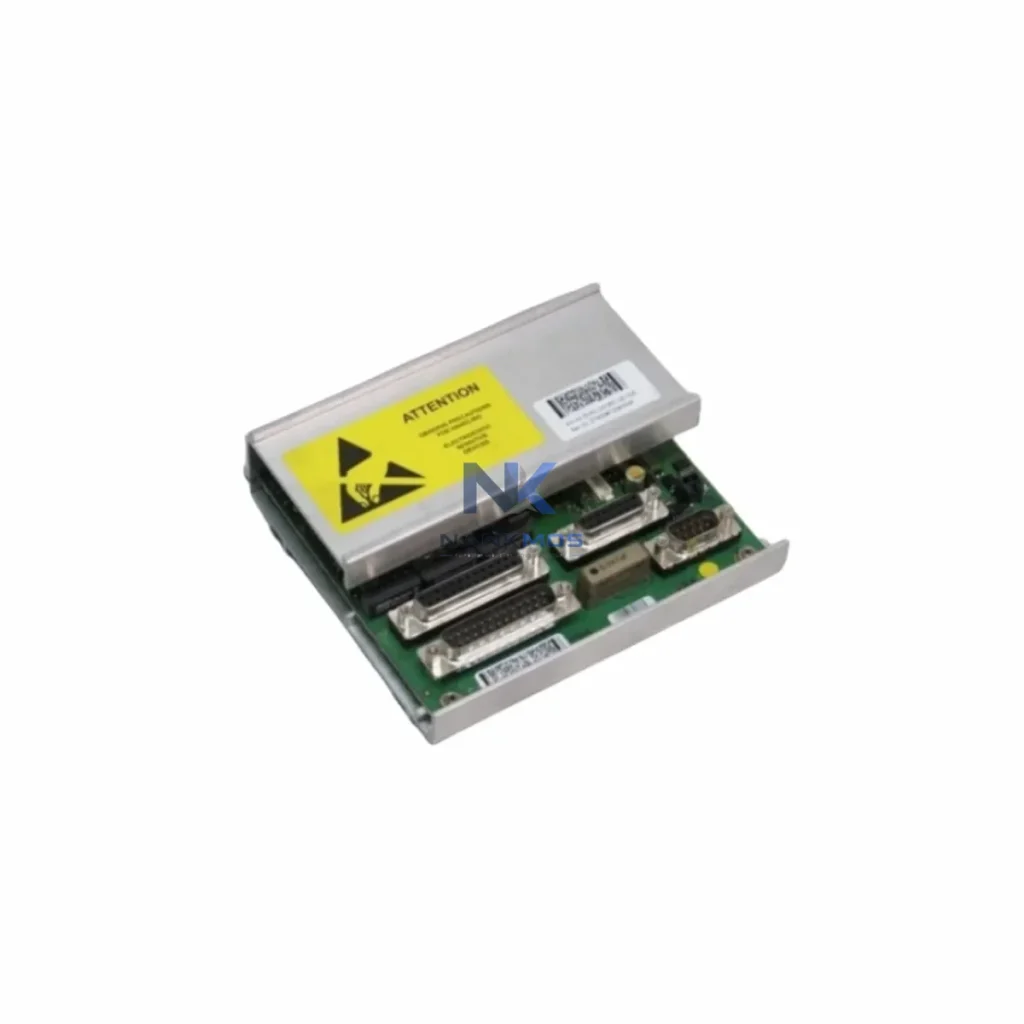

The ABB 3HAC024775-001 Serial Measurement Board (SMB) is a precision energy-control component engineered for ABB IRC5 robot controllers. Designed to deliver accurate resolver signal acquisition and real-time axis position feedback, this board plays a critical role in reducing unnecessary drive cycles, minimizing thermal load, and enabling intelligent energy management across automated production lines. Whether deployed in automotive body welding, semiconductor handling, or petrochemical process automation, the 3HAC024775-001 SMB ensures that every servo axis operates within its optimal energy envelope — eliminating wasted motion, reducing heat dissipation, and extending the service life of connected drive hardware.

At NANKMOS, every 3HAC024775-001 unit is sourced from verified industrial channels, subjected to full functional testing under load conditions, and shipped with a 12-month warranty. Ready stock is maintained to support urgent MRO requirements and planned maintenance windows without extended lead times.

The ABB 3HAC024775-001 SMB sits at the intersection of motion control and energy intelligence. In a fully integrated IRC5 robot cell, the SMB communicates resolver position data to the ABB DSQC663 drive unit and the DSQC609 power supply module, enabling the drive system to apply only the torque required for each motion segment — no more, no less. This precision directly reduces reactive power draw and lowers the thermal burden on the drive cabinet.

When paired with the ABB DSQC679 FlexPendant and the IRC5 main computer (DSQC639), the SMB's real-time axis data feeds into RobotWare's motion optimization algorithms, allowing the controller to smooth velocity profiles and reduce peak current demand during acceleration phases. This is particularly valuable in high-cycle applications such as spot welding or pick-and-place, where repeated acceleration and deceleration events account for a significant share of total energy consumption.

For facilities running energy monitoring infrastructure, the SMB's stable feedback loop integrates cleanly with power monitoring modules connected via PROFINET or DeviceNet to a plant-level SCADA system. Operators can correlate axis-level resolver data with energy consumption trends, identifying axes that are drawing excess current due to mechanical wear or misalignment — enabling predictive maintenance before a fault causes unplanned downtime.

In multi-robot lines, the 3HAC024775-001 SMB also supports coordination with ABB AC500 PLCs managing line sequencing. Accurate position feedback from each robot axis allows the PLC to optimize inter-robot handoff timing, reducing idle dwell time and improving overall line throughput without increasing energy input. The ABB ACS880 variable frequency drive controlling conveyor or positioner axes can similarly benefit from synchronized position data, adjusting conveyor speed to match robot cycle time and eliminating unnecessary motor run-on.

I/O expansion modules such as the ABB DSQC652 digital I/O board complement the SMB by providing discrete feedback signals — tool presence, fixture clamp status, safety gate interlocks — that allow the IRC5 controller to suppress unnecessary axis movements when the cell is in a hold state, further reducing idle energy consumption.

Industrial production lines face a persistent challenge: energy is consumed not just during productive motion, but during idle cycles, error recovery, and unplanned stops. The ABB 3HAC024775-001 Serial Measurement Board addresses this at the hardware level by ensuring that the IRC5 controller always has accurate, low-latency resolver data for every axis. When position data is reliable, the controller does not need to execute redundant homing sequences after power interruptions, does not over-command torque to compensate for position uncertainty, and can execute smooth, energy-efficient motion profiles on every cycle.

In facilities where robot uptime directly determines line throughput — automotive body shops, electronics assembly, or pharmaceutical packaging — an SMB failure typically results in a full robot stop and a manual homing procedure that can take 15–30 minutes per incident. By maintaining a verified spare 3HAC024775-001 in the MRO inventory, maintenance teams can execute a board swap in under 30 minutes, restoring full production without waiting for a new part to arrive. NANKMOS maintains ready stock of the 3HAC024775-001 and its functional replacement, the 3HAC044168-001, to support exactly this scenario.

From an energy management perspective, a correctly functioning SMB contributes to lower average cycle energy by enabling the IRC5 to execute motion with minimal correction overhead. Over a 24-hour production shift, the cumulative effect of reduced correction torque, fewer homing cycles, and optimized velocity profiles can represent a measurable reduction in robot cell energy consumption — particularly in high-cycle, multi-shift operations. Combined with drive-level energy recovery features available in the ABB IRC5 drive system, the SMB helps ensure that the mechanical energy of deceleration is captured and returned to the DC bus rather than dissipated as heat.

Predictive maintenance programs benefit directly from SMB health monitoring. Degraded resolver signal quality — often the first sign of SMB aging — can be detected through RobotWare diagnostic logs before it causes a production fault. Integrating these logs into a plant SCADA or MES system allows maintenance planners to schedule SMB replacement during planned downtime windows, avoiding the energy and productivity cost of unplanned stops.

Q1: How does the 3HAC024775-001 SMB contribute to energy savings in an IRC5 robot cell? The SMB provides accurate resolver-based position feedback to the IRC5 drive system, enabling the controller to apply precise torque commands without over-correction. This reduces reactive power draw, lowers thermal load on the drive cabinet, and eliminates energy-wasting redundant homing cycles — resulting in measurable efficiency gains over high-cycle production shifts.

Q2: Is the 3HAC024775-001 compatible with all IRC5 controller variants, and can it replace the 3HAC044168-001? The 3HAC024775-001 is designed for ABB IRC5 Single and Dual Cabinet controllers running RobotWare 5.x and 6.x. The 3HAC044168-001 is the updated replacement SKU and is functionally interchangeable in most IRC5 configurations. We recommend confirming your controller revision and RobotWare version before substitution. NANKMOS technical support can assist with compatibility verification prior to order.

Q3: What testing is performed on the 3HAC024775-001 before shipment, and what does the warranty cover? Every unit undergoes full functional testing under operational load conditions, including resolver signal integrity verification and communication interface checks. The 12-month warranty covers component defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded — no hidden conditions.

Q4: How quickly can NANKMOS supply the 3HAC024775-001 for urgent MRO or line-down situations? NANKMOS maintains ready stock of the 3HAC024775-001 and the 3HAC044168-001 replacement. Orders placed for in-stock units are processed and dispatched within 1–2 business days. For urgent line-down situations, contact us directly at [email protected] or +86 18359268345 to arrange expedited handling.
